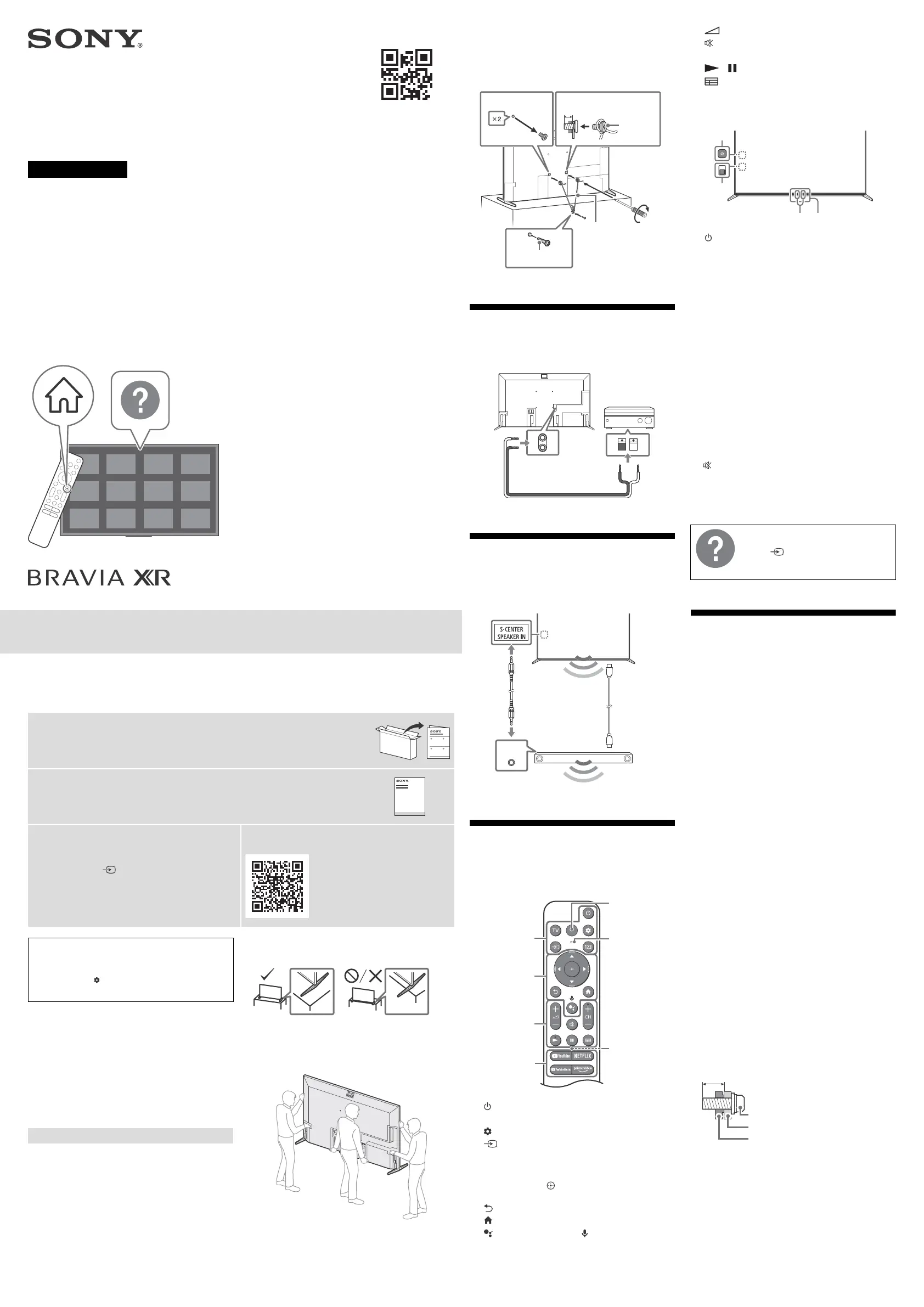

This TV comes with the following manuals. Please retain the manuals for future reference.

Note

• Before operating the TV, please read the “Safety Information”.

• Read the supplied safety documentation for additional safety

information.

• Instructions about “Installing the TV to the Wall” are included within this

TV’s instruction manual.

• Images and illustrations used in the Setup Guide and this manual are for

reference only and may differ from the actual product.

• Setting menus are subject to change without notice due to software

updates.

For latest information, visit Sony support website.

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on the

rear of the TV. They can be found by removing the terminal cover.

Installation/Set-up

Install and use the TV set in accordance with the instructions below in

order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible AC power outlet

(mains socket).

• Place the TV set on a stable, level surface to prevent it from falling over

and causing personal injury or property damage.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Install the TV so that the TV’s Table-Top Stand does not protrude out

from the TV stand (not supplied). If the Table-Top Stand protrudes out

from the TV stand, it may cause TV set to topple over, fall down, and

cause personal injury or damage to the TV.

Transporting

• Before transporting the TV set, disconnect all cables.

• Before transporting the TV set, remove the terminal covers.

• Three or more persons are needed to transport a large TV set.

• When transporting the TV set by hand, hold it as shown below. Do not

put stress on the panel and the frame around the screen.

• When transporting the TV set, do not subject it to jolts or excessive

vibration.

• When transporting the TV set for repairs or when moving, pack it using

the original carton and packing material.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

• Safety information, remote control, troubleshooting, wall-mount installation,

specification, etc.

Help Guide (On screen Manual)

• Settings, functions, Internet connection,

troubleshooting, etc.

• To open it, press (Input select) on the remote

control and select [Help]. If [Help] does not exist,

select [Edit] and add [Help].

• You can refer to the Help Guide with your

smartphone.

https://rd1.sony.net/help/tv/

jga1/h_ga/

IMPORTANT – Read the End User Software Licence Agreement

before using your Sony product. Using your product indicates your

acceptance of the End User Software Licence Agreement. The software

licence agreement between you and Sony is available online at Sony

website (https://www.sony.net/tv-software-licenses/) or on your

product screen. Press (Quick Settings) on the remote control and

select [Settings]  [System]  [About]  [Legal information] 

[Notices and licences].

Safety Information

Topple prevention

(Models with supplied support belt kit)

Refer to the Setup Guide on top of the cushion.

The supplied wood screw is only for affixing to a solid object made of

wood.

(Except models with supplied support belt kit)

Using TV as Centre Speaker

Note

• Before connecting cables, disconnect the AC power cord

(mains lead) of both TV and AV receiver.

Using TV as Part of Audio System

Note

• Before connecting cables, disconnect the AC power cord

(mains lead) of both TV and AV receiver.

• Refer to the instruction manual of the Audio system with

S-CENTER OUT terminal for detail.

Remote Control and TV

The remote control shape, layout, availability and

function of remote control buttons may vary

depending on your region/country/TV model/TV

settings*

 (Power)

TV:

Display TV channel list or switch to input.

(Quick settings): Display Quick Settings.

(Input select): Display and select the input

source, etc.

123 (Control menu): Display the Control menu.

  /  /  /  / : On screen menu navigation

and selection.

(Back)

(Home)

(Google Assistant) / (Microphone):

Use

Google Assistant*

or voice search*

 + / – (Volume)

(Mute)*

CH + / – (Channel)

(Guide):

Display the digital programme guide

of TV or TV box*

 App buttons*

 (Power): (It can be found by removing the side

cover)



BUILT-IN MIC SWITCH: Turn on/off the built-in

MIC. (It can be found by removing the side cover)



Built-in MIC*

: To enable the built-in MIC,

press the Google Assistant/microphone button on

the remote control and follow the on-screen

instructions.

 Remote Control sensor / Ambient light

sensor / LED

*1 For other remote control models, refer to the online Help

Guide for details.

*2 The remote control backlight will illuminate when the light

sensor detects the ambient light is low. Automatic

illumination of the backlight can be turned off.

*3 The buzzer will emit a sound when you use the remote

finder function. Refer to the online Help Guide for details.

*4 Only for limited region/country/model/language.

*5 Google Assistant or voice search requires an Internet

connection.

*6 Accessibility shortcut is available by pressing and holding

(Mute).

*7 [TV box setup] setting is required.

*8 Installation of the NETFLIX app may be required depending

on your region/country.

*9 Power consumption will increase when the built-in MIC is

enabled as it is always listening.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL450)*

(not supplied)

To Customers:

For product protection and safety reasons, Sony

strongly recommends that installation of your TV be

performed by Sony dealers or licensed contractors. Do

not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation,

periodic maintenance and examination of this

product.

Wall-Mount Bracket Installation Information

For instructions on Wall-Mount Bracket installation,

see the Installation Information (Wall-Mount Bracket)

on the product page for your TV model.

https://www.sony-asia.com/support

• Follow the instruction guide provided with the Wall-

Mount Bracket for your model. Sufficient expertise is

required in installing this TV, especially to determine

the strength of the wall for withstanding the TV’s

weight.

• Sony is not liable for any damage or injury caused by

mishandling or improper installation.

• Only qualified service personnel should carry out

wall-mount installations.

• For safety reasons, it is strongly recommended that

you use Sony accessories, including:

—Wall-Mount Bracket SU-WL450

• Be sure to use the screws supplied with the Wall-

Mount Bracket when attaching the Wall-Mount

Bracket to the TV set. The supplied screws are

designed as indicated by illustration when measured

from the attaching surface of the Wall-Mount

Bracket.

The diameter and length of the screws differ

depending on the Wall-Mount Bracket model.

Use of screws other than those supplied may result

in internal damage to the TV set or cause it to fall,

etc.

• Be sure to store the unused screws and Table-Top

Stand in a safe place until you are ready to attach the

Table-Top Stand. Keep the screws away from small

children.

* Only for limited region/country/model.

10 mm – 12 mm

M6 screw

(not

supplied)

Screw

(not supplied)

Cord

(not supplied)

1.5 N·m

{15 kgf·cm}

AV Receiver

Speaker cable

S-CENTER

OUT

TV centre

speaker

mode

cable

HDMI

(eARC/ARC)

connection

Light sensor*

MIC

Buzzer*

For more information, refer to the Help

Guide.

Press (Input select) on the remote

control and select [Help]. If [Help] does

not exist, select [Edit] and add [Help].







Screw (M6)

Wall-Mount Bracket

10 mm - 12 mm

TV’s rear cover

Television

5-040-296-11(1)

XR-85Z9K

Reference Guide

Using the Camera and Microphone

Unit (supplied)

A software update may be required to use the Camera

and Microphone Unit. For the latest information about

software updates for your TV, visit:

https://www.sony-asia.com/support

Troubleshooting

General troubleshooting for issues like: black screen,

no sound, frozen picture, TV does not respond, or

network is lost, do the following steps.

1 Restart your TV by pressing the power button on

the remote control for about five seconds. The TV

will restart. If the TV does not recover, try

unplugging the AC power cord (mains lead) then

press the power button on the TV and release it.

Wait for two minutes, and plug in the AC power

cord (mains lead).

Or, press the power button on the TV for about

40 seconds until the TV turns off.

2 Refer to the Help menu shown below.

3 Connect your TV to the Internet and perform a

software update. Sony recommends you to keep

your TV software updated. Software updates

provide new features and performance

improvements.

4 Visit Sony support website (information provided at

the end of this manual).

When you plug in the TV, the TV may not be able to

turn on for a while even if you press the power

button on the remote control or the TV.

It takes time to initialize the system. Wait for about one

minute, then operate it again.

The remote control does not function.

• Replace the batteries.

The parental lock password has been forgotten.

• Enter 9999 for the PIN and enter the new PIN.

Specifications

System

Panel system: LCD (Liquid Crystal Display) Panel, LED

Backlight

TV system: Depend on your country/area selection/

TV model

Analogue: B/G, I, D/K, M

Digital: DVB-T/DVB-T2

Colour system: PAL/SECAM/NTSC3.58/NTSC4.43

Channel coverage: Depend on your country/area

selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF

Sound output: 12.5 W + 12.5 W + 20 W + 20 W + 5 W +

5 W + 5 W + 5 W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

VIDEO IN / S-CENTER SPEAKER IN

Video/Audio input (mini jack)

S-centre speaker input (mini jack)

HDMI IN 1/2/3/4 (HDCP 2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz)*

, 4096 × 2160p

(24 Hz)*

, 3840 × 2160p (50, 60 Hz)*

, 3840 × 2160p

(24, 25, 30 Hz), 1080p (30, 50, 60, 100, 120 Hz),

1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz),

720/24p, 576p, 480p, PC Formats*

7680 × 4320p (24, 25, 30, 50, 60 Hz)*

3840 × 2160p (100, 120 Hz)*

Audio:

In eARC (Enhanced Audio Return Channel) mode

Refer to the online Help Guide for details.

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/96/

176.4/192 kHz 16/20/24 bits, Dolby Audio, Dolby

Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/Audio

Return Channel) (HDMI IN 3 only)*

In eARC mode

Refer to the online Help Guide for details.

In ARC mode

Two channel linear PCM: 48 kHz 16 bits, Dolby

Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz

16 bits, Dolby Audio, DTS)

(Stereo mini jack)

Headphone

1, 2

USB port 1 supports High Speed USB (USB 2.0)

USB port 2 supports Super Speed USB (USB 3.2

Gen 1)

LAN

10BASE-T/100BASE-TX connector (Depending on the

operating environment of the network, connection

speed may differ. The communication rate and

quality are not guaranteed.)

CENTER SPEAKER IN

Centre speaker input (Binding post)

Camera and Microphone Unit

Camera and Microphone Unit terminal

Power and others

Power requirements

110 V - 240 V AC, 50/60 Hz

Energy Efficiency Class*

(For Egypt only)

Screen size (measured diagonally) (Approx.)

85 inches / 214.8 cm

Power consumption

Indicated on the rear of the TV

Power consumption*

In [Standard] mode

(For Egypt only)

314.8 W

Annual energy consumption*

(For Egypt only)*

874 kWh per year

Standby power consumption*

Jordan/UAE/Egypt: 0.50 W, Others: 0.5 W

Display resolution (horizontal × vertical) (pixels)

7680 × 4320

Output rating

500 mA (for USB 1), 900 mA (for USB 2)

Dimensions (Approx.) (w × h × d) (mm)

with Table-Top Stand (with camera)

Standard position: 1896 × 1123 × 460

Narrow position: 1896 × 1142 × 460

Soundbar position: 1896 × 1197 × 460

without Table-Top Stand (with camera)

1896 × 1112 × 76

Stand width (Approx.) (mm)

Standard position: 1895

Narrow position: 766

Soundbar position: 1895

Mass (Approx.) (kg)

with Table-Top Stand (with camera)

60.1

without Table-Top Stand (without camera)

58.4

Others

Optional accessories

Wall-Mount Bracket: SU-WL450

Operating temperature: 0 ºC – 40 ºC

*1 When 4096 × 2160p is input and [Wide mode] is set to

[Normal], the resolution is displayed as 3840 × 2160p. To

display 4096 × 2160p, set [Wide mode] setting to [Full 1] or

[Full 2].

*2 Refer to the on screen menu to set [HDMI signal format].

*3 Refer to the online Help Guide for details.

*4 Use the Ultra High Speed HDMI Cable to connect.

*5 HDMI IN 4 only. Connect 8K supported HDMI devices to

HDMI IN 4. HDMI IN 4 has complex signal processing and

takes additional time to get video (depend on source).

*6 HDMI IN 2/3/4 only.

*7 Connect your audio system to the HDMI IN 3 to route TV

audio to your audio system.

*8 This information is for EU and other countries whose

relevant regulation is based on EU energy labelling

regulation.

*9 Energy consumption in kWh per year, based on the power

consumption of the television operating 8 hours per day

for 365 days. The actual energy consumption will depend

on how the television is used.

*10 Specified standby power is reached after the TV finishes

necessary internal processes.

*11 Standby power consumption will increase when your TV is

connected to the network.

Note

• Optional accessories availability depends on countries/

region/TV model/stock.

• Design and specifications are subject to change without

notice.

• Subscriptions for services and applications may be required

and additional terms, conditions and/or charges may apply

when using Google Assistant.

Notes on Digital TV function

• Any functions related to Digital TV ( ) will only

work in countries or areas where DVB-T/DVB-T2

(MPEG-2 and H.264/MPEG-4 AVC) digital terrestrial

signals are broadcast. Please confirm with your local

dealer if you can receive a DVB-T/DVB-T2 signal

where you live.

• This TV set complies with DVB-T/DVB-T2

specifications, but compatibility with future DVB-T/

DVB-T2 digital terrestrial broadcasts are not

guaranteed.

• Some Digital TV functions may not be available in

some countries/areas.

Trademark Information

• The terms HDMI, HDMI High-Definition Multimedia

Interface, and the HDMI Logo are trademarks or

registered trademarks of HDMI Licensing

Administrator, Inc.

• Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and

the double-D symbol are trademarks of Dolby

Laboratories Licensing Corporation. Manufactured

under license from Dolby Laboratories. Confidential

• Gracenote, the Gracenote logo and logotype,

“Powered by Gracenote” logo are either registered

trademarks or trademarks of Gracenote, Inc. in the

United States and/or other countries.

• Google TV is the name of this device's software

experience and a trademark of Google LLC. Google,

YouTube and other marks are trademarks of Google

LLC.

For more information on

troubleshooting, refer to the Help

Guide.

Press (Input select) on the remote

control and select [Help]. If [Help] does

not exist, select [Edit] and add [Help].

• For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS, Inc.

DTS, Digital Surround, and the DTS logo are

registered trademarks or trademarks of DTS, Inc. in

• Netflix is a registered trademark of Netflix, Inc.

• TUXERA is a registered trademark of Tuxera Inc. in

the US and other countries.

• All other trademarks are the property of their

respective owners.

Support

https://www.sony-asia.com/support

Produkspesifikasjoner

Merke:	Sony
Kategori:	Fjernsyn
Modell:	XR-85Z9K
Bluetooth:	Ja
Wi-Fi:	Ja
Wi-Fi-standarder:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth-versjon:	4.2
Bluetooth-profiler:	A2DP, AVRCP, HID, HOGP, SPP
Fargenavn:	Titanium Silver
Skjermform:	Flat
Pakkevekt:	73000 g
Antall USB 2.0-porter:	2
Antall HDMI-porter:	4
Smart TV:	Ja
Antall høyttalere:	6
Rammetype:	3 uten ramme
HDCP:	Ja
Wi-Fi Direct:	Ja
Bluetooth Low Energy (BLE):	Ja
HDMI-versjon:	2.3
Skjermteknologi:	LCD
Apple AirPlay 2-støtte:	Ja
Lydmoduser:	Cinema, Dialog, Dolby Audio, Music, Sports, Standard
Energiforbruk (HDR) per 1000 timer:	200 kWh
Energieffektivitetsklasse (SDR):	G
Energiforbruk (SDR) per 1000 timer:	168 kWh
Energieffektivitetsklasse (HDR):	G
Nettleser:	Ja
Rullbar skjerm:	Nei
Vekt (med stativ):	60100 g
Støyreduksjon:	Ja
Innebygd subwoofer:	Ja
On Screen Display (OSD):	Ja
Audio Return Channel (ARC):	Ja
Consumer Electronics Control (CEC):	BRAVIA Sync
Antall RF-porter:	1
Spillmodus:	Ja
USB-opptak:	Ja
Videooppskalering:	Ja
Stemmeveiledning:	Ja
HID-støtte:	Ja
Støttet nettleser:	Vewd
Adaptivt bilde:	Ja
ConnectShare (USB):	Ja
ConnectShare (HDD):	Ja
AC-inngangsspenning:	220-240 V
AC-inngangsfrekvens:	50 Hz
Fungerer med Google Assistant:	Ja
Energieffektivitetsskala:	A til G
Spillfunksjoner:	Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR)
Introduksjonsår:	2022
Dialogforbedring:	Ja
Skjermoppløsning:	7680 x 4320 piksler
Strømforbruk (standby):	0.5 W
Fjerntilgang:	Ja
Støttede lydformater:	3GPP, AAC, FLAC, MP3, MP4, OGG, WAV
Produktfarge:	Titan
HD-type:	8K Ultra HD
Bredde (uten stativ):	1896 mm
Høyde (uten stativ):	1096 mm
Vekt (uten stativ):	58400 g
Bredde (med stativ):	1896 mm
Dybde (med stativ):	460 mm
Høyde (med stativ):	1123 mm
Pakkedybde:	246 mm
Pakkehøyde:	1223 mm
Pakkebredde:	2004 mm
Skjermdiagonal:	85 "
LED-baklys:	Ja
Operativsystemprogramvare 04:	Android TV
Støttede grafikkoppløsninger:	3840 x 2160,4096 x 2160,7680 x 4320
Analogt signalformatsystem:	NTSC M, PAL M
Kabler inkludert:	AC
Pakketype:	Boks
Strømforbruk (vanlig bruk):	168 W
Slår seg automatisk av:	Ja
Støttede videofunksjoner:	480p, 576p, 720p, 1080i, 1080p, 2160p, 3840p, 4320p
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Fjernkontroll medfølger:	Ja
VESA-montering:	Ja
Dybde (uten stativ):	74 mm
Digitalt signalformatsystem:	ATSC
Elektronisk programguide (EPG):	Ja
Oppgraderbar fastvare:	Ja
OSD-språk:	AFR, ALB, ARA, BEL, BOS, BUL, CHI (SIMPL), CHI (TR), CRO, CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HIN, HUN, IND, ITA, JPN, KAZ, KOR, LAT, LAV, LIT, MAC, NOR, PER, POL, POR, RUM, RUS, SCR, SER, SLV, SWA, SWE, THA, TUR, UKR, VIE, ZUL
Antall S-Video-innganger:	1
Diagonal skjermstørrelse:	215 cm
Av/på-bryter:	Ja
HDR-teknologi (High Dynamic Range):	Dolby Vision, High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Bildegalleri:	Ja
Subwoofer inkludert:	Ja
App-distribusjonsplattform:	Google Play
Ethernet/bredbåndsforbindelse:	Ja
Lysstyrke for skjerm:	- cd/m²
Oppdateringsresponstid:	- ms
Komposittvideo inn/sammensatt video inn:	1
Panelmonterbart grensesnitt:	400 x 400 mm
RMS-rangert strøm/utgangseffekt:	85 W
PC inn (D-Sub):	Nei
Videoformat som støttes:	3GPP, ASF, AVC, AVCHD, AVI, HEVC, MJPG, MKV, MOV, MP4, MPEG1, MPEG2, MPEG2-PS, MPEG2-TS, MPEG4, VP8, VP9, WEBM, XVID
Plugg inn og spill:	Ja
LED-baklystype:	Full-Array
Fjernstøtte via smarttelefon:	Ja
Foreldrestyring:	Ja
Mottakertype:	Analog og digital
Oppdateringsfrekvens:	120 Hz
Bevegelsesinterpoleringsteknologi:	XR Motion Clarity
Internet TV:	Ja
Utjevner/frekvenskorrigerer:	Ja
IC-inngang:	Ja
Vanlig grensesnitt pluss (CI+):	Ja
Dvalefunksjon:	Ja
Av/på-timer:	Ja
Automatisk kanalsøking:	Ja
Innebygd lyddekoder:	DTS, Dolby Atmos, DTS Digital Surround
4K ultra HD oppskalering:	Ja
HDR (High Dynamic Range) støttes:	Ja
Videoapplikasjoner:	Google TV, Netflix
ECO-funksjon:	Ja
Subwoofer RMS-styrke:	20 W
Optisk digital lydutgang:	1
Subwoofer-type:	Aktiv subwoofer
PC-bord:	Ja
Forbedret Audio Return Channel (eARC):	Ja
Talekontroll:	Ja
Smartmoduser:	Cinema, Custom, Dolby Vision Bright, Dolby Vision Dark, Game, Graphics, IMAX Enhanced, Photo, Standard, Vivid
Browsing:	Ja
Energisparende modus:	Ja
Stativtype:	Stativben
Stativfarge:	Titan
Stativbredde:	1895 mm
Støttede TV-bånd:	UHF, VHF
Bildefremkallingsteknologi:	Sony Cognitive Processor XR, Sony Dynamic Contrast Enhancer, Sony Live Colour, Sony XR HDR Remaster, Sony XR Smoothing, Sony XR Super Resolution, Sony XR Triluminos Pro
Lysstyrkedeteksjon:	Ja
Calman klar:	Ja
Tilpasningsdyktig lydomfang:	Ja
Adaptive Sound Control (ASC):	Ja
Lydforhåndsvalgsbetegnelse:	Ja
TV-lyd til mobil enhet:	Ja
Oppdateringsfrekvenser for skjerm som støttes:	24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz, 100 Hz, 120 Hz
Innebygd Chromecast-funksjonalitet:	Ja
Farge deteksjon:	Ja
360 kamerastøtte:	Ja
