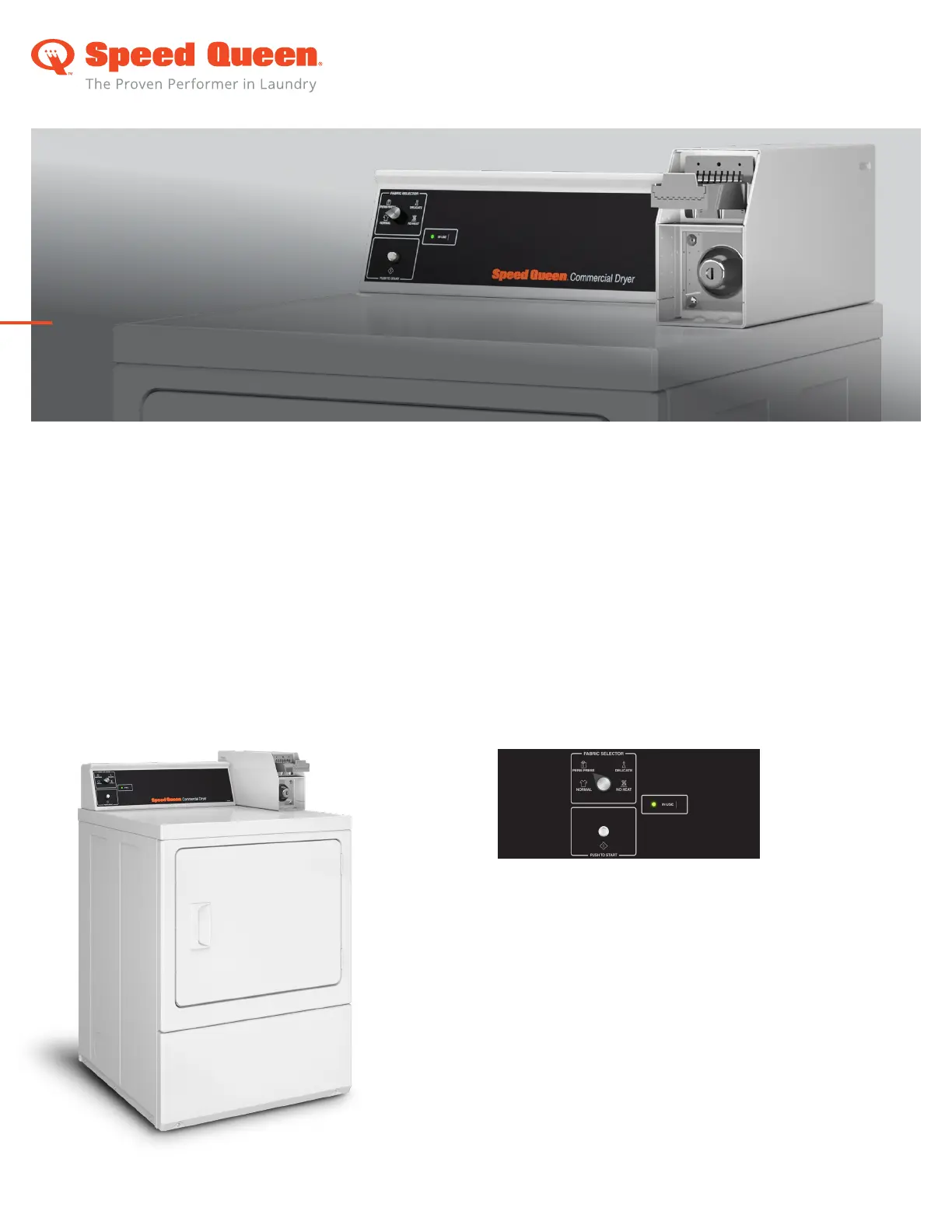

Built for Reliable Performance

Speed Queen’s Coin Slide single load dryer combines heavy-duty

construction with reliable operation proven to stand the test of time.

They’re designed with less moving parts for one reason: so you’ll face

fewer maintenance problems and less wear and tear down the road.

Our cabinet design maintains the perfect balance of heat, airflow and

tumble action for optimal performance and efficiency. The equipment

provides an advantage on such issues as energy conservation,

equipment breakdowns and vandalism.

Coin Slide

• • Industry’s largest door opening 2.06 sq. ft. (1914 cm²)

• • Door is reversible for installation exibility

• • High eciency exhaust blower with superior airow

220 cfm (105 liters/sec)

• • 100% serviceable from the front

• • Space-saving narrow cabinet 26.875” (683 mm)

• • Upfront lint lter easy to clean and secured

• • Durable galvanized steel cylinder

Coin Slide Control

Coin Slide control oers heavy-duty operation, is easy to use

and oers the basic features needed for optimal coin-vended

laundry room operations.

SPEED QUEEN

MULTI-HOUSING LAUNDRY SOLUTIONS

Rear Control Single Dryer

Coin Slide

AM20-0023

speedqueencommercial.com

Speed Queen by Alliance Laundry Systems

* Electric dryers come equipped for 240/60/1 operation. They can be field converted to operate on 208/60/1 with optional 61928 conversion kit.

Gas dryers can be field converted for operation on LP gas with optional 458P3 conversion kit.

For the most accurate information, the installation guide should be used for all design and construction purposes. Due to continuous product improvements, design and specifications

subject to change without notice. The quality management systems at Alliance Laundry Systems are registered to ISO 9001.

Specifications

Control Option

Coin Slide

Color

White

Capacity - lb (kg)

18 (8.2)

Cylinder Volume - cu. ft. (liters)

7.0 (198)

Motor (Thermal Protected)

0.33 HP
