Technical specifications and operating instructions

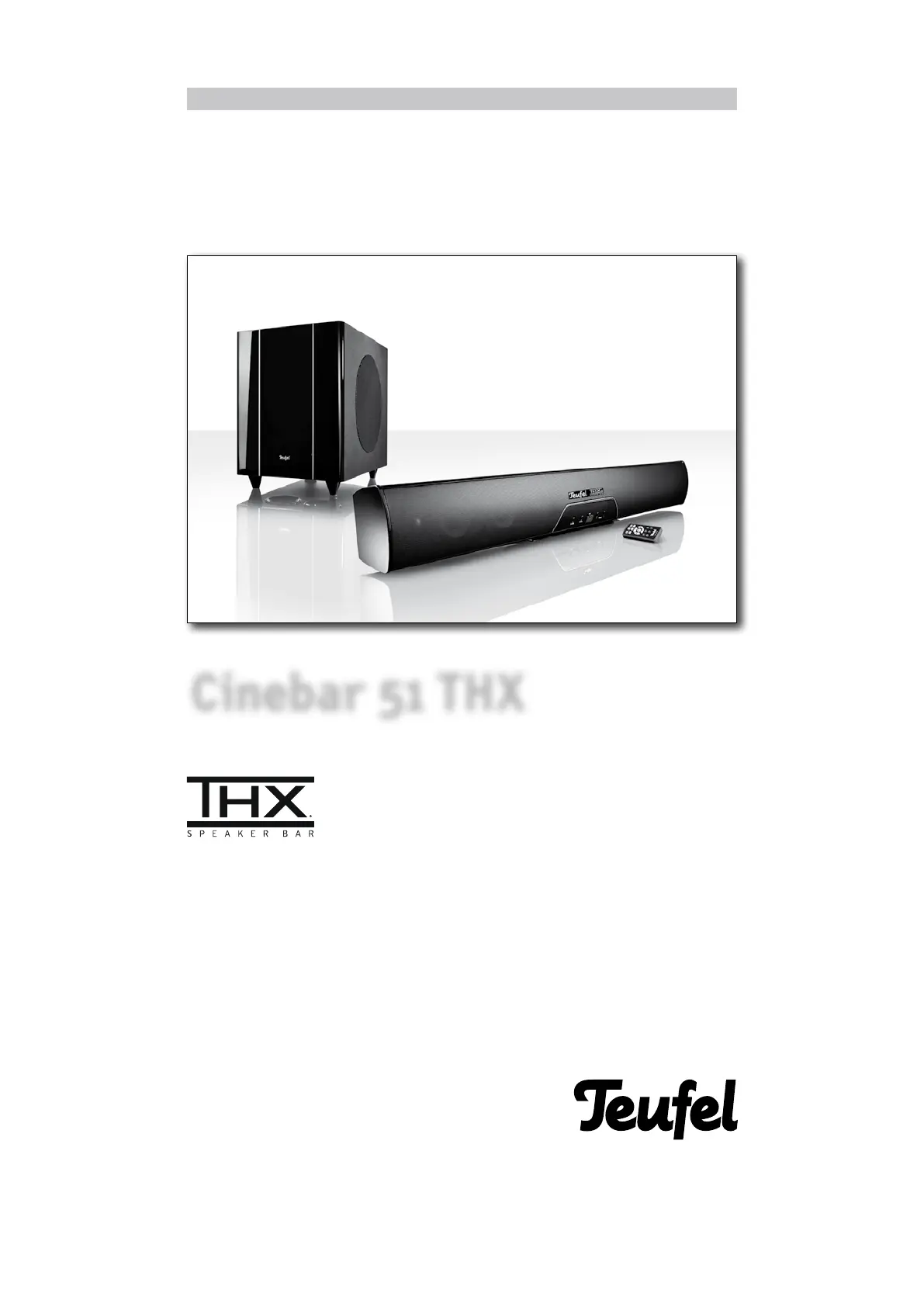

Virtual surround soundbar with subwoofer

Cinebar 51 THX

· Cinebar 51 THX

For your information

The information in this document may be chan-

ged without advance notication and does not

represent any obligation on the part of Lautspre-

cher Teufel GmbH.

No part of these operating instructions may be

copied in any way, whether electronically, mecha-

nically, using photocopies or recordings, or trans-

ferred without the prior written agreement of

Lautsprecher Teufel GmbH.

Version 1.1

Oktober 2011

Trademark

® All trademarks are the property of their re-

spective owners.

Dolby

Manufactured under licence from Dolby Labora-

tories. » Dolby«, »Pro Logic« and the DD symbol are

trademarks of Dolby Laboratories.

DTS

Manufactured under licence under U.S. Patent

Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S.

and worldwide patents issued & pending. DTS, the

Symbol, & DTS and the Symbol together are re-

gistered trademarks & DTS Digital Surround and

the DTS logos are trademarks of DTS, Inc. Product

Complaints

If you have a complaint, it is essential that you

provide the following information so that we can

respond:

1. Invoice number

Found on the sales receipt (enclosed with the pro-

duct) or the order conrmation that you received

as a PDF le, e.g. 4322543.

2. Serial number

Can be found at the rear of the device,

e.g. serial #: CB 04007480121A

You can nd information on the subject of re-

turns on the returns form that accompanies the

delivery or online in the support area of our web-

site www.teufelaudio.com.

If you need to return an item, do not act without

the prior agreement of Lautsprecher Teufel.

We can only process and accept returns if you

have informed us first by phone and discussed

the procedure with us!

Thank you for your support.

Contact

Please contact our service department if you

have any questions, suggestions or if there is

anything you think we could do better.

Lautsprecher Teufel GmbH

Gewerbehof Bülowbogen

Bülowstraße 66

10783 Berlin (Germany)

Phone: 00800 200 300 40

Fax: +49 (30) - 300 930 930

www.teufelaudio.com

Original packaging

We recommend keeping the

packaging if you want to take

advantage of the eight-week

right of return, because we can

only accept the speakers IN

THEIR ORIGINAL PACKAGING.

We are unable to supply empty

boxes!

Technical data

Technical data can be found in

the product description on our

website at www.teufelaudio.com.

· Cinebar 51 THX

Contents

Operating instructions Version 1.1

Table of contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Safety and care instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Introducing Cinebar 51 THX · General functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Unpacking · Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Set-up · Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Cinebar 51 THX front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Cinebar 51 THX back · CB 51 SW connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Blu-ray- or DVD player and TV set connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

CB 51 RC remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Volume adjustment · Sound source selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Volume control · Mode setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

USB playback · Repeat function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Glossary

Dolby Digital (ATSC A/52) is

the digital multichannel audio

format created by Dolby Labo-

ratories. It was developed for

efciently storing lm sound with up to 5.1 sound

channels. The data is compressed using psychoa-

coustic processes and transferred in a single data

ow. The format supports various data rates. The

format also has options for automatic adjustment

of volume differences (dynamic compression) and

also the possibility of allowing playback via a two-

channel speaker system using stereo downmix.

Dolby Virtual Speaker simulates the surround

sound playback provided by ve speakers and an

LFE effect channel in systems using a two-channel

speaker combination. In contrast to stereo down-

mix by Dolby Digital, which only places the missing

channel information of 5.1 audio material in the

existing speakers, the Dolby Virtual Speaker pro-

cedure uses psychoacoustic room modelling to

create pseudo-sound sources that suggest the

existence of speakers in the appropriate room po-

sitions.

MP3 (MPEG-1 Layer 3) is a wide-

ly used digital data format for

saving audio data (mono/two-

channel stereo) in a compressed

form using psychoacoustic processes. MP3 les

may exist in various – and sometimes variable – bit

rates, which can have a direct inuence on play-

back quality.

USB (Universal Serial Bus) is

a widely used serial, digital in-

terface protocol. A USB host ap-

pliance can request data from terminals and also

transmit data to them.

Produkspesifikasjoner

Merke:	Teufel
Kategori:	Høyttaler
Modell:	Cinebar 51 THX
Strømkilde:	AC
Bruksanvisning:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Antall USB 2.0-porter:	1
FM-radio:	Nei
Anbefalt bruk:	TV
Bassrefleks:	Ja
Antall forsterkerkanaler:	2 kanaler
Støttede lydformater:	MP3, WMA
Produktfarge:	Sort
Lydinngang (V/H) inn:	2
Fjernkontroll medfølger:	Ja
Kan monteres på vegg:	Ja
Line-in:	Ja
Subwoofer inkludert:	Ja
Subwoofer-vekt:	17200 g
Lyd-utgang kanaler:	5.1 kanaler
RMS-rangert strøm/utgangseffekt:	350 W
Plugg inn og spill:	Ja
Mottaker medfølger:	Ja
Mottakertype:	Innebygget
Innebygd lyddekoder:	Dolby Digital, Dolby Pro Logic, Dolby Pro Logic II, DTS
Diskant diameter:	25 mm
Apple docking-kompabilitet:	Støttes ikke
Digital optisk lydinngang:	1
Subwooferens dimensjoner (BxDxH):	305 x 460 x 420 mm
Digital koaksialinngang for lyd:	1
Diameter på mellomtone-driver:	100 mm
Antall drivere til diskant:	2
Lydplankens RMS-effekt:	100 W
Subwoofer-type:	Aktiv subwoofer
Lydplankevekt:	8600 g
Antall mellomtonedrivere:	2
Dokkingtilkoblingstype:	Støttes ikke
Lydplankens dimensjoner (BxDxH):	1010 x 120 x 132.5 mm
