Side 1/12

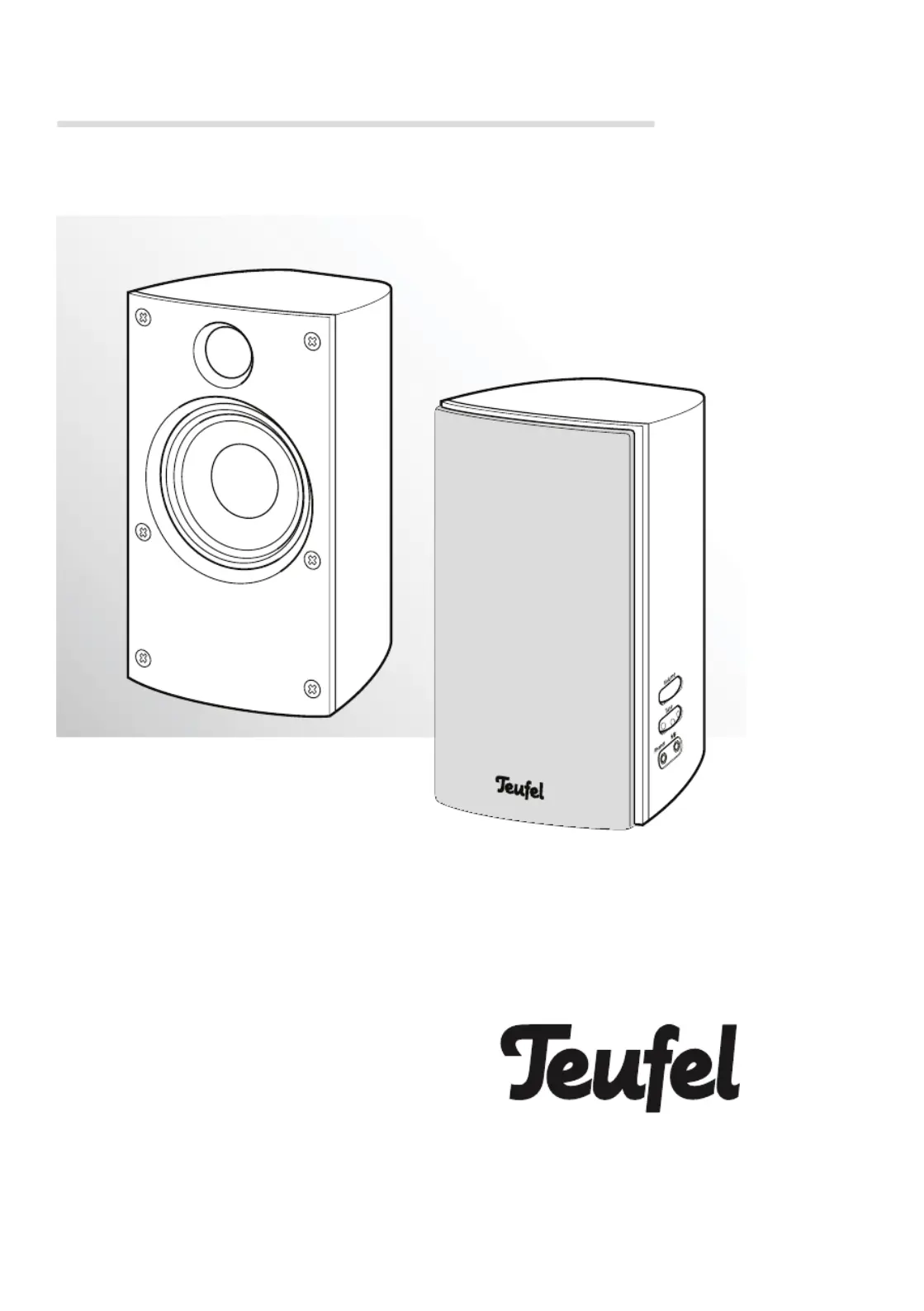

Technical description and operating instructions

2.0 PC Speakers

Concept B 20

• Concept B 20

Contents

General notes and information ................................................................................3

Safety notes ............................................................................................................4

Product contents ......................................................................................................6

Control elements......................................................................................................7

Connecting and setting up the speakers ...................................................................8

Use .......................................................................................................................10

Protecting the environment .................................................................................... 11

• Concept B 20

Notice

The information in this document may

change without prior notice and in no

way constitutes any liability on the part

of Lautsprecher Teufel GmbH.

No part of these instructions may be re-

produced in any form or be broadcast-

ed in any way electronically, mechanical-

ly, by photocopy or recording without the

written permission of Lautsprecher Teufel

GmbH.

Version 1.0

March 2011

Original packaging

If you wish to exercise your eight-week

right of return, we ask that you be abso-

lutely sure to hold onto the packaging.

We can only accept the return of the

speakers WITH THE ORIGINAL PACK-

AGING.

Empty boxes are not available!

Complaints

In case of complaint we will need the fol-

lowing information to process your en-

quiry:

1. Invoice number

Can be found on the sales slip (enclosed

with the product) or on the order con-

ﬁ rmation received as a PDF document,

e.g. 4322543.

2. Serial number or batch number

Located on the back side of the unit,

e.g. serial number: TH04....

Many thanks for your support!

Contact

For questions, suggestions or criticism

please contact our customer service de-

partment:

Lautsprecher Teufel GmbH

Gewerbehof Buelowbogen

Buelowstrasse 66

10783 Berlin (Germany)

Phone: 00800 – 200 300 400 (free of

charge)

Fax +49 (0)30 / 300 930 930

E-mail: service@teufelaudio.com

www.teufelaudio.com

Proper use

Only use the product as described in

these operating instructions. Any oth-

er use will be deemed as not in accord-

ance with the instructions and may lead

to damage to property or even persons.

The manufacturer accepts no liability for

damage caused by use not in accord-

ance with the instructions.

The product is intended for private use.

Before operating the speakers

please read the safety notes

and operating instructions care-

fully. This is the only way to use all func-

tions safely and reliably.

Keep the operating instructions safe and

pass them on to anyone who may own

the unit after you.

General notes and information

Produkspesifikasjoner

Merke:	Teufel
Kategori:	Høyttaler
Modell:	Concept B 20
Vekt:	1400 g
Bredde:	126 mm
Dybde:	124 mm
Høyde:	220 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Strømkildetype:	AC
Anbefalt bruk:	PC
3,5 mm-kontakt:	Ja
Høyttalerplassering:	Bord bokhylle
Basshøyttaler:	Ja
Bassrefleks:	Ja
Forsterker:	Innebygget
Diskanthøyttaler:	Ja
Produktfarge:	Sort
Hodetelefontilkobling:	3,5 mm
Mikrofon, linje-inn-støpsel:	Ja
Kroppsmateriale:	ABS syntetisk
Lyd-utgang kanaler:	2.0 kanaler
RMS-rangert strøm/utgangseffekt:	40 W
Antall drivere:	2
Høyttaler type:	2-veis
Frekvensrekkevidde:	- Hz
Basshøyttalerens diameter:	100 mm
Diskant diameter:	25 mm
Magnetisk beskyttet:	Ja
