Side 1/8

Active Subwoofer

US 2108/6 SW

... makes you happy

Proper use

Only use the unit as described in these operating instruc-

tions. Any other use will be deemed as not in accordance with

the instructions and may lead to damage of property or even

persons. The manufacturer accepts no liability for damage

caused by use not in accordance with the

instructions. The unit

is intended for private use.

Before operating the speakers please read the safety

notes and operating instructions carefully. This is the

only way to use all functions safely and reliably. Keep

the operating instructions safe and pass them on to anyone

who may own the unit after you.

Notice

The information in this document may change without prior

notice and in no way constitutes any liability on the part of

Lautsprecher Teufel GmbH. No part of these instructions may

be reproduced in any form or be broadcasted in any way elec-

tronically, mechanically, by photocopy or recording without the

written permission of Lautsprecher Teufel GmbH.

Original packaging

If you wish to exercise your eight-week right of return, we ask

that you be absolutely sure to hold onto the packaging. We can

only accept the return of a device WITH THE ORIGINAL PACK-

AGING. Empty boxes are not available!

Complaints

In case of a complaint we implicitly need your invoice number

and the serial or lot number for processing. The serial number

can be found on the back side of the device.

Many thanks for your support!

Contact

For questions, suggestions or criticism please contact our

customer service department:

Lautsprecher Teufel GmbH

Gewerbehof Buelowbogen

Buelowstrasse 66

10783 Berlin (Germany)

Phone 00800 - 200 300 40 (free of charge)

Fax: +49 (0)30 / 300 930 930

E-mail: service@teufelaudio.com

www.teufelaudio.com

Master Volume

Min Max

Sub Volume

Min Max

General notes and information

Technical Description and

Operating Instructions

Danger

Risk of injury

An unstable base may cause the unit to tip and

injure or even kill persons, children are particularly

at risk. You can prevent many accidents by taking the follow-

ing precautions.

• Only place the subwoofer on the oor.

• If you want to use underframes or speaker stands, only

use those recommended by the manufacturer.

• When storing the product, also ensure that it stands safely

and that it cannot be knocked down or over.

Danger to hearing!

Loud noise may lead to hearing loss.

Very high noise pressure may suddenly be emit-

ted, especially if a subwoofer is activated and set to full

volume. This may have psychological consequences and also

cause physical injury. Children and pets are particularly at

risk.

• Set the volume control of your signal source to a low set-

ting.

• When the volume is set high, always keep a certain dis-

tance from the unit and never place your ear directly on

the speaker.

• To avoid damage to health, avoid extended listening at

high volume.

Danger

Danger of injury/damage!

Setting the device up in an unsuitable location

may result in injury to persons and/or damage to

property.

• Never use the unit unmounted in vehicles, in unstable

locations, on wobbly tripods or furniture, on insufciently

dimensioned brackets etc. The device could tip or fall

down and cause injury to persons or be damaged itself.

• Arrange the device so that it cannot be knocked over ac-

cidentally and make sure that the cables do not pose a trip

hazard.

• Do not place the unit near sources of heat (e.g. heaters,

ovens, other heat generating equipment such as ampliers

etc.).

Danger

Fire hazard!

Improper use may lead to damage or re.

• Do not place open ames such as burning candles or

similar on the unit.

• Do not place the unit in direct sunlight.

Danger

Danger to children!

Children can become trapped in the packing lm

when playing and suffocate.

• Do not allow children to play with the unit or the packing

lm. Danger of suffocation.

• Ensure that children do not remove small parts from the

device or pull them off of the device (e.g. the batteries

from the remote control, knobs or plug adapters). They

could swallow the parts and choke.

Caution icons

You will nd the following caution icons in these instructions:

High risk! Failure to observe the warning may result

in severe personal injury or death.

Danger

Moderate risk! Failure to observe the warning may

result in property damage.

Attention

Minor risk! Points which should be observed when

handling the unit.

Danger

Risk of electric shock!

Faulty installation of electrical equipment or

mains voltage which is too high can cause electric

shocks.

• The device is suitable for use with a power supply voltage

of 230 V~/50 Hz. When connecting, make sure that the

right voltage is present. See the name plate for details.

• Check the unit regularly for damage.

Immediately disconnect the power plug/the AC adapter

plug and do not operate the unit if its housing or the sup-

ply cable is defective or exhibits other visible damages.

• If the unit emits smoke or smells of burning or other

unusual odours, disconnect it immediately from the power

supply and do not operate it.

• Set up the unit so that the mains plug is easily accessible

and no vent slots are blocked.

• Never open the unit’s housing.

Repairs may only be carried out by an authorised special-

ist workshop. Only parts which conform with the original

device specications may be used for repairs. There are

electrical and mechanical parts in this unit which are nec-

essary in order to avoid exposure to sources of danger.

• Only use the accessory products specied by the manu-

facturer.

• Do not insert any objects through the vent slots in the

housing.

• Only use the unit in indoor areas.

• Do not operate the unit in moist areas and protect it from

drops of water and splash water.

Also take care not to stand vases or other containers lled

with liquid on or near the speaker in order to avoid liquid

getting into the case. If water or other foreign objects have

entered into the unit, immediately disconnect the mains

adapter and if applicable, remove any batteries. Then

send the device in to our service address.

• Never touch the power plug/the AC adapter plug with wet

hands.

Safety notes

Item Name Description

4 Speaker Out

Connector jacks for the satellite

speakers

5 Auto Level

Set the input sensitivity for the

automatic activation

6 Line In

Analogue 5.1 audio input jacks

Auto

Switch for automatic activation

8 – Connector jack for power cord

9 –

Mains fuse

10 Power

Mains switch

Item Name Description

1 Master Volume

Volume control for the entire

system

On/Standby button with integrat-

ed control LED

3 Sub Volume

Exclusive volume control for the

subwoofer

Master Volume

Min Max

Sub Volume

Min Max

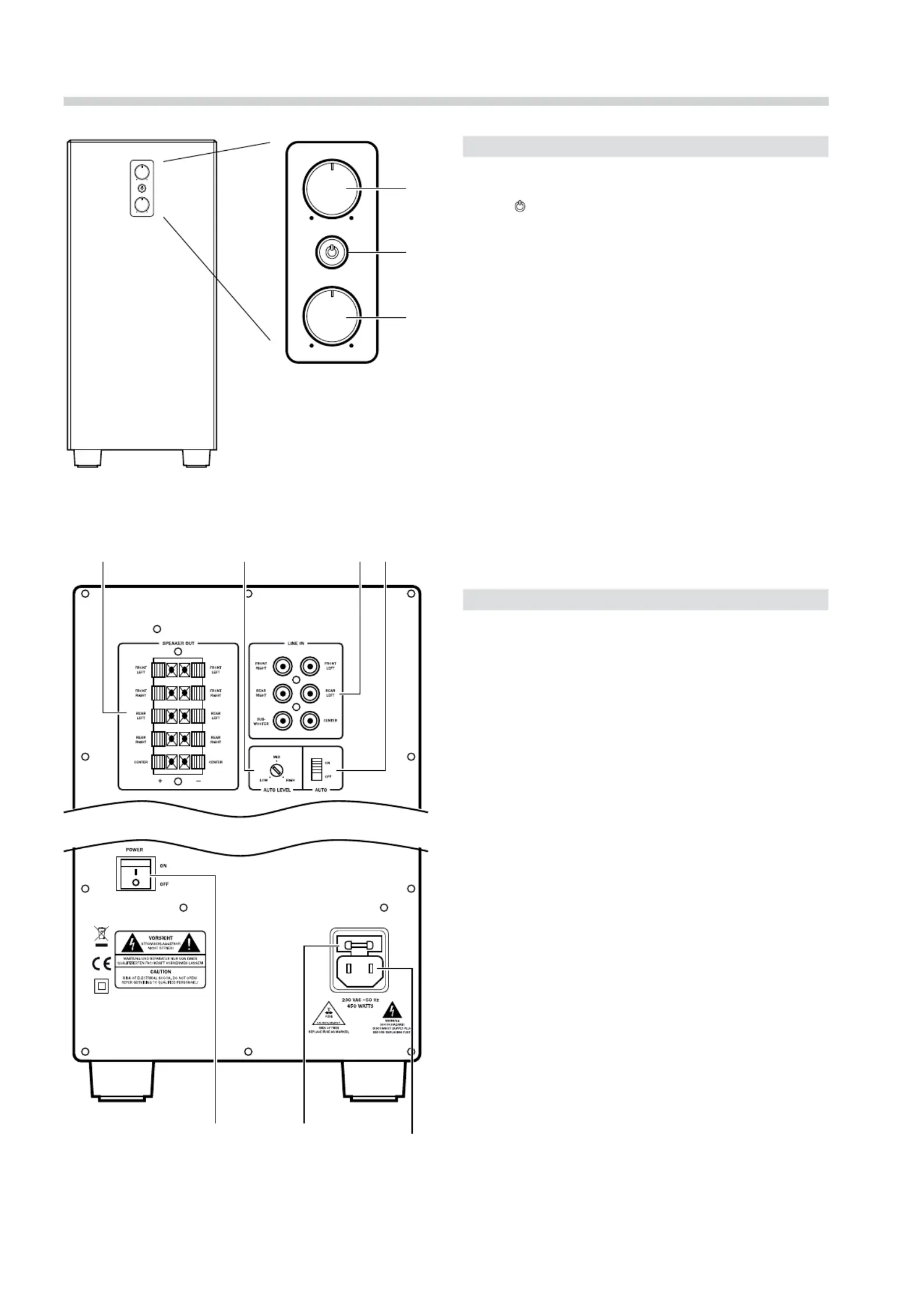

Control elements and connections

Master Volume

Min Max

Sub Volume

Min Max

8910

4 5 6 7

Produkspesifikasjoner

Merke:	Teufel
Kategori:	Høyttaler
Modell:	Concept E 350
Strømkilde:	AC
Bluetooth:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Volumkontroll:	Rotasjon
Sertifisering:	CE, RoHS, REACH
Anbefalt bruk:	PC
Bassrefleks:	Ja
Antall kanaler:	6 kanaler
Trådløs subwoofer:	Nei
Antall satellitter:	2
AC-inngangsspenning:	230 V
AC-inngangsfrekvens:	50 Hz
Strømforbruk (standby):	0.5 W
Subwoofer:	1
Produktfarge:	Sort
Kabler inkludert:	AC
Strømforbruk (vanlig bruk):	550 W
Fjernkontroll medfølger:	Nei
Satelitthøyttalerens dimensjoner (BxDxH):	90 x 98 x 125 mm
Kan monteres på vegg:	Ja
Line-in:	Ja
Av/på-bryter:	Ja
Støttede Windows operativsystemer:	Ja
Senterhøyttalertype:	2-veis
Subwoofer-vekt:	20600 g
Krav til strømforsyning:	230AC/50Hz
Lyd-utgang kanaler:	5.1 kanaler
RMS-rangert strøm/utgangseffekt:	250 W
Plugg inn og spill:	Ja
Støttede Mac operativsystemer:	Ja
Støttede Linux operativsystemer:	Ja
Fjerndrevet:	Nei
Satelitthøyttalere RMS-strøm:	60 W
Subwoofer RMS-styrke:	125 W
Frekvensomfang for satelitthøyttaler:	150 - 20000 Hz
Subwoofer-driverdiameter (imperisk):	10 "
Magnetisk beskyttet:	Ja
Bassjustering:	Ja
Senterhøyttaler, strøm:	60 W
Senterhøyttaler vekt:	820 g
Subwooferens dimensjoner (BxDxH):	345 x 345 x 550 mm
Senterhøyttalerens dimensjoner (BxDxH):	200 x 98 x 82 mm
Impedans for senterhøyttaler:	6 Ω
Frekvensomfang for senterhøyttaler:	150 - 20000 Hz
Forsterkerens utgangsstrøm:	250 W
Subwoofer-type:	Aktiv subwoofer
Frekvensomgang subwoofer:	40 - 150 Hz
Forsterkerenhet medfølger:	Ja
Forsterkerenhetstype:	Forsterker
Forsterkerens frekvensområde:	40 - 20000 Hz
Satelitthøyttalertype:	2-veis
Impedans for satellitthøyttaler:	6 Ω
Satelitthøyttalervekt:	680 g
Fronthøyttalertype:	2-veis
Fronthøyttalerens frekvensområde:	150 - 20000 Hz
Fronthøyttalerens impedans:	6 Ω
Dimensjoner fremste høyttaler (WxDxH):	90 x 98 x 125 mm
Vekt fremste høyttaler:	680 g
Fronthøyttalerens RMS-effekt:	60 W
Type inngangsgrensesnitt for forsterker/mottaker:	RCA
Type utgangsgrensesnitt for forsterker/mottaker:	Terminaler
Forsterkerenhetens formfaktor:	Innebygget
Satellitthøyttaler overgangsfrekvens:	3500 Hz
Diameter på satelitthøyttalerens diskantenhet:	0.75 "
Antall diskantenheter for satelitthøyttaler:	1
Antall bassenheter for satelitthøyttaler:	1
Senterhøyttaler overgangsfrekvens:	3400 Hz
Diameter på senterhøyttalerens diskantenhet:	0.75 "
Antall bassenheter for senterhøyttaler:	1
Antall diskantenheter for senterhøyttaler:	1
Fronthøyttalerens kryssfrekvens:	3500 Hz
Antall subwoofer-drivere:	1
Diameter på senterhøyttalerens mellomtonedriver:	3 "
Diameter på satelitthøyttalerens mellomtonedriver:	3 "
Veggmonterbare satelitthøyttalere:	Ja
Veggmonterbar senterhøyttaler:	Ja
Diskanthøyttalerens (front) diameter:	0.75 "
Subwooferens (front) diameter (imperisk):	3 "
Veggmonterbare fronthøyttalere:	Ja
