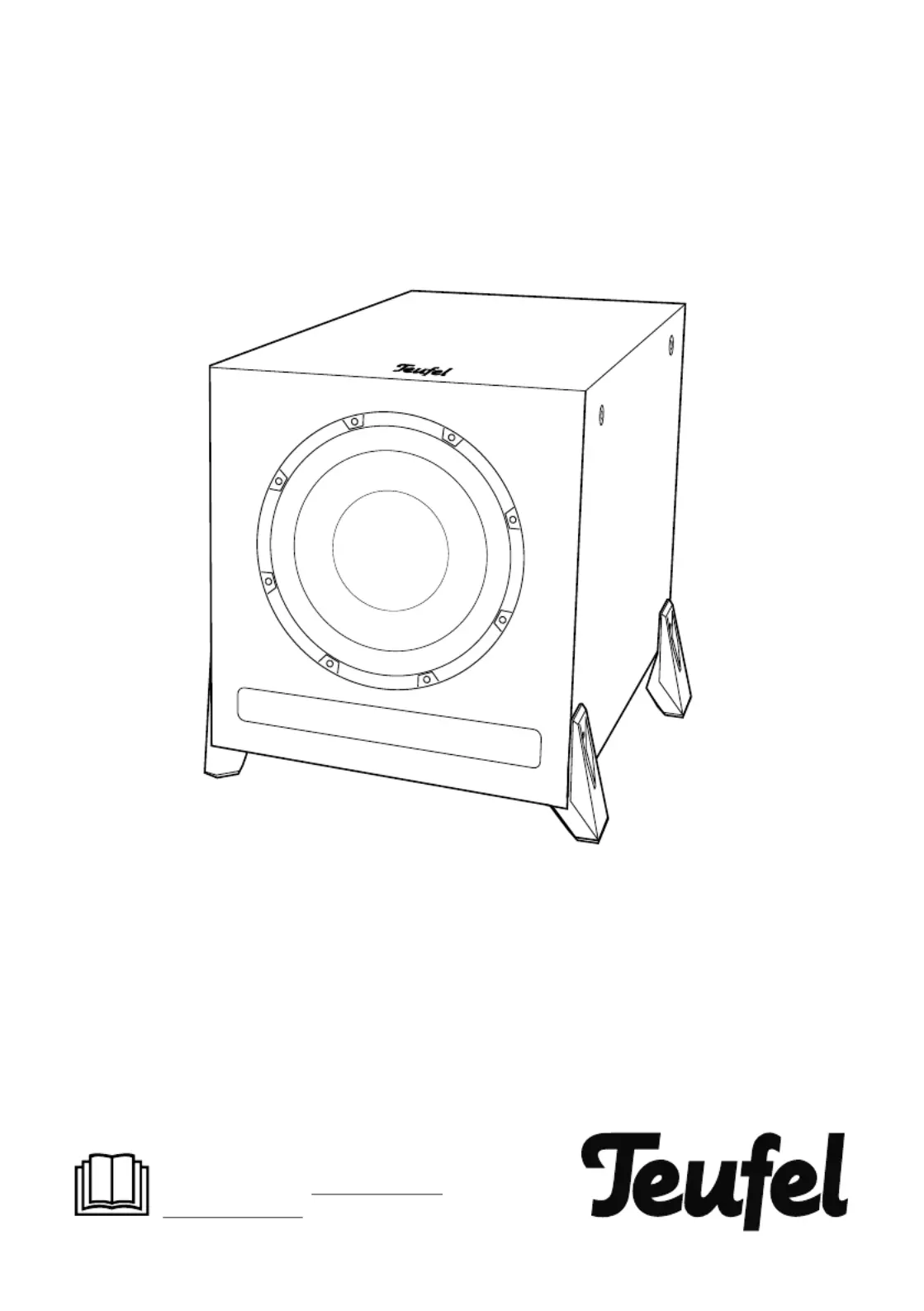

Subwoofer T 1108/1 SW

T 1110/1 SW

Technical Description and

User Manual

You can find an extensive user

manual online at http://manual.

teufelaudio.com

2 • Subwoofer T8/T10

Contents

General Notes and Information

Notice

The information in this document

may change without prior notice and

in no way constitutes any liability

on the part of Lautsprecher Teufel

GmbH.

No part of this user manual may

be reproduced in any form or be

broadcasted in any way electroni-

cally, mechanically, by photocopy or

recording without the written permis-

sion of Lautsprecher Teufel GmbH.

Version 2.0

February 2022

General Notes and Information ........ 2

Unpacking .......................................... 7

Assembly and Setup .......................... 9

Connecting .......................................10

Use and Settings .............................11

Troubleshooting ...............................14

Technical Data .................................15

Declaration of Conformity ...............15

Disposal ...........................................16

Original packaging

If you wish to exercise your right of

return, we ask that you be absolutely

sure to hold onto the packaging. We

can only accept the return of the

speakers WITH THE ORIGINAL PACK-

AGING.

Empty boxes are not available!

Complaints

In case of a complaint we will need

the following information to process

your enquiry:

1. Invoice number

Can be found on the sales slip

(enclosed with the product) or on the

order confirmation received as a PDF

document, e.g. 4322543

3 • Subwoofer T8/T10

2. Serial number or batch number

Located on the back side of

the device, e.g. serial no.:

KB20240129A-123.

Thank you for your support!

Contact

Please contact our customer service

department with any questions,

suggestions, or complaints:

Lautsprecher Teufel GmbH

BIKINI Berlin

Budapester Straße 44

10787 Berlin (Germany)

Telephone:

00800 200 300 40 (toll-free)

Fax: +49 (0)30 / 300 930 930

Online support:

http://teufelaudio.com/service

Contact form:

http://teufelaudio.com/contact

Proper use

The active subwoofer is designed

for the playback of low audio signals

from an external player.

Only use the subwoofer as described

in this user manual. Any other use

will be deemed as not in accordance

with the instructions and may lead to

damage of property or even persons.

The manufacturer accepts no liability

for damage caused by improper use.

The subwoofer is intended for private

use.

Before operating the product

for the first time, please

read the safety notes and

operating instructions carefully. Only

in this way, can you ensure that all

functions are used in a safe and

reliable manner. Keep the enclosed

documents in a safe place and also

be sure to pass it on to any subse-

quent owner.

Produkspesifikasjoner

Merke:	Teufel
Kategori:	Høyttaler
Modell:	Consono 35 Mk3
Strømkilde:	AC
Anbefalt bruk:	Universell
Antall satellitter:	4
AC-inngangsspenning:	230 V
AC-inngangsfrekvens:	50 Hz
Produktfarge:	Sort
Satelitthøyttalerens dimensjoner (BxDxH):	95 x 100 x 226 mm
Senterhøyttalertype:	2-veis
Subwoofer-vekt:	20300 g
Lyd-utgang kanaler:	5.1 kanaler
RMS-rangert strøm/utgangseffekt:	150 W
Satelitthøyttalere RMS-strøm:	60 W
Subwoofer RMS-styrke:	150 W
Frekvensomfang for satelitthøyttaler:	150 - 20000 Hz
Subwoofer-driverdiameter (imperisk):	9.84 "
Senterhøyttaler, strøm:	80 W
Senterhøyttaler vekt:	1250 g
Subwooferens dimensjoner (BxDxH):	345 x 345 x 550 mm
Senterhøyttalerens dimensjoner (BxDxH):	95 x 226 x 100 mm
Impedans for senterhøyttaler:	8 Ω
Frekvensomfang for senterhøyttaler:	150 - 20000 Hz
Subwoofer-impedans:	8 Ω
Satelitthøyttalertype:	2-veis
Impedans for satellitthøyttaler:	8 Ω
Satelitthøyttalervekt:	1250 g
Satelitthøyttalerens toppeffekt:	160 W
Satellitthøyttaler overgangsfrekvens:	3400 Hz
Diameter på satelitthøyttalerens diskantenhet:	0.75 "
Diameter (imperisk) på satelitthøyttalerens bassenhet:	3.15 "
Antall diskantenheter for satelitthøyttaler:	1
Antall bassenheter for satelitthøyttaler:	2
Satellitthøyttaler sensitivitet/følsomhet:	88 dB
Senterhøyttalerens toppeffekt:	160 W
Senterhøyttaler overgangsfrekvens:	3400 Hz
Diameter på senterhøyttalerens diskantenhet:	0.75 "
Diameter (imperisk) på senterhøyttalerens bassenhet:	3.15 "
Senterhøyttaler sensitivitet/følsomhet:	88 dB
Antall bassenheter for senterhøyttaler:	2
Antall diskantenheter for senterhøyttaler:	1
Antall subwoofer-drivere:	1
