Compact Speakers

T 300 Mk 2

Technical description and

operating instructions

Proper use

Only use the speaker as described in these operating instruc-

tions. Any other use will be deemed as not in accordance with

the instructions and may lead to damage of property or even

persons. The manufacturer accepts no liability for damage

caused by use not in accordance with the

instructions. The

speaker is intended for private use.

Before operating the speaker, please read the safety

notes and operating instructions carefully. This is the

only way to use all functions safely and reliably. Keep

the operating instructions safe and pass them on to anyone

who may own the unit after you.

Notice

The information in this document may change without prior

notice and in no way constitutes any liability on the part of

Lautsprecher Teufel GmbH. No part of these instructions may

be reproduced in any form or be broadcasted in any way elec-

tronically, mechanically, by photocopy or recording without the

written permission of Lautsprecher Teufel GmbH.

Original packaging

If you wish to exercise your eight-week right of return, we ask

that you be absolutely sure to hold onto the packaging. We can

only accept the return of a device WITH THE ORIGINAL PACKAG-

ING. Empty boxes are not available!

Complaints

In case of a complaint we implicitly need your invoice number

and the serial or lot number for processing. The serial number

can be found on the back side of the device.

Many thanks for your support!

Contact

For questions, suggestions or criticism please contact our

customer service department:

Lautsprecher Teufel GmbH

Gewerbehof Buelowbogen

Buelowstrasse 66

10783 Berlin (Germany)

Phone 00800 - 200 300 40 (free of charge)

Fax: +49 (0)30 / 300 930 930

E-mail: servcie@teufelaudio.com

www.teufelaudio.com

General notes and information

Product contents

2 Compact speakers T 300 Mk 2

Dimensions (H x W x D)

355 mm x 195 mm x 290 mm

Weight

14.7 kg

Nominal impedance

4 – 8 Ohm

Technical changes reserved!

You can ﬁ nd further technical data on our website.

Product contents and technical data

This product conforms with Council of the European

Union guidelines 2004/108/EC and 2006/95/EC

Check that all items have been delivered and that

nothing is damaged. In case of damage do not use

the product. Instead, contact our service centre.

Caution icons

You will ﬁ nd the following caution icons in these instructions:

High risk ! Failure to observe the warning may result

in severe personal injury or death.

Danger

Moderate risk ! Failure to observe the warning may

result in p roperty damage.

Attention

Minor risk! Points which should be observed when

handling the unit.

Attention

Fire hazard!

Improper use may lead to damage or ﬁ re.

• Do not place open ﬂ ames such as burning candles or

similar on the unit.

• Ensure sufﬁ cient ventilation.

• Do not place the unit in direct sunlight.

• Only use the unit in indoor areas.

• Do not use the unit in damp areas and protect it from

drops of water and splash water. Also take care not to

stand vases or other containers ﬁ lled with liquid on or

near the speaker in order to avoid liquid getting into the

case.

Danger

Danger of injury/damage!

Incorrect location may result in damage.

• Never use the speakers unmounted in vehicles, in unsta-

ble locations, on wobbly tripods or furniture, on insufﬁ -

ciently dimensioned brackets etc. The speakers could tip

or fall down and cause injury to persons or be damaged.

• Arrange the speakers so that they cannot be knocked over

accidentally and make sure that the cables do not pose a

trip hazard.

• Exactly adhere to the assembly instructions.

• If mounting the speakers on the wall, make sure that the

installation is carried out expertly.

• Verify the carrying capacity of the walls for wall mounting.

• Do not place the speakers near sources of heat (e.g.

heaters, ovens, other heat generating equipment such as

ampliﬁ ers etc.).

Danger

Danger to children!

Children can become trapped in the packing ﬁ lm

when playing and suffocate.

• Do not allow children to play with the unit or the packing

ﬁ lm. Danger of suffocation.

• Ensure that children do not remove small parts from the

unit or take them off of the unit (e.g. control knobs or plug

adapters). They could swallow the parts and choke. Never

allow children to operate electrical devices unsupervised.

Danger to hearing!

Loud noise may lead to hearing loss.

Very high noise pressure may suddenly be emit-

ted, especially if a device is activated and set to full volume.

This may have psychological consequences and also cause

physical injury. Children and pets are particularly at risk.

• Set the volume control of your signal source to a low set-

ting.

• When the volume is set high, always keep a certain dis-

tance from the unit and never place your ear directly on

the speaker.

• To avoid damage to health, avoid extended listening at

high volume.

Safety notes

Unpacking, Setup and Connection

Unpacking

• Carefully open the boxes, remove the speakers together

with the EPE foam parts and remove the foam parts without

touching the diaphragms.

Setup

Note

Our website contains comprehensive notes for correct setup.

• Select a stable, level base.

• Make sure that the environment is clean and free from dust.

• Avoid placing the unit close to sources of heat or in direct

sunlight.

• Arrange the connector cables so that they do not pose a trip

hazard.

• Do not place any heavy objects on the cables or the speak-

ers.

Mounting

You can ﬁ nd special assembly materials (cords, speaker

stands, wall brackets and resonance dampers) adapted to

these speakers in our webshop.

Removing the protective grids

The protective grids are secured by magnets on the front of

the speaker and can be easily removed. When the protective

grids are removed, high frequency output becomes clearer in

particular.

To remove the protective grids, reach behind them and slowly

pull them off to the front.

Attention

Risk of damage!

Make sure that you do not touch the highly sensi-

tive diaphragms.

Connecting

Danger

Danger of injury/damage!

Arrange the cables so that they do not pose a

trip hazard.

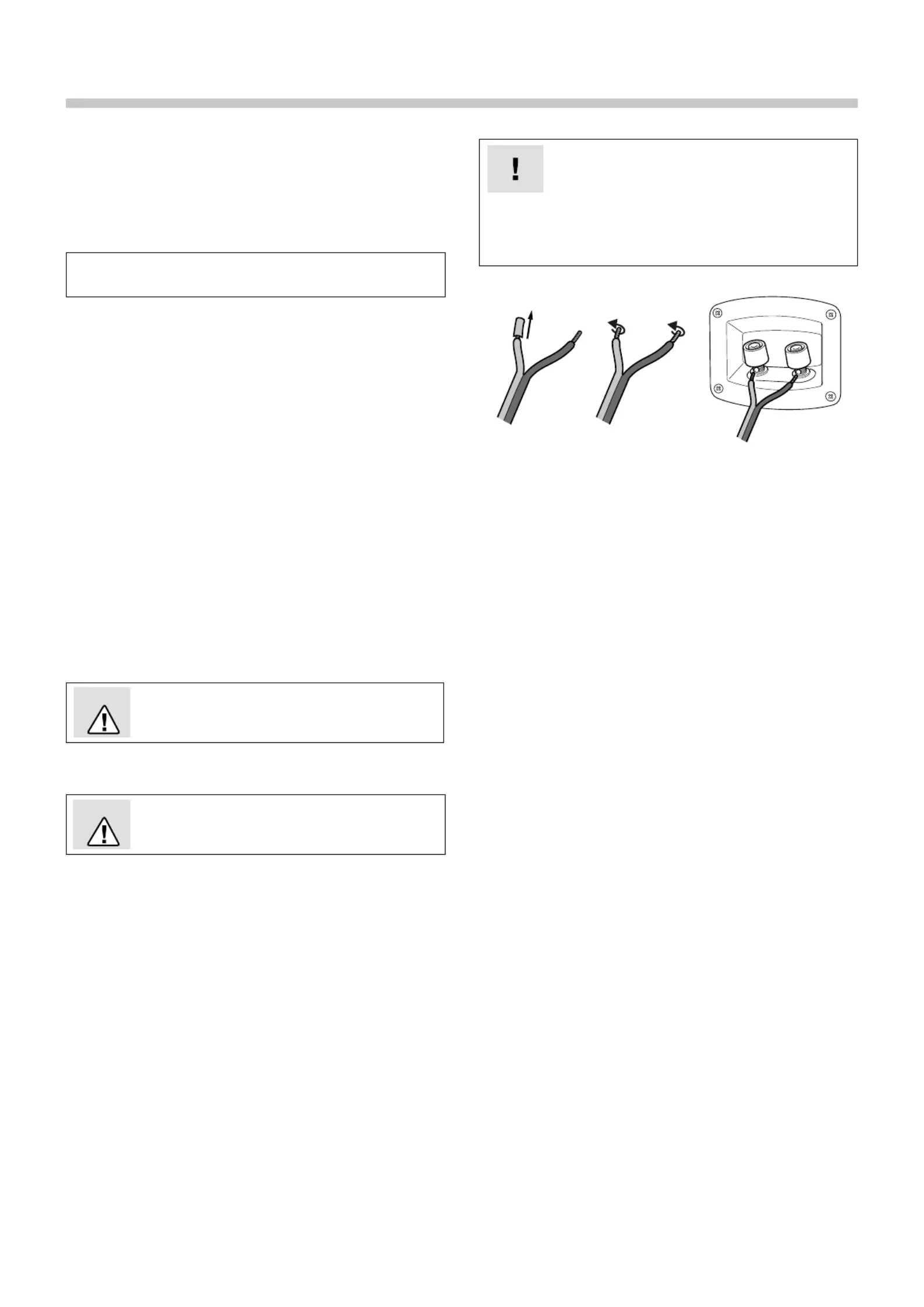

1. Pull the power plug of your ampliﬁ er/AV receiver or multi-

channel active subwoofer out of the outlet.

2. Lay the speaker cables from your ampliﬁ er/AV receiver or

multi-channel active subwoofer to each speaker. These

cables should be high-quality double-wire speaker cable with

marked strands. The diameter should amount to at least 1.5

3. A connector comprising two terminals is located on the

back side of each speaker, to which you have to connect the

speaker cables.

The terminal clips are each marked red (+) and black (-).

Make sure the polarity is correct!

Connect the like coloured terminals. Otherwise the

sound quality will suffer.

The speaker connections of your ampliﬁ er/AV receiver or

multi-channel active subwoofer

should be marked similarly.

The strands of the speaker cables are marked with different

colours or shapes.

4. Split the single wire down to approx. 30 mm on both ends

and strip approx. 10 mm of insulation off of each cord.

5. Twist the stripped single wire ends together so that no wire

protrudes. Tin coating is not necessary.

6. Turn the connector terminal counterclockwise until loose.

Run the stripped cable end into the now visible hole. Close

the terminal by turning it counter clockwise. The cable has

now been clamped in place.

7. Connect the cables to the other speaker in the same way.

8. Connect the speaker cables to your ampliﬁ er/AV receiver

multi-channel active subwoofer. The operating instructions of

the appliance should contain notes on this.

9. Reinsert the power plug of your ampliﬁ er/AV receiver or

multi-channel active subwoofer into the outlet.

Produkspesifikasjoner

Merke:	Teufel
Kategori:	Høyttaler
Modell:	T 300 Mk2
Vekt:	6400 g
Bredde:	195 mm
Dybde:	275 mm
Høyde:	340 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Volumkontroll:	Nei
Anbefalt bruk:	PC
Impedans:	6 Ω
Egnet for utendørs bruk:	Nei
Høyttalerplassering:	Bord bokhylle
Basshøyttaler:	Ja
Høyttalerkabinett:	Refleks
Forsterker:	Nei
Diskanthøyttaler:	Ja
Høyttalerposisjon:	Front
Avtakbart beskyttelsesdeksel:	Ja
Produktfarge:	Sort
Kroppsmateriale:	MDF
Av/på-bryter:	Nei
Ethernet/bredbåndsforbindelse:	Nei
Lyd-utgang kanaler:	2.0 kanaler
RMS-rangert strøm/utgangseffekt:	25 W
Plugg inn og spill:	Ja
Utjevner/frekvenskorrigerer:	Nei
Fjerndrevet:	Nei
Antall drivere:	2
Høyttaler type:	2-veis
Frekvensrekkevidde:	65 - 21000 Hz
Basshøyttalerens diameter:	170 mm
Diskant diameter:	25 mm
Sensitivitet/følsomhet:	87 dB
Diskanthøyttalerens diameter:	1 "
Basshøyttalerens diameter (imperisk):	7 "
Driversylinder, materiale:	Papir
Ledningskontakt:	Ja
Overgangsfrekvens:	3200 Hz
Antall drivere til diskant:	1
Antall basshøyttalerdrivere:	1
Transducermateriale:	Polyfabric
