DA-550F/500F-HL

Multi-Channel Digital Power Amplifiers

DESCRIPTION

FEATURES

The TOA DA-550F and DA-500F-HL multi-channel power amplifiers offer a wider choice of power ratings, advanced Class D

amplification circuitry, and a highly efficient AC mains to output power ratio, for the complete technological superiority it takes to

support long-term installation applications. These energy-efficient, space-saving amplifiers are designed to combine high levels of

performance and efficiency, and are well-suited to ensure sound reinforcement reliability in a wide range of venue types. The

DA-550F is ideal for multi-zone applications such as presentation and press-conference rooms, restaurants and similar-sized

locations. The DA-500F-HL is well-suited to such locations as exhibition halls, sports facilities, multipurpose halls and houses of

worship.

DA-550F

DA-500F-HL

• High efficiency

Extremely high amplification efficiency of 80-90%, resulting in reduction in pow

consumption b

y more than 60% compared with Class-AB amplifiers.

• Highly durable

Stands up to extended hours of operation. The DA

amplifier has undergone a large

number of r

igorous tests to prove its durability. In addition,TOA

has been conducting

“non-stop driving test” of the DA Series.

• High reliability

The DA amplifier has a comprehensive protection circuitry for protection against excessiv

current flo

w due to overload, short circuit, unusual DC voltage output, and pow

er amplifier

heat sink temper

ature rise ( over 100°C), power supply temperature rise (over 80°C).

• Amplifier with world-class lightweight design*

Installation has become much easier thanks to the lightweight design.

*TOA comparative data (weight/watt)

• Compact design

The DA-500 Series is 2-unit size, and they can be efficiently mounted on a rack, so the

require only a small installation space

. Because the amplifiers do not generate m

uch

heat, 5 units can be stac

ked together in a rack.

• Independent power supply

Each of the channels has its own power supply. If the pow

er supply of Channel 1 should

fail, this w

on't affect the operation of Channels 2-4. It is also possible to use one of the

channels as a spare amplifier.

Conventional AB-class Amplifier

DA Series Amplifier

Efficiency (%)

Output (%)

100

0 2040 60 80 100

Conventional Amp.

DA-500 Series Amp.

Total: 16,000W

41U

Total: 16,000W

19U

Power Amplifier

Power

Supply

Power supply from transformer

Conventional Amplifier

Power Amplifier

With built-in power supply

AC power supply

DA Series Amplifier

Power

Supply

Power

Supply

Power

Supply

Power

Supply

Efficency vs Output

Channel Separation

100

01020304050

Output [%]

Efficiency [%]

60 70 80 90 100

4Ω

8Ω

4Ω

8Ω

1kHz

20kHz

20Hz

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0.1 1 10 100 1000

1kHz

20kHZ

20Hz

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0.1 1 10 100 1000

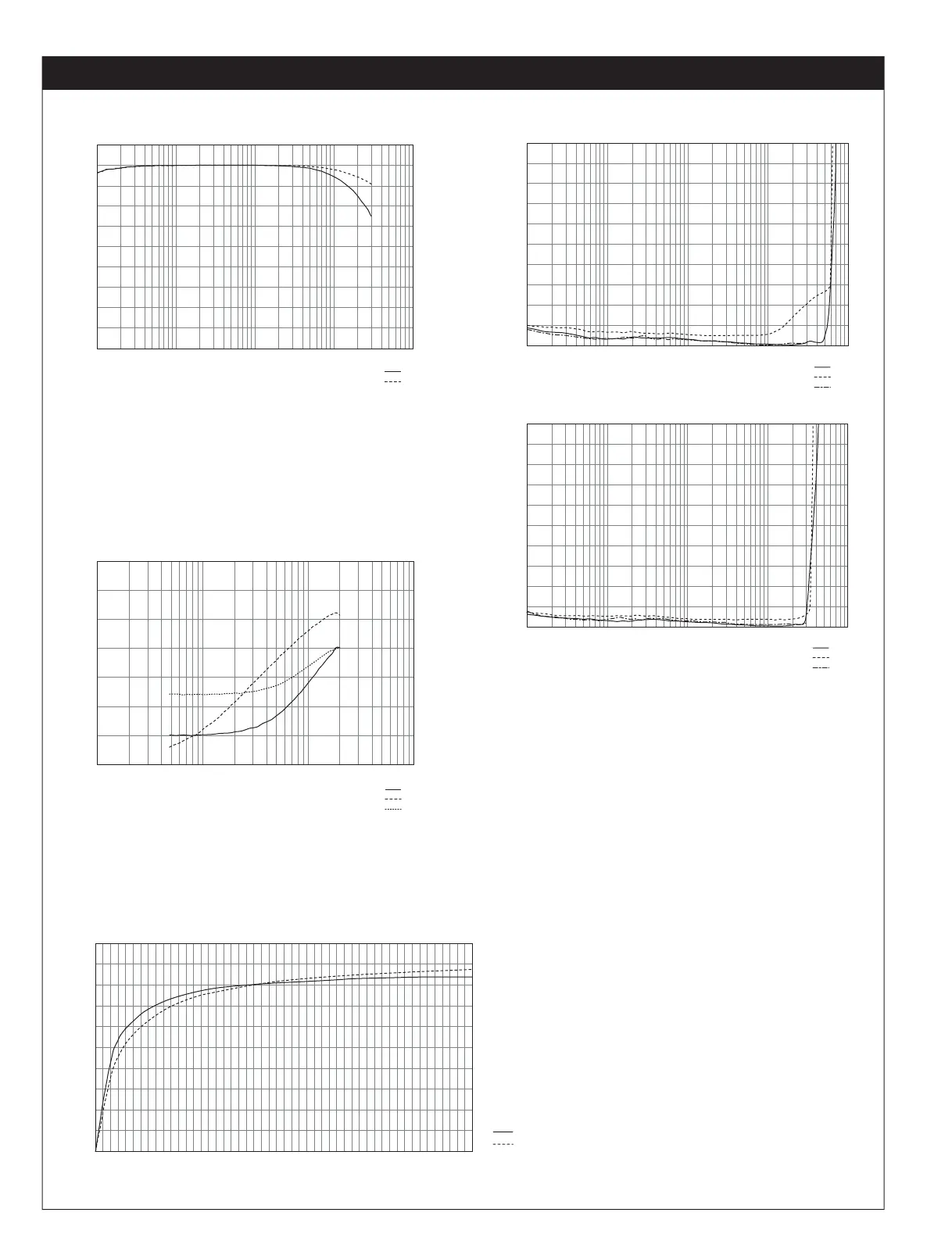

DA-550F

Frequency Responce

Distortion (4Ω)

Distortion (8Ω)

2ch

3ch

4ch

-60

-65

-70

-75

-80

-85

-90

-95

100 1k 10k 100k

Frequency [Hz]

Output [dB]

Frequency [Hz]

Output [dB]

Power Output [W]

Output [%]

Power Output [W]

Output [%]

-2

-4

-6

-8

-10

-12

-14

-16

-18

10 100 1k 10k 100k

Produkspesifikasjoner

Merke:	Toa
Kategori:	Mottaker
Modell:	DA-550F
Vekt:	9000 g
Bredde:	482 mm
Dybde:	404.2 mm
Høyde:	88.4 mm
LED-indikatorer:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Materiale:	Aluminium, Steel
AC-inngangsspenning:	220-240 V
Utgangsimpedans:	8 Ω
Kabellengde:	2 m
Produktfarge:	Sort
Kabler inkludert:	AC
Strømforbruk (vanlig bruk):	2750 W
Driftstemperatur (T-T):	-10 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	0 - 90 °C
inngangsimpedans:	10000 Ω
Signal-til-støy-forhold (SNR):	100 dB
Total Harmonic Distortion (THD):	0.15
Lyd-utgang kanaler:	4.0 kanaler
Frekvensrekkevidde:	20 - 20000 Hz
XLR i:	Ja
Forsterker, klasse:	D
Peak effekt per kanal:	1100 W
