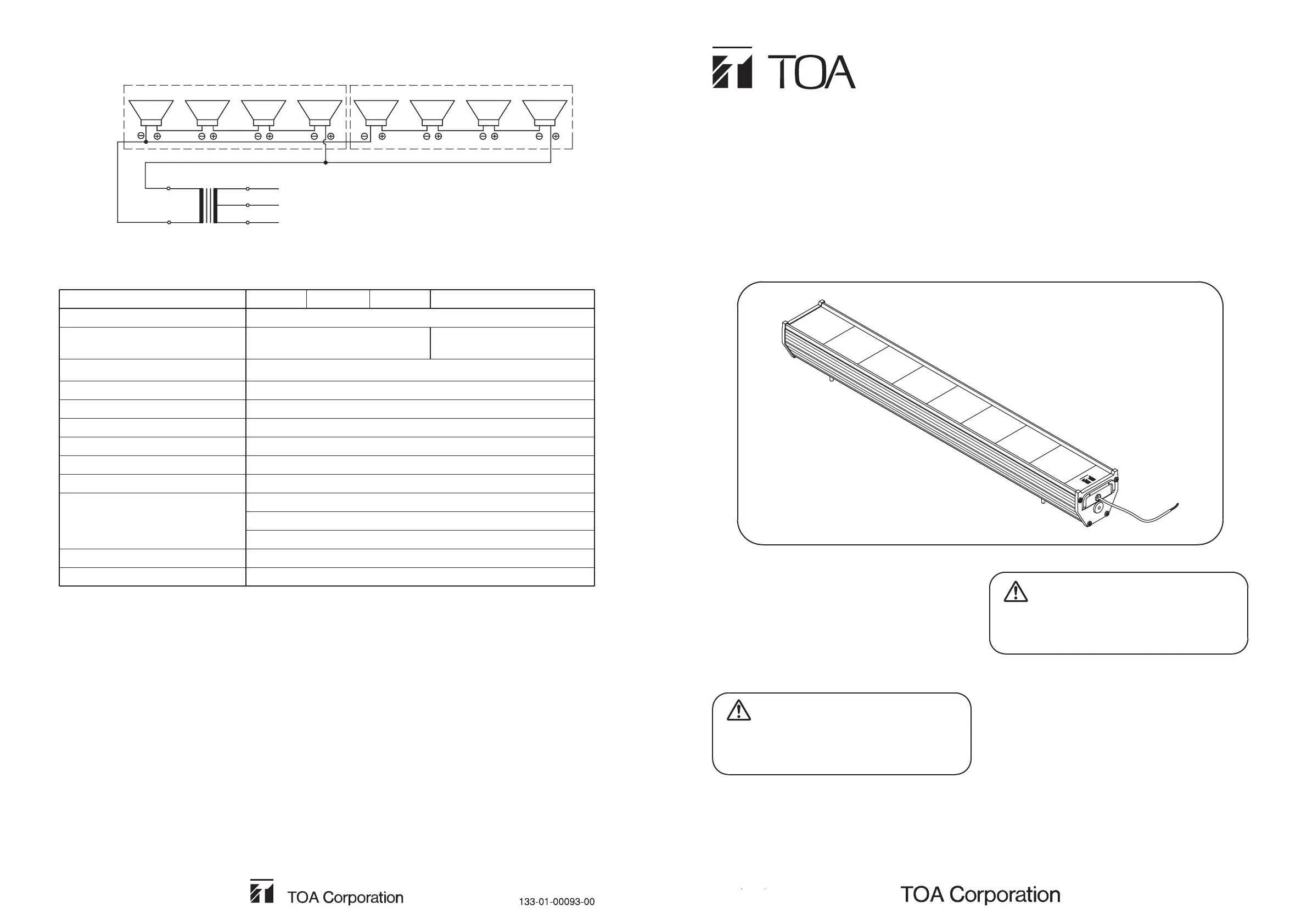

LONG RANGE
SLIM ARRAY SPEAKERS
HA-1010-AS
HA-1010-AM
HA-1010-EA
HA-1010-EB
WARNING
1. SAFETY PRECAUTIONS
INSTRUCTION MANUAL
• Be sure to read the instruction manual in this section
carefully before use.
• Make sure to observe the instruction in this manual as the
convention of safety symbols and messages regarded as
very important precautions are included.
• We also recommend you keep this instruction manual
handy for future reference.
Indicates a potentially hazardous situation which, if
mishandled, could result in death or serious
personal injury.
CAUTION
Indicates a potentially hazardous situation which, if
mishandled, could result in moderate or minor
personal injury, and/or property damage.
• Install the speaker only in a location that can structurally
support the weight of the speaker and the mounting
bracket. Doing otherwise may result in the unit falling
down and causing personal injury and/or property
damage.
• Do not place heavy object on the speaker as this may
cause it to fall or break which may result in personal injury
and/or property damage. In addition, the object itself may
fall off and cause injury and/or damage.
• Do not stand or sit on, nor hang down from the speaker as
this may cause it to fall down or drop, resulting in personal
injury and/or property damage.
• Do not operate the speaker for an extend period of time
with the sound distorting. Doing so may cause the
connected speakers to heat, resulting in a fire.
Thank you for purcahsing TOA’s LONG RANGE SLIM ARRAY SPEAKERS.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
When Installing the Unit
When Installing the Unit
5. SPECIFICATIONS
Model
Maximum Sound Pressure Level
Rated Input
Rated Impedance
Sound Pressure Level
Frequency Response
Directivity Angle
Speaker Component
Operating Temperature
Water Protection
Finish
Dimensions
Weight
131dB (50W, 1m)
50W
114dB (1W, 1m)
350Hz − 7kHz
Horizontal: 90˚ (2kHz), Vertical: 15˚ (2kHz)
Horn speaker unit x 8
-20˚C to +55˚C (-4˚F to +131˚F)
IPX5
Case, Panel: Aluminum, salt-resistant, paint, grey
167(w) x 1233(h) x 140.5(d) mm (6.57” x 48.54” x 5.53”)
13.5kg (29.76lb)
Front grille: Aluminum, black
Bracket: Stainless steel (SUS 304), paint, grey
HA-1010-AS HA-1010-EA HA-1010-AMHA-1010-EB
Note
• The design and specifications are subject to change without notice for improvement.
• Accessories
Mounting Bracket ........................................
Hexagonal Bolt (M8 x 20) ...........................
Washer (M8) ...............................................
Spring Washer (M8) ....................................
Washer (M10) .............................................
Spring Washer (M10) ..................................
Nut (M10) ....................................................
2
2
4
2
8
4
4
URL : http://www.toa.com.sg/
Wiring diagram HA-1010-AM
16Ω
0
200Ω
100Ω
COM
BLUE
BLACK
WHITE
8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 8Ω
100V line: 200Ω (50W), 330Ω (30W)
70V line: 100Ω (50W), 200Ω (25W)
25V line: 100Ω (6W), 200Ω (3W)
3. INSTALLATION PRECAUTIONS3. INSTALLATION PRECAUTIONS
• This long range slim array speakers have
feature a drain hole built into same panel
that holds the speaker cord. For proper
drainage, when installation please ensure
that this panel faces down toward the
ground or follow the instruction of direction
label at the rear case.
• When using the other bracket, please to use
TOA’s optional bracket solely designed for
mounting this speaker or it must have
strength enough to stand the speaker
weight.
Speaker cord
Case
Drain hole
2. FEATURES
The HA-1010 is long range speaker slim array is composed of multiple horn speaker positioned in an array. It features
long-range sound coverage further than conventional horn speakers, narrowly focused vertical directivity that allows
excessive volume to be controlled at closer proximity, and form a continuous linear sound source, achieving uniform sound
pressure with less attenuation due to distance.

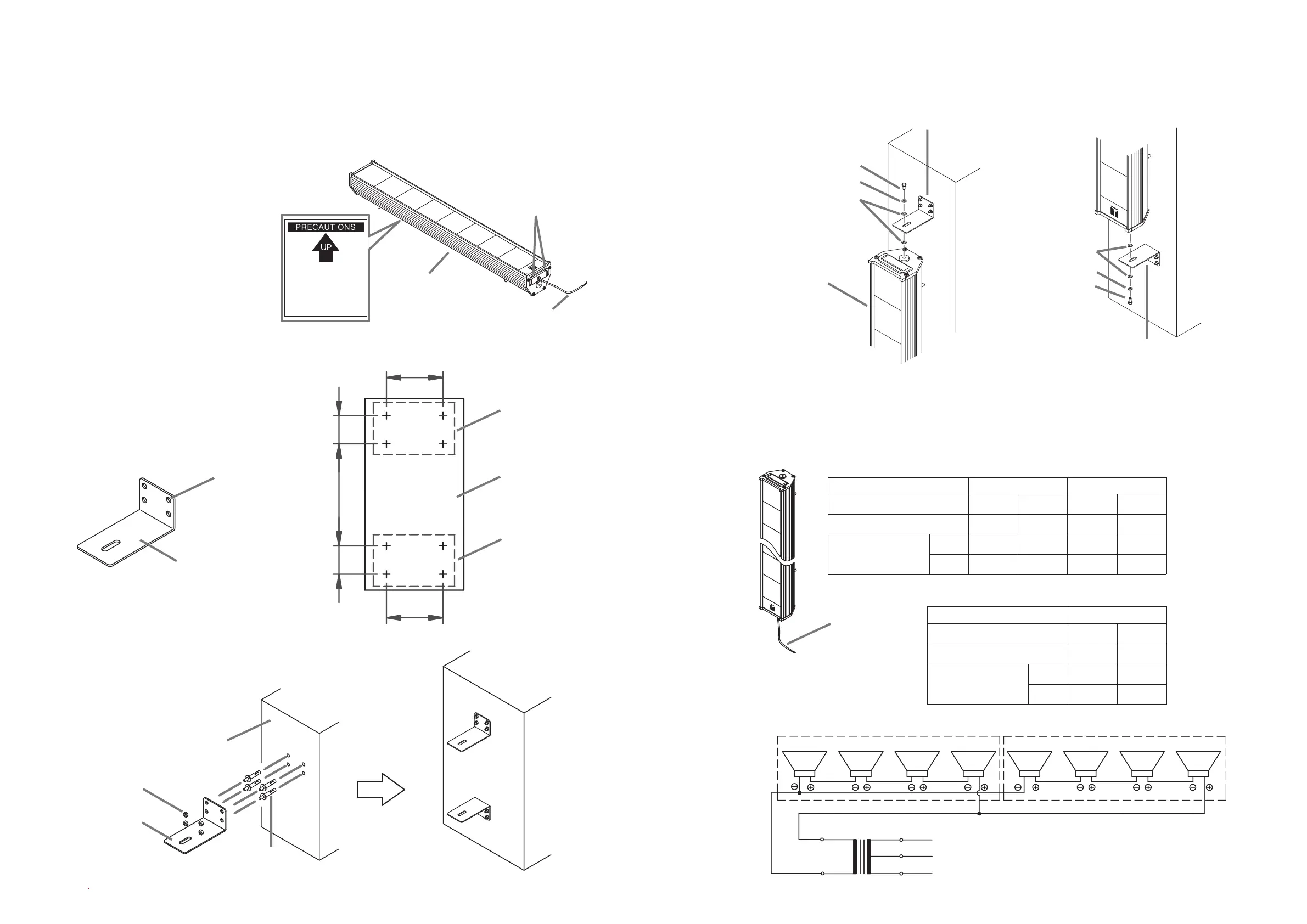

3. INSTALLATION
Step 1. Make the sign for drill guide at the surface or
location that can structurally support the weight
of the speaker. Prepare the proper dyna bolt
that suitable with hole of bracket. Dimensions
of sign for drill guide and hole of bracket as
shown in the picture.
Guide for
top bracket
Guide for
bottom bracket
50
1287
Surface for drill
25
50
Unit: mm (in)
(1.97”)
(1.97”)
(0.98”)
(50.67”)
Step 2. Drill the surface that have been marked, install
the proper dyna bolt then the both of top and
bottom bracket.
25(0.98”)
Holes bracket
4 - Ø9
Mounting Bracket
(accessory)
Note
Dyna bolts and nuts are not provided.
Mounting surface
Mounting Bracket
(accessory)
Dyna bolt
Nut
Step 3. Install the long range slim array to the bracket
that have been installed to the mounting surface
using supplied hexagon bolt, washer, and spring
washer to top and bottom bracket.
HA-1010
Top bracket
Note
When the speaker installation need slope angel, use the
optional Q-HA-1100 speaker bracket.
4. SPEAKER CORD COLOR CODING
Speaker cord
For connections,
refer to the table.
5. WIRING DIAGRAM
Rated input
Cord color coding
Impedance
HOT
COM
50W 30W
200Ω 330Ω
BLACK
WHITE
BLUE
WHITE
16Ω
0
330Ω
200Ω
COM
BLUE
BLACK
WHITE
8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 8Ω 8Ω
Hexagon bolt M8 x 20
Spring washer (for M8)
Washer (for M8)
Bottom bracket
Hexagon bolt M8 x 20
Spring washer (for M8)
Washer (for M8)
MAKE SURE THAT SPEAKER IS MOUN TE D
WITH THE SIDE INDICATED BY THE ARROW UP.
IF THE SPEAKER MOUNTED UPSIDE DOWN.
RAINWATER GE T S INTO THE SPEA K ER FROM
DRAI N HOLE ON THE BOTT OM PL ATE.
CAUSING BREAK DOWNS OR ACCIDEN TS.
WHEN MOUNTING. BE SURE TO USE TOA’S
OPTIONAL BR ACKET SOL ELY DESIGNED FOR
MOUNT ING THIS SPEAKER. WHEN USING
OTHER BRACKE T. IT MUST HAVE STRENGTH
ENOUGH TO STAND THE SPEAKER WEIGHT.
Wiring diagram HA-1010-AS, HA-1010-EA, HA-1010-EB
Rated input
Cord color coding
Impedance
HOT
COM
50W 25W
100Ω 200Ω
BLACK
WHITE
BLUE
WHITE
Line voltage 70V LINE
6W 3W
100Ω 200Ω
BLACK
WHITE
BLUE
WHITE
25V LINE
Line voltage 100V LINE
HA-1010-AM
HA-1010-AS, HA-1010-EA, HA-1010-EB
