PENDANT SPEAKER PE-154EN

Thank you for purchasing TOA's Pendant Speaker.

Please carefully follow the instructions in this manual to ensure long, trouble-free use

of your equipment.

Traceability Information for Europe (EMC directive 2004/108/EC)

Manufacturer:

TOA Corporation

7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,

Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg,

Germany

INSTRUCTION MANUAL

1. SAFETY PRECAUTIONS ........................... 1

2. GENERAL DESCRIPTION

AND FEATURES ......................................... 2

3. IMPEDANCE CHANGE .............................. 2

4. INSTALLATION .......................................... 3

5. DIMENSIONAL DIAGRAM ......................... 4

6. WIRING DIAGRAM...................................... 4

7. FREQUENCY RESPONSE (1 W, 4 m) ....... 5

8. SPECIFICATIONS ...................................... 5

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe

operation.

• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or

cautions regarding safety.

• After reading, keep this manual handy for future reference.

When Installing the Unit

• Refer all installation work to the dealer from whom

the speaker was purchased. Installation work

requires extensive technical knowledge and

experience. The speaker may fall off if incorrectly

installed, resulting in possible personal injury.

• Install the speaker only in a location that can

structurally support the full weight of the unit and

mounting bracket. Doing otherwise may result in

the speaker falling down and causing personal

injury and/or property damage.

• Since the unit is designed for in-door use, do not

install it outdoors. If installed outdoors, the aging of

parts causes the unit to fall off, resulting in personal

injury. Also, when it gets wet with rain, there is a

danger of electric shock.

• Do not use other methods than specified to install

the speaker. Extreme force is applied to the

speaker and the speaker could fall off, possibly

resulting in personal injuries.

• Use screws that are appropriate for the ceiling's

material and structure. Failure to do so may cause

the speaker to fall, resulting in material damage

and possible personal injury.

• Ensure that all screws are securely tightened. If

they are loose after installation, the speaker could

fall down, possibly resulting in personal injury.

Indicates a potentially hazardous situation which,

if mishandled, could result in death or serious

personal injury.

WARNING

Speaker

2. GENERAL DESCRIPTION AND FEATURES

The PE-154EN is certified according to the European Standard EN 54-24: 2008 and the International

Standard ISO 7240-24: 2010.

The PE-154EN is a pendant speaker designed for ceiling suspension installations.

Considered in architectural design, it can blend in with lighting equipment.

A directly-attached 5 m (16.4 ft) speaker cord allows the speaker to be suspended from the high ceiling.

The speaker is driven on high-impedance (100 V and 70 V) line, and its input power (impedance) can be

easily switched.

Note

Never dismantle the PE-154EN in any way even for repainting reason. Since the PE-154EN is certified in the

form of complete assembly by the above-mentioned standards, it does not meet these standards if

dismantled.

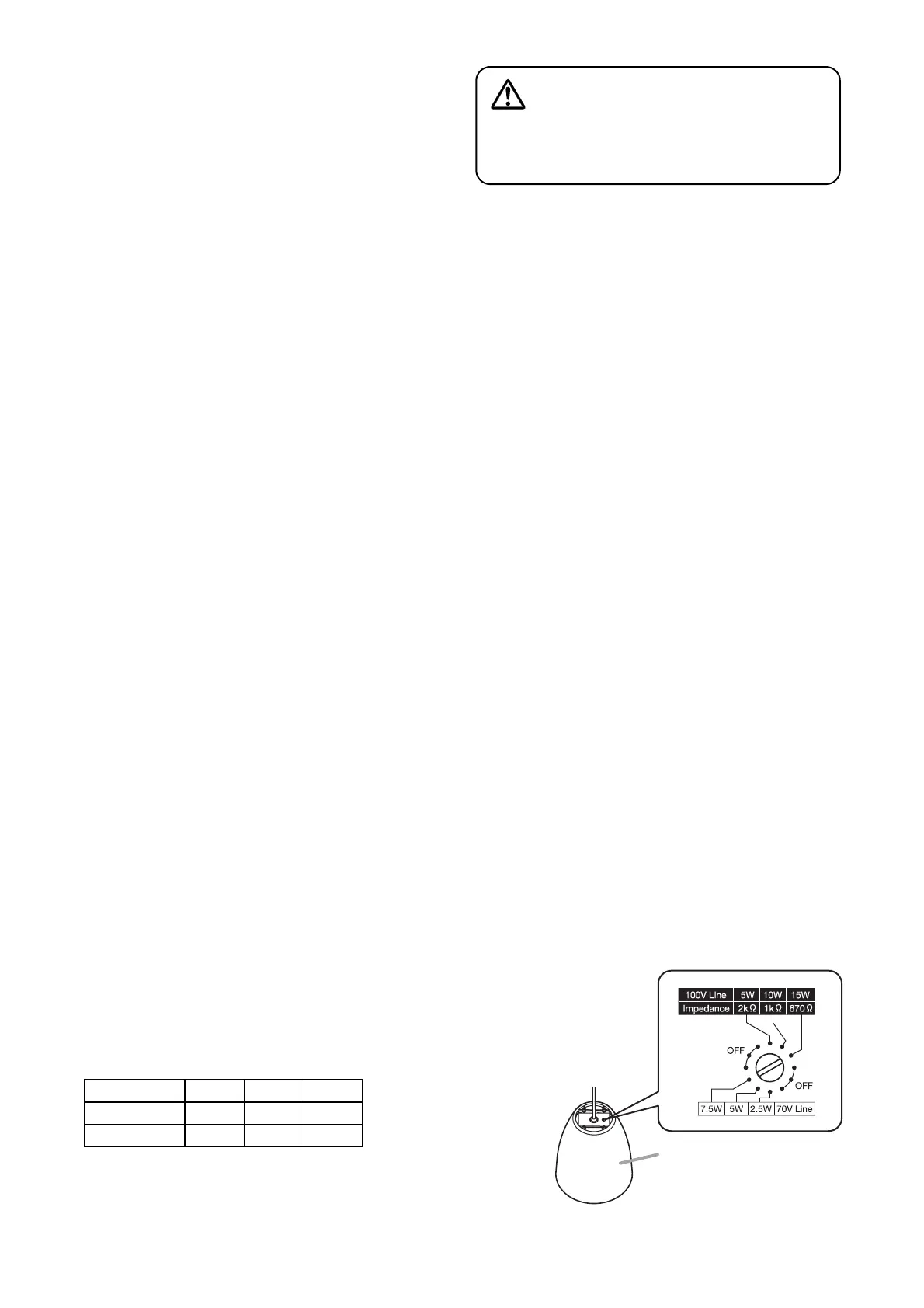

3. IMPEDANCE CHANGE

The input power (impedance) is factory-preset to 15 W (670 Ω) for 100

V line and 7.5 W (670 Ω) for 70 V line.

When changing this setting, use a standard screwdriver to rotate the

rotary switch on the upper side of the speaker to the desired position.

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

CAUTION

• Do not mount the speaker in locations exposed to

constant vibration. The speaker or its mounts can

be damaged by excessive vibration, potentially

causing the speaker to fall, which could result in

personal injury.

• Do not use anti-rust lubricant. If it contacts resin or

rubber parts, they could deteriorate and cause the

speaker to fall, possibly resulting in personal injury.

• Do not install the speaker in indoor swimming pools

or such locations where liquid chemicals are used.

The parts deteriorate if corroded, causing the

speaker to fall, which could result in personal

injury.

When the Unit is in Use

• If any of the following irregularities occurs,

immediately switch off the amplifier's power, and

inform the shop from where the speaker was

purchased. Further using the speaker may result in

fire or electric shock.

· If you detect smoke or a strange smell coming

from the speaker

· If water or any metallic object gets into the

speaker

· If the speaker falls, or the speaker case breaks

• To prevent a fire or electric shock, never open nor

remove the speaker case. Refer all servicing to

your nearest TOA dealer.

When Installing the Unit

• Avoid touching the speaker's sharp metal edge to

prevent injury.

• To avoid electric shocks, be sure to switch off the

amplifier's power when connecting speakers.

When the Unit is in Use

• Do not operate the speaker for an extended period

of time with the sound distorting. Doing so may

cause the speaker to heat, resulting in a fire.

• Do not stand or sit on, nor hang down from the

speaker as this may cause it to fall down or drop,

resulting in personal injury and/or property

damage.

• Have the speaker checked periodically by the shop

from where it was purchased. Failure to do so may

result in corrosion or damage to the speaker or the

mounts that could cause it to fall, possibly causing

personal injury.

Impedance 670 Ω 1 kΩ 2 kΩ

100 V line 15 W 10 W 5 W

70 V line 7.5 W 5 W 2.5 W

Bold figures represent factory-preset values.

Notes

• Switch off the amplifier's power when changing the input power.

• No sound is output when the switch is set to the OFF position.

Produkspesifikasjoner

Merke:	Toa
Kategori:	Høyttaler
Modell:	PE-154EN
Vekt:	2100 g
Bredde:	186 mm
Dybde:	186 mm
Høyde:	251 mm
Bluetooth:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Antall per pakke:	1 stykker
Høyttalerplassering:	Tak-Monterbart
Basshøyttaler:	Ja
Forsterker:	Nei
Diskanthøyttaler:	Ja
Kabellengde:	5 m
Produktfarge:	Hvit
Lyd-utgang kanaler:	- kanaler
RMS-rangert strøm/utgangseffekt:	15 W
Antall drivere:	2
Frekvensrekkevidde:	70 - 20000 Hz
Sensitivitet/følsomhet:	91 dB
Diskanthøyttalerens diameter:	1 "
Basshøyttalerens diameter (imperisk):	5 "
Antall drivere til diskant:	1
Antall basshøyttalerdrivere:	1
