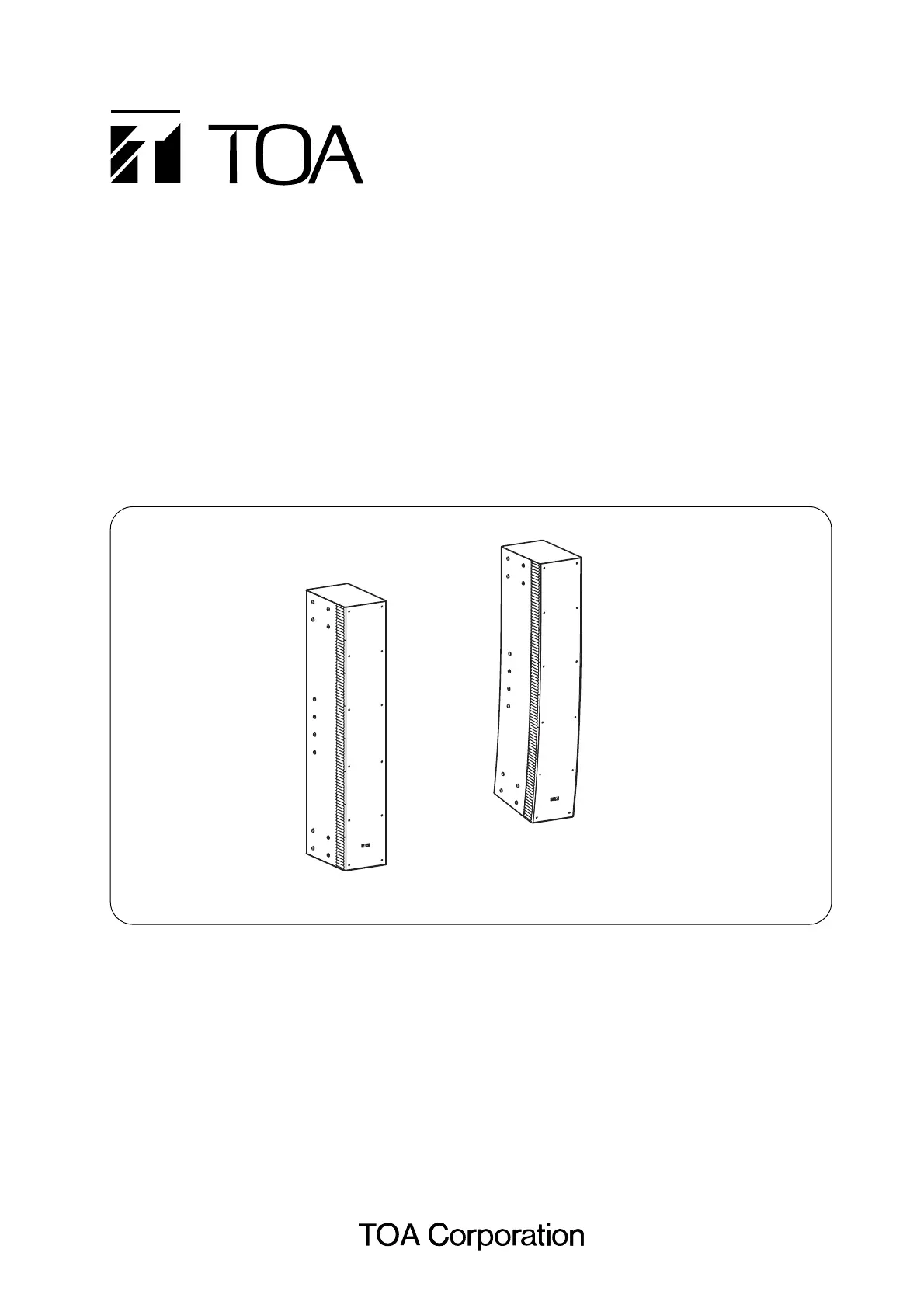

Side 1/16

OPERATING INSTRUCTIONS

LINE ARRAY SPEAKERS

EXTENSION PLATE

(optional)

PROTECTION PAD (optional)

SR-S4LWP

SR-S4SWP

SR-EP4WP

SR-PP4

SR-S4LWP

SR-S4SWP

Thank you for purchasing TOA's Line Array Speakers and their associated products.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS ............................................................................................ 3

2. GENERAL DESCRIPTION .......................................................................................... 5

3. FEATURES ...................................................................................................................... 5

4. INSTALLATION PRECAUTION ................................................................................. 6

5. COVERAGE AREA ....................................................................................................... 7

6. DIMENSIONAL DIAGRAM

6.1. Line Array Speaker SR-S4LWP ................................................................................... 8

6.2. Line Array Speaker SR-S4SWP ................................................................................... 8

7. SINGLE-AMPLIFIER DRIVE AND BI-AMPLIFIER DRIVE ............................... 9

8. INTERNAL WIRING DIAGRAM ................................................................................ 9

9. CHANGING TO HIGH IMPEDANCE ...................................................................... 10

10. JOINING SPEAKERS ................................................................................................. 11

11. ATTACHING THE PROTECTION PAD TO THE SPEAKER EDGE ............. 12

12. CHANGING SINGLE-AMPLIFIER DRIVE

TO BI-AMPLIFIER DRIVE SYSTEM

...................................................................... 13

13. INTERNAL WIRING DIAGRAM

FOR THE BI-AMPLIFIER DRIVE SYSTEM

......................................................... 14

14. DIGITAL PROCESSOR FILTERING

14.1. Single-Amplifier Drive (Factory-Setting) .................................................................... 14

14.2. Bi-Amplifier Drive ...................................................................................................... 14

15. SPECIFICATIONS

15.1. Line Array Speaker SR-S4LWP, SR-S4SWP .......................................................... 15

15.2. Extension Plate SR-EP4WP (optional) .................................................................... 16

15.3. Protection Pad SR-PP4 (optional) ............................................................................ 16

Produkspesifikasjoner

Merke:	Toa
Kategori:	Høyttaler
Modell:	SR-S4SWP
Vekt:	16000 g
Bredde:	160 mm
Dybde:	303 mm
Høyde:	892 mm
Bluetooth:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Sertifisering:	IPX4
Anbefalt bruk:	Universell
Impedans:	8 Ω
Høyttalerplassering:	Gulv
Basshøyttaler:	Ja
Diskanthøyttaler:	Ja
Produktfarge:	Hvit
Driftstemperatur (T-T):	-10 - 50 °C
Kroppsmateriale:	Plywood, Stainless steel
Lyd-utgang kanaler:	- kanaler
RMS-rangert strøm/utgangseffekt:	600 W
Høyttaler type:	2-veis
Frekvensrekkevidde:	70 - 20000 Hz
Basshøyttalerens diameter:	100 mm
Diskant diameter:	25 mm
Sensitivitet/følsomhet:	93 dB
Overgangsfrekvens:	3500 Hz
Antall drivere til diskant:	24
Antall basshøyttalerdrivere:	8
