Owner’s Manual

Heavy-Duty Mobile

Flat-Panel Floor Stand

Model: DMCS60100XX

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR

PROPERTY DAMAGE MAY OCCUR!

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

200 x 200 / 300 x 300 /

400 x 200 / 400 x 400 /

600 x 400 / 800 x 400 /

800 x 600 / 1000 x 600

100”

MAX

220 lb.

(100 kg)

MAX

CAMERA

11 lb.

(5 kg)

MAX

DVD

11 lb.

(5 kg)

MAX

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

Español 13 • Français 25 • Русский 37 • Deutsch 49

18-03-072-93380F.indb 1 4/30/2018 3:24:55 PM

NOTE: Read the entire instruction manual before you start assembly and installation.

WARNING

• Do not begin the installation until you have read and understood the instructions

and warnings contained in this manual. If you have any questions regarding any

of the instructions or warnings, please visit www.tripplite.com/support

• This mounting bracket was designed to be installed and utilized ONLY as

speciﬁed in this manual. Improper installation of this product may cause damage

or serious injury.

• This product should only be installed by someone of good mechanical ability,

with basic building experience and a full understanding of this instruction

manual.

• Make sure that the mounting surface can safely support the combined load of

the equipment and all attached hardware and components.

• Always use an assistant or mechanical lifting equipment to safely lift and position

equipment.

• Tighten screws ﬁrmly, but do not over-tighten. Over-tightening screws can

damage the items, greatly reducing their holding power.

• This product is intended for indoor use only. Using this product outdoors could

lead to product failure and personal injury.

Warranty & Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects

in material and workmanship for a period of 5 years from the date of initial purchase. If the product should

prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole

discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE,

ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY

SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES,

INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY

PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL

DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not

allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions

may not apply to you. This warranty gives you speciﬁc legal rights, and you may have other rights which vary from

jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate

or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes

no representation or warranty as to the suitability or ﬁtness of these devices for any speciﬁc application.

PRODUCT REGISTRATION

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a

drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Speciﬁcations are subject to change without notice.

18-03-072-93380F.indb 2 4/30/2018 3:24:55 PM

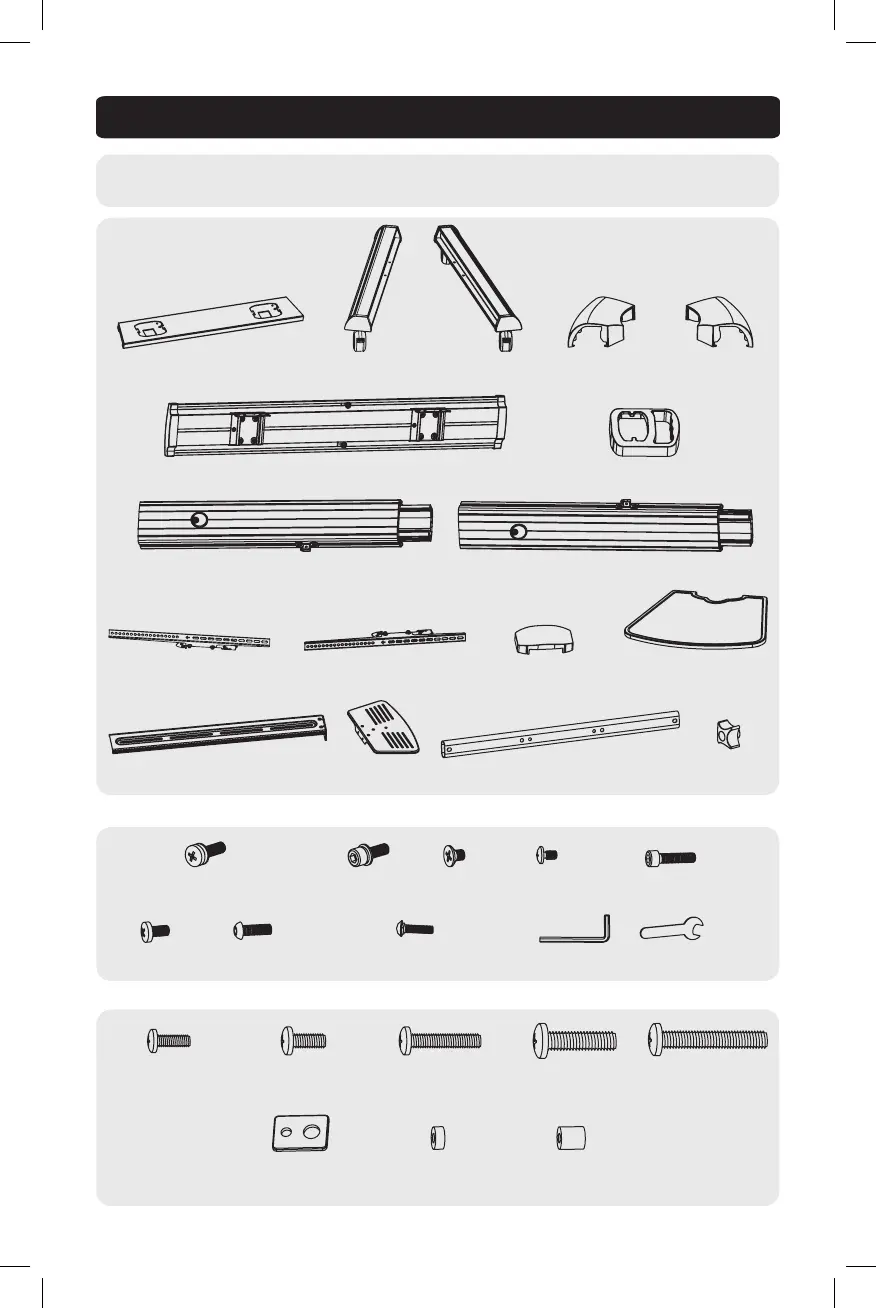

Component Checklist

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to

installing. If any parts are missing or faulty, visit www.tripplite.com/support for service.

Middle Base (x1)

M5 x 14 (x4) M8 x 50 (x4)

Left Column (x1)

Right Adapter Bracket (x1)

Camera Shelf (x1)

Plastic Handle (x2)

Right Column (x1)

Top Cover (x2)

Support Bar (x1)

DVD Shelf (x1)

Knob (x2)

Left Adapter Bracket (x1)

Connecting Plate (x1)

M6x25 Philips Rounded Head (x2)

M6x25 Hex Rounded Head (x2)

M6x16 (x4)

Hex Key (x1)

M4x6 (x3)

Wrench (x1)

M4x6 (x2) M6x25 Hex Socket Head (x2)

M6x14 (x6) M8x25 (x8)

Left Leg (x1) Right Leg (x1)

M6 x 14 x4)

Washer (x4) Small Spacer (x8)

M6 x 30 (x4)

Big Spacer (x8)

M8 x 30 (x4)

Left Cover (x1) Right Cover (x1)

Universal Plate (x1)

Package M

Package P

18-03-072-93380F.indb 3 4/30/2018 3:24:55 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	fjernsynsbenk
Modell:	DMCS60100XX
Vekt:	27670 g
Bredde:	1118 mm
Dybde:	701 mm
Høyde:	1174 mm
Opprinnelsesland:	China
Pakkevekt:	45360 g
Antall skjermer som støttes:	1
Maksimal skjermstørrelse:	100 "
Minimum skjermstørrelse:	60 "
Produktfarge:	Sort, sølv
Vippevinkelområde:	-10 - 5 °
Pakkedybde:	1206.5 mm
Pakkehøyde:	248.9 mm
Pakkebredde:	655.3 mm
Harmonisert system (HS)-kode:	85299097
Modell/Type:	Bærbart gulvstativ for flatskjerms-TV
Kroppsmateriale:	Aluminium, Steel
Panelmonterbart grensesnitt:	200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400,800 x 600,1000 x 600 mm
Montasjetype:	Gulv
Maksimalvekt (kapasitet):	100 kg
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332224627
Masterkassens (ytterkassens) bruttovekt:	29940 g
Masterkassens (ytterkassens) lengde:	1224.3 mm
Produkter per masterkasse (ytterkasse):	1 stykker
Masterkassens (ytterkassens) bredde:	670.6 mm
Masterkassens (ytterkassens) høyde:	259.1 mm
Monteringsgrensesnitt, kompatibilitet (min):	200 x 200 mm
Monteringsgrensesnitt, kompatibilitet (maks):	1000 x 600 mm
Antall:	1
