Digital ECO-UPS

™

Systems

Models:

ECO1000LCD, ECO1300LCD, ECO1500LCD

(Series Numbers: AG-87C1, AG-87C2, AG-87C3)

Important Safety Instructions ................. 2

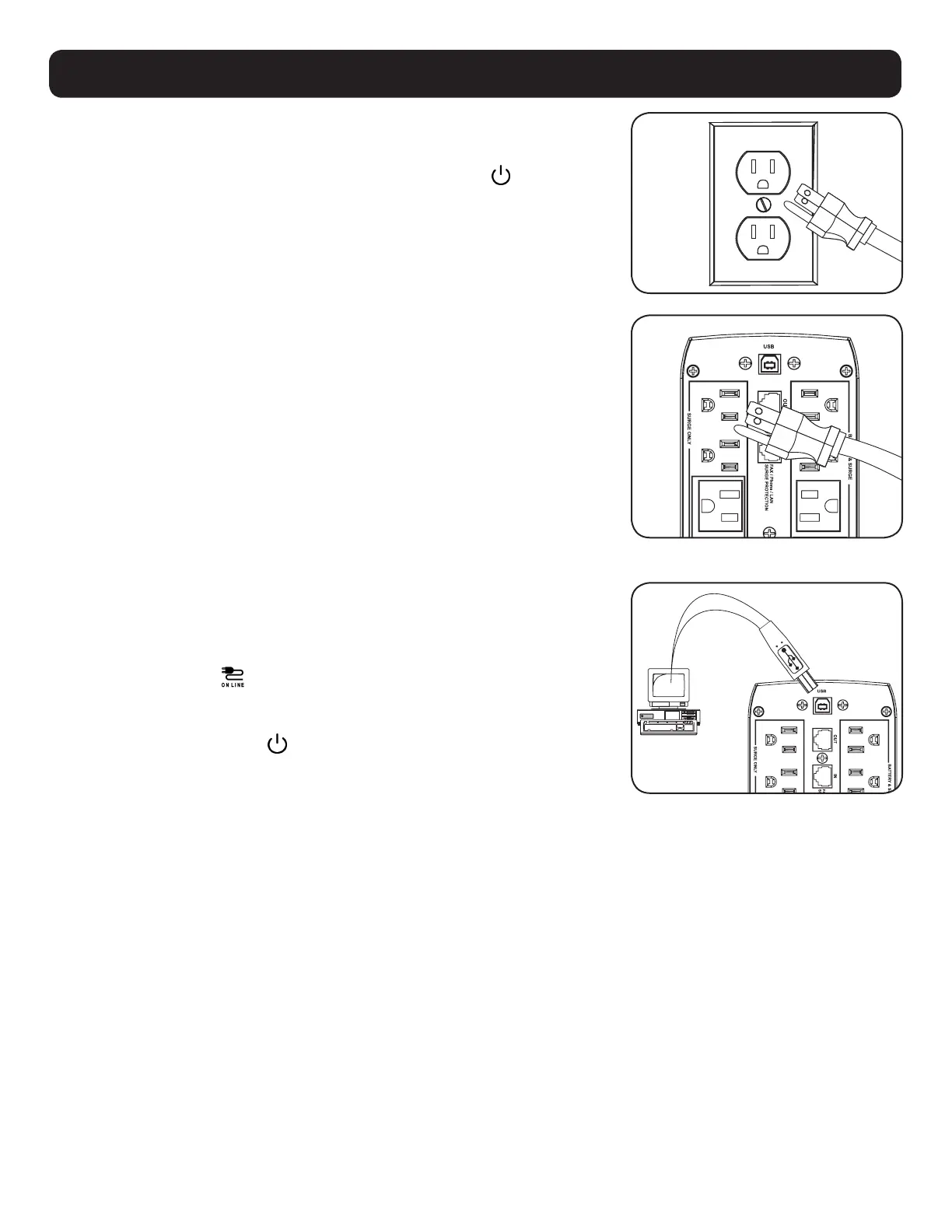

Quick Installation ...................................3

ECO Energy Saving Setup .......................4

Basic Operation .....................................4

UPS On/Off ..........................................4

LCD Screen ......................................... 5

Display UPS/Power Conditions ...............6

Enable/Disable Alarm ...........................6

Self-Test ..............................................6

Error Messages ....................................7

Features ................................................8

UPS Features ......................................8

Battery Replacement ...........................10

Storage and Service ............................11

Product Registration and......................12

Regulatory Compliance

Español................................................13

Français ............................................... 25

Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the installation, operation and storage of this

product. Failure to heed these warnings may affect the warranty.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants, dust or direct sunlight.

• For best performance, keep the indoor temperature between 32º F and 104º F (0º C and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

• Only set the UPS upright on a sturdy ﬂat surface. Do not block fans or ventilation holes, as this will seriously inhibit the unit's internal cooling

and cause product damage not covered under warranty.

UPS Connection Warnings

• Connect your UPS directly to a properly grounded AC power outlet. Do not plug the UPS into itself; this will damage the UPS.

• Do not modify the UPS plug, and do not use an adapter that would eliminate the UPS ground connection.

• Do not use extension cords to connect the UPS to an AC outlet.

• If the UPS receives power from a motor-powered AC generator, the generator must provide clean, ﬁltered, computer-grade output.

• The mains socket outlet that supplies the UPS should be easily accessible and located near the UPS.

Equipment Connection Warnings

Install in accordance with National Electrical Code standards ANSI/NFPA 70 and Canadian Electrical Code, Part I, C22.1.

Short Circuit backup protection and overcurrent protection is provided by the building installation.

To reduce the risk of ﬁre, connect only to a circuit provided branch circuit overcurrent protection in accordance with the

National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1. The plug on the power supply

cord is intended to serve as the disconnect device. Be sure that the socket-outlet is installed near the equipment and is

made easily accessible.

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life

support equipment or to signiﬁcantly affect its safety or effectiveness is not recommended.

• Do not connect surge protectors or extension cords to the output of your UPS. This might damage the UPS and may affect the surge

protector and UPS warranties.

• Connect the UPS to an outlet that is adequately protected against excess currents, short circuits and earth faults as part of the building

installation.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current. Observe proper precautions. There are no user-

serviceable parts inside the UPS. Do not open the UPS except to perform battery replacement. Do not open batteries. Do not short or

bridge the battery terminals with any object. Do not dispose of batteries in a ﬁre. The batteries may explode. Released material is harmful

to the skin and eyes. It may be toxic. Unplug and turn off the UPS before performing battery replacement. Use tools with insulated handles.

Battery replacement should be performed only by authorized service personnel using the same number and type of batteries (Sealed Lead-

Acid). Do not dispose of the batteries in a ﬁre. The batteries are recyclable. Refer to your local codes for disposal requirements or in the

USA only call 1-800-SAV-LEAD or 1-800-8-BATTERY (1-800-822-8837) or visit www.rbrc.com for recycling information. Tripp Lite offers a

complete line of UPS System Replacement Battery Cartridges (R.B.C.).Visit Tripp Lite on the Web at www.tripplite.com/products/battery-ﬁnder

to locate the speciﬁc replacement battery for your UPS.

Important Safety Instructions

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	uforstyrret strømtilførsel (UPS)
Modell:	ECO ECO1000LCD
Vekt:	8350 g
Bredde:	99.1 mm
Dybde:	287.8 mm
Høyde:	279.4 mm
Bruksanvisning:	Ja
USB-port:	Ja
Opprinnelsesland:	China
Pakkevekt:	9040 g
Utgangseffekt:	600 W
Utgangsspenning (maks.):	120 V
UPS topologi:	Linje-Interactive
Antall inngangsfaser:	1
Hørbare alarmmoduser:	Fault, Low battery alarm, Overload alarm
Bølgeform:	Sinus
Overføringstid (linjemodus til batterimodus):	6 ms
Inngangsspenning (maks.):	120 V
Kabellengde:	1.8 m
Produktfarge:	Sort
Pakkedybde:	373.4 mm
Pakkehøyde:	365 mm
Pakkebredde:	370.8 mm
Skjermtype:	LCD
Kabler inkludert:	USB-kabel
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-15 - 50 °C
Bærekraftsertifikater:	RoHS
Formfaktor:	Tower
Inngangsfrekvens:	50/60 Hz
Kroppsmateriale:	Akrylonitril-butadien-styren (ABS)
Relativ luftfuktighet under drift (H-H):	0 - 95
Form for nedkjøling:	Passiv
Oppdateringsresponstid:	0 ms
Antall AC outlets:	8 AC-utganger
Masterkassens (ytterkassens) bruttovekt:	9040 g
Masterkassens (ytterkassens) lengde:	373.4 mm
Produkter per masterkasse (ytterkasse):	1 stykker
Masterkassens (ytterkassens) bredde:	370.8 mm
Masterkassens (ytterkassens) høyde:	365 mm
Hørbare alarmer:	Ja
Strøm (maks.):	12 A
AC-utgangstyper:	NEMA 5–15R
Strømuttak:	NEMA 5-15P
Strømstøt energivurdering:	316 J
EMI/RFI-lydfiltrering:	Ja
Output strømkapasitet (VA):	1 kVA
Inngangsspenning (min.):	120 V
Utgangsspenning (min.):	110 V
Modem (RJ-11)-porter:	1
Normal backuptid ved halv belastning:	7 min
Normal backuptid ved full belastning:	2 min
Kretsbryterkontakt:	Ja
Effektivitet (online modus):	96
Batteriladetid (90 %):	7 timer
