Installation Instructions

2-Post Rack Kit for Select

SmartOnline

UPS Systems

Model: 2POSTRMKITMB

Designed for use with the following SmartOnline UPS Systems

with Detachable Bypass Power Distribution Module:

SU5KRT3UHVMB, SU5KRT3UGMB, SU5KRT3UHWMB, SU5KRT3UTFMB, SU6KRT3HVMB,

SU6KRT3UXMB, SU6KRT3UGMB, SU6KRT3UTFMB, SU6KRT3UHWMB

Note: The step-down transformer included in the following bundled UPS conﬁgurations

requires its own 2POSTRMKITWM (sold separately) for 2-post mounting:

SU5KRT3UTFMB (SU5000XFMRT2U step-down transformer) and

SU6KRT3UTFMB (SU6000XFMRT2U step-down transformer).

Español 4 • Français 7 • Русский 10

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Attach the PDM assembly to the 2-Post Brackets. The

PDM bracket’s built-in hooks provide temporary support

while securing the PDM to the rack with the permanent

mounting hardware.

PDM Mounting Brackets can be laterally adjusted to Note:

ensure a proper connection between the UPS and PDM. To

adjust the brackets, loosen the thumbscrews. Fully extend the

PDM to the end of the brackets. Do not tighten screws at this

time. Refer to step

for more information.

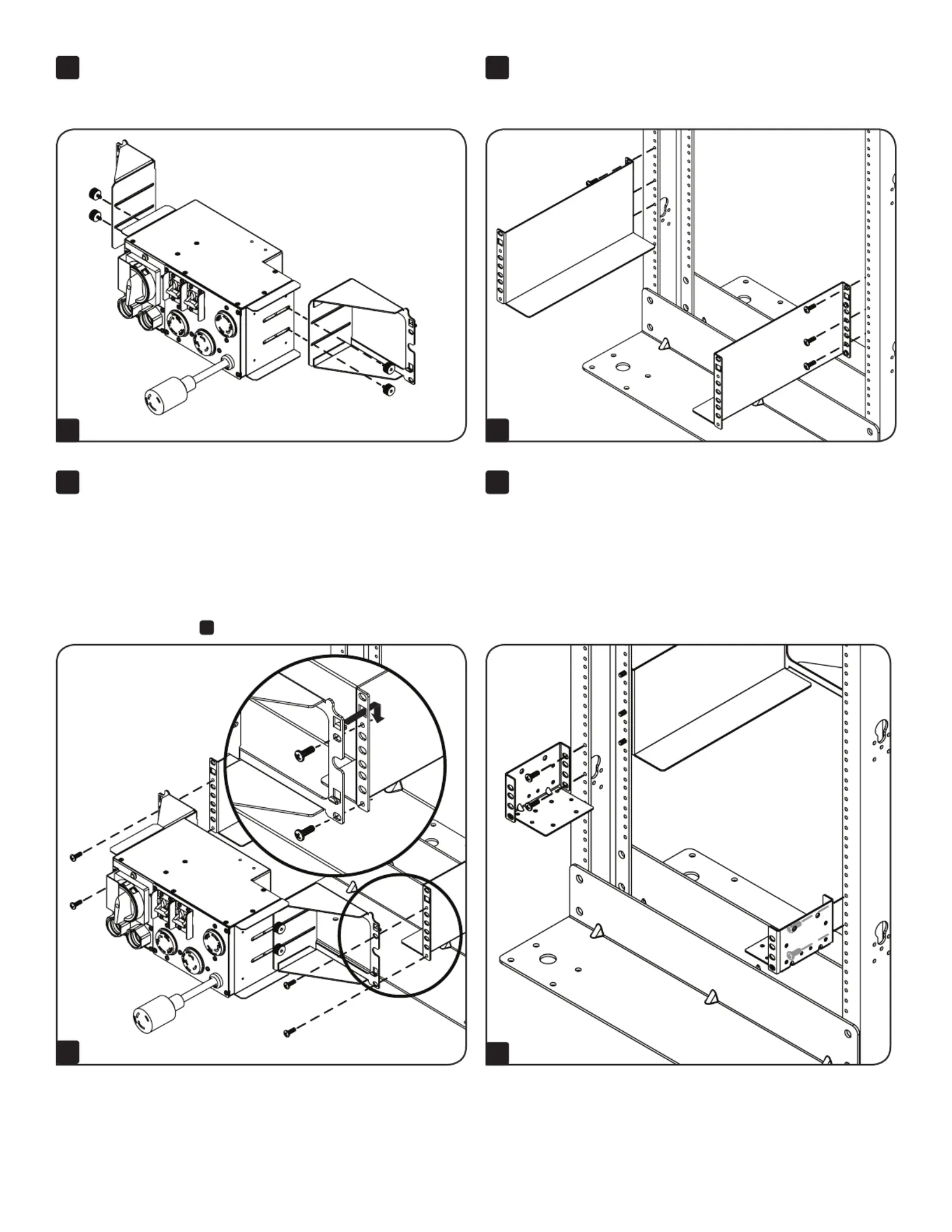

Attach the (two smaller) 2-Post Brackets to the front side

of the 2-Post Rack.

PDM Outlet Conﬁguration will Vary by Model

Using the included thumbscrews, attach the PDM

Mounting Brackets to the PDM.

Do not tighten screws at this time.Note:

Attach the (two larger) 2-Post Brackets to the rear of the

2-Post Rack.

1 2

PDM Outlet Conﬁguration will Vary by Model

Using the included screws, attach UPS mounting

brackets to the middle mounting holes on the UPS. The

mounting bracket “ears” should face inward.

It is recommended you remove the UPS internal Note:

batteries prior to installation. Doing so will remove excess

weight and allow for safer handling. Refer to your UPS Owner’s

Manual for battery removal instructions.

Remove the internal batteries from the UPS before proceeding with this step. For battery removal

instructions, refer to your UPS Owner’s Manual.

Note: If installing a WEBCARDLXMINI (sold separately), install the card prior to UPS installation.

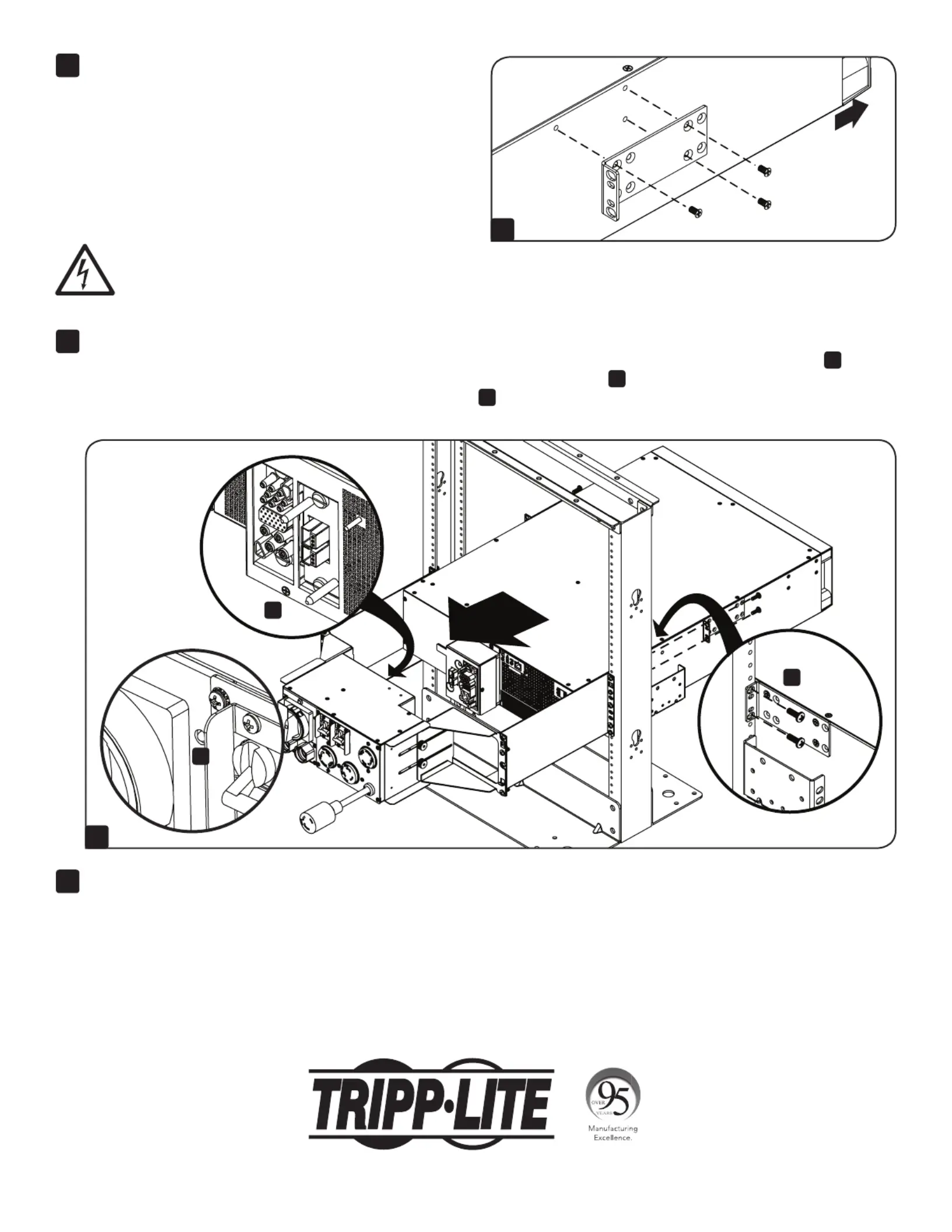

With the aid of an assistant, lift your UPS with its rear panel facing toward the PDM and slide it atop the 2-Post Brackets.

Push the UPS toward the PDM so its blindmate connectors securely mate with the connectors on the PDM unit

. A

green pin will appear on the PDM’s front panel to indicate a proper connection

. Attach the UPS mounting ears to the

front mounting rails with user-supplied screws and washers

. Tighten all screws securely.

If internal batteries were removed, refer to your UPS Owner’s Manual for battery installation instructions.Note:

If an external battery pack is being added to the installation, refer to the instructions in your external battery pack Owner’s

Manual.

FRONT

OF UPS

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

19-11-207-93-39A3_RevA
