Tripp Lite SmartOnline SU1500RTXLCD2U Bruksanvisning

Tripp Lite uforstyrret strømtilførsel (UPS) SmartOnline SU1500RTXLCD2U

Les nedenfor 📖 manual på norsk for Tripp Lite SmartOnline SU1500RTXLCD2U (92 sider) i kategorien uforstyrret strømtilførsel (UPS). Denne guiden var nyttig for 8 personer og ble vurdert med 4.9 stjerner i gjennomsnitt av 4.5 brukere

Last ned PDF

Side 1/92

SU750RTXLCD2U

SU1000RTXLCD2U

SU1500RTXLCD2U

SU2200RTXLCD2U

SU3000RTXLCD3U

Quick

Start Guide—

Page 10

Owner’s Manual

SmartOnline

™

Single-Phase Rackmount Online UPS Systems

with Built-in LCD Monitoring & Control Screen

Not suitable for mobile applications.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

1. Overview 2

Parts List 2

Additional Accessory Options 2

Model Specific Accessories 2

2. Important Safety Instructions 3

3. Installation 4

Rack Mounting 4

Tower Mounting 6

4. Features 7

Front Panel Controls 7

Rear Panel Features 8

5. Basic Connection and Start-Up 10

Quick Start Guide 10

Optional Connections 11

6. Operation 13

Modes of Operation 13

LCD Informational Screens 16

UPS Setup Overview 18

Using PowerAlert 18

Using Front Panel LCD Interface 18

7. Troubleshooting 25

8. Internal Battery Replacement 26

9. Storage and Service 30

10. Warranty Registration 30

Español 31

Français 61

Warranty

Registration:

chance to win a FREE Tripp Lite

product—www.tripplite.com/warranty

NOTE: External battery pack options require conﬁguration using front panel LCD interface or via Tripp Lite’s EXTERNAL BATTERY CONFIGURATION software.

See page 23 for more information if you are connecting external batteries to this UPS.

13-11-176-93-3156.indb 1 11/27/2013 4:24:32 PM

Overview

Tripp Lite SmartOnline Rackmount UPS Systems with interactive LCD interface feature online, double-conversion UPS protection with full-

time sine wave output and zero transfer time suitable for all advanced networking applications. Each system provides long running

battery support with optional extended-run and SNMP/Web communications ability. Built-in interfaces include USB, DB9 serial and

Emergency Power Off (EPO). The interactive front panel LCD screen provides detailed UPS status, preset and control options. An optional

economy mode setting reduces power consumption and BTU heat output.

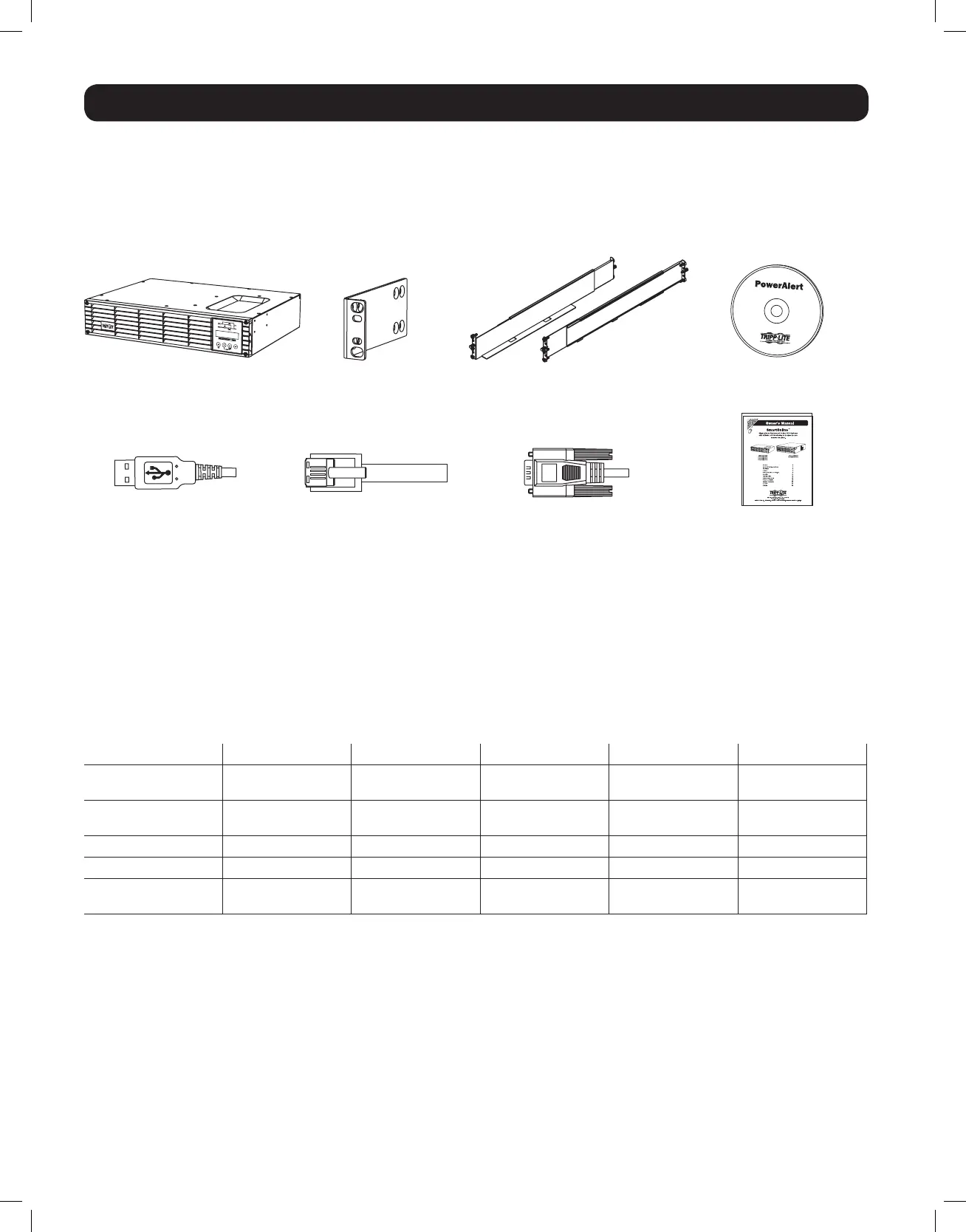

Parts List

UPS System Bolt-on mounting ears (2) 4-post rail kit* PowerAlert CD

USB Cable EPO (RJ11) Cable RS-232 Cable Owner’s manual

*Note: 3kVA (3U) models will include a different 4-post rail kit than the one shown.

Additional Accessories (All Models; Optional)

•SNMPWEBCARD:InternalnetworkinterfacecardforSNMP/Webcontrolandmonitoring

•ENVIROSENSE:Temperature/HumiditysensorforusewithSNMPWEBCARD

•SRSWITCH:RackdoorsensorforusewithENVIROSENSEandSNMPWEBCARD

•RELAYIOCARD:ProgrammableRelayI/OCardforremoteUPSmonitoring

•2-9USTAND:SupportsrackmountUPSandbatterypacksinuprighttowerconfiguration(notforSU3000RTXLCD3U)

Model Specific Accessories (Optional)*

UPS Model SU750RTXLCD2U SU1000RTXLCD2U SU1500RTXLCD2U SU2200RTXLCD2U SU3000RTXLCD3U

External Battery Packs

(LIMIT 1)**

BP24V15RT2U BP24V15RT2U BP48V24-2U BP48V24-2U BP72V15-2U

External Battery Packs

(NO LIMIT)**

BP24V70RT3U BP24V70RT3U BP48V60RT3U BP48V60RT3U BP72V28RT3U

Hot-swap PDU System

PDUB15 PDUB15 PDUB15 PDUB20 PDUB30

2 Post Rackmount Kit

2POSTRMKITWM 2POSTRMKITWM 2POSTRMKITWM 2POSTRMKITWM 2POSTRMKITHD

5 Year Extended

Warranty

WEXT5-500-1500 WEXT5-500-1500 WEXT5-500-1500 WEXT5-2200-3000 WEXT5-2200-3000

*Visit the specification page for your UPS system at www.tripplite.com for detailed extended runtime data and additional accessory options.

** Note: External battery pack options require configuration using front panel LCD interface or via Tripp Lite’s EXTERNAL BATTERY CONFIGURATION software. See page 23 for

more information if you are connecting external batteries to this UPS.
