Side 1/92

SU750RTXLCD2U

SU1000RTXLCD2U

SU1500RTXLCD2U

SU2000RTXLCD2U

SU2200RTXLCD2U

SU3000RTXLCD3U

Quick

Start Guide—

Page 10

SmartOnline

Single-Phase Rack-Mount On-Line UPS Systems

with Built-in LCD Monitoring & Control Screen

Not suitable for mobile applications.

1. Overview 2

Parts List 2

Additional Accessory Options 2

Model Specific Accessories 2

2. Important Safety Instructions 3

3. Installation 4

Rack Mounting 4

Tower Mounting 6

4. Features 7

Front Panel Controls 7

Rear Panel Features 8

5. Basic Connection and Start-Up 10

Quick Start Guide 10

Optional Connections 11

6. Operation 13

Modes of Operation 13

LCD Informational Screens 16

UPS Setup Overview 18

Using PowerAlert 18

Using Front Panel LCD Interface 18

7. Troubleshooting 25

8. Internal Battery Replacement 26

9. Storage and Service 30

10. Product Registration and 30

Regulatory Compliance

Español 31

Français 61

NOTE: External battery pack options require conﬁguration using front panel LCD interface or via Tripp Lite’s EXTERNAL BATTERY CONFIGURATION software.

See page 23 for more information if you are connecting external batteries to this UPS.

Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Overview

Tripp Lite SmartOnline Rack-Mount UPS Systems with interactive LCD interface feature on-line,, double-conversion UPS protection with

full-time sine wave output and zero transfer time suitable for all advanced networking applications. Each system provides long running

battery support with optional extended-run and SNMP/Web communications ability. Built-in interfaces include USB, DB9 serial and

Emergency Power Off (EPO). The interactive front panel LCD screen provides detailed UPS status, preset and control options. An optional

economy mode setting reduces power consumption and BTU heat output.

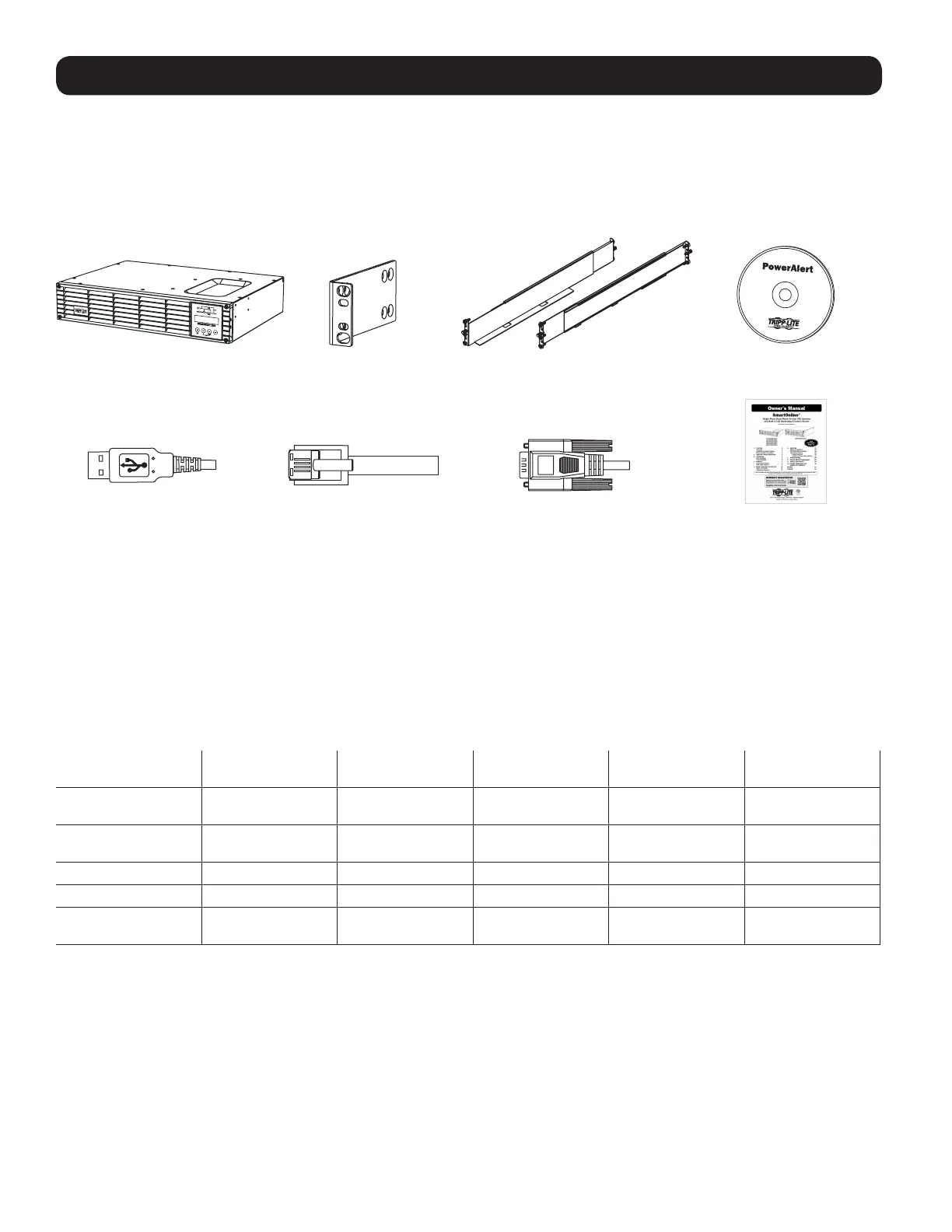

Parts List

UPS System Bolt-On Mounting Ears (2) 4-Post Rail Kit* PowerAlert CD

USB Cable EPO (RJ11) Cable RS-232 Cable Owner’s Manual

*Note: 3kVA (3U) models will include a different 4-post rail kit than the one shown.

Additional Accessories (All Models; Optional)

• SNMPWEBCARD: Internal network interface card for SNMP/Web control and monitoring

• ENVIROSENSE: Temperature/humidity sensor for use with SNMPWEBCARD

• SRSWITCH: Rack door sensor for use with ENVIROSENSE and SNMPWEBCARD

• RELAYIOCARD: Programmable relay I/O card for remote UPS monitoring

• 2-9USTAND: Supports rack-mount UPS and battery packs in upright tower configuration (not for SU3000RTXLCD3U)

Model Specific Accessories (Optional)*

UPS Model SU750RTXLCD2U SU1000RTXLCD2U SU1500RTXLCD2U

SU2000RTXLCD2U,

SU2200RTXLCD2U SU3000RTXLCD3U

External Battery Packs

(LIMIT 1)**

BP24V15RT2U BP24V15RT2U BP48V24-2U BP48V24-2U BP72V15-2U

External Battery Packs

(NO LIMIT)**

BP24V70RT3U BP24V70RT3U BP48V60RT3U BP48V60RT3U BP72V28RT3U

Hot-swap PDU System

PDUB15 PDUB15 PDUB15 PDUB20 PDUB30

2 Post Rack-Mount Kit

2POSTRMKITWM 2POSTRMKITWM 2POSTRMKITWM 2POSTRMKITWM 2POSTRMKITHD

5 Year Extended

Warranty

WEXT5-500-1500 WEXT5-500-1500 WEXT5-500-1500 WEXT5-2200-3000 WEXT5-2200-3000

*Visit the specification page for your UPS system at tripplite.com for detailed extended runtime data and additional accessory options.

** Note: External battery pack options require configuration using front panel LCD interface or via Tripp Lite’s EXTERNAL BATTERY CONFIGURATION software. See page 23 for

more information if you are connecting external batteries to this UPS.

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	uforstyrret strømtilførsel (UPS)
Modell:	SmartOnline SU2000RTXLCD2U
Vekt:	22000 g
Bredde:	444.5 mm
Dybde:	482.6 mm
Høyde:	88.9 mm
Støynivå:	57 dB
LED-indikatorer:	Ja
Bruksanvisning:	Ja
USB-port:	Ja
Innebygd vifte:	Ja
Opprinnelsesland:	China
Pakkevekt:	27220 g
Sertifisering:	FCC Part 15 Category A (EMI)\nCSA (Canada)\nNOM (Mexico)\nUL1778 (USA)
Utgangseffekt:	1800 W
Utgangsspenning (maks.):	127 V
UPS topologi:	Dobbeltkonvertering (Online)
Antall inngangsfaser:	1
Utgangsfrekvens:	50/60 Hz
Hørbare alarmmoduser:	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Bølgeform:	Ren sinus
Effektivitet (ECO-modus):	94
Inngangsspenning (maks.):	127 V
Kabellengde:	3.1 m
Produktfarge:	Sort
Pakkedybde:	490.2 mm
Pakkehøyde:	231.1 mm
Pakkebredde:	589.3 mm
Skjermtype:	LCD
Kabler inkludert:	RS-232, USB cable
Seriell grensesnittype:	RS-232
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	2
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-15 - 50 °C
Bærekraftsertifikater:	RoHS, ENERGY STAR
Formfaktor:	Rackmontering
Inngangsfrekvens:	50/60 Hz
Kroppsmateriale:	Stål
Overspenningsvern:	Digital Subscriber Line (DSL), Network, Telephone
Strømbeskyttelsesfunksjoner:	Over voltage, Under voltage
Driftshøyde:	0 - 3000 m
Rack-kapasitet:	2U
Relativ luftfuktighet under drift (H-H):	0 - 95
Form for nedkjøling:	Aktiv
Antall AC outlets:	7 AC-utganger
Masterkassens (ytterkassens) bruttovekt:	27220 g
Masterkassens (ytterkassens) lengde:	490.2 mm
Produkter per masterkasse (ytterkasse):	1 stykker
Masterkassens (ytterkassens) bredde:	589.3 mm
Masterkassens (ytterkassens) høyde:	231.1 mm
Hørbare alarmer:	Ja
Strøm (maks.):	16 A
AC-utgangstyper:	NEMA 5–20R, NEMA L5-20R
Strømuttak:	NEMA 5-20P
Strømfaktor:	0.9
Rack-montert sett:	Ja
Strømstøt energivurdering:	570 J
EMI/RFI-lydfiltrering:	Ja
Output strømkapasitet (VA):	2 kVA
Inngangsspenning (min.):	100 V
Utgangsspenning (min.):	100 V
Nødstrøm av (EPO):	Ja
Normal backuptid ved halv belastning:	12.3 min
Normal backuptid ved full belastning:	4.3 min
Kald oppstart:	Ja
Crest-faktor:	3:1
Serielt grensesnitt:	Ja
Nød Kraft Av kontakt (EPO) (Emergency Power Off):	Ja
Hot-swap-batterier:	Ja
Output spenningsforskrift:	2
