Side 1/80

SU3000RTXLCD2U

Quick

Start Guide—

Page 8

Owner’s Manual

SmartOnline

Single-Phase Rackmount Online UPS System

with Built-in LCD Monitoring & Control Screen

Not suitable for mobile applications.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

is a trademark of Tripp Lite. For latest updates, please visit www.tripplite.com

1. Overview 2

Parts List 2

Additional Accessories 2

Model Specific Accessories 2

2. Important Safety Instructions 3

3. Installation 4

Rack Mounting 4

Tower Mounting 5

4. Features 6

Front Panel Controls 6

Rear Panel Features 7

5. Basic Connection and Start-Up 8

Quick Start Guide 8

Optional Connections 9

6. Operation 11

Modes of Operation 11

LCD Informational Screens 14

UPS Setup Overview 16

Using PowerAlert Software 16

Using the LCD interface 16

7. Troubleshooting 23

8. Internal Battery Replacement 24

9. Storage and Service 26

10. Warranty Registration 26

Español 27

Français 53

Warranty

Registration:

chance to win a FREE Tripp Lite

product—www.tripplite.com/warranty

NOTE: External battery pack options require conﬁguration using front panel LCD interface or via Tripp Lite’s EXTERNAL BATTERY CONFIGURATION software.

See page 20 for more information if you are connecting external batteries to this UPS.

13-07-015-9332C3.indb 1 7/26/2013 11:16:06 AM

Overview

Tripp Lite SmartOnline Rackmount UPS Systems with interactive LCD interface feature on-line, double-conversion UPS protection with

full-time sine wave output and zero transfer time suitable for all advanced networking applications. Each system provides long running

battery support with optional extended-run and SNMP/Web communications ability. Built-in interfaces include USB, DB9 serial and

Emergency Power Off (EPO). The interactive front panel LCD screen provides detailed UPS status, preset and control options. An optional

economy mode setting reduces power consumption and BTU heat output.

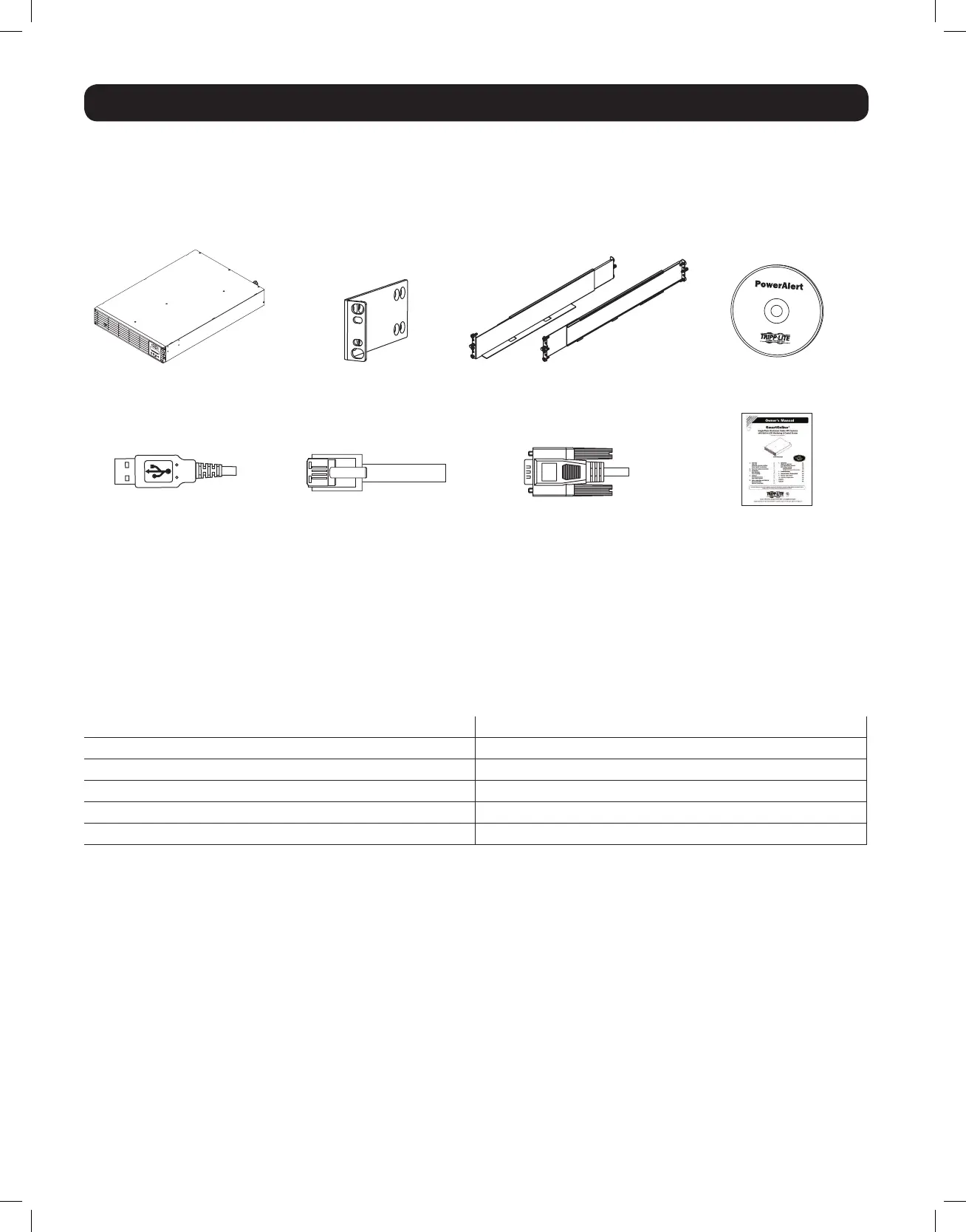

Parts List

UPS System Bolt-on mounting ears (2) 4-post rail kit PowerAlert CD

USB Cable EPO (RJ11) Cable RS-232 Cable Owner’s manual

Additional Accessories (Optional)

•SNMPWEBCARD:InternalnetworkinterfacecardforSNMP/Webcontrolandmonitoring

•ENVIROSENSE:Temperature/HumiditysensorforusewithSNMPWEBCARD

•SRSWITCH:RackdoorsensorforusewithENVIROSENSEandSNMPWEBCARD

•RELAYIOCARD:ProgrammableRelayI/OCardforremoteUPSmonitoring

•2-9USTAND:SupportsrackmountUPSandbatterypacksinuprighttowerconfiguration(notforSU3000RTXLCD3U)

Model Specific Accessories (Optional)*

UPS Model SU3000RTXLCD2U

External Battery Packs (LIMIT 1)**

BP72V15-2U

External Battery Packs (NO LIMIT)**

BP72V28RT3U

Hot-swap PDU System

PDUB30

2 Post Rackmount Kit

2POSTRMKITWM

5 Year Extended Warranty

WEXT5-2200-3000

*VisitthespecificationpageforyourUPSsystematwww.tripplite.comfordetailedextendedruntimedataandadditionalaccessoryoptions.

** Note: External battery pack options require configuration using front panel LCD interface or via Tripp Lite’s EXTERNAL BATTERY CONFIGURATION software. See page 20 for

more information if you are connecting external batteries to this UPS.

13-07-015-9332C3.indb 2 7/26/2013 11:16:08 AM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	uforstyrret strømtilførsel (UPS)
Modell:	SmartOnline SU3000RTXLCD2U
Vekt:	31980 g
Bredde:	439.4 mm
Dybde:	647.7 mm
Høyde:	86.4 mm
Støynivå:	50 dB
LED-indikatorer:	Ja
Opprinnelsesland:	China
Pakkevekt:	41730 g
Sertifisering:	UL1778\r\nCSA\r\nFCC
Utgangseffekt:	2700 W
Utgangsspenning (maks.):	127 V
Effektivitet:	99
Batteriteknologi:	Forseglet blysyre (VRLA)
Batteritype:	BP72V15-2U, BP72V28RT-3U, BP72V18-2US
UPS topologi:	Dobbeltkonvertering (Online)
Antall inngangsfaser:	1
Bølgeform:	Sinus
Inngangsspenning (maks.):	127 V
Kabellengde:	3 m
Produktfarge:	Sort
Pakkedybde:	1003.3 mm
Pakkehøyde:	231.1 mm
Pakkebredde:	612.1 mm
Skjermtype:	LCD
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-15 - 50 °C
Lagringsrelativ fuktighet:	0 - 95
Bærekraftsertifikater:	RoHS
Formfaktor:	Rackmontering
Inngangsfrekvens:	50/60 Hz
Kroppsmateriale:	Stål
Driftshøyde:	0 - 3000 m
Rack-kapasitet:	2U
Relativ luftfuktighet under drift (H-H):	0 - 95
Form for nedkjøling:	Aktiv
Antall AC outlets:	7 AC-utganger
Masterkassens (ytterkassens) bruttovekt:	41730 g
Masterkassens (ytterkassens) lengde:	1003.3 mm
Produkter per masterkasse (ytterkasse):	1 stykker
Masterkassens (ytterkassens) bredde:	612.1 mm
Masterkassens (ytterkassens) høyde:	231.1 mm
Hørbare alarmer:	Ja
Strøm (maks.):	24 A
AC-utgangstyper:	NEMA 5–20R, NEMA L5-30R
Strømuttak:	NEMA L5-30P
Nominell innputspenning:	120 V
Strømfaktor:	0.9
Nominell outputspenning:	120 V
Strømstøt energivurdering:	570 J
EMI/RFI-lydfiltrering:	Ja
Output strømkapasitet (VA):	3 kVA
Inngangsspenning (min.):	100 V
Utgangsspenning (min.):	100 V
Nødstrøm av (EPO):	Ja
Normal backuptid ved halv belastning:	13.9 min
Normal backuptid ved full belastning:	4.8 min
Kald oppstart:	Ja
Crest-faktor:	3:1
Hot-swap-batterier:	Ja
Output-forbindelser:	4 x 5-15R & 4 x 5-15/20R &1 x L5-30R
Output spenningsforskrift:	2
