Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

is a registered trademark of Tripp Lite.

Español 21

Français 41

SmartPro

2U Rackmount

Intelligent, Line-Interactive UPS System

(with Lithium Iron Phosphate Battery)

120V Sine Wave Output • 1500VA - 2200VA Capacity

Models: SMART1500RM2UL, SMART2200RM2UL

(Series Numbers: AG-8897, AG-0163)

Not suitable for mobile applications.

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

18-01-271-933440.indb 1 1/25/2018 3:23:13 PM

EMI Filter

Surge Protecon

Inverter

Reinforced

Insulaon

Charger

Control

Transformer

Line Cutoﬀ Relay Boost2 Relay

Boost1 Relay

Cut Relay

ACin

ACout

USB Com port*

Serial Com port*

Interna l

Ba ery

EPO port*

Display & Switches

Master Load Relay

Switched Load Relay(s)

ACout Switched*

SNMP port*

*if equipped

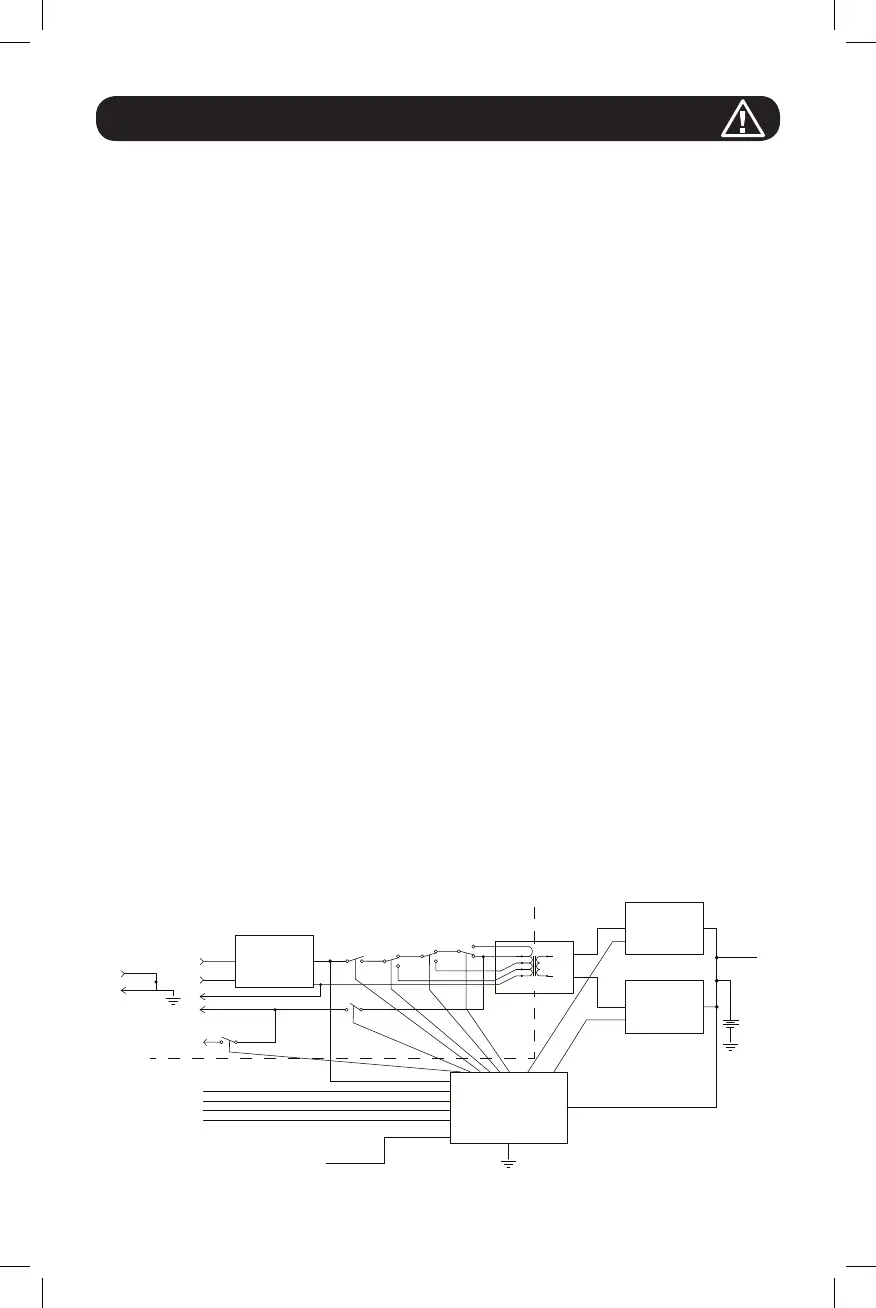

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the installation,

operation and storage of this product. Failure to heed these warnings may affect the warranty.

UPS Location Warnings

• Use caution when lifting the UPS. Because of the considerable weight of all rackmount UPS

systems, at least two people should assist in lifting and installing them.

• Install the UPS indoors, in an area free from excess moisture, heat, dust, conductive

contaminants, and direct sunlight.

• The UPS operating temperature is 32° to 104°F (0° to 40°C). For optimum battery performance,

the ambient temperature should be maintained between 68° and 77°F (20° and 25°C).

• Leave adequate space around all sides of the UPS for proper ventilation. Do not obstruct its vents

or fan openings.

• When mounting the UPS system in tower orientation, make sure the LCD Screen panel is at the

top of the UPS, not at the bottom.

• Do not mount unit with its front or rear panel facing down (at any angle). Mounting in this manner

will seriously inhibit the unit’s internal cooling, eventually causing product damage not covered

under warranty.

• The UPS must be returned to Tripp Lite for battery replacement. Visit www.tripplite.com/support

and click the product returns link to request a Returned Material Authorization (RMA) number

(an RMA number is required for servce). Once the product request information is completed, an

assigned RMA number and shipping instructions will be sent to your email account. See Storage

and Service for more information.

UPS Connection Warnings

• The UPS contains its own energy source (battery). The output terminals may be live even when

the UPS is not connected to an AC supply.

• Connect the UPS to a properly grounded AC power outlet. Do not modify the UPS system’s plug

in a way that would eliminate its connection to ground. Do not use adapters that eliminate the

UPS system’s connection to ground.

• This UPS is designed to be used on a power distribution system in accordance with the plug

configuration. The basic circuit operation is as follows:

18-01-271-933440.indb 2 1/25/2018 3:23:14 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	uforstyrret strømtilførsel (UPS)
Modell:	SmartPro SMART1500RM2UL
Vekt:	18950 g
Bredde:	439.4 mm
Dybde:	489.5 mm
Høyde:	87.1 mm
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Innebygd vifte:	Ja
Opprinnelsesland:	China
Pakkevekt:	27700 g
Antall USB 2.0-porter:	1
Sertifisering:	UL1778, CSA, NOM, FCC
Utgangseffekt:	1440 W
Utgangsspenning (maks.):	120 V
Effektivitet:	95
UPS topologi:	Linje-Interactive
Antall inngangsfaser:	1
Utgangsfrekvens:	60 Hz
Bølgeform:	Sinus
Batteriladetid:	4.5 timer
Inngangsspenning (maks.):	120 V
Kabellengde:	3 m
Produktfarge:	Sort
Pakkedybde:	705.1 mm
Pakkehøyde:	260.1 mm
Pakkebredde:	650 mm
Skjermtype:	LCD
Batterispenning:	36 V
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-15 - 50 °C
Lagringsrelativ fuktighet:	5 - 95
Bærekraftsertifikater:	RoHS
Formfaktor:	Rackmontering
Inngangsfrekvens:	60 Hz
Kroppsmateriale:	Stål
Rack-kapasitet:	2U
Kommunikasjonsserieporter:	1
Relativ luftfuktighet under drift (H-H):	0 - 95
Form for nedkjøling:	Aktiv
Antall AC outlets:	8 AC-utganger
Masterkassens (ytterkassens) bruttovekt:	27700 g
Masterkassens (ytterkassens) lengde:	705.1 mm
Produkter per masterkasse (ytterkasse):	1 stykker
Masterkassens (ytterkassens) bredde:	650 mm
Masterkassens (ytterkassens) høyde:	260.1 mm
Hørbare alarmer:	Ja
Strøm (maks.):	15 A
AC-utgangstyper:	NEMA 5–15R
Strømuttak:	NEMA 5-15P
Strømfaktor:	0.9
Rack-montert sett:	Ja
Strømstøt energivurdering:	570 J
EMI/RFI-lydfiltrering:	Ja
Output strømkapasitet (VA):	1.5 kVA
Inngangsspenning (min.):	- V
Utgangsspenning (min.):	- V
Nødstrøm av (EPO):	Ja
Modem (RJ-11)-porter:	1
Normal backuptid ved halv belastning:	13 min
Normal backuptid ved full belastning:	4.5 min
Kald oppstart:	Ja
Hot-swap-batterier:	Ja
Utbyttbare batteripatroner:	RBC93-2U
Automatic Voltage Regulation (AVR):	Ja
Output spenningsforskrift:	-21 - 8
