Side 1/6

Owner’s Manual

SmartPro

Intelligent, Line-Interactive UPS Systems

Important Safety Instructions 2

Quick Installation 3

Optional Installation 4

Basic Operation 5

Battery Replacement 8

Warranty Registration, Storage & Service 8

Español 10

Français 20

1111 W. 35th Street, Chicago, IL 60609 USA

Customer Support: (773) 869-1234 • www.tripplite.com

is a registered trademark of Tripp Lite.

Warranty

Registration

chance to win a FREE Tripp Lite

product! www.tripplite.com/warranty

Not suitable for mobile applications.

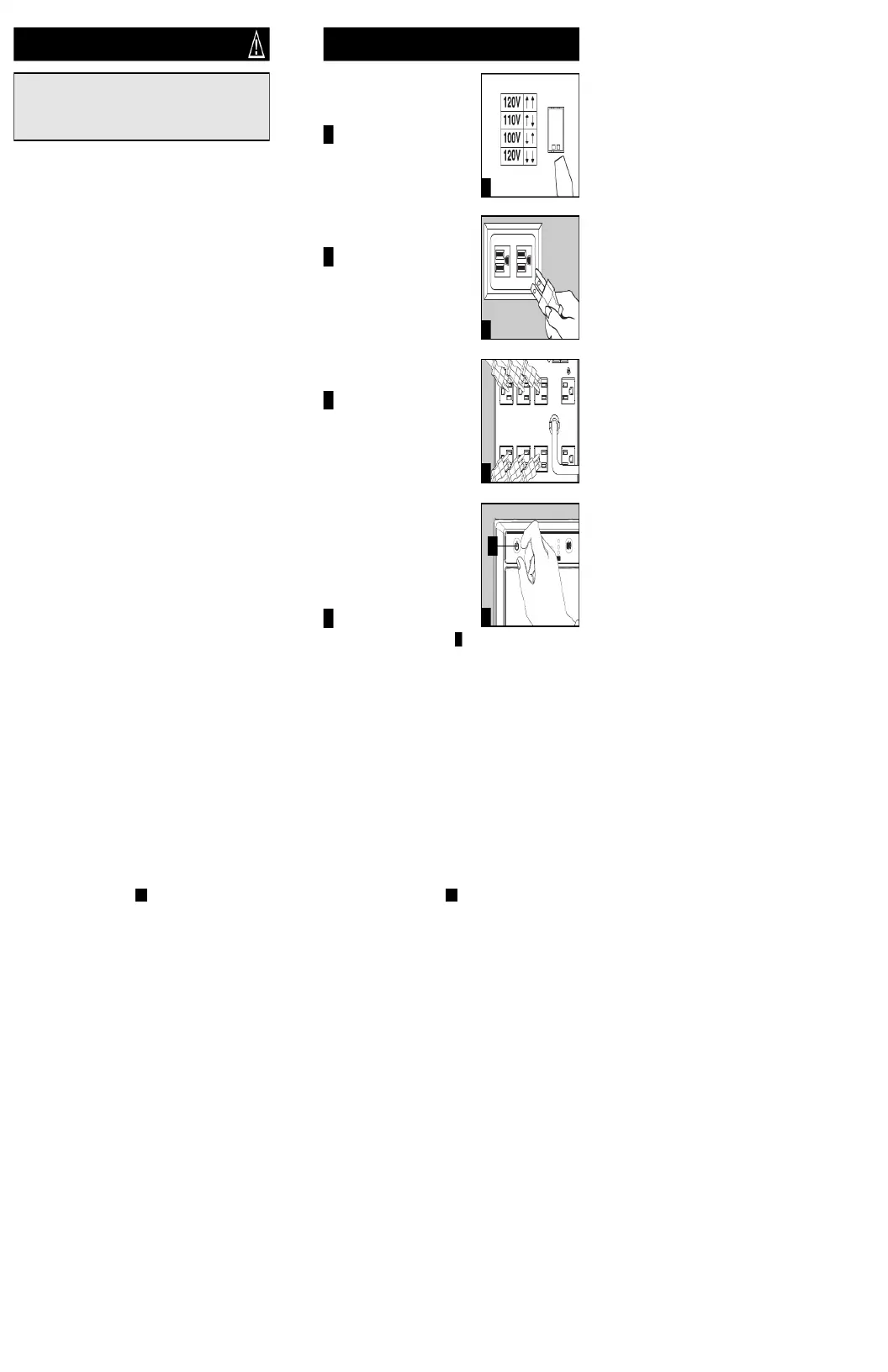

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the installation,

operation and storage of this product. Failure to heed these warnings will void your warranty.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants, dust or

direct sunlight.

• For best performance, keep the indoor temperature between between 32º F and 104º F (0º C

and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

• Do not mount unit with its front or rear panel facing down (at any angle). Mounting in this

manner will seriously inhibit the unit's internal cooling, eventually causing product damage not

covered under warranty.

UPS Connection Warnings

• Connect your UPS directly to a properly grounded AC power outlet. Do not plug the UPS into

itself; this will damage the UPS.

• Do not modify the plug, and do not use an adapter that would eliminate the ground connection.

• Do not use extension cords to connect the UPS to an AC outlet.

• If the UPS receives power from a motor-powered AC generator, the generator must provide

clean, filtered, computer-grade output.

Equipment Connection Warnings

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to significantly

affect its safety or effectiveness is not recommended. Do not use this equipment in the

presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

• Do not connect surge suppressors or extension cords to the output of your UPS. This might

damage the UPS and will void the surge suppressor and UPS warranties.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current. Observe

proper precautions. There are no user-serviceable parts inside the UPS. Do not open the UPS

except to perform battery replacement. Do not open batteries. Do not short or bridge the battery

terminals with any object. Unplug and turn off the UPS before performing battery replacement.

Use tools with insulated handles. Battery replacement should be performed only by authorized

service personnel using the same number and type of batteries (Sealed Lead-Acid). Do not

dispose of the batteries in a fire. The batteries are recyclable. Refer to your local codes for

disposal requirements or in the USA only call 1-800-SAV-LEAD or 1-800-8-BATTERY

(1-800-822-8837) or visit www.rbrc.com for recycling information. Tripp Lite offers a complete

line of UPS System Replacement Battery Cartridges (R.B.C.).Visit Tripp Lite on the Web at

www.tripplite.com/support/ battery/index.cfm to locate the specific replacement battery for your

UPS.

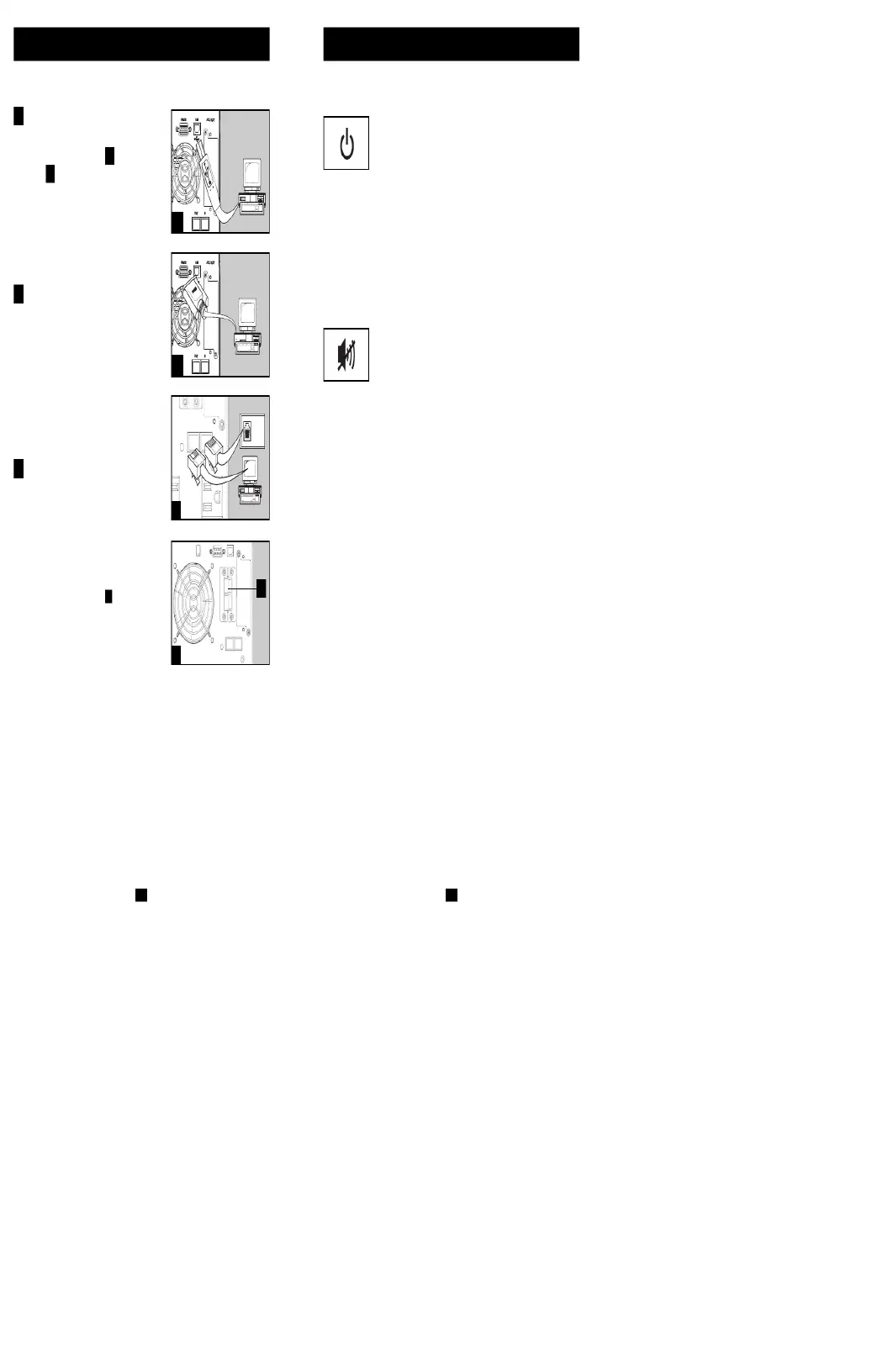

Optional Installation

These connections are optional. Your UPS will function properly without these connections.

USB and RS-232 Serial

Communications

Use the included USB cable 1a and/or DB9 serial

cable 1b to connect the communication port on

your computer to the communication port of your

UPS. Install on your computer the Tripp Lite

PowerAlert Software appropriate for your

computer’s operating system. Consult the

PowerAlert manual for more information.

Telephone/Network Protection Jacks

Your UPS has jacks that protect against surges over

a telephone line or a network data line. Using

telephone or network data cables, connect your wall

jack to the UPS jack marked “IN.” Connect your

equipment to the UPS jack marked “OUT.” Make

sure the equipment you connect to the UPS jacks is

also protected against surges on the AC line.

External Battery Connection

Your UPS comes with a robust internal battery

system; external batteries are needed only to

extend runtime. Adding external batteries will

increase recharge time as well as runtime.

The illustration shows the location of the

External Battery Connector , where you will

insert the battery pack cable. Complete

installation instructions for your battery pack

appear in the battery pack owner's manual. Make

sure that cables are fully inserted into their

connectors. Small sparks may result during

battery connection; this is normal.

Warning: Do not connect or disconnect

battery packs when the UPS is running on

battery power.

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	uforstyrret strømtilførsel (UPS)
Modell:	SmartPro SMART750XLA
Vekt:	15380 g
Bredde:	169.2 mm
Dybde:	349.5 mm
Høyde:	256.3 mm
Støynivå:	50 dB
LED-indikatorer:	Ja
Opprinnelsesland:	China
Pakkevekt:	17420 g
Antall USB 2.0-porter:	1
Sertifisering:	UL1778, CSA, NOM, FCC
Utgangseffekt:	500 W
Utgangsspenning (maks.):	120 V
UPS topologi:	Linje-Interactive
Antall inngangsfaser:	1
Bølgeform:	Sinus
Batteriladetid:	4.5 timer
Inngangsspenning (maks.):	- V
Kabellengde:	3 m
Produktfarge:	Sort
Pakkedybde:	452.1 mm
Pakkehøyde:	355.6 mm
Pakkebredde:	243.8 mm
RS-232-port:	1
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-15 - 50 °C
Bærekraftsertifikater:	RoHS
Harmonisert system (HS)-kode:	8504.40.8500
Formfaktor:	Tower
Inngangsfrekvens:	60 Hz
Kroppsmateriale:	Stål
Overspenningsvern:	Ja
Strømbeskyttelsesfunksjoner:	Over voltage, Under voltage
Kommunikasjonsserieporter:	1
Relativ luftfuktighet under drift (H-H):	0 - 95
Form for nedkjøling:	Aktiv
Antall AC outlets:	8 AC-utganger
Masterkassens (ytterkassens) bruttovekt:	17420 g
Masterkassens (ytterkassens) lengde:	452.1 mm
Produkter per masterkasse (ytterkasse):	1 stykker
Masterkassens (ytterkassens) bredde:	243.8 mm
Masterkassens (ytterkassens) høyde:	355.6 mm
Hørbare alarmer:	Ja
Strøm (maks.):	15 A
AC-utgangstyper:	NEMA 5–15R
Nominell innputspenning:	120 V
Strømstøt energivurdering:	570 J
EMI/RFI-lydfiltrering:	Ja
Output strømkapasitet (VA):	0.75 kVA
Inngangsspenning (min.):	- V
Utgangsspenning (min.):	100 V
Modem (RJ-11)-porter:	2
Normal backuptid ved halv belastning:	20.7 min
Normal backuptid ved full belastning:	10 min
Kald oppstart:	Ja
Hot-swap-batterier:	Ja
Automatic Voltage Regulation (AVR):	Ja
Output spenningsforskrift:	-13, + 15
