Product Bundle Conﬁgurations:

SU5KRT3UHVMB, SU5KRT3UHVMBP, SU5KRT3UGMB,

SU5KRT3UHWMB, SU6KRT3UHVMB, SU6KRT3UHVMBP, SU6KRT3UGMB,

SU6KRT3UHWMB, SU6KRT3UXMB

Models:

SUPDMB5, SUPDMB5P, SUPDMB6, SUPDMB6P SUPDMB6IEC, SUPDMB5G,

SUPDMB6G, SUPDMB5HW, SUPDMB6HW

(Series Number: AG-03DD)

SU5KRT3PM, SU6KRT3PM

(Series Number: AG-0357)

Owner’s Manual

SmartOnline

Single-Phase Rack-Mount Online UPS

with Built-in LCD Monitoring, Control Screen and

Detachable Bypass Power Distribution Module

Not suitable for mobile applications.

NOTE: External battery pack options require conﬁguration using front panel LCD interface or via Tripp Lite’s EXTERNAL BATTERY CONFIGURATION software.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

is a trademark of Tripp Lite. For latest updates, please visit tripplite.com

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Español 41 • Français 81 • Русский 121

Table of Contents

1. Overview 3

Parts List 3

Additional Accessory Options 3

2. Important Safety Instructions 3

3. UPS Circuit Block Diagram 6

4. Installation 7

Internal Battery Rotation 7

Rack Mounting 9

Tower Mounting 14

Hardwire Input and Output Wiring Instructions 15

(Optional with Select Models)

UPS Input and Output Overview 16

5. Features 17

Front Panel Controls, LEDs and LCD Screen 17

UPS Rear Panel 17

PDM Panel 18

6. Operations 19

LCD Front Panel Display and Controls 19

LED Front Panel Indicators 20

Front Panel Button Functions 21

Home Screen Layout 21

Basic Connections and Start-Up 22

Power Strategy Selection Options 25

Front Panel LCD Selection and 27

Configuration Options

Configuring External Battery Packs 30

PDM Maintenance Bypass Procedure 31

Replacement UPS Power Module 31

Installation Procedure

7. Optional Connections 32

8. Troubleshooting and Event Log 35

9. Internal Battery Replacement 37

10. Fan Replacement 39

11. Storage and Service 40

12. Product Registration 40

Overview

Tripp Lite SmartOnline rack-mount UPS systems with interactive LCD interface feature on-line, double-conversion UPS protection with full-

time sinewave output and zero transfer time, making them suitable for all advanced networking applications. The detachable Power

Distribution Module (PDM) uses a blindmate connection, providing a seamless installation and allowing the UPS to be serviced or hot-

swapped while keeping connected loads powered. Each UPS provides long running battery support with optional extended-run and Web

communications ability. Built-in interfaces include Micro-USB, RS-232 serial, Emergency Power Off (EPO), Remote On/Off (ROO) and an

RJ-11 smart battery port. The interactive front panel LCD screen provides detailed UPS status, preset and control options. Optional max

efficiency and auto-adaptive power strategy options enable high-efficiency operation with reduced power consumption and BTU heat output.

Parts List

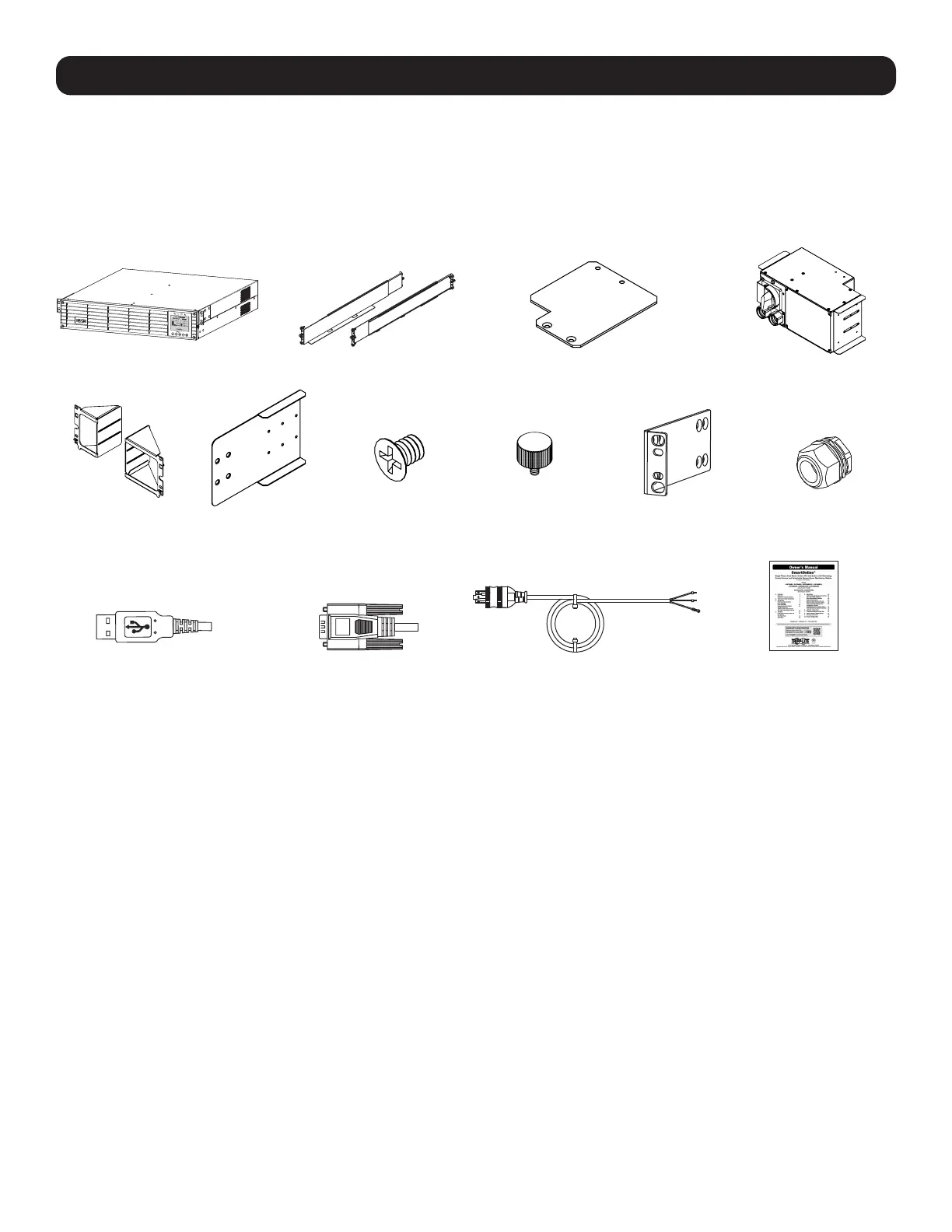

UPS System UPS 4-Post Rail Kit Tower Mounting Plate (2) Bypass PDM (Outlets and Outlet

Configuration Vary by Model)

PDM Mounting

Brackets

Deep Rack Extension

Bracket (2)

M4 x 6 mm

Screw (8)

Thumbscrew (4) Bolt-on Mounting

Ears (2)

Hardwire Strain

Reliefs (2)

Optional Accessories (Not Included)

• 2POSTRMKITWM: Supports rack-mount UPS and battery packs in 2-post rack-mount or wall-mount configurations

• 2-9USTAND: Supports rack-mount UPS and battery packs in upright tower configuration

• BP192V12RT3US External “SMART” Battery Pack: Extends the runtime of the UPS system

USB Cable (1) RS-232 Cable (1) (Select models) AC Input Power

Cord with L6-30P Plug (1)

Owner’s Manual

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	uforstyrret strømtilførsel (UPS)
Modell:	SU5KRT3UGMB
Vekt:	55970 g
Bredde:	444.5 mm
Dybde:	901.7 mm
Høyde:	130.6 mm
Støynivå:	67.1 dB
LED-indikatorer:	Ja
Bruksanvisning:	Ja
USB-port:	Ja
Innebygd vifte:	Ja
Opprinnelsesland:	Taiwan
Pakkevekt:	78750 g
Antall USB 2.0-porter:	1
Utgangseffekt:	5000 W
Utgangsspenning (maks.):	240 V
Batteriteknologi:	Forseglet blysyre (VRLA)
UPS topologi:	Dobbeltkonvertering (Online)
Antall inngangsfaser:	1
Utgangsfrekvens:	50/60 Hz
Bølgeform:	Ren sinus
Inngangsspenning (maks.):	240 V
Produktfarge:	Sort
Pakkedybde:	847.1 mm
Pakkehøyde:	175 mm
Pakkebredde:	602 mm
Skjermtype:	LCD
Kabler inkludert:	RS-232, USB cable
RS-232-port:	1
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-15 - 50 °C
Lagringsrelativ fuktighet:	5 - 95
Formfaktor:	Rackmontering/tårn
Inngangsfrekvens:	50/60 Hz
Kroppsmateriale:	Metall
Driftshøyde:	0 - 2000 m
Rack-kapasitet:	3U
Relativ luftfuktighet under drift (H-H):	5 - 95
Form for nedkjøling:	Aktiv
Antall AC outlets:	8 AC-utganger
Produkter per masterkasse (ytterkasse):	1 stykker
ECO-funksjon:	Ja
Hørbare alarmer:	Ja
AC-utgangstyper:	C13 coupler, C19 coupler, Hardwire
Strømuttak:	Hardwire
Rack-montert sett:	Ja
Strømstøt energivurdering:	1680 J
EMI/RFI-lydfiltrering:	Ja
Output strømkapasitet (VA):	5 kVA
Inngangsspenning (min.):	200 V
Utgangsspenning (min.):	200 V
Modem (RJ-11)-porter:	1
Normal backuptid ved halv belastning:	14 min
Normal backuptid ved full belastning:	5 min
Kald oppstart:	Ja
USB port type:	Micro-USB
Inngangsstrømfaktor:	0.98
Crest-faktor:	3:1
Nød Kraft Av kontakt (EPO) (Emergency Power Off):	Ja
Hot-swap-batterier:	Ja
Utgangsstrømfaktor:	1
