Tripp Lite SU6KRT3UHW Bruksanvisning

Tripp Lite uforstyrret strømtilførsel (UPS) SU6KRT3UHW

Les nedenfor 📖 manual på norsk for Tripp Lite SU6KRT3UHW (136 sider) i kategorien uforstyrret strømtilførsel (UPS). Denne guiden var nyttig for 3 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/136

Models:

SU5KRT3UHV, SU5KRT3UHVP, SU5KRT3UX, SU5KRT3UG, SU5KRT3UHW,

SU6KRT3UHV, SU6KRT3UHVP, SU6KRT3UX, SU6KRT3UG, SU6KRT3UHW

(Series Number: AG-0358)

Owner’s Manual

SmartOnline

Single-Phase Rack-Mount Online UPS

with Built-in LCD Monitoring & Control Screen

Not suitable for mobile applications.

1. Overview 2

Parts List 2

Additional Accessory Options 2

2. Important Safety Instructions 2

3. UPS Circuit Block Diagram 5

4. Installation 6

Internal Battery Rotation 6

Rack Mounting 8

Tower Mounting 9

Hardwire Input and Output 10

Wiring Instructions

(Optional with Select Models)

UPS Input and Output Overview 11

5. Features 11

Front Panel Controls, LEDs and 11

LCD Screen

Rear Panel Features 12

6. Operations 14

LCD Front Panel Display and Controls 14

LED Front Panel Indicators 14

Front Panel Button Functions 15

Home Screen Layout 15

Basic Connection and Start-Up 16

Power Strategy Selection Options 19

Front Panel LCD Selection and 21

Configuration Options

Configuring External Battery Packs 24

7. Optional Connections 25

8. Troubleshooting and Event Log 28

9. Internal Battery Replacement 30

10. Fan Replacement 32

11. Storage and Service 33

12. Warranty and Product Registration 33

Español 35

Français 69

Русский

103

NOTE: External battery pack options require conﬁguration using front panel LCD interface or via Tripp Lite’s EXTERNAL BATTERY CONFIGURATION software.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

is a trademark of Tripp Lite. For latest updates, please visit tripplite.com

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Important Safety Instructions

Overview

SAVE THESE INSTRUCTIONS

This manual contains important instructions and warnings that should be followed during the installation, operation, maintenance and

storage of all Tripp Lite UPS Systems and Batteries. Failure to heed these warnings may affect your warranty.

Explanation of Symbols

Caution—risk of danger

Hot—overheating may occur

Electrical shock hazard

Protective earth ground

Bonding ground

Recyclable—contains lead

Tripp Lite SmartOnline rack-mount UPS systems with interactive LCD interface feature on-line, double-conversion UPS protection with full-

time sinewave output and zero transfer time, making them suitable for all advanced networking applications. Each UPS provides long

running battery support with optional extended-run and Web communications ability. Built-in interfaces include Micro-USB, RS-232 serial,

Emergency Power Off (EPO), Remote On/Off (ROO) and an RJ-11 smart battery port. The interactive front panel LCD screen provides

detailed UPS status, preset and control options. Optional max efficiency and auto-adaptive power strategy options enable high-efficiency

operation with reduced power consumption and BTU heat output.

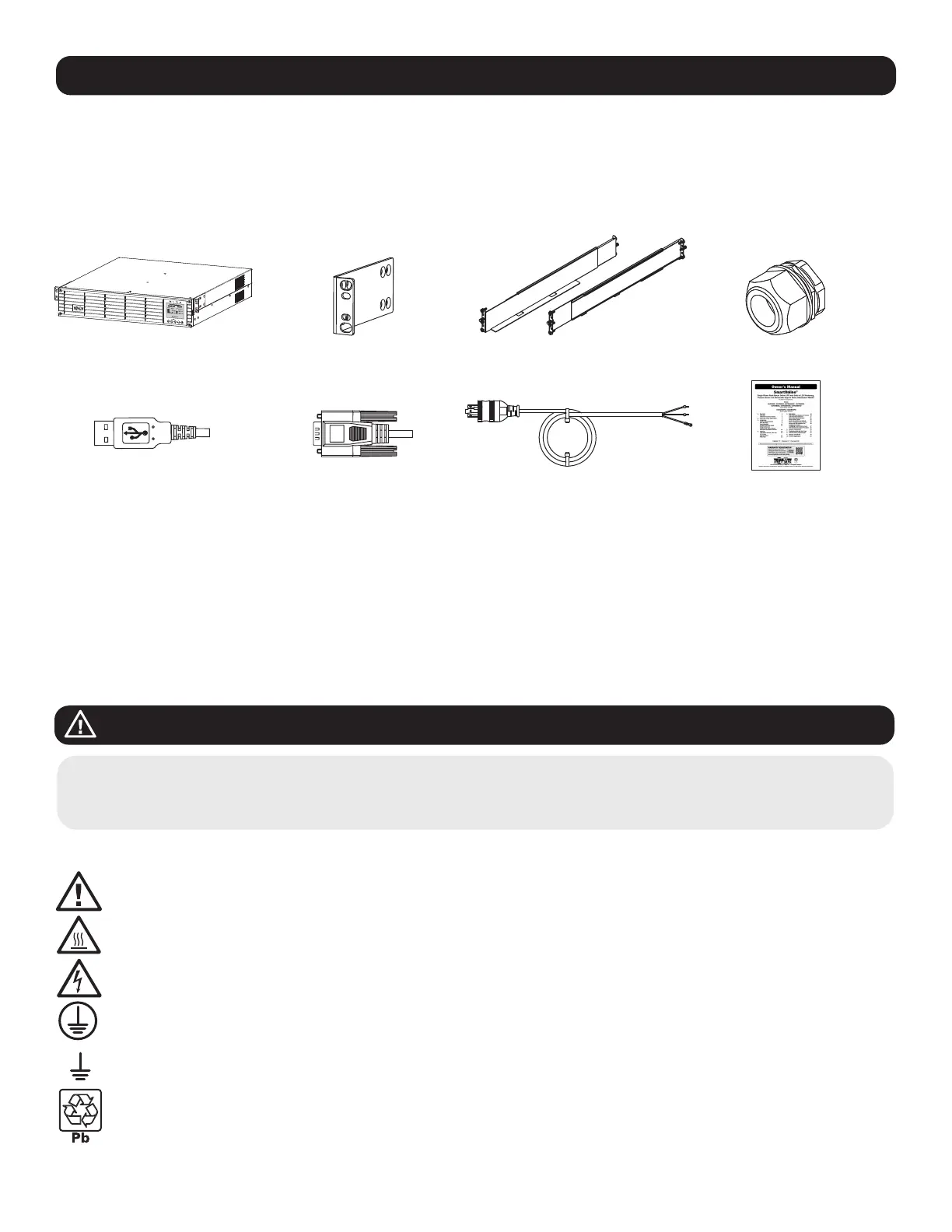

Parts List

UPS System Bolt-on Mounting Ears (2) 4-Post Rail Kit Hardwire Strain Reliefs (2)

USB Cable (1) RS-232 Cable (1) (Select models) AC Input Power

Cord with L6-30P Plug (1)

Owner’s Manual

Optional Accessories (Not Included)

• 2POSTRMKITWM: Supports rack-mount UPS and battery packs in 2-post rack-mount or wall-mount configurations

• 2-9USTAND: Supports rack-mount UPS and battery packs in upright tower configuration

• BP192V12RT3US External “SMART” Battery Pack: Extends the runtime of the UPS system

Important Safety Instructions

UPS Location Warnings

• Your UPS is intended to be used in a temperature-regulated, indoor area that is relatively free of conductive contaminants. Install your

UPS indoors, away from excess moisture or heat, conductive contaminants, dust or direct sunlight.

• Ambient room temperature should be between 32°F and 104°F (0°C and 40°C).

• Leave adequate space around all sides of the UPS for proper ventilation.

• The UPS provides the convenience of multiple outlets, but DOES NOT provide surge or line noise protection for connected equipment,

when in Bypass Mode.

• Do not mount the unit with its front or rear panel blocked. Mounting in this manner will seriously inhibit the unit’s internal cooling,

eventually causing product damage not covered under warranty.

UPS Installation and Connection Warnings

All Models

CAUTION: Installation should be performed by qualified professional electrical service personnel only.

• Install in accordance with National Electrical Code standards. Be sure to use the proper overcurrent protection for the installation in

accordance with the plug/equipment rating.

• Be sure to use an upstream circuit breaker with a C curve.

• Overcurrent protection shall be provided in the end-use application, installed in accordance with local and national electrical wiring

regulations.

• Short-circuit backup protection and overcurrent protection is provided by the building Installation, in the hardwire configuration (Bypass

and Economy Modes).

• Install at a height not exceeding 1 m (3.3 ft.).

• Equipment is intended for use on a TN-S power distribution system.

Select Models Come Equipped with an L6-30P Plug

CAUTION: To reduce the risk of fire, connect only to a circuit provided with 30A maximum branch circuit overcurrent protection in

accordance with the National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1.

• The AC mains L6-30P plug serves as the disconnect device. The electrical outlets supplying power to the equipment must be installed

near the equipment and easily accessible. Alternatively, a local disconnect may be provided.

•

DO NOT use the hardwire AC supply input option when an L6-30P plug is present. Doing so may cause a catastrophic dangerous situation.

• When the hardwire AC output is used, appropriate output overcurrent protection must be provided.

Select Hardwire Models

CAUTION: To reduce the risk of fire, connect only to a circuit provided with maximum branch circuit overcurrent protection in

accordance with the National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1. See “UPS Input

and Output Overview” table in the Installation section for details.

• Use copper conductors with rated 105°C wires only. See “UPS Input and Output Overview” table in the Installation section for

recommended input and output configuration.

• For models equipped with a permanent hardwire output connection, overcurrent protection is to be provided in the end use installation.

Use output branch-rated overcurrent protection not exceeding the UPS Output rating. When supplying receptacles with lesser branch-

rated overcurrent protection, the overcurrent protection should match the receptacle rating.

• In Europe, the circuit breaker must meet the IEC/ EN 60934 standard and have a contact air gap of at least 3 mm.

• When the hardwire AC output is used, appropriate OUTPUT OVERCURRENT protection must be provided by the installer. Be sure to use

branch-rated circuit breakers that match the rating of the receptacles/equipment being protected. Use circuit breaker(s) with a C curve.

• An appropriate and readily accessible two-pole disconnect device must be incorporated in the fixed wiring.

• In Europe, the AC mains connection is L, N, PE(GND). Make sure to hook up the L to the hot and N to the neutral conductor.

• Never attempt to install electrical equipment during a thunderstorm.

• Do not attempt to use this equipment if any part of it becomes damaged.

• Individual equipment connected to the UPS should not draw more current than the individual outlet’s rating.

• The total load connected to the UPS must not exceed the maximum load rating for the UPS.

• Do not attempt to modify the UPS, enclosure, input plugs or power cables.

• Do not attempt to use the UPS if any part of it becomes damaged.

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	uforstyrret strømtilførsel (UPS)
Modell:	SU6KRT3UHW
Vekt:	52340 g
Bredde:	444.5 mm
Dybde:	726.2 mm
Høyde:	130.6 mm
Støynivå:	67.1 dB
LED-indikatorer:	Ja
Bruksanvisning:	Ja
USB-port:	Ja
Innebygd vifte:	Ja
Opprinnelsesland:	Taiwan
Pakkevekt:	72260 g
Antall USB 2.0-porter:	3
Utgangseffekt:	6000 W
Utgangsspenning (maks.):	240 V
Batteriteknologi:	Forseglet blysyre (VRLA)
UPS topologi:	Dobbeltkonvertering (Online)
Antall inngangsfaser:	1
Utgangsfrekvens:	50/60 Hz
Bølgeform:	Ren sinus
Effektivitet (ECO-modus):	98
Inngangsspenning (maks.):	240 V
Produktfarge:	Sort
Pakkedybde:	847.1 mm
Pakkehøyde:	175 mm
Pakkebredde:	602 mm
Skjermtype:	LCD
Kabler inkludert:	RS-232, USB cable
RS-232-port:	1
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	2
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-15 - 50 °C
Lagringsrelativ fuktighet:	5 - 95
Formfaktor:	Rackmontering/tårn
Inngangsfrekvens:	50/60 Hz
Kroppsmateriale:	Metall
Driftshøyde:	0 - 2000 m
Rack-kapasitet:	3U
Relativ luftfuktighet under drift (H-H):	5 - 95
Form for nedkjøling:	Aktiv
Produkter per masterkasse (ytterkasse):	1 stykker
ECO-funksjon:	Ja
Hørbare alarmer:	Ja
Strøm (maks.):	100 A
AC-utgangstyper:	Hardwire
Strømuttak:	Hardwire
Rack-montert sett:	Ja
Strømstøt energivurdering:	1680 J
EMI/RFI-lydfiltrering:	Ja
Output strømkapasitet (VA):	6 kVA
Inngangsspenning (min.):	200 V
Utgangsspenning (min.):	200 V
Modem (RJ-11)-porter:	1
Normal backuptid ved halv belastning:	8.5 min
Normal backuptid ved full belastning:	3 min
Kald oppstart:	Ja
Inngangsstrømfaktor:	0.98
Crest-faktor:	3:1
Nød Kraft Av kontakt (EPO) (Emergency Power Off):	Ja
Hot-swap-batterier:	Ja
Utgangsstrømfaktor:	1
Effektivitet (online modus):	94
