Installation instructions
Washing machine
One-family household
1014123-R03
31/10/2017
1014123-R03
1
For Service and Spare Part Information please contact: V-ZUG AUSTRALIA Pty. Ltd. Tel+61732096822
The appliance should be installed by qualified personnel only.
Each step must be carried out and checked in full in the order specified.
Validity
These installation instructions apply to the models: L (11010), S (11011), SL (11012), SLQ (11013), SLQ WP (11014)

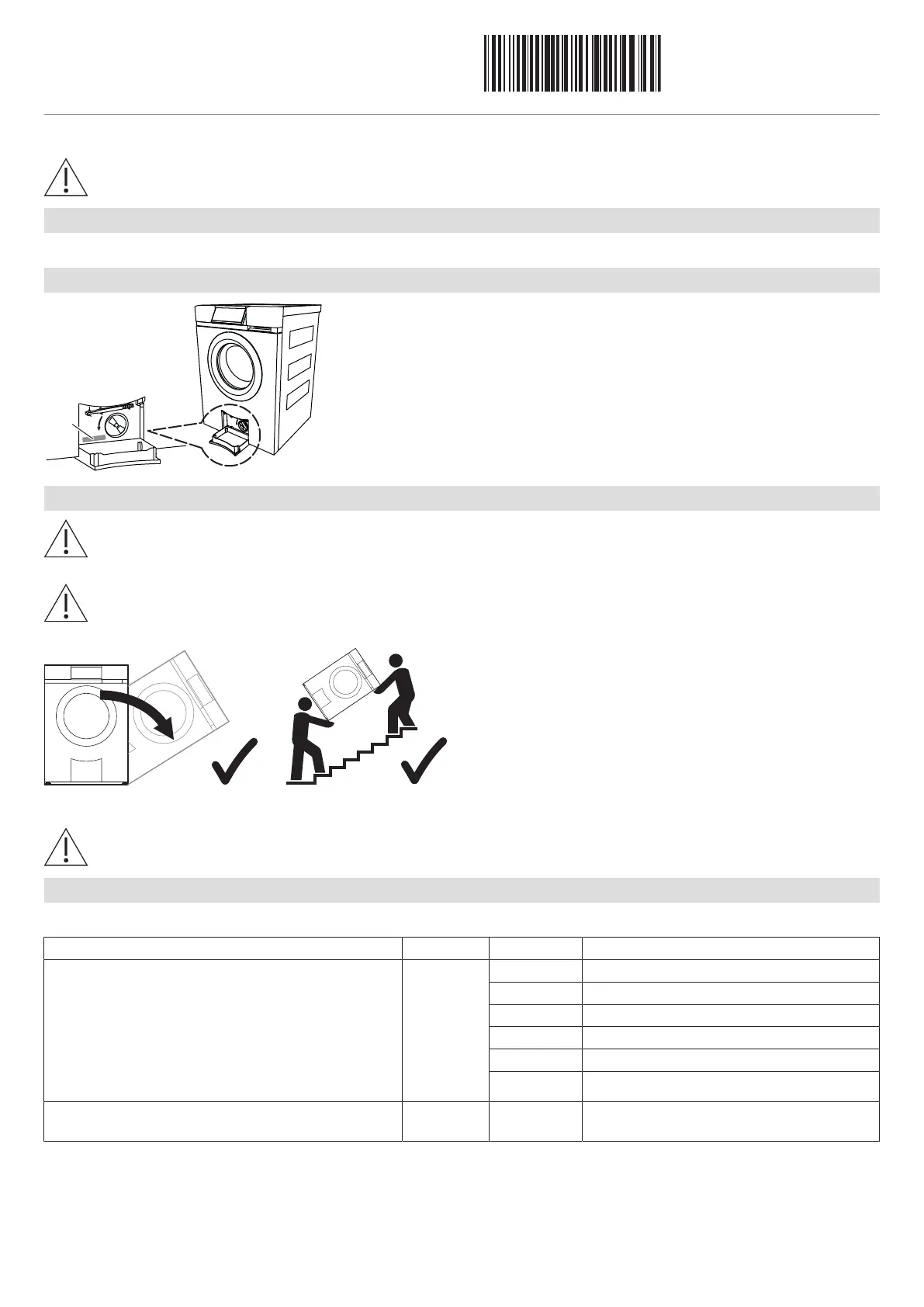

Identification plate
1
▸ Open the drain tray below the appliance door (see «1. Opening
the appliance door»)
– Identification plate 1
Transport
If the weight of the appliance is greater than your lifting capacity, the appliance must be transported by several
people or using a transport aid. The weight of the appliance is given on the appliance packaging and in the operating
instructions.
Transport the appliance in an upright position only! Transporting it in any other position will cause damage. When
carried carefully without being shaken, the appliance may be tilted a maximum of 90° to the right (viewed from the
front).
Applicable only to model SLQ WP:
In the event that the appliance is tilted during transportation or installation it must not be put into operation for 2
hours.
Installation accessories supplied
The necessary installation accessories are located in the washing drum and in the appliance packaging.
Designation Article no. Number See installation step
Installation set, incl.:
▪ Rubber stopper
▪ Screw material
▪ External drain hose
▪ Wire hose clamp
▪ Hose support
W41152 1
2 2. Removing the transport lock
1 4. Positioning the installation plate
1 5. Plumbing in
1 5. Plumbing in
1 5. Plumbing in
Installation plate (incl. double-sided
adhesive tape)
W40653 1 4. Positioning the installation plate
Installation instructions
Washing machine
One-family household
1014123-R03
31/10/2017
1014123-R03
2

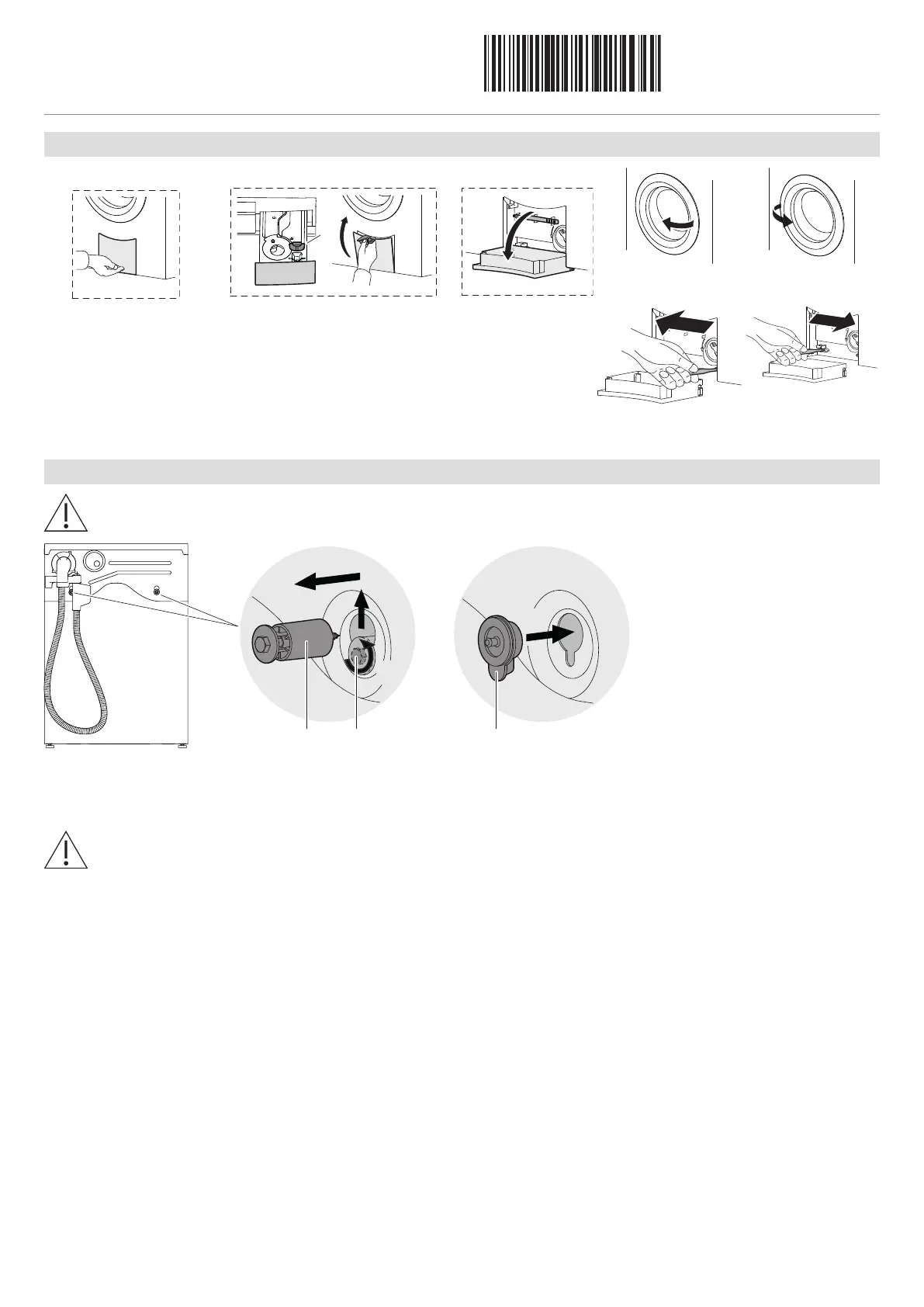

1. Opening the appliance door (without power)
A
1a
B
1b
A
B
C
2
A
D
1a Open drain tray A by
pressing it at the
bottom.
Or
1b
Remove liquid-detergent
flap B from detergent dis-
penser drawer C and
open drain tray A.
2 Fold drain tray A
right down and re-
move it. Remove
emergency door re-
lease tool D from
bracket.
Insert tool D into blue eye of opening and pull
in direction of arrow (arrow on appliance).
2. Removing the transportation lock
The transport locks F on the rear side have to be removed before using the appliance for the first time.
GE
1.
2.
3.
F
1. Remove the hexagon head screws E of the transport locks F using a 10 mm ring or open-end wrench.
2. Push up and pull out the transport lock F.
3. Plug the holes with the rubber stoppers G.
Failure to carry out step3 can result in error messages.
Installation instructions
Washing machine
One-family household
1014123-R03
31/10/2017
1014123-R03
3

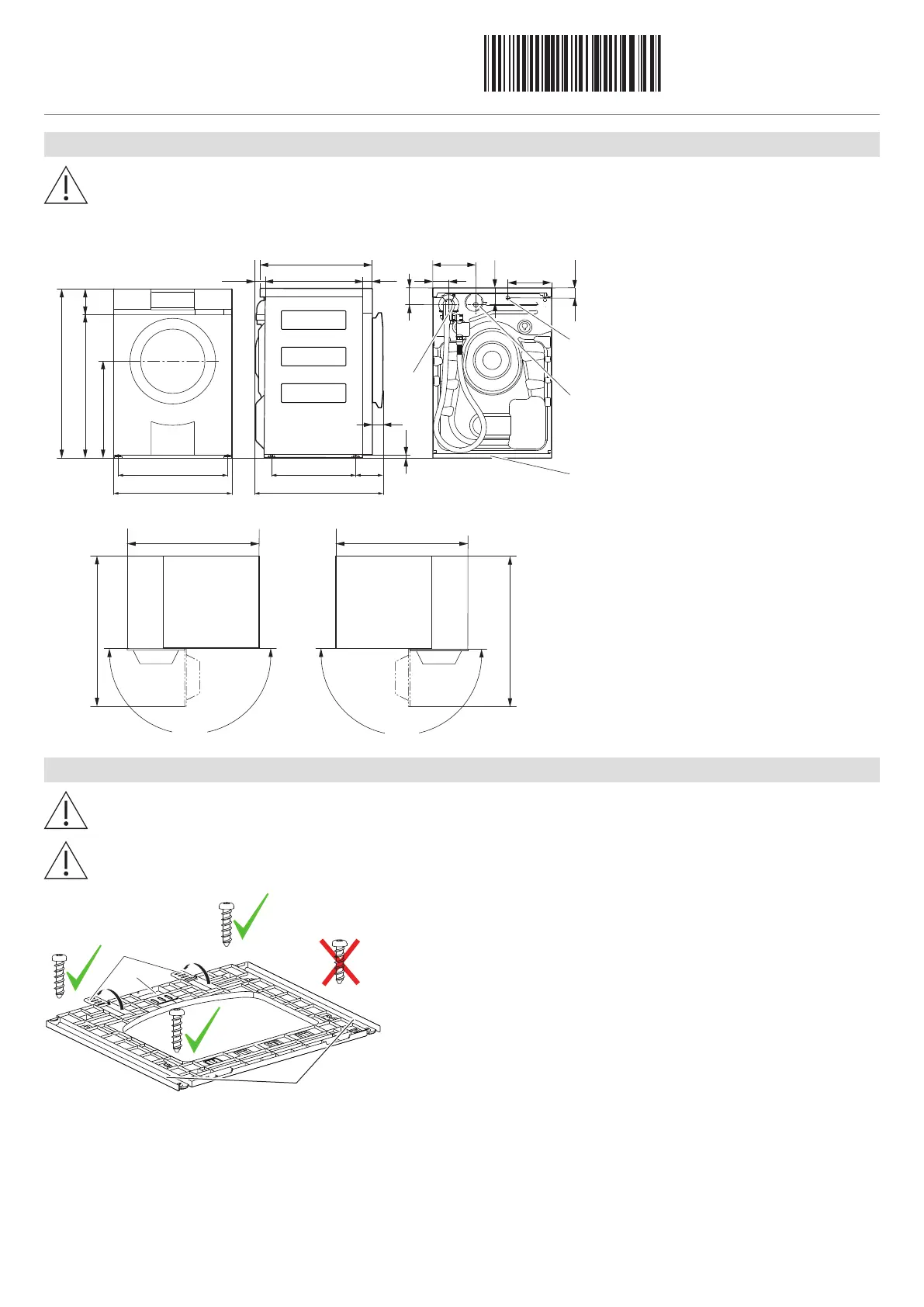

3. Dimensions
The stated dimensions do not include distances from walls. To prevent disturbing noise and vibration the appliances
must not come into contact with the surrounding walls of their installation location.
All models
180°
180°
957 957
4
2
3
1
213
80
72
160
45
595
33
625
850
(125)
500
577
500 50
(42)
15
84.5
725
550 458 104
Open door 1059*
Left-hand opening Right-hand opening
Open door 1059*
1 Cold water connection,
inlet hose with Aquastop,
length: 1.25 m, G¾"
2 Drainage hose connection with elbow.
Length: 1.5 m
Pumping height for drain pump: 1.2 m
3 Electrical connection cable outlet,
length: 1.8 m
4 Installation plate
* In order that the detergent dispenser
drawer can be used without obstruction
and be taken out for cleaning, the clear-
ance space must be observed across the
entire front of the appliance.
4. Positioning the installation plate
Use the installation plate to install the appliance. It fixes the appliance in position, and is for use with both free-
standing appliances and appliances positioned in a niche.
Holes must not be drilled in the floor if the room has underfloor heating. The installation plate must be adhered to the
floor.
D
S
E
▸ In the location where the appliance is to be installed, fix the in-
stallation plate with 3screws. In the case of underfloor heating,
adhere the installation plate to the floor with double-sided ad-
hesive tape S.
▸ Dampen the mounting slots E on the installation plate with wa-
ter. This makes it easier to push the appliance in.
