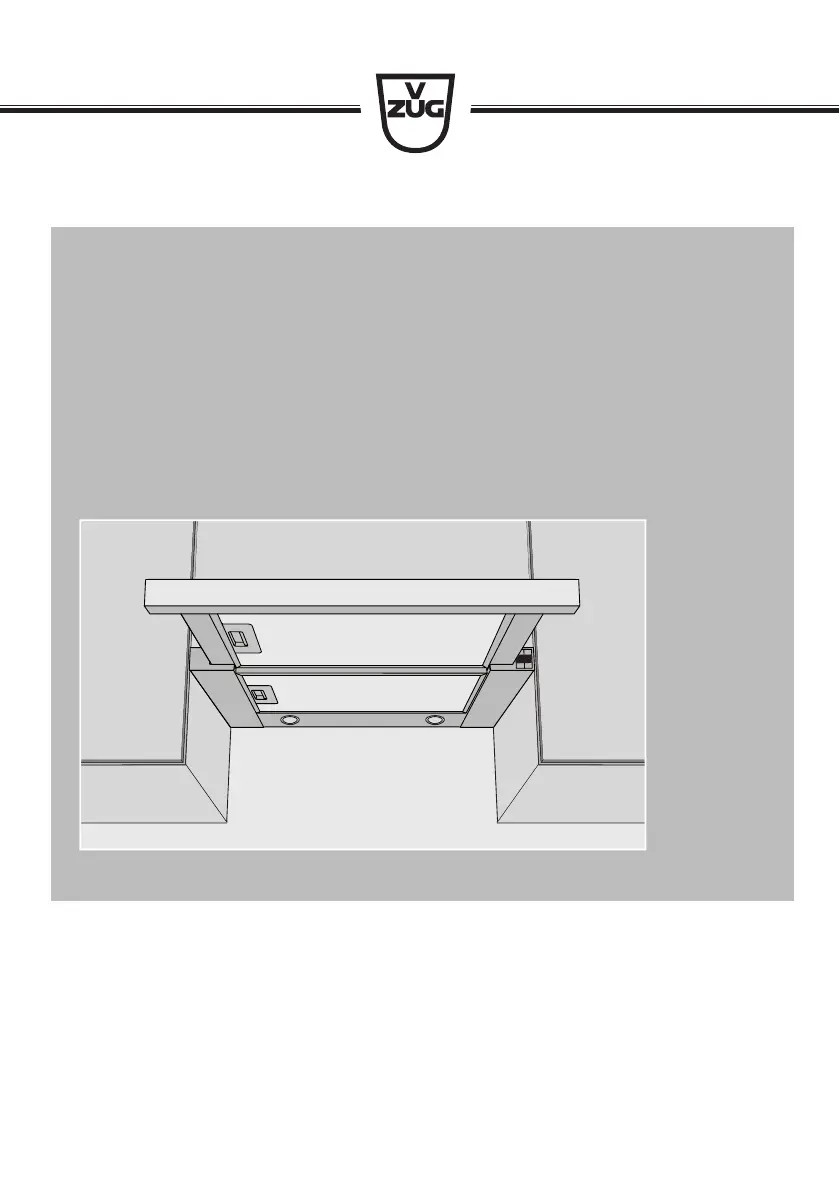

V-Zug DFSE6n Bruksanvisning

V-Zug eksoshette DFSE6n

Les nedenfor 📖 manual på norsk for V-Zug DFSE6n (28 sider) i kategorien eksoshette. Denne guiden var nyttig for 3 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/28

Operating instructions

DFSE 5/6

Range hood

Thank you for choosing to buy one of our products. Your appliance is made to

high standards and is easy to use. Nevertheless, please take the time to read

these operating instructions in order to familiarise yourself with the appliance

and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appliance

at the time these operating instructions went to press. The right to make tech-

nical modifications for the purpose of the further development of the appliance

is reserved.

Validity

The product family (model number) corresponds to the first alphanumerics on

the identification plate. These operating instructions apply to:

Type Product family Size system

DFSE5 61028 55

DFSE6 61029 60

Variations depending on the model are noted in the text.

Inhaltsverzeichnis

2

1 Safety precautions 5

1.1 Symbols used ........................................................................................................ 5

1.2 General safety precautions ................................................................................. 6

1.3 Before using for the first time ............................................................................. 7

1.4 Correct use............................................................................................................. 7

1.5 Children in the home............................................................................................ 7

1.6 Note on use ........................................................................................................... 8

2 Disposal 10

3 Appliance description 11

3.1 Appliance description ........................................................................................11

3.2 Extraction mode ..................................................................................................11

3.3 Recirculation mode.............................................................................................11

3.4 Features ................................................................................................................11

3.5 Construction.........................................................................................................12

3.6 Operating elements ............................................................................................13

4 Operating the appliance 14

4.1 Using for the first time........................................................................................14

4.2 Switching the appliance on...............................................................................14

4.3 Extractor fan.........................................................................................................15

4.4 Intensive level ......................................................................................................15

4.5 After-running time................................................................................................15

4.6 Illumination ...........................................................................................................16

4.7 Switching the appliance off...............................................................................16

4.8 Saturation indicator.............................................................................................16

5 Care and maintenance 17

5.1 Cleaning the housing .........................................................................................17

5.2 Metal grease filters .............................................................................................17

5.3 Long-life activated charcoal filter .....................................................................19

5.4 Standard activated charcoal filter ....................................................................21

5.5 Replacing the LED light bulbs..........................................................................21

6 Trouble-shooting 22

6.1 What to do if…......................................................................................................22

7 Accessories and spare parts 23

Produkspesifikasjoner

Merke:	V-Zug
Kategori:	eksoshette
Modell:	DFSE6n
Innebygd skjerm:	Ja
Vekt:	12500 g
Bredde:	598 mm
Dybde:	302 mm
Høyde:	396 mm
Årlig energiforbruk:	43 kWh
Støynivå:	63 dB
Antall motorer:	1
Støynivå (lav hastighet):	46 dB
Type fettfilter:	Fleece
Vaskbart filter:	Ja
Antall filtre:	2 stykker
Støynivå (intensiv hastighet):	67 dB
AC-inngangsspenning:	220-240 V
AC-inngangsfrekvens:	50 - 60 Hz
Kabellengde:	1.5 m
Produktfarge:	Sort
Kontrolltype:	Knapper
Slår seg automatisk av:	Ja
Modell/Type:	Semi-innebygd (uttrekkbar)
Antall pærer:	2 ampuller
Strøm:	10 A
Belysning:	145 lx
Tilkoblet nettbelastning:	205 W
Avtagbart filter:	Ja
Type utvinning:	Ducted/Resirkulerende
Motoreffekt:	200 W
Maksimal utvinningskraft:	625 m³/t
Intensiv hastighet:	Ja
Filter til oppvaskmaskin:	Ja
Antall hastighetsnivåer:	3
Dybde installasjonskammer:	305 mm
Bredde installasjonskammer:	600 mm
Lyspæretype:	LED
Lampestyrke:	5 W
Fluid dynamisk effektivitet klasse:	A
Belysning efiktivitets klasse:	A
Fettfiltrering effektivitetsklasse:	C
Støynivå (høy hastighet):	63 dB
Trykk (T):	414
Diameter på avtrekkstilkobling:	150 mm
Avgassplassering:	Topp
Minimum avstand fra gas-komfyr:	750 mm
Minimum avstand fra elektrisk-komfyr:	430 mm
Filterrengjøringsindikator:	Ja
Maksimum resirkulasjonskraft:	490 m³/t
Kontrollventil:	Ja
