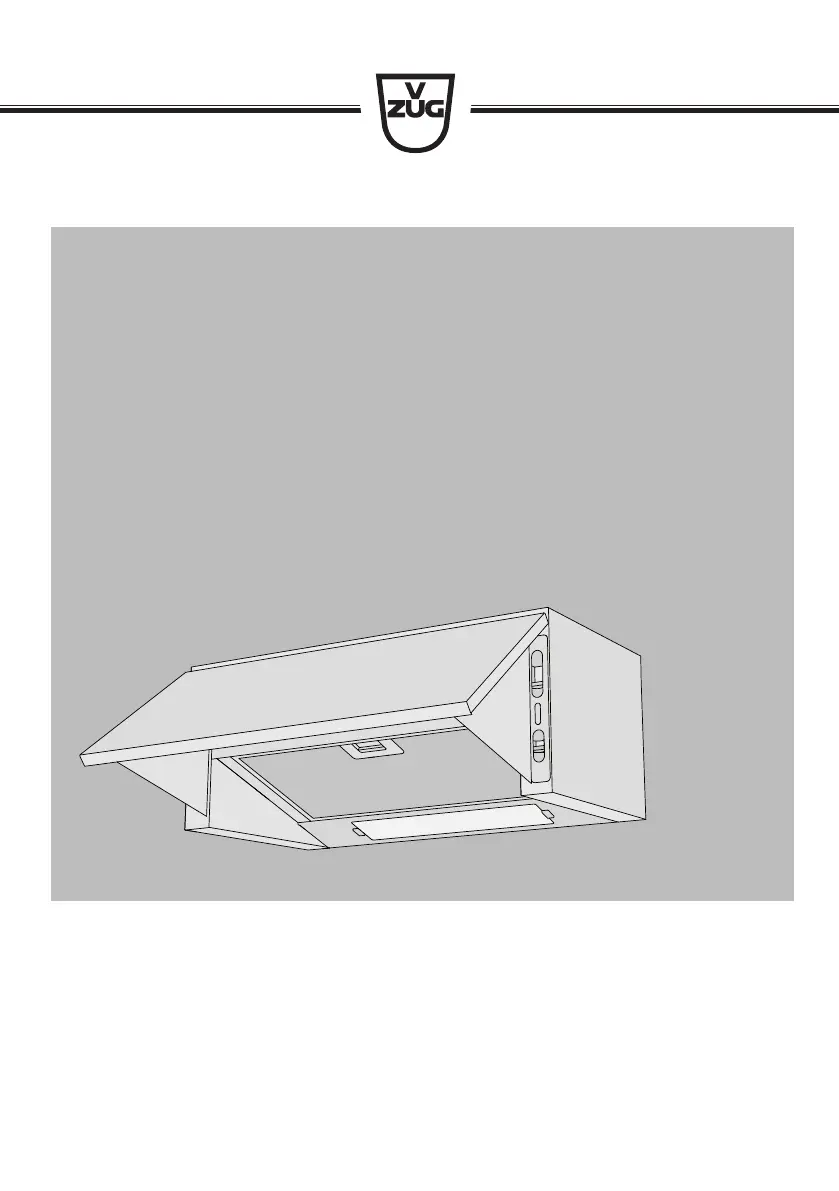

Operating instructions

DKS5i/DKS6i

Range hood

Thank you for choosing to buy one of our products. Your appliance is made to

high standards and is easy to use. Nevertheless, please take the time to read

these operating instructions in order to familiarise yourself with the appliance

and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appliance

at the time these operating instructions went to press. The right to make tech-

nical modifications for the purpose of the further development of the appliance

is reserved.

Validity

The product family (model number) corresponds to the first alphanumerics on

the identification plate. These operating instructions apply to:

Type

Product family

Size system

DKS5i 61005 55

DKS6i 61006 60

Variations depending on the model are noted in the text.

Contents

1 Safety precautions 4

1.1 Symbols used ........................................................................................................ 4

1.2 General safety precautions ................................................................................. 5

1.3 Before using for the first time ............................................................................. 5

1.4 Correct use............................................................................................................. 6

1.5 Children in the home............................................................................................ 6

1.6 Note on use ........................................................................................................... 7

2 Disposal 9

3 Your appliance 10

3.1 Appliance description ........................................................................................10

3.2 Extraction model .................................................................................................10

3.3 Recirculation model............................................................................................10

3.4 Equipment ............................................................................................................10

3.5 Construction.........................................................................................................11

3.6 Operating elements ............................................................................................11

4 Operating the appliance 12

4.1 Switching the extractor fan on..........................................................................12

4.2 Setting the power level ......................................................................................12

4.3 Switching the illumination on/off ......................................................................12

4.4 Switching the extractor fan off..........................................................................12

5 Care and maintenance 13

5.1 Cleaning the housing .........................................................................................13

5.2 Cleaning the grease filter and inside surfaces..............................................13

5.3 Removing the grease filter ................................................................................14

5.4 Installing the grease filter ..................................................................................14

5.5 Replacing the light bulb.....................................................................................14

6 Trouble-shooting 15

6.1 What to do if ... ....................................................................................................15

7 Accessories and spare parts 16

8 Technical data 17

9 Index 18

10 Service & Support 19

Produkspesifikasjoner

Merke:	V-Zug
Kategori:	eksoshette
Modell:	DKS5in
Innebygd skjerm:	Nei
Vekt:	12000 g
Bredde:	547 mm
Dybde:	302 mm
Høyde:	252 mm
Årlig energiforbruk:	113 kWh
Støynivå:	65 dB
Antall motorer:	1
Støynivå (lav hastighet):	49 dB
Type fettfilter:	Fleece
Vaskbart filter:	Ja
Antall filtre:	1 stykker
AC-inngangsspenning:	230 V
AC-inngangsfrekvens:	50 Hz
Kabellengde:	1.5 m
Produktfarge:	Sort
Kontrolltype:	Rullefelt
Modell/Type:	Innebygget
Antall pærer:	2 ampuller
Strøm:	10 A
Belysning:	95 lx
Tilkoblet nettbelastning:	230 W
Avtagbart filter:	Ja
Type utvinning:	Ducted/Resirkulerende
Motoreffekt:	150 W
Maksimal utvinningskraft:	324 m³/t
Intensiv hastighet:	Nei
Filter til oppvaskmaskin:	Ja
Antall hastighetsnivåer:	3
Dybde installasjonskammer:	302 mm
Bredde installasjonskammer:	547 mm
Lyspæretype:	Halogen
Lampestyrke:	56 W
Fluid dynamisk effektivitet klasse:	F
Belysning efiktivitets klasse:	G
Fettfiltrering effektivitetsklasse:	C
Støynivå (høy hastighet):	65 dB
Trykk (T):	177
Diameter på avtrekkstilkobling:	120 mm
Avgassplassering:	Topp
Minimum avstand fra gas-komfyr:	750 mm
Minimum avstand fra elektrisk-komfyr:	600 mm
Maksimum resirkulasjonskraft:	326 m³/t
Kontrollventil:	Ja
