V-Zug DSDSR12c Bruksanvisning

V-Zug eksoshette DSDSR12c

Les nedenfor 📖 manual på norsk for V-Zug DSDSR12c (32 sider) i kategorien eksoshette. Denne guiden var nyttig for 4 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/32

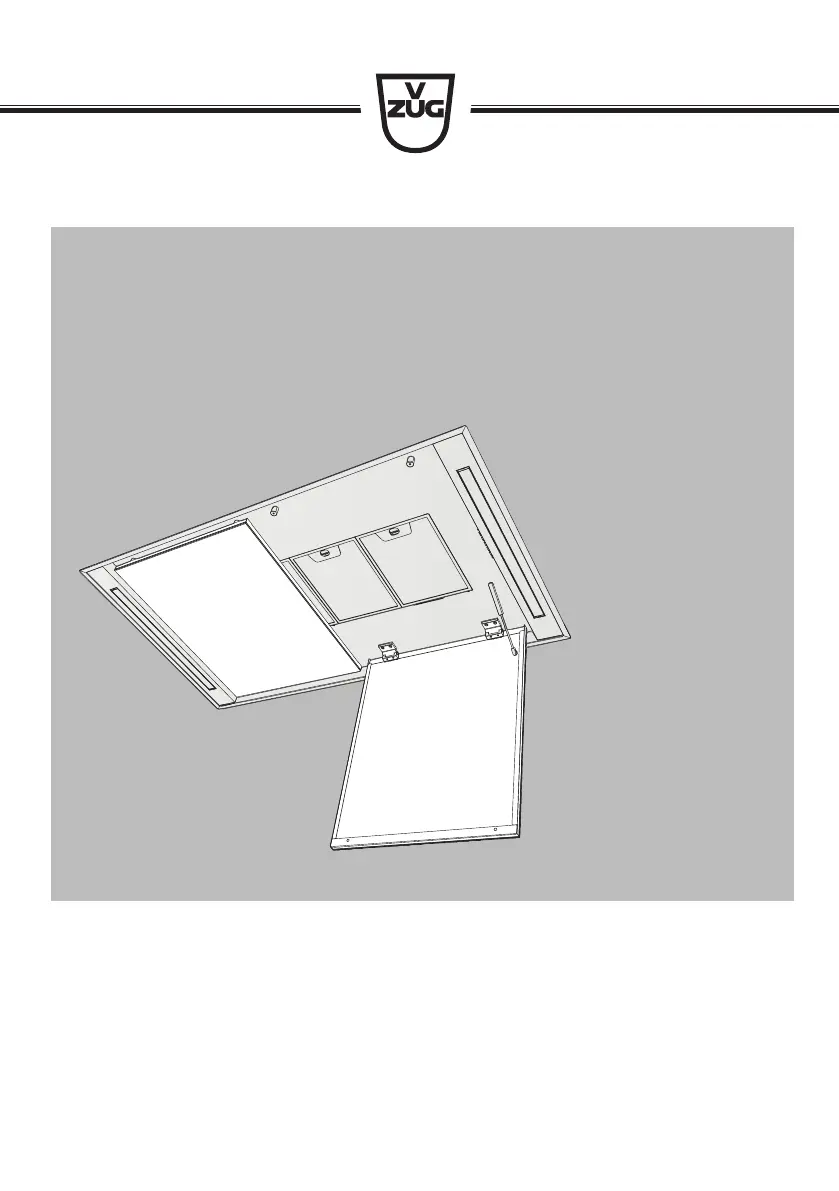

Operating instructions

Ceiling hood DSDSR12

Range hood

Thank you for choosing to buy one of our products. Your appliance is made to

high standards and is easy to use. Nevertheless, please take the time to read

these operating instructions in order to familiarise yourself with the appliance

and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appliance

at the time these operating instructions went to press. The right to make tech-

nical modifications for the purpose of the further development of the appliance

is reserved.

Validity

The product family (model number) corresponds to the first alphanumerics on

the identification plate. These operating instructions apply to:

Type Product family Size system

DSDSR12 64003 120

Variations depending on the model are noted in the text.

Table of contents

1 Safety precautions 5

1.1

Symbols used .............................................................................................5

1.2

General safety precautions ......................................................................6

1.3

Before using for the first time ..................................................................7

1.4

Correct use..................................................................................................7

1.5

Children in the home .................................................................................7

1.6

Note on use.................................................................................................8

2 Disposal 10

3 Appliance description 11

3.1

Extraction model...................................................................................... 11

3.2

Recirculation model with recirculation box ........................................ 11

3.3

Equipment................................................................................................. 11

3.4

Construction ............................................................................................. 12

3.5

Operating and display elements .......................................................... 13

3.6

Remote control ........................................................................................ 14

4 Operation 15

4.1

Activating/deactivating the remote control......................................... 15

4.2

Switching the appliance on/off............................................................. 15

4.3

Switching the illumination on/off .......................................................... 16

4.4

Changing the light intensity................................................................... 16

4.5

Changing the power level...................................................................... 16

4.6

Switching the intensive level on / off before time............................. 16

4.7

Switching the after-running time on / off before time....................... 17

4.8

Switching the CleanAir function on / off before time ....................... 18

4.9

Saturation indicator for metal grease filters ....................................... 18

4.10

Operation using the operating and display elements ...................... 19

5 Care and maintenance 21

5.1

Cleaning the housing ............................................................................. 21

5.2

Cleaning the metal grease filters ......................................................... 22

6 Trouble-shooting 24

6.1

What to do if ............................................................................................ 24

7 Accessories and spare parts 25

8 Technical data 26

Produkspesifikasjoner

Merke:	V-Zug
Kategori:	eksoshette
Modell:	DSDSR12c
Innebygd skjerm:	Nei
Vekt:	33000 g
Bredde:	1200 mm
Dybde:	700 mm
Høyde:	318 mm
Årlig energiforbruk:	60 kWh
Støynivå:	68 dB
Antall motorer:	1
Støynivå (lav hastighet):	43 dB
Type fettfilter:	Fleece
Vaskbart filter:	Ja
Antall filtre:	4 stykker
Støynivå (intensiv hastighet):	74 dB
AC-inngangsspenning:	220-240 V
AC-inngangsfrekvens:	50 Hz
Kabellengde:	1.5 m
Produktfarge:	Kromfarget
Kontrolltype:	Knapper
Slår seg automatisk av:	Ja
Modell/Type:	Innebygget i Tak
Antall pærer:	2 ampuller
Strøm:	10 A
Belysning:	170 lx
Tilkoblet nettbelastning:	284 W
Avtagbart filter:	Ja
Type utvinning:	Ducted/Resirkulerende
Motoreffekt:	270 W
Maksimal utvinningskraft:	830 m³/t
Intensiv hastighet:	Ja
Filter til oppvaskmaskin:	Ja
Antall hastighetsnivåer:	3
Dybde installasjonskammer:	700 mm
Bredde installasjonskammer:	1200 mm
Lyspæretype:	LED
Lampestyrke:	14 W
Fluid dynamisk effektivitet klasse:	A
Belysning efiktivitets klasse:	D
Fettfiltrering effektivitetsklasse:	E
Støynivå (høy hastighet):	68 dB
Trykk (T):	500
Diameter på avtrekkstilkobling:	150 mm
Avgassplassering:	Topp
Minimum avstand fra gas-komfyr:	1300 mm
Minimum avstand fra elektrisk-komfyr:	800 mm
Filterrengjøringsindikator:	Ja
Maksimum resirkulasjonskraft:	295 m³/t
Kontrollventil:	Ja
