V-Zug GK11TGA Bruksanvisning
Les nedenfor 📖 manual på norsk for V-Zug GK11TGA (12 sider) i kategorien Komfyr. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/12
2
Ú Table of contents
[es] Instrucciones de uso y montaje
Safety considerations................................................................ 2
For your safety.....................................................................................2
What to do if you smell gas..............................................................2
Warnings...............................................................................................2
Installation.................................................................................. 3
Statutory requirements.......................................................................3
Preparing to install..............................................................................3

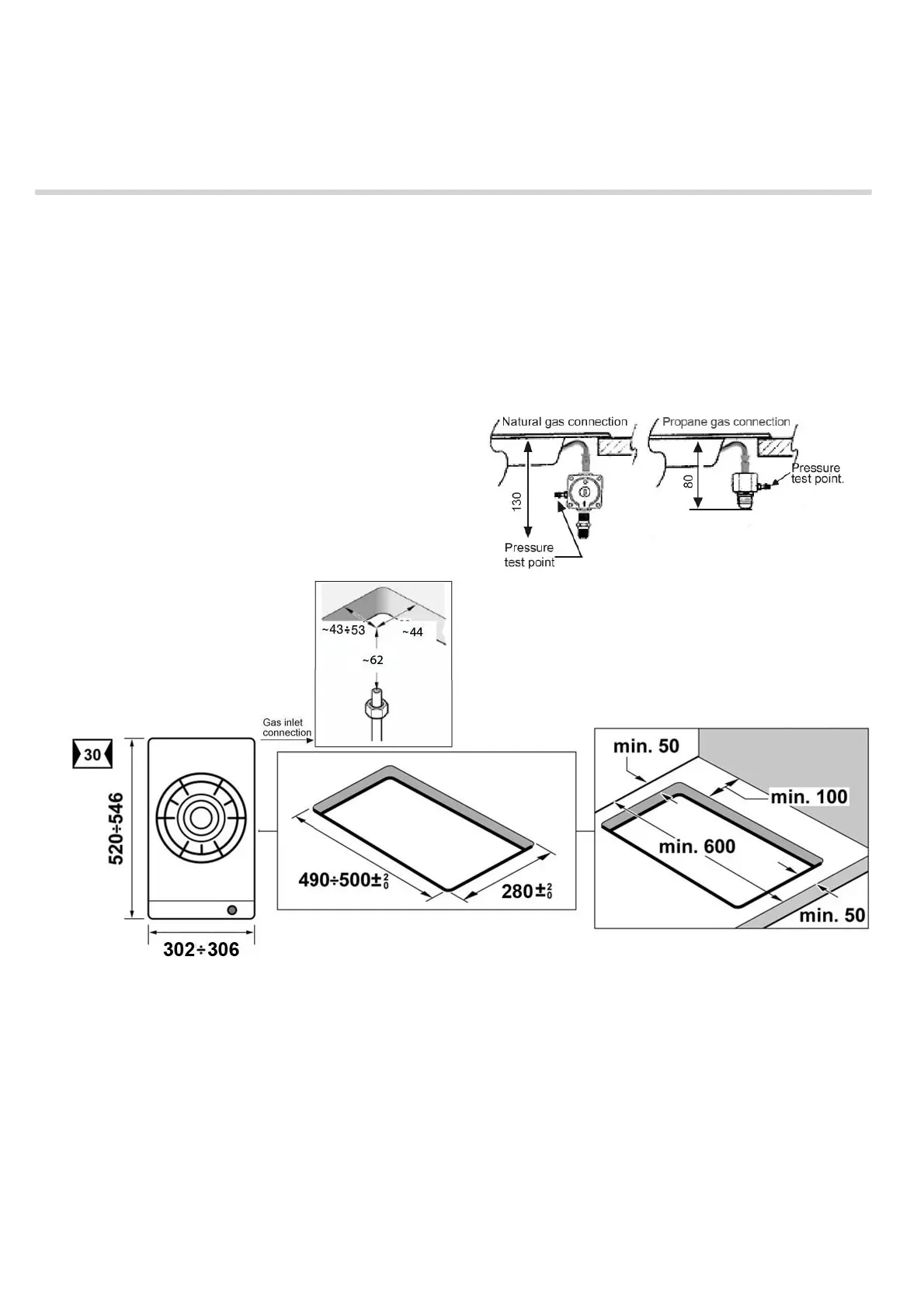

Clearances ...........................................................................................4
Installation of cooktop into the kitchen bench ..............................4
Connection ...........................................................................................5
Converting the cooktop from Nat. Gas to Propane Gas.............5
Changing the nozzles of the rapid, semi-rapid and auxiliary
burners on the cooktop .....................................................................6
Changing double flame burner tips ................................................6
Adjustment of the taps.......................................................................7
Operating instructions .............................................................. 7
Burner locations ..................................................................................7
Accessories .........................................................................................8
Operation..............................................................................................8
Cooking pans ......................................................................................9
Cleaning and maintenance ............................................................10
Service ...............................................................................................10
Wiring diagram .................................................................................11
Safety considerations
For your safety
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury
or death.
Do not store articles on or against this appliance.
Do not store flammable material near this appliance.
Do not spray aerosols in the vicinity of this appliance while it is
in operation.
What to do if you smell gas
Do not try to light the appliance.
Do not touch any electrical switch; do not use any phone in
your building.
Inmediately call your gas supplier from a neighbour’s phone.
Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by an authorised
person.
Warnings
Do not allow the flame to extend beyond the edge of the
cooking utensil. This instruction is based on safety
considerations.
Do not forget that the unit becomes hot when in use. Common
sense is important. Just because the flame is out, does not
mean parts cannot still be hot.
This appliance shall not be used for space heating. This
instruction is based on safety considerations.
Be sure to disconnect the electrical supply before disassembly
of the appliance.
Keep the appliance area clear and free from combustible
materials, gasoline and other flammable vapours and liquids.
This appliance must be installed in a position with the proper
level of ventilation. Do not obstruct the flow of combustion and
ventilation air.
Cabinets installed above the gas cooktop must have a
minimum clearance of 650 mm (24”).
The gas pressure regulator supplied with the appliance must be
installed in line with the gas pipe. (N.G. only).
For pressure testing in excess of 3.5 kPa (1/2 psig) the
appliance and its individual shutoff valve must be disconnected
from the gas supply piping system.
Important. When using a very large pot, leave a gap of at least
50 mm (2”) to avoid damaging any parts in bench top wood,
plastic or other non-heat resistant materials. Never leave oil or
hot fat unattended.
The surfaces on heating and cooking appliances get hot when
in use. Be careful. Keep children away from the appliance.
Only use your appliance for the preparation of food and never
for room-heating purposes.
This appliance leaves the factory set for the gas supply
indicated on the data label. Call the Service Centre if it needs
to be altered.
Do not tamper inside the appliance. If necessary, call your local
Service Centre.
Overheated fat or oil can easily catch fire. Never leave the
appliance unattended when cooking food with fat or oil, e.g. chips.
Never pour water on burning fat or oil. DANGER OF BURNS!
Cover the receptacle to smother the flames and turn the
cooktop off.
In the event of a fault, cut the gas and electricity supplies to the
appliance. Call our Service Centre to repair the fault.
Do not use unstable or uneven-based receptacles on cooking
plates or burners. They may accidentally tip over.
If a gas supply knob/valve jams, do not force it. Call your
official Service Centre immediately for them to repair or replace
it.
The illustrations used in this booklet are only intended as a
guide.
If your cooktop is supplied with a glass cover, do not subject it
to excessive force. If the glass should become detached from
the cooktop, call the Service Centre immediately for them to
repair or replace it.
While using your gas should avoid draughts and spillages of
cold liquids. As these may cause the glass to break.
Grids become very hot during use. When operating the
appliance control knobs, take care not to make contact with the
grids.
Do not use this appliance neither in marine craft nor in
caravans.
Important: Do not cover up the slots at the rear of the cooktop
and observe the minimum insertion gap. DANGER,
COMBUSTION MAY BE AFFECTED.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
3
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Make sure you keep these instructions for use and assembly in
a safe place, so that you can hand them on with the appliance
if it ever changes owner.
Note: To avoid jeopardising the electrical safety of the
appliance, it is forbidden to use high-pressure or steam jet
cleaning devices.
SHOULD THE RELEVANT CONDITIONS NOT BE PROPERLY
SATISFIED, THE INSTALLER, AND NOT THE
MANUFACTURER, SHALL HELD LIABLE.
Installation
Statutory requirements
This installation must conform with the following:
■ Manufacturer’s Installation instructions
■ Local Gas Fitting Regulations
■ Municipal Building Codes
■ Refer to AS/NZS 5601.1 for Gas Installations
■ S.A.A. Wiring Code
■ Local Electrical Regulations
■ Any other statutory regulations
Preparing to install
Refer to AS/NZS 5601.1 for piping size details. These built-in
cooktops are intended to be inserted in a benchtop cutout.
Do not stick the hob onto the worktop with silicone.
Only an officially authorised technician should connect the
appliance.
Before you begin, turn off the gas and electricity supply.
