Table of Contents Rev. 2/13/2024 ALL-T-(1/35)-GPT-ST-L MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Co. Page 1 of 15
ALL TERRAIN PALLET TRUCKS
MODELS: ALL-T-1-GPT-ST-L & ALL-T-35-GPT-ST-L
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to
determine whether it sustained damage during transport. If damage is discovered, record a complete
description of
it on the bill of lading. If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels,
and accessories, call our Technical Service and Parts Department at (260) 665-7586. The department
can also be contacted online at https://www.vestil.com/page-parts-request.php.
Electronic copies of Instruction Manuals
This instruction manual may be downloaded from https://www.vestil.com/page-manuals.php
VESTIL MANUFACTURING COMPANY
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
http://www.vestil.com/ e-mail: info@vestil.com
Table of Contents
Page
Specifications…………………...…………......................................................................................................
2
National Standards…………………………………………………..………………………………………...……
3
Signal Words……….……………….................................................................................................................
3
Safety Instructions.........................................................................................................................................
3
Operating the Truck…………………….……….............................................................................................
4
Fork Carriage Controls……...………………………………………………………………………………….......
4 - 5
Lifting and Transporting Loads………….……………………………………………………………………...….
5
Parking Brake……………………………….....................................................................................................
6
Disengaging the Transmission (Neutral Mode)...……………………………………………………….……...
6
Record of Satisfactory Condition…………………………………………………………………………………
6
Inspections and Maintenance……………………………………………………………………………...…….
6 - 7
Exploded View and Bill of Materials………………………...…………………………………………………....
8 - 9
Rear Wheel Axle Assembly Exploded Views and Bills of Materials…………………………………………
10
Steering Handle Subassembly Exploded View and Bill of Materials…………………………………….…
11
Power Unit Subassembly Exploded View and Bill of Materials………………………..………………….…
12
Sprocket Drive Subassembly, Right Side, Exploded View and Bill of Materials……………..……………
13
Sprocket Drive, Subassembly, Left Side, Exploded View and Bill of Materials..…………..………...……
13
Labeling Diagram…….……………………………………………………………………………………………...
14
Limited Warranty…………………………………………………………………………………..………………...
15
Table of Contents 2/13/2024 ALL-T-1-GPT-ST-L MANUAL
Table of Contents Copyright 2022 Vestil Manufacturing Co. Page 2 of 15
SPECIFICATIONS
Documents that provide specifications for All-T-##-GPT-ST-L series rough terrain high lift trucks are available online
to anyone who visits Vestil’s website. Specifications include dimensions, net weight, and capacity information. To
access the appropriate specifications document, navigate to the webpage at
https://www.vestil.com/product.php?FID=336. Scroll the page to the entry for the model you purchased. Click the
button in the “PDF” column that looks like a pencil inside a blue box. A PDF file will open. This file is the specifications

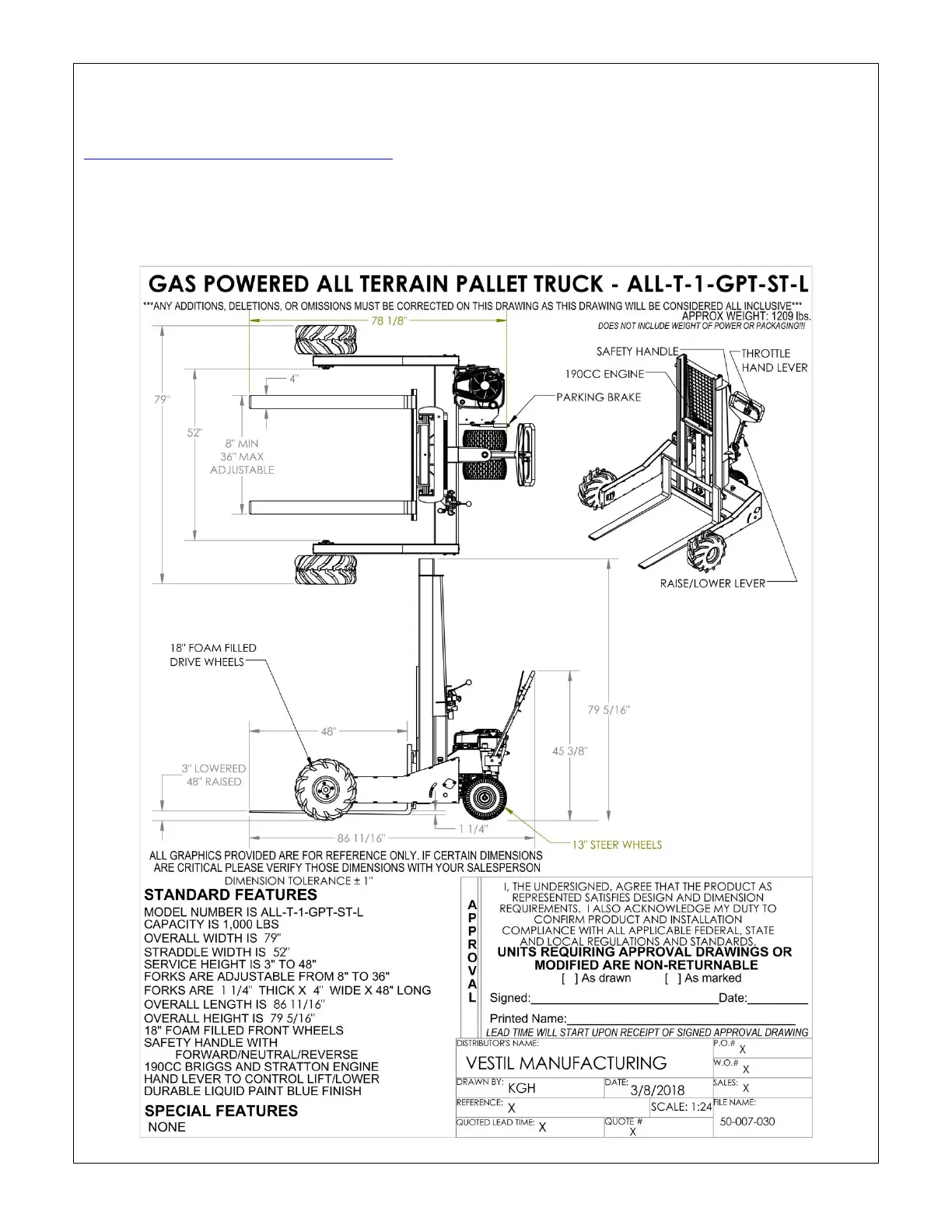

document. Print a copy of the document and keep it with your copy of this manual. The following is an exemplar
specifications document for mode ALL-T-1-GPT-ST-L. It is included in this manual to provide an example of the
specifications document you will find on the product webpage. It might not be the most current version of the
document. Always refer to the data provided on your specifications document printed from the product webpage.
Produkspesifikasjoner
| Merke: | Vestil |
| Kategori: | truck |
| Modell: | ALL-T-1-GPT-ST-L |
