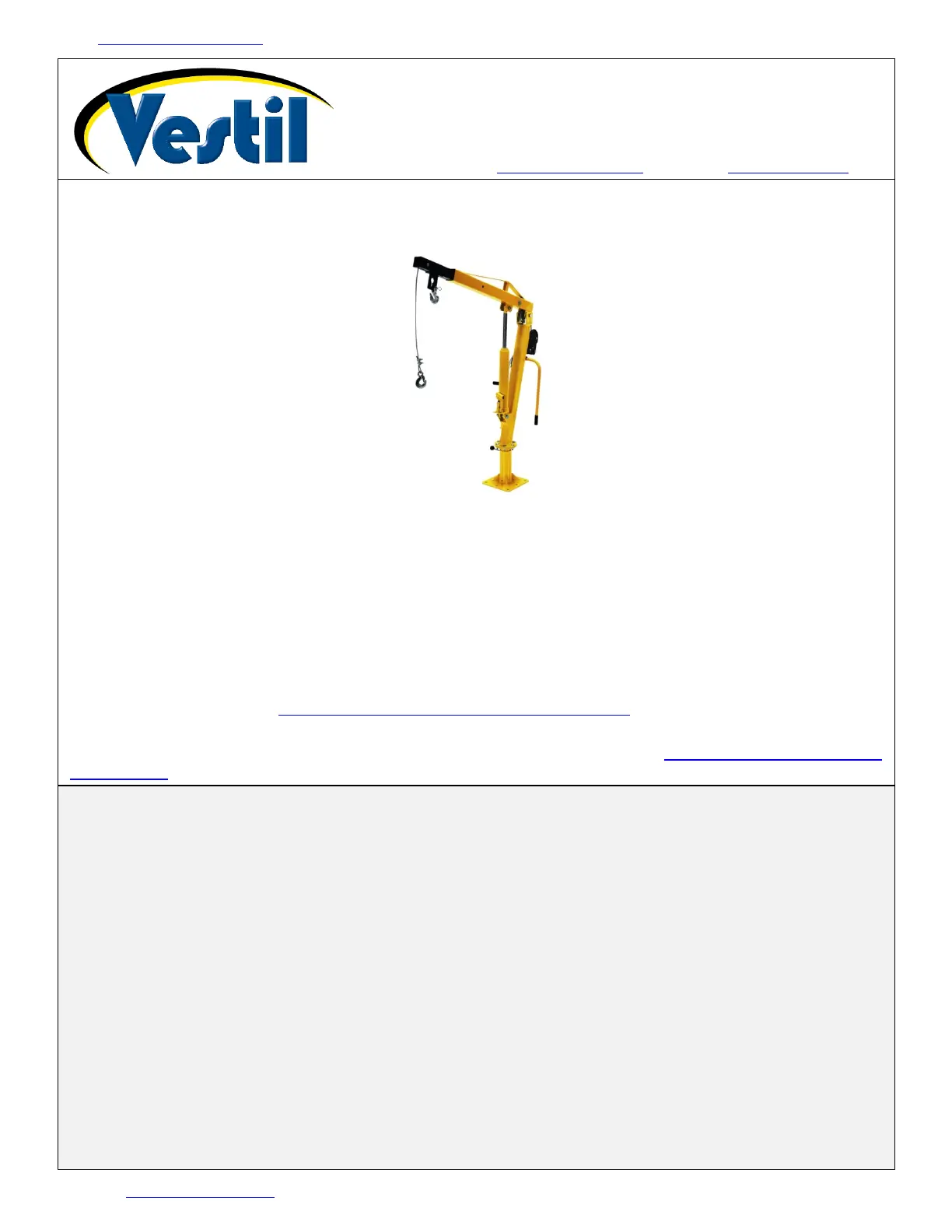

TABLE OF CONTENTS Rev. 5/02/2025 WTJ-2, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Corp. Page 1 of 12
WTJ-2 Series Vehicle Mounted Jib Cranes
Instruction Manual
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description of it
on the bill of lading. If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts Department
For answers to questions not addressed in these instructions and to order replacement parts, labels,
and accessories, call our Technical Service and Parts Department at (260) 665-7586. The Department can
also be contacted online at https://www.vestil.com/page-parts-request.php
.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from
https://www.vestil.com/page-
manuals.php.
Table of Contents
Page
Specifications……….…………………………………………………………………………………….……
2
Exploded View: WTJ-2..…………………………………………………………………………………...…
3
Bills of Materials: WTJ-2 & WTJ-2-G..………………………………………………………………...……
4
Exploded View: WTJ-2-G & WTJ-2-SS……………………………………………………………………..
5
Bill of Materials: WTJ-2-SS…………………………………………………………………………………..
6
Assembling the Crane……………………………………………………………………………...…………
6
Signal Words…………………………………………………………………………………………………..
7
Safety Instructions……...………………………………………………………..……………………………
7
Installing the Crane in a Fixed Location (Not in a Vehicle)...……………………...………………...……
8
Installing the Crane on a Vehicle……………………………………………………………………….……
8
Raising and Lowering the Boom…………………………………………………………………………..…
9
Boom Length Adjustments……………………………………………………………………………………
9
Using the Crane…………………………………………………………….…………………………………
9 - 10
Record of Satisfactory Condition…………………………………………………………………………….
10
Inspections…………………………………………………………………………………………………..…
10
Troubleshooting………………………………………………………………………………………............
11
Labeling Diagram………………………………………………………..……………………………….……
11
Limited Warranty………………………………………………………………………………………………
12
Vestil Manufacturing Co.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com e-mail:
HUinfo@vestil.comU
TABLE OF CONTENTS Rev. 05/02/2025 WTJ-2, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Corp. Page 2 of 12

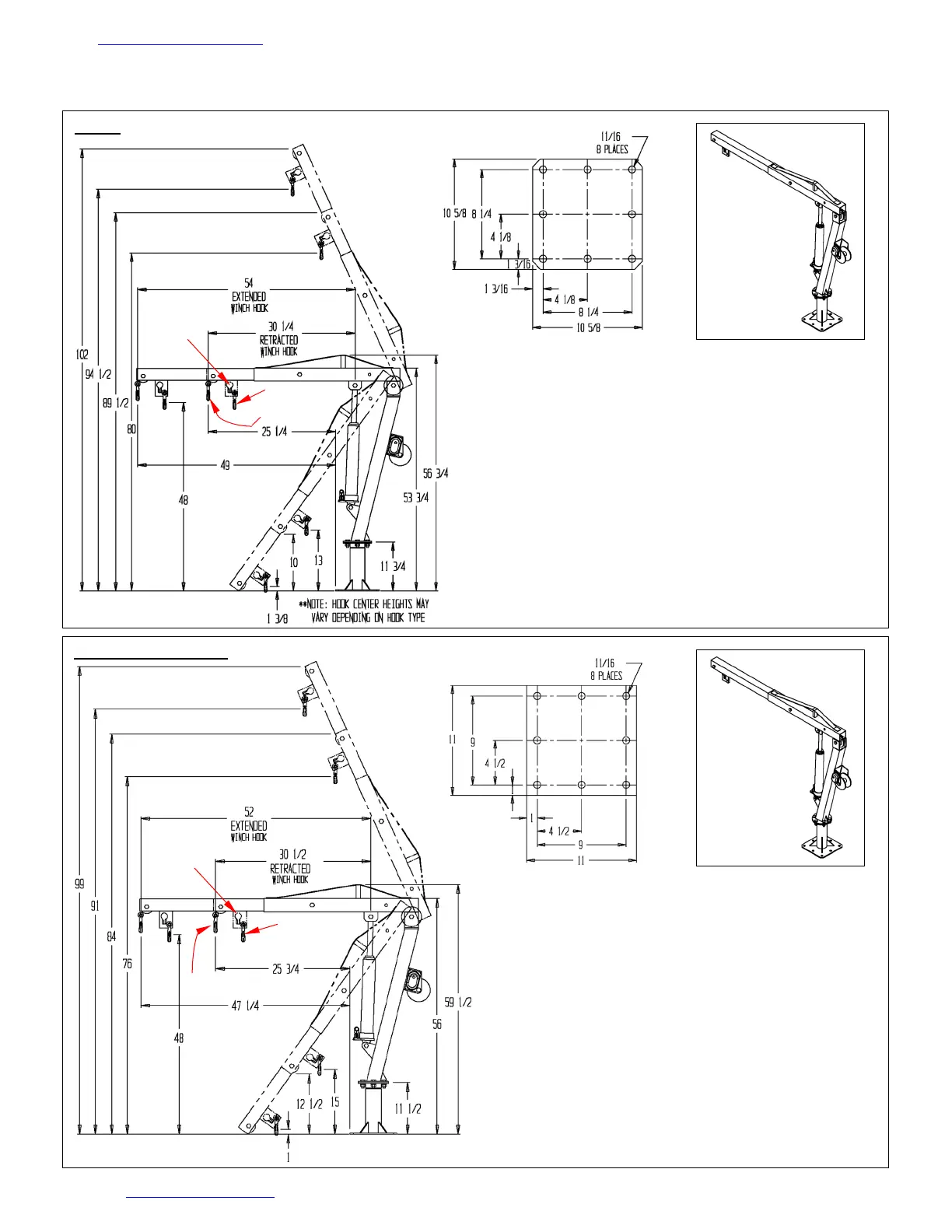

SPECIFICATIONS
Crane dimensions, capacity, and net weight appear in the diagram and table below. Specifications may change
without notice.
WTJ-2
WTJ-2-G & WTJ-2-SS
Mounting plate dimensions
Fixed hook
Winch hook
Lifting bale capacities:
Boom extended (“long”) = 500 lb. (227.3kg)
Boom retracted (“short”) = 1,000 lb. (454.5kg)
Winch & winch hook capacity = 500 lb. (227.2kg)
Fixed hook capacity = 500 lb. (227.2kg)
Winch hook heights:
Cylinder extended & boom extended = 102” (259cm)
Cylinder extended & boom retracted = 89
1
/
2
” (227cm)
Cylinder retracted & boom extended = 0” (0cm)
Cylinder retracted & boom retracted = 10” (25cm)
Cable dimensions:
Overall length = 14
1
/
2
ft. (4.4m)
Usable length = 9 ft. (2.7m)
Usable reach:
Boom horizontal & extended = 54” (137cm)
Boom horizontal & retracted = 30
1
/
4
” (77cm)
Net weight of crane = 135 lb. (61.4kg)
3D model
shown for
reference
Lifting bale capacities:
Boom extended (“long”) = 500 lb. (227.3kg)
Boom retracted (“short”) = 1,000 lb. (454.5kg)
Winch & winch hook capacity = 500 lb. (227.2kg)
Fixed hook capacity = 500 lb. (272.2kg)
Winch hook heights:
Cylinder extended & boom extended = 99” (39cm)
Cylinder extended & boom retracted = 84” (33cm)
Cylinder retracted & boom extended = 0” (0cm)
Cylinder retracted & boom retracted = 12
1
/
2
” (32cm)
Cable dimensions:
Overall length = 32 ft. (9.8m)
Usable length = 24 ft. (7.3m)
Usable reach:
Boom horizontal & fully extended = 52” (132cm)
Boom horizontal & fully retracted = 30
1
/
2
” (78cm)
Net weight of crane: = 218 lb. (99.1kg)
Mounting plate dimensions
Fixed hook
Winch hook
3D model
shown for
reference
Lifting
bale
Lifting
bale
