TABLE OF CONTENTS Rev. 5/02/2025 WTJ-2, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Corp. Page 1 of 12
WTJ-2 Series Vehicle Mounted Jib Cranes
Instruction Manual
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description of it
on the bill of lading. If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts Department
For answers to questions not addressed in these instructions and to order replacement parts, labels,
and accessories, call our Technical Service and Parts Department at (260) 665-7586. The Department can
also be contacted online at https://www.vestil.com/page-parts-request.php
.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from
https://www.vestil.com/page-
manuals.php.
Table of Contents
Page
Specifications……….…………………………………………………………………………………….……
2

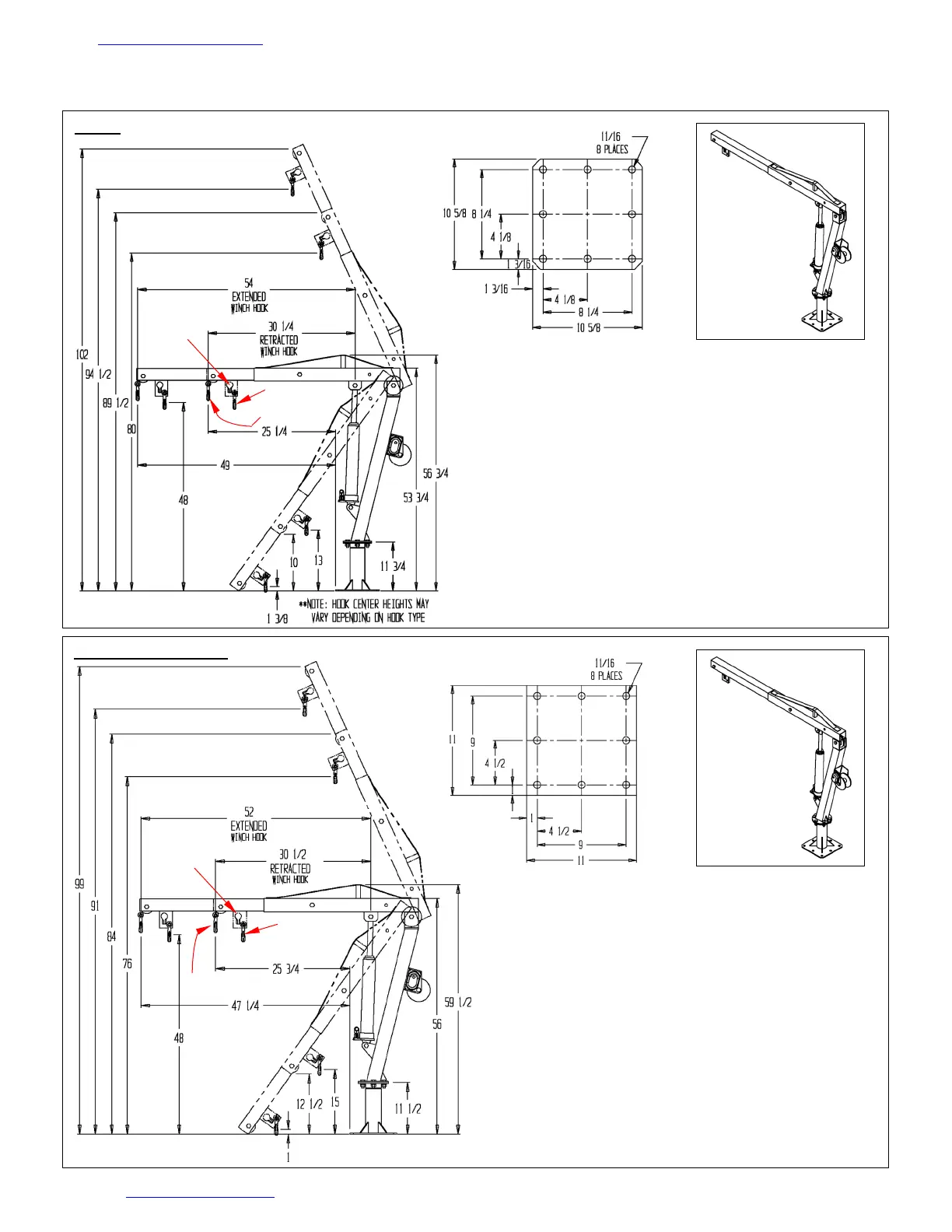

Exploded View: WTJ-2..…………………………………………………………………………………...…
3
Bills of Materials: WTJ-2 & WTJ-2-G..………………………………………………………………...……
4
Exploded View: WTJ-2-G & WTJ-2-SS……………………………………………………………………..
5
Bill of Materials: WTJ-2-SS…………………………………………………………………………………..
6
Assembling the Crane……………………………………………………………………………...…………
6
Signal Words…………………………………………………………………………………………………..
7
Safety Instructions……...………………………………………………………..……………………………
7
Installing the Crane in a Fixed Location (Not in a Vehicle)...……………………...………………...……
8
Installing the Crane on a Vehicle……………………………………………………………………….……
8
Raising and Lowering the Boom…………………………………………………………………………..…
9
Boom Length Adjustments……………………………………………………………………………………
9
Using the Crane…………………………………………………………….…………………………………
9 - 10
Record of Satisfactory Condition…………………………………………………………………………….
10
Inspections…………………………………………………………………………………………………..…
10
Troubleshooting………………………………………………………………………………………............
11
Labeling Diagram………………………………………………………..……………………………….……
11
Limited Warranty………………………………………………………………………………………………
12
Vestil Manufacturing Co.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com e-mail:
HUinfo@vestil.comU
