Viewsonic LS610WH Bruksanvisning

Viewsonic videoprosjektor LS610WH

Les nedenfor 📖 manual på norsk for Viewsonic LS610WH (75 sider) i kategorien videoprosjektor. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/75

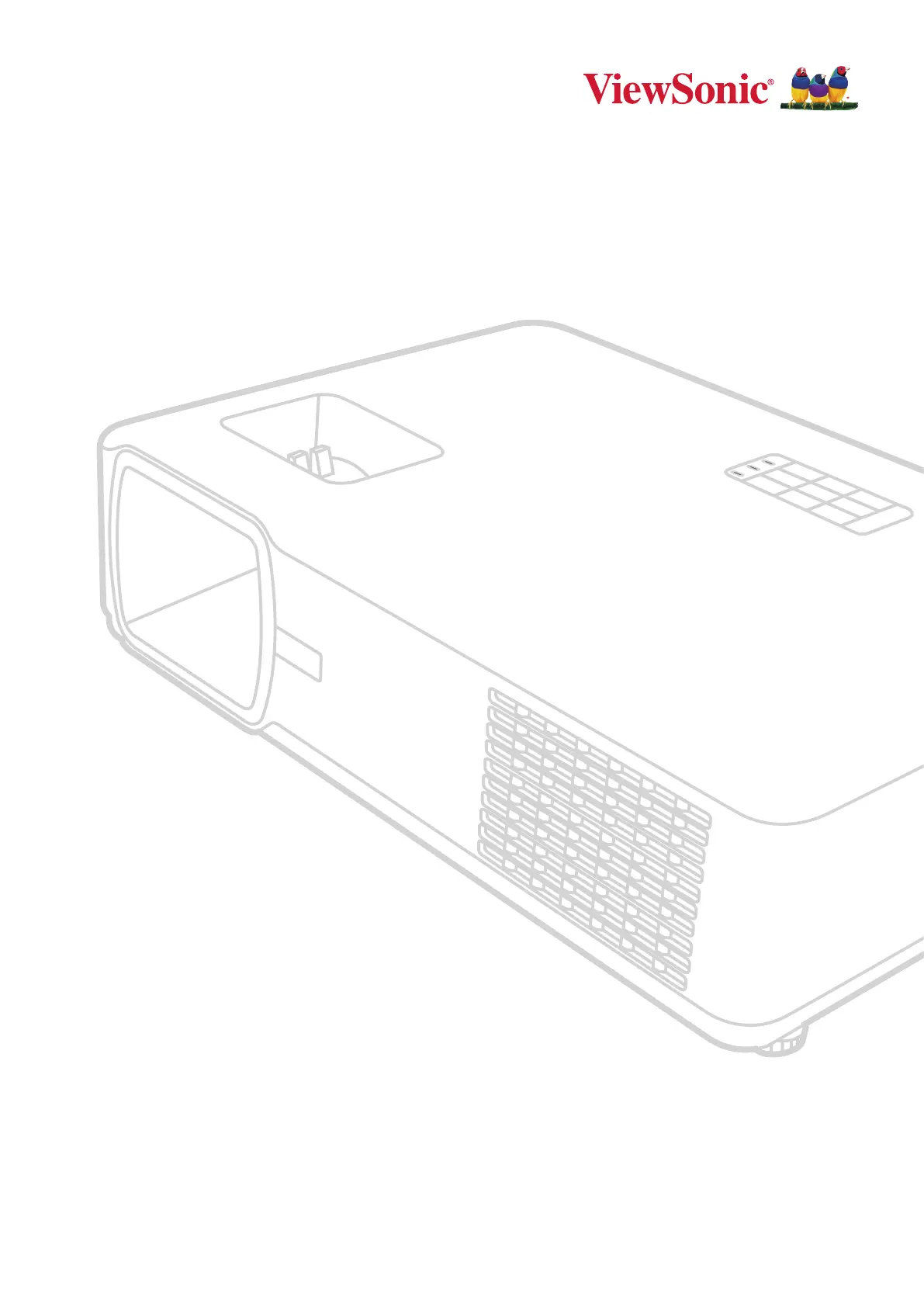

LS610WH series/LS610HDH series

Projector

User Guide

Model No. VS19173/VS19174

Model Name: LS610WH series/LS610HDH series

IMPORTANT: Please read this User Guide to obtain important informaon on installing and using your product

in a safe manner, as well as registering your product for future service. Warranty informaon contained in this

User Guide will describe your limited coverage from ViewSonic Corporaon, which is also found on our web site at

hp://www.viewsonic.com in English, or in specic languages using the Regional selecon box in the upper right

corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to

exceeding the world’s expectations for technological evolution, innovation, and

simplicity. At ViewSonic®, we believe that our products have the potential to make

a positive impact in the world, and we are confident that the ViewSonic® product

you have chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precauons

Please read the following Safety Precauons before you start using the projector.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instrucons.

• Allow at least 20“ (50 cm) clearance around the projector to ensure proper

venlaon.

• Place the projector in a well-venlated area. Do not place anything on the

projector that prevents heat dissipaon.

• Do not place the projector on an uneven or unstable surface. The projector may

fall over, causing personal injury or projector malfuncon.

• Do not look straight at the projector lens during operaon. The intense light

beam may damage your eyes.

• Always open the lens shuer or remove the lens cap when the projector lamp is

on.

• Do not block the projecon lens with any objects when the projector is under

operaon as this could cause objects to become heated and deformed or even

cause a re.

• The lamp becomes extremely hot during operaon. Allow the projector to

cool for approximately 45 minutes prior to removing the lamp assembly for

replacement.

• Do not use lamps beyond the rated lamp life. Excessive use of lamps beyond the

rated life could cause them to break on rare occasions.

• Never replace the lamp assembly or any electronic component unless the

projector is unplugged.

• Do not aempt to disassemble the projector. There are dangerous high voltages

inside which may cause death if you should come into contact with live parts.

• When moving the projector, be careful not to drop or bump the projector on

anything.

• Do not place any heavy objects on the projector or connecon cables.

• Do not stand the projector on end vercally. Doing so may cause the projector to

fall over, causing personal injury or projector malfuncon.

• Avoid exposing the projector to direct sunlight or other sources of sustained

heat. Do not install near any heat sources such as radiators, heat registers,

stoves, or other devices (including ampliers) that may increase the temperature

of the projector to dangerous levels.

Produkspesifikasjoner

Merke:	Viewsonic
Kategori:	videoprosjektor
Modell:	LS610WH
Innebygd skjerm:	Nei
Vekt:	5000 g
Bredde:	386 mm
Dybde:	276 mm
Høyde:	116 mm
Støynivå:	32 dB
Strømkilde:	AC
Pakkevekt:	7000 g
Projektor lysstyrke:	5000
Antall farger:	1,07 milliarder farger
Antall USB 2.0-porter:	1
Antall HDMI-porter:	2
DVI-port:	Nei
Innebygde høyttalere:	Ja
Full HD:	Nei
HDMI-versjon:	1.4
Antall per pakke:	1 stykker
On Screen Display (OSD):	Ja
Kontrastforhold:	3000000:1
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Antall USB 2.0 Type-A-porter:	1
Interaktiv:	Nei
Strømforbruk (standby):	0.5 W
Projektorens lysstyrke:	4000 ANSI lumen
Projektoroppløsning:	WXGA (1280x800)
Produktfarge:	Hvit
Pakkedybde:	376 mm
Pakkehøyde:	268 mm
Pakkebredde:	490 mm
Rekomandert kjønn:	Alle kjønn
Støttede grafikkoppløsninger:	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Kabler inkludert:	AC
Visningsteknologi:	LED
Skjermstørrelsekompabilitet:	30 - 300 "
Projeksjonsavstand:	0.88 - 10.59 m
Hjørnesteinsrettelse, vertikal:	-40 - 40 °
Horisontalt frekvensområde:	15 - 102 kHz
Støynivå (økonomisk funksjon):	27 dB
Lyskildens tjenestetid:	30000 timer
Lyskildetype:	LED
Strømforbruk (vanlig bruk):	310 W
Støttede videofunksjoner:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Lydinngang (V/H) inn:	1
Seriell grensesnittype:	RJ-45, RS-232C
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
Fjernkontroll medfølger:	Ja
OSD-språk:	ARA, CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, IND, ITA, JPN, KOR, POL, POR, RUS, SWE, THA, TUR, VIE
Lydutgang (venstre/høyre):	1
Antall OSD språk:	24
RMS-rangert strøm/utgangseffekt:	10 W
Markedsplassering:	Forretning
Blenderåpning rekkevidde:	1.6 - 1.75
Projeksjonsfaktor:	1.37 - 1.64
Vertikal scanningsratio:	23 - 120 Hz
