Side 1/73

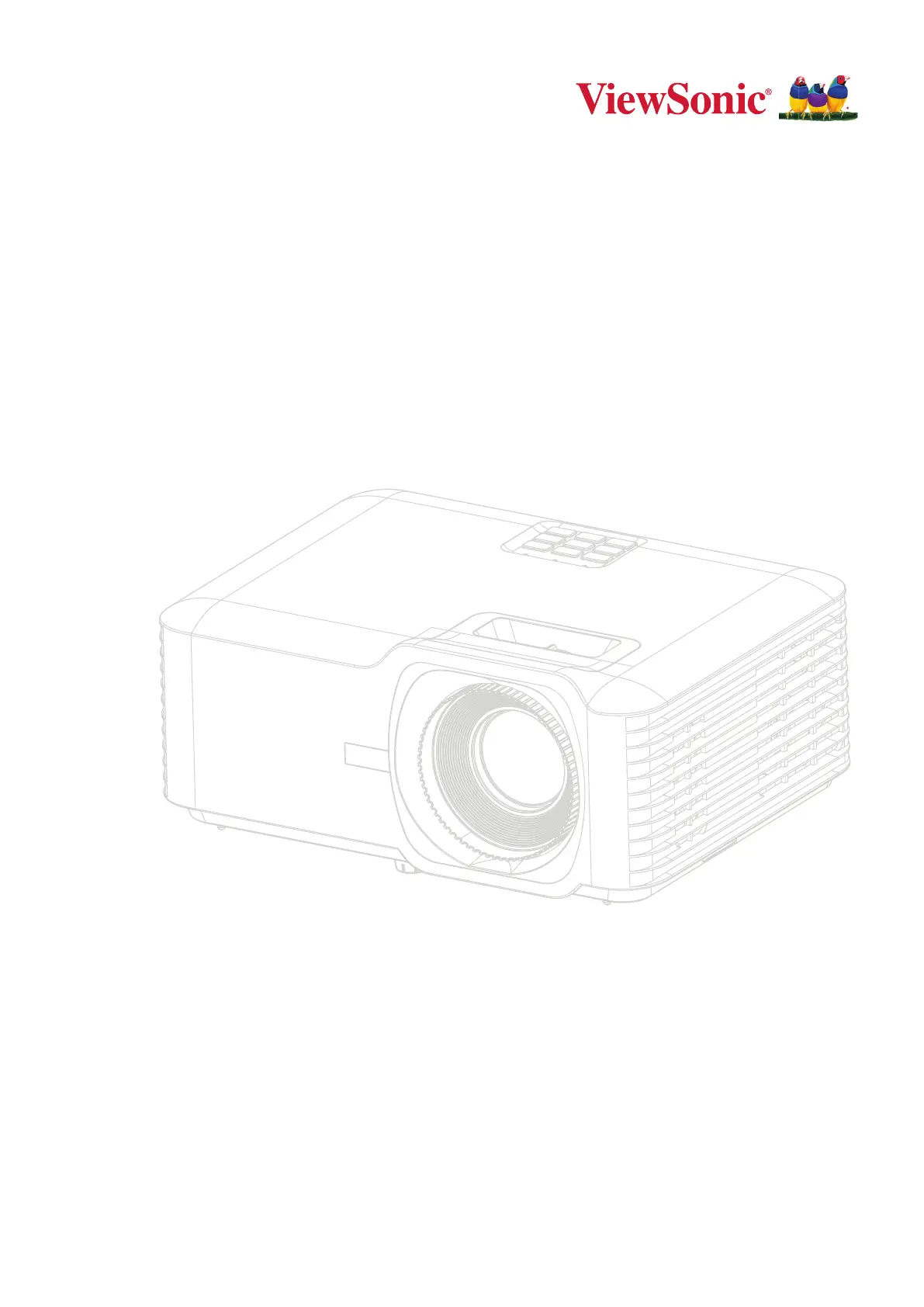

LS740W

LS740HD

Projector

User Guide

Model No. VS19578 | VS19579

P/N: LS740W | LS740HD

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box on our website.

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to

exceeding the world’s expectations for technological evolution, innovation, and

simplicity. At ViewSonic®, we believe that our products have the potential to make

a positive impact in the world, and we are confident that the ViewSonic® product

you have chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precauons

Please read the following Safety Precauons before you start using the projector.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instrucons.

• Allow at least 20“ (50 cm) clearance around the projector to ensure proper

venlaon.

• Place the projector in a well-venlated area. Do not place anything on the

projector that prevents heat dissipaon.

• Do not place the projector on an uneven or unstable surface. The projector may

fall over, causing personal injury or projector malfuncon.

• Do not look straight at the projector lens during operaon. The intense light

beam may damage your eyes.

• Always open the lens shuer or remove the lens cap when the projector lamp is

on.

• Do not block the projecon lens with any objects when the projector is under

operaon as this could cause objects to become heated and deformed or even

cause a re.

• Do not aempt to disassemble the projector. There are dangerous high voltages

inside which may cause death if you should come into contact with live parts.

• When moving the projector, be careful not to drop or bump the projector on

anything.

• Do not place any heavy objects on the projector or connecon cables.

• Avoid exposing the projector to direct sunlight or other sources of sustained

heat. Do not install near any heat sources such as radiators, heat registers,

stoves, or other devices (including ampliers) that may increase the temperature

of the projector to dangerous levels.

• Do not place liquids near or on the projector. Liquids spilled into the projector

may cause it to fail. If the projector does become wet, disconnect it from the

power supply and call your local service center to have the projector serviced.

• When the projector is under operaon, you may sense some heated air and odor

from its venlaon grill. It is a normal operaon and not a defect.

• Do not aempt to circumvent the safety provisions of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the

other. A grounding-type plug has two blades and a third grounding prong. The

wide and third blade are provided for your safety. If the plug does not t into

your outlet, obtain an adapter and do not aempt to force the plug into the

outlet.

Produkspesifikasjoner

Merke:	Viewsonic
Kategori:	videoprosjektor
Modell:	LS740W
Produkttype:	Standard stråleprojektor
Innebygd skjerm:	Nei
Vekt:	4500 g
Bredde:	337 mm
Dybde:	265 mm
Høyde:	131.5 mm
Støynivå:	32 dB
Strømkilde:	AC
Wi-Fi:	Nei
Garantikort:	Ja
Pakkevekt:	6600 g
Antall farger:	1,07 milliarder farger
Antall USB 2.0-porter:	1
Antall HDMI-porter:	2
DVI-port:	Nei
Smart TV:	Nei
Fokus:	Manuell
Innebygde høyttalere:	Ja
Antall innebygde høyttalere:	2
Full HD:	Ja
HDCP:	Ja
Digital zoom:	2 x
3D:	Nei
HDMI-versjon:	2.0
Antall per pakke:	1 stykker
On Screen Display (OSD):	Ja
HDCP-versjon:	1.4/2.2
Kontrastforhold:	3000000:1
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Antall USB 2.0 Type-A-porter:	1
Interaktiv:	Nei
Strømforbruk (standby):	0.5 W
Projektorens lysstyrke:	5000 ANSI lumen
Projektoroppløsning:	WXGA (1200x800)
Produktfarge:	Hvit
Pakkedybde:	195 mm
Pakkehøyde:	387 mm
Pakkebredde:	496 mm
Naturlig sideforhold:	16:9
Analogt signalformatsystem:	NTSC, PAL, SECAM
Skjermstørrelsekompabilitet:	40 - 300 "
Projeksjonsavstand:	0.43 - 3.25 m
Hjørnesteinsrettelse, horisontal:	-15 - 15 °
Hjørnesteinsrettelse, vertikal:	-15 - 15 °
Horisontalt frekvensområde:	15 - 102 kHz
Støynivå (økonomisk funksjon):	29 dB
Zoomfunksjon:	Ja
Zoom-type:	Manuell
Lyskildens tjenestetid:	20000 timer
Lyskildetype:	Laser
Strømforbruk (vanlig bruk):	245 W
Støttede videofunksjoner:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
HDMI-kontakttype:	Full-size
Strøminngang/AC (strøm) inn:	Ja
Seriell grensesnittype:	RS-232
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
Innebygd kortleser:	Nei
Fjernkontroll medfølger:	Ja
Hurtigstartsguide:	Ja
forskyvning:	132
OSD-språk:	DAN, DEU, HUN, ARA, DUT, NOR, ENG, IND, SWE, ESP, ITA, POL, THA, JPN, POR, TUR, RUM, CHI (SIMPL), FIN, KOR, RUS, VIE, CHI (TR), FRE, GRE, CZE, SLK
PC-lyd ut:	Ja
Ethernet/bredbåndsforbindelse:	Ja
Antall OSD språk:	27
RMS-rangert strøm/utgangseffekt:	30 W
Markedsplassering:	Forretning
Lyskildens tjenestetid (økonomisk modus):	30000 timer
Projeksjonsfaktor:	0.49
Kabellåsport:	Ja
Vertikal scanningsratio:	23 - 120 Hz
Kabellåstype:	Kensington
Fast fokalobjektiv:	7.51 mm
Smartprojektor:	Nei
Type tjenesteport:	USB Type-A
Bilde etterslepstid:	49.9 ms
