Side 1/110

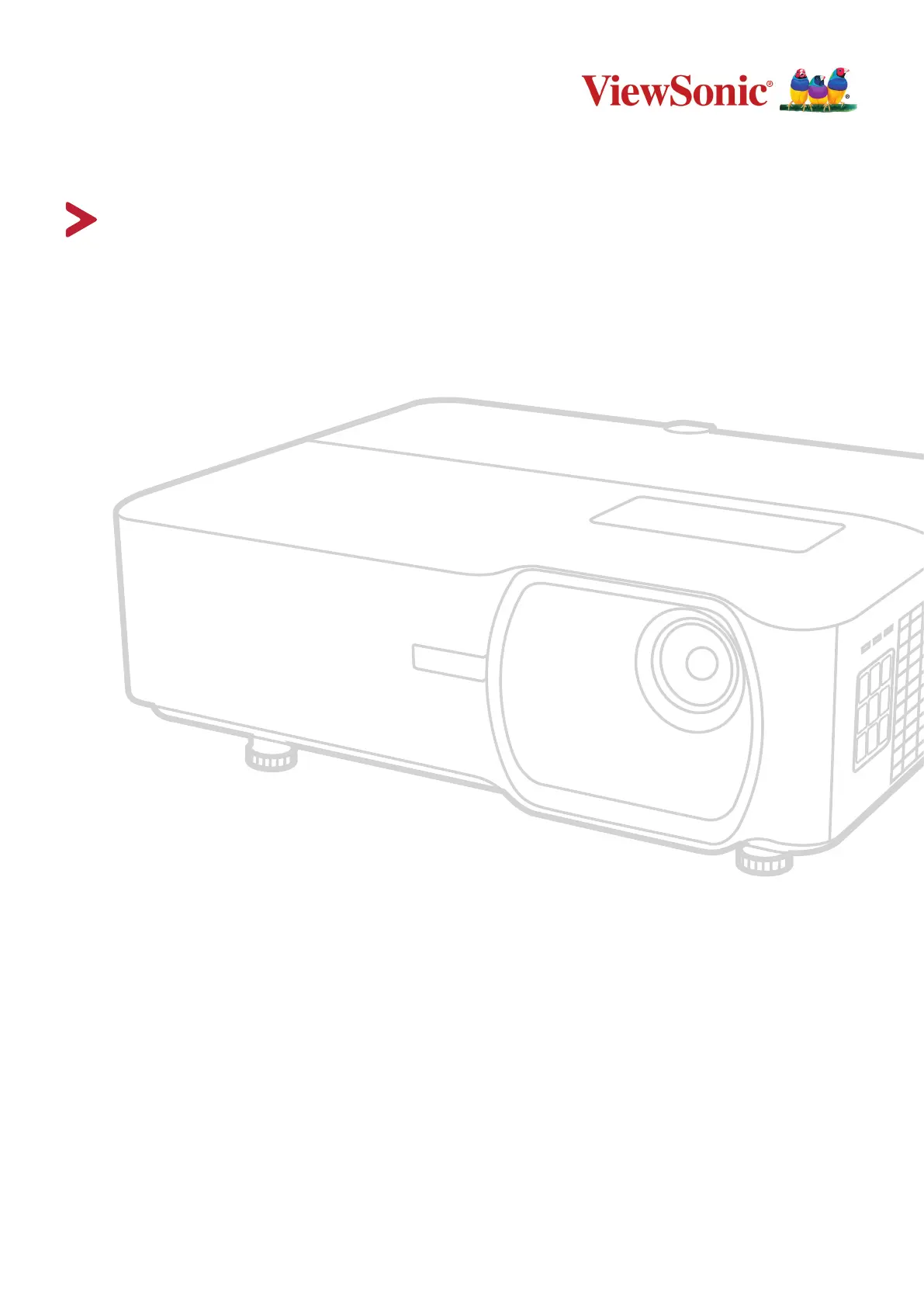

LS750WU/LS850WU/LS860WU

Projector

User Guide

Model No. VS17804/VS17805/VS17889

Model Name: LS750WU/LS850WU/LS860WU

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product

in a safe manner, as well as registering your product for future service. Warranty information contained in this

User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right

corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic®

As a world-leading provider of visual soluons, ViewSonic® is dedicated to exceeding the

world’s expectaons for technological evoluon, innovaon, and simplicity. At ViewSonic®,

we believe that our products have the potenal to make a posive impact in the world, and

we are condent that the ViewSonic® product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precautions - General

Please read the following Safety Precautions before you start using the projector.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instructions.

• Allow at least 20“ (50 cm) clearance around the projector to ensure proper

ventilation.

• Place the projector in a well-ventilated area. Do not place anything on the

projector that prevents heat dissipation.

• Do not place the projector on an uneven or unstable surface. The projector may

fall over, causing personal injury or projector malfunction.

• Do not use if the projector is tilted at an angle of more than 10° degrees left or

right, nor at an angle of more than 15° degrees forwards or backwards.

• Do not look straight at the projector lens during operation. The intense light

beam may damage your eyes.

• Always open the lens shutter or remove the lens cap when the projector light

source is on.

• Do not block the projection lens with any objects when the projector is under

operation as this could cause objects to become heated and deformed or even

cause a fire.

• The light source becomes extremely hot during operation. Allow the projector to

cool for approximately 45 minutes prior to removing the light source assembly

for replacement.

• Do not use light sources beyond the rated light source life. Excessive use of light

sources beyond the rated life could cause them to break on rare occasions.

• Never replace the light source assembly or any electronic component unless the

projector is unplugged.

• Do not attempt to disassemble the projector. There are dangerous high voltages

inside which may cause death if you should come into contact with live parts.

• When moving the projector, be careful not to drop or bump the projector on

anything.

• Do not place any heavy objects on the projector or connection cables.

• Do not stand the projector on end vertically. Doing so may cause the projector

to fall over, causing personal injury or projector malfunction.

• Avoid exposing the projector to direct sunlight or other sources of sustained

heat. Do not install near any heat sources such as radiators, heat registers,

stoves, or other devices (including amplifiers) that may increase the

temperature of the projector to dangerous levels.

• Do not place liquids near or on the projector. Liquids spilled into the projector

may cause it to fail. If the projector does become wet, disconnect it from the

power supply and call your local service center to have the projector serviced.

Produkspesifikasjoner

Merke:	Viewsonic
Kategori:	videoprosjektor
Modell:	LS750WU
Produkttype:	Standard stråleprojektor
Innebygd skjerm:	Nei
Vekt:	5900 g
Bredde:	405 mm
Dybde:	305 mm
Høyde:	145 mm
Støynivå:	35 dB
Antall lamper:	2 lamper
Strømkilde:	AC
Bruksanvisning:	Ja
Plassering:	Desktop, Ceiling
Wi-Fi:	Nei
Pakkevekt:	8400 g
Antall farger:	1,07 milliarder farger
Matrisestørrelse:	0.48 "
Antall USB 2.0-porter:	1
Antall HDMI-porter:	2
DVI-port:	Nei
Smart TV:	Nei
Fokus:	Manuell
Innebygde høyttalere:	Ja
Antall innebygde høyttalere:	2
Full HD:	Ja
HDCP:	Ja
HDMI-versjon:	1.4a
On Screen Display (OSD):	Ja
Kontrastforhold:	3000000:1
AC-inngangsspenning:	100-240 V
AC-inngangsfrekvens:	50 - 60 Hz
Interaktiv:	Nei
Strømforbruk (standby):	0.5 W
Projektorens lysstyrke:	5000 ANSI lumen
Projektoroppløsning:	WUXGA (1920x1200)
Produktfarge:	Hvit
Pakkedybde:	490 mm
Pakkehøyde:	276 mm
Pakkebredde:	515 mm
Støttede grafikkoppløsninger:	640 x 480 (VGA), 1920 x 1200 (WUXGA)
Analogt signalformatsystem:	NTSC, PAL, SECAM
Kabler inkludert:	AC, VGA
Visningsteknologi:	DMD
Skjermstørrelsekompabilitet:	30 - 300 "
Projeksjonsavstand:	0.73 - 9.5 m
Hjørnesteinsrettelse, horisontal:	-40 - 40 °
Hjørnesteinsrettelse, vertikal:	-40 - 40 °
Horisontalt frekvensområde:	15 - 102 kHz
Støynivå (økonomisk funksjon):	28 dB
Zoomfunksjon:	Ja
Brennviddeområde:	12 - 15.6 mm
Lyskildens tjenestetid:	20000 timer
Lyskildetype:	Laser
Strømforbruk (vanlig bruk):	430 W
Støttede videofunksjoner:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Antall VGA (D-Sub)-porter:	2
HDMI-kontakttype:	Full-size
Lydinngang (V/H) inn:	1
Komponentvideo (YPbPr/YCbCr) inn:	1
Strøminngang/AC (strøm) inn:	Ja
Seriell grensesnittype:	RS-232
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
Innebygd kortleser:	Nei
Fjernkontroll medfølger:	Ja
Harmonisert system (HS)-kode:	85286200
forskyvning:	100
OSD-språk:	ARA, CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, GRE, IND, ITA, JPN, KOR, POL, POR, RUS, SWE, THA, TUR, VIE
Antall S-Video-innganger:	1
PC-lydinngang:	Ja
PC-lyd ut:	Ja
Ethernet/bredbåndsforbindelse:	Ja
Komposittvideo inn/sammensatt video inn:	1
Antall OSD språk:	23
RMS-rangert strøm/utgangseffekt:	20 W
Markedsplassering:	Presentasjon
Lampens effekt:	67 W
Blenderåpning rekkevidde:	1.94 - 2.06
Projeksjonsfaktor:	1.13-1.47
Vertikal scanningsratio:	23 - 120 Hz
Zoom-forhold:	2.0:1
