Viewsonic LS751HD Bruksanvisning

Viewsonic videoprosjektor LS751HD

Les nedenfor 📖 manual på norsk for Viewsonic LS751HD (81 sider) i kategorien videoprosjektor. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

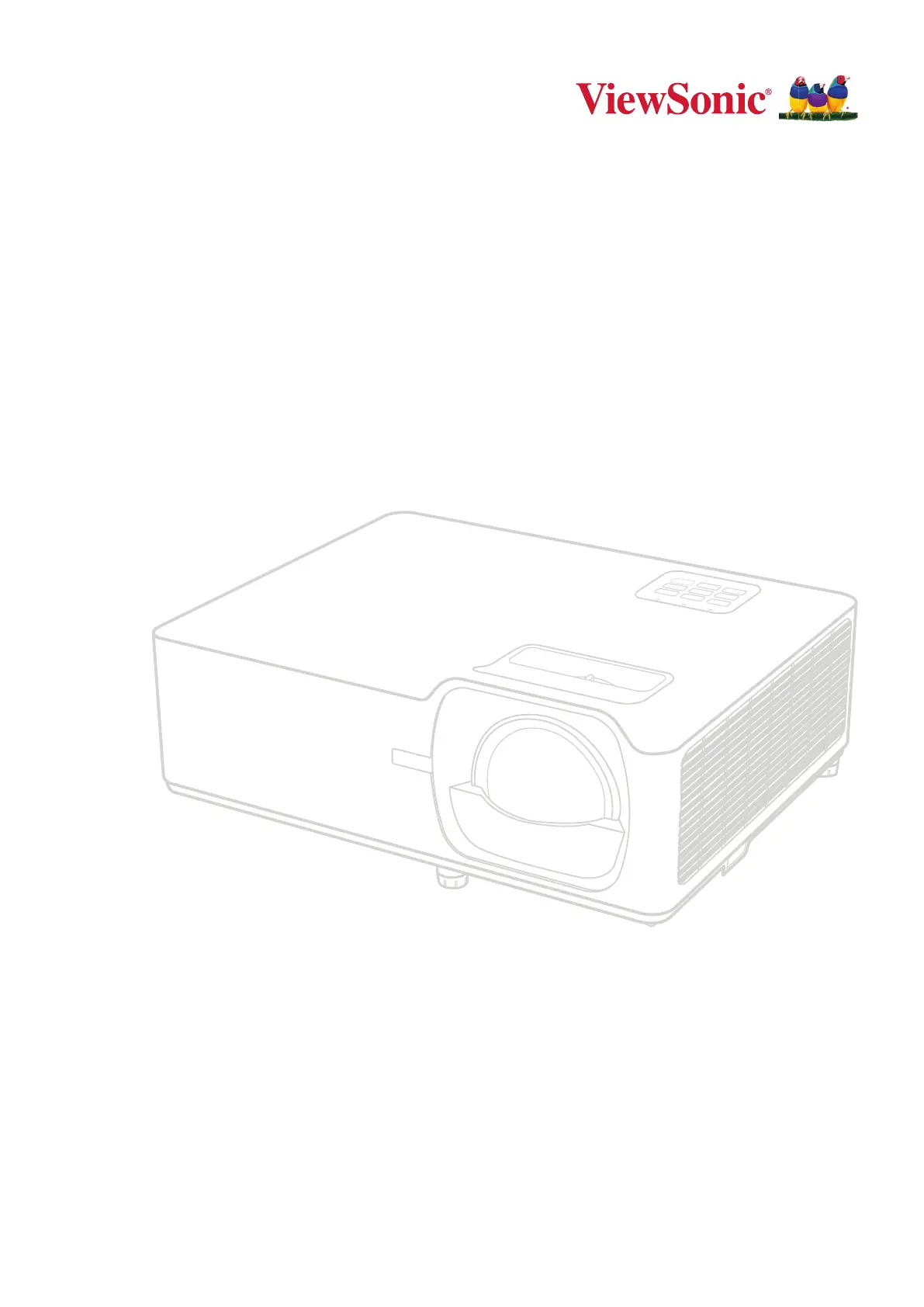

Side 1/81

LS710HD

LS751HD

Projector

User Guide

Model No. VS19338 | VS19337

P/N: LS710HD | LS751HD

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box on our website.

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to

exceeding the world’s expectations for technological evolution, innovation, and

simplicity. At ViewSonic®, we believe that our products have the potential to make

a positive impact in the world, and we are confident that the ViewSonic® product

you have chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precauons

Please read the following Safety Precauons before you start using the projector.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instrucons.

• Allow at least 20“ (50 cm) clearance around the projector to ensure proper

venlaon.

• Place the projector in a well-venlated area. Do not place anything on the

projector that prevents heat dissipaon.

• Do not place the projector on an uneven or unstable surface. The projector may

fall over, causing personal injury or projector malfuncon.

• Do not look straight at the projector lens during operaon. The intense light

beam may damage your eyes.

• Always open the lens shuer or remove the lens cap when the projector lamp is

on.

• Do not block the projecon lens with any objects when the projector is under

operaon as this could cause objects to become heated and deformed or even

cause a re.

• The lamp becomes extremely hot during operaon. Allow the projector to

cool for approximately 45 minutes prior to removing the lamp assembly for

replacement.

• Do not use lamps beyond the rated lamp life. Excessive use of lamps beyond the

rated life could cause them to break on rare occasions.

• Never replace the lamp assembly or any electronic component unless the

projector is unplugged.

• Do not aempt to disassemble the projector. There are dangerous high voltages

inside which may cause death if you should come into contact with live parts.

• When moving the projector, be careful not to drop or bump the projector on

anything.

• Do not place any heavy objects on the projector or connecon cables.

• Do not stand the projector on end vercally. Doing so may cause the projector to

fall over, causing personal injury or projector malfuncon.

• Avoid exposing the projector to direct sunlight or other sources of sustained

heat. Do not install near any heat sources such as radiators, heat registers,

stoves, or other devices (including ampliers) that may increase the temperature

of the projector to dangerous levels.

Produkspesifikasjoner

Merke:	Viewsonic
Kategori:	videoprosjektor
Modell:	LS751HD
Produkttype:	Standard stråleprojektor
Innebygd skjerm:	Nei
Vekt:	4500 g
Bredde:	337 mm
Dybde:	265 mm
Høyde:	131.5 mm
Støynivå:	32 dB
Strømkilde:	AC
Wi-Fi:	Nei
Garantikort:	Ja
Pakkevekt:	6600 g
Antall farger:	1,07 milliarder farger
Antall USB 2.0-porter:	1
Antall HDMI-porter:	2
DVI-port:	Nei
Smart TV:	Nei
Fokus:	Manuell
Innebygde høyttalere:	Ja
Antall innebygde høyttalere:	2
Full HD:	Ja
HDCP:	Ja
Digital zoom:	2 x
Optisk zoom:	1.6 x
3D:	Nei
HDMI-versjon:	2.0
Antall per pakke:	1 stykker
On Screen Display (OSD):	Ja
HDCP-versjon:	1.4/2.2
Kontrastforhold:	3000000:1
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Antall USB 2.0 Type-A-porter:	1
Interaktiv:	Nei
Strømforbruk (standby):	0.5 W
Projektorens lysstyrke:	5000 ANSI lumen
Projektoroppløsning:	1080p (1920x1080)
Produktfarge:	Hvit
Pakkedybde:	195 mm
Pakkehøyde:	387 mm
Pakkebredde:	496 mm
Naturlig sideforhold:	16:9
Analogt signalformatsystem:	NTSC, PAL, SECAM
Skjermstørrelsekompabilitet:	30 - 300 "
Projeksjonsavstand:	0.93 - 14.88 m
Hjørnesteinsrettelse, horisontal:	-30 - 30 °
Hjørnesteinsrettelse, vertikal:	-30 - 30 °
Horisontalt frekvensområde:	15 - 102 kHz
Støynivå (økonomisk funksjon):	29 dB
Zoomfunksjon:	Ja
Brennviddeområde:	20.911 - 32.62 mm
Vertikal linseforskyvning:	0 - 18
Zoom-type:	Manuell
Lyskildens tjenestetid:	20000 timer
Lyskildetype:	Laser
Strømforbruk (vanlig bruk):	245 W
Støttede videofunksjoner:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
HDMI-kontakttype:	Full-size
Strøminngang/AC (strøm) inn:	Ja
Seriell grensesnittype:	RS-232
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
Innebygd kortleser:	Nei
Fjernkontroll medfølger:	Ja
Hurtigstartsguide:	Ja
forskyvning:	136
OSD-språk:	ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, IND, ITA, JPN, KOR, NOR, POL, POR, RUM, RUS, SLK, SWE, THA, TUR, VIE
PC-lyd ut:	Ja
Ethernet/bredbåndsforbindelse:	Ja
Antall OSD språk:	27
RMS-rangert strøm/utgangseffekt:	30 W
Markedsplassering:	Forretning
Lyskildens tjenestetid (økonomisk modus):	30000 timer
Blenderåpning rekkevidde:	2.5 - 3.26
Projeksjonsfaktor:	1.4 - 2.24
Kabellåsport:	Ja
Vertikal scanningsratio:	23 - 120 Hz
Kabellåstype:	Kensington
Smartprojektor:	Nei
Type tjenesteport:	USB Type-A
Bilde etterslepstid:	49.9 ms
