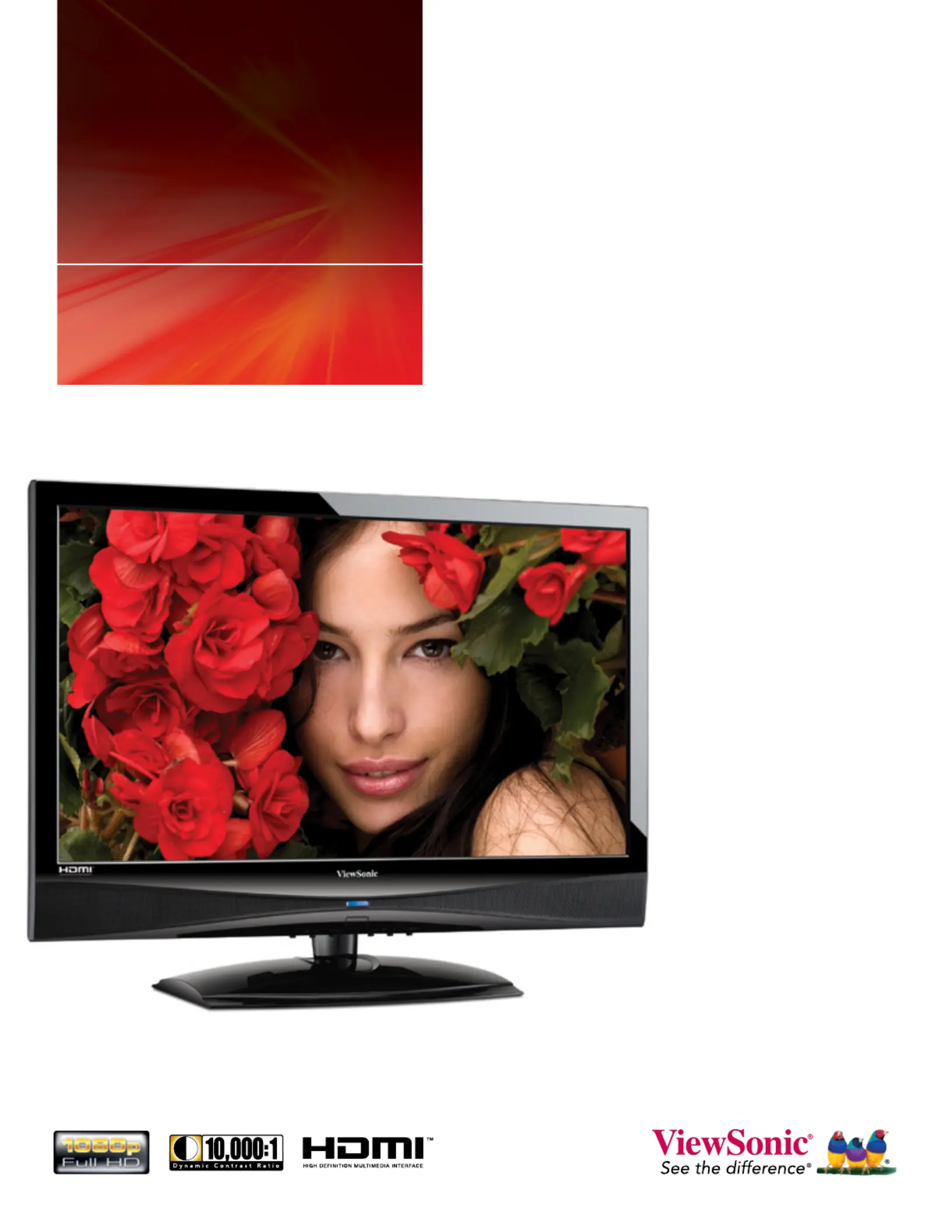

V T M S 2 4 3 1

24" (23.6" VIEWABLE)

FULL HD LCD TV

The 24" (23.6" viewable) VTMS2431 is more than just a brilliant

1080p TV. It’s your multi-function solution for big entertainment

in smaller spaces. Full HD 1920x1080 resolution and 10,000:1

dynamic contrast ratio deliver incredible depth and detail for

all your digital content. Plug in your USB thumb drive to instantly

enjoy your personal digital photos or MPEG videos in crystal clear

digital clarity. In addition, the integrated ATSC/NTSC/QAM tuner

and multiple connectivity options including HDMI with HDCP

give you all the inputs you need for game consoles, DVD and

Blu-Ray

™

players, and computers. Get maximum enjoyment in

kids’ rooms, dens, kitchens and other small spaces in your home

with the beautifully styled, high performance VTMS2431 LCD HDTV.

Movies, Music, Photos and TV

16:9 Full HD

1920x1080 resolution

Advanced image processing

delivers clearer, crisper and

sharper images

Vivid graphics, clear text

and stunning TV

OptiSync

™

technology

now features HDMI

Integrated media player

for digital photos and

MPEG videos

RS-232 serial control port

provides an input for remote

control of wired TV functions

For more product information, visit us on the web at ViewSonic.com

Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com

Specications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for

ViewSonic Corporation’s QMS & EMS have been

registered to ISO 9001 & ISO 14001, respectively,

by the British Standards Institution.

V T M S 2 4 3 1 24" (23.6" VIEWABLE) FULL HD LCD TV

LCD Type 24" (23.6" viewable) Wide Color TFT Active Matrix LCD

Display Area 20.5" horizontal x 11.5" vertical; 23.6" diagonal

Optimum Resolution 1920x1080

Contrast Ratio 1000:1 static (typ), 10,000:1 dynamic

Viewing Angles 170º horizontal, 160º vertical

Response Time 5ms

Light Source Long life, 40,000 hrs. (typ)

Brightness 300 cd/m2 (typ)

Aspect Ratio 16:9

Glass Surface Anti-glare, anti-reective coat

INPUT PC RGB analog (75 ohms, 0.7 Vp-p)

TV TV/cable, composite (RCA), component YPbPr/YCbCr, S-Video

Audio 3.5mm mini stereo, earphone out and RCA (left/right)

Frequency Fh: 30~64kHz, Fv: 60~75Hz

Sync H/V separated (TTL)

Digital HDMI (with HDCP and audio support)

Tuner ATSC/NTSC/QAM

USB 2.0 Supports MPEG 1/2/4, M-JPEG, JPEG, TIFF, GIF, BMP

RS-232 Control port

AUDIO OUTPUT Speakers 2x5-watt

COMPATIBILITY PC 1920x1080 @ 60Hz (preferred), 1920x1080 @ 60Hz

Mac

* G3/G4/G5 up to 1920x1080

INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i, 1080p

CONNECTOR Analog 15-pin mini D-sub (VGA)

Digital HDMI 1.3

Power 3-pin AC plug

POWER Voltage AC 100–240V (universal), +/-10% Wide Range

Consumption 60W (typ) / 75W (max.)

CONTROLS Basic Vol -/+, menu, channel down/up, source, power

Picture Picture mode (contrast, brightness, sharpness, tint, color,

color mode, zoom mode, NR), Video mode (picture mode,

contrast, brightness, sharpness, color mode), PC mode (picture

mode, contrast, brightness, sharpness, color mode, advanced)

Channel TV source, auto scan, favorite, show/hide, channel number,

channel label, DTV signal

Lock Change password, system lock, unrated lock, input block,

US, Canada, RRT setting, reset RRT

Option Menu language, transparency, OSD time out, closed caption,

dynamic contrast ratio (DCR), restore default

Time Sleep timer, time zone, DST, time format, auto sync, clock

Audio Sound mode, treble/bass, prefer language, surround sound,

audio only

OPERATING Temperature 32–104ºF (0–40ºC)

CONDITIONS Humidity 10–65% (non-condensing)

DIMENSIONS Physical with stand 22.3" x 17.4" x 8.3" (567mm x 442mm x 211mm)

(W x H x D) Physical without stand 22.3" x 15.2" x 3.3" (567mm x 387mm x 85mm)

WEIGHT Net with stand 16.3 lb. (7.4 kg)

Net without stand 14.1 lb. (6.4 kg)

Gross with stand 19.8 lb. (9.0 kg)

VESA

MOUNT 100mm x 100mm

REGULATIONS FCC, cUL (UL), RoHS, NOM, BETS-7, CB

RECYCLE/DISPOSAL The lamp in this product contains mercury. Please dispose of in

accordance with local, state or federal laws.

PACKAGE CONTENTS LCD TV display, power cable(s), remote control with batteries,

Quick Start Guide, User Guide

WARRANTY One-year limited warranty on parts and backlight

Produkspesifikasjoner

Merke:	Viewsonic
Kategori:	Fjernsyn
Modell:	VTMS2431
LED-indikatorer:	Stand-by/Vent
Bruksanvisning:	Ja
Synsvinkel, horisontal:	160 °
Antall HDMI-porter:	1
Innebygde høyttalere:	Ja
Antall høyttalere:	2
Hodetelefonutganger:	1
Sertifisering:	FCC\nUL\nRoHS\nNOM\nBETS-7\nCB
HDCP:	Ja
Skjermteknologi:	LCD
Digital horisontal frekvens:	30 - 64 kHz
Digital vertikal frekvens:	60 - 75 Hz
Kontrastforhold (dynamisk):	10000:1
Vekt (med stativ):	7400 g
On Screen Display (OSD):	Ja
Antall RF-porter:	1
Kontrastforhold:	1000:1
Skjermoppløsning:	1920 x 1080 piksler
Produktfarge:	Sort
HD-type:	Full HD
Bredde (uten stativ):	567 mm
Høyde (uten stativ):	387 mm
Vekt (uten stativ):	6400 g
Bredde (med stativ):	567 mm
Dybde (med stativ):	211 mm
Høyde (med stativ):	442 mm
Skjermdiagonal:	24 "
Naturlig sideforhold:	16:9
Analogt signalformatsystem:	NTSC
RS-232-port:	1
Strømforbruk (vanlig bruk):	60 W
Komponentvideo (YPbPr/YCbCr) inn:	1
Strøminngang/AC (strøm) inn:	Ja
Driftstemperatur (T-T):	0 - 40 °C
Dybde (uten stativ):	85 mm
Synsvinkel, vertikal:	170 °
Antall S-Video-innganger:	1
Krav til strømforsyning:	100 - 240 V
Relativ luftfuktighet under drift (H-H):	10 - 65
Lysstyrke for skjerm:	300 cd/m²
Oppdateringsresponstid:	5 ms
Komposittvideo inn/sammensatt video inn:	1
Panelmonterbart grensesnitt:	100 x 100 mm
RMS-rangert strøm/utgangseffekt:	10 W
PC inn (D-Sub):	Ja
Bildestørrelse, diagonal:	599 mm
Dvalefunksjon:	Ja
Av/på-timer:	Ja
Automatisk kanalsøking:	Ja
