Gasket
Accessory
Door Panel
Cover
Machine
Screw
Use Upper
Hole at the
Top
Use Lower
Hole at the
Bottom
Hole Plug
ACCESSORY DOOR PANEL
The ice machine is supplied without a finished door panel. Accessory door panels are
offered or a custom panel may be used.
Accessory Door Panel Attachment
Note: If door swing is to be changed, it must be done before panel is attached (See
Installation Instructions).
To attach a door panel:
The panel will be held on by 6 screws and 2 machine screws (supplied).
1. Remove the gasket and retain for later use.
2. If the door panel is stainless steel, remove any plastic covering the stainless steel
panel.
3. Place the panel onto the outside of the door, and secure it to the door using two
machine screws, located at the left center and right center (behind door gasket).
4. Fasten the panel to the door using the 6 screws (supplied in kit). In the hinge area, use the outermost screw holes.
5. Place the covers over the hinge areas, and secure each cover to the door using a screw (supplied).
6. Insert hole plug over screw installed in step 5 (supplied).
7. Return the gasket to its original position.
Hole
p
lug
Cover
Gasket
F20759A EN (120610)

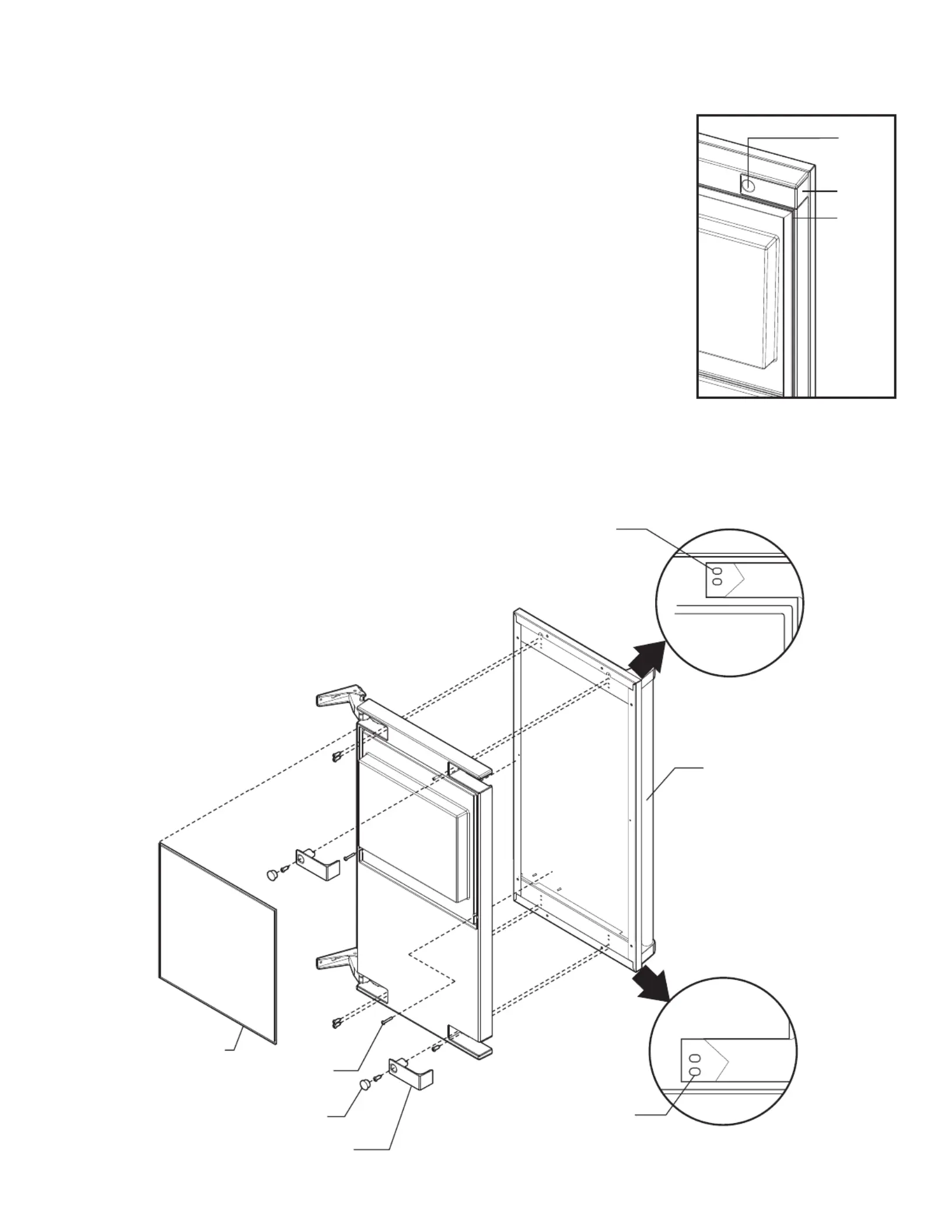

ACCESSORY DOOR PANEL ATTACHMENT
ICE MACHINE ACCESSORY DOOR PANEL INSTALLATION
