ITW Food Equipment Group, LLC

3600 North Point Blvd

Baltimore, MD 21222

RETAIN THIS MANUAL FOR FUTURE USE

FORM F38201 Rev. F (01-21)

INSTALLATION &

OPERATION MANUAL

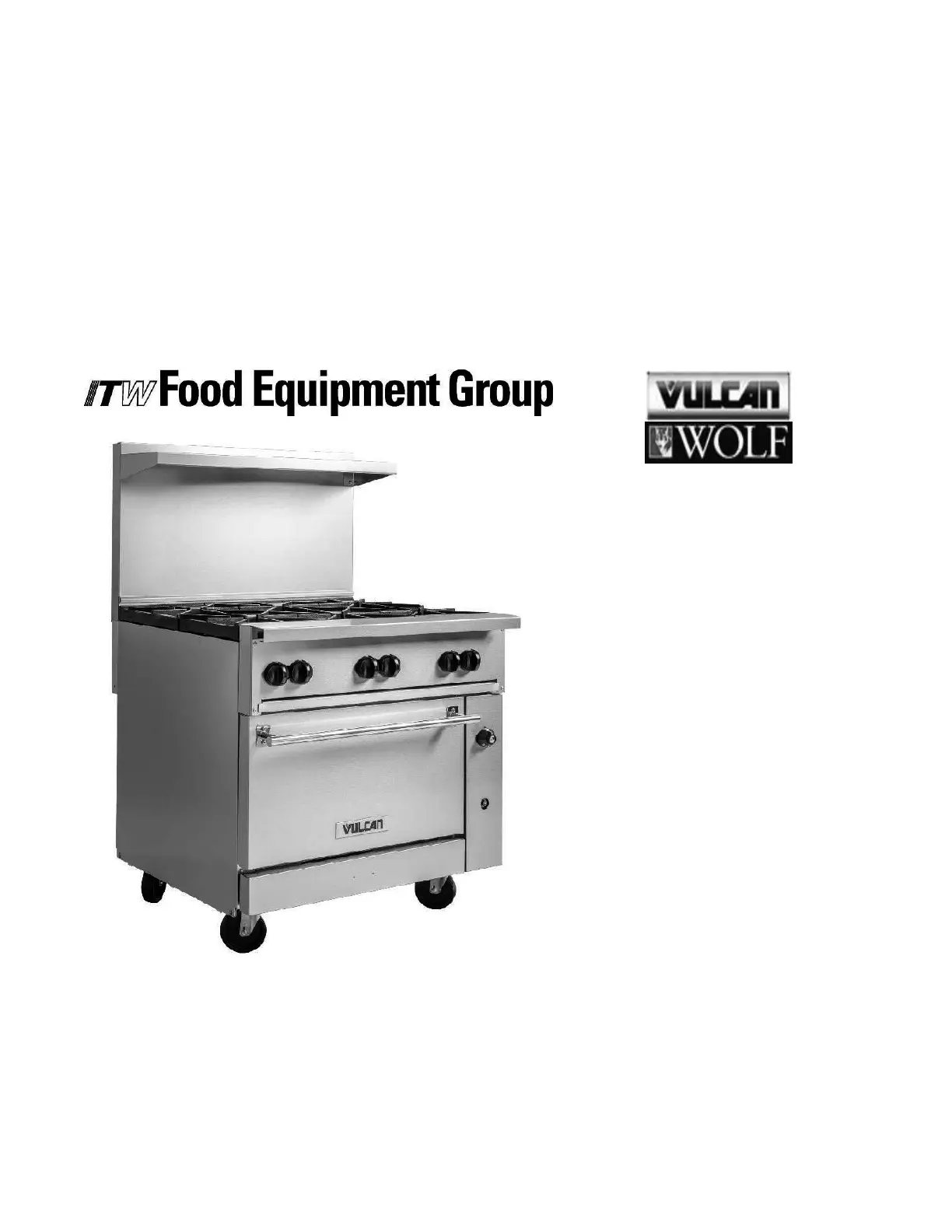

VULCAN ENDURANCE / WOLF CHALLENGER

Gas Restaurant Ranges

MODELS:

12(F) 24S(F)

36(S,C,R)(F)

48(S,C,R)(F)

48SS(F)

60(S,C,R)(S,C,R)(F)

72(S,C,R)(S,C,R)(F)

www.vulcanequipment.com

www.wolfequipment.com

- 2 -

IMPORTANT FOR YOUR SAFETY

THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL GAS

EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START-UP AND

ADJUSTMENTS OF THE EQUIPMENT COVERED BY THIS MANUAL.

POST IN A PROMINENT LOCATION THE INSTRUCTIONS TO BE FOLLOWED IN THE

EVENT THE SMELL OF GAS IS DETECTED. THIS INFORMATION CAN BE OBTAINED

FROM THE LOCAL GAS SUPPLIER.

IMPORTANT

In the event a gas odor is detected, shut

down units at main shutoff valve and

contact the local gas supplier for service.

FOR YOUR SAFETY

Do not store or use gasoline or other

flammable vapors or liquids in the vicinity of

this or any other appliance.

Improper installation, adjustment, alteration,

service or maintenance can cause property

damage, injury or death. Read the

installation, operating and maintenance

instructions thoroughly before installing or

servicing this equipment.

IN THE EVENT OF A POWER FAILURE, DO NOT

ATTEMPT TO OPERATE THIS DEVICE.

- 3 -

CONTENTS

OPTIONAL FIELD INSTALLABLE ACCESSORIES ............................................................................ 4

INSTALLATION ....................................................................................................................................... 5

UNPACKING ......................................................................................................................................... 5

LOCATION ............................................................................................................................................ 5

INSTALLATION CODES AND STANDARDS ................................................................................... 6

LEG/CASTER ASSEMBLY .................................................................................................................. 6

BACKSPLASH RISER and SHELF INSTALLATION ........................................................................ 8

LEVELING ............................................................................................................................................. 9

BULLNOSE INSTALLATION.............................................................................................................. 9

INSTALLATION OF GRIDDLE/BROILER BRICKS (For Models ending in GBN or GBP) .......... 12

PLUMBING .......................................................................................................................................... 12

GAS CONNECTIONS ......................................................................................................................... 13

TESTING THE GAS SUPPLY SYSTEM ........................................................................................... 13

ELECTRICAL CONNECTIONS ......................................................................................................... 13

OPERATION ............................................................................................................................................ 14

CONTROLS ......................................................................................................................................... 14

BEFORE FIRST USE ........................................................................................................................... 14

LIGHTING PILOTS AND VERIFYING BURNER OPERATION .................................................... 15

SHUTTING DOWN ............................................................................................................................. 18

OPERATING SUGGESTIONS............................................................................................................ 18

LOADING AND UNLOADING THE OVEN ..................................................................................... 19

CLEANING .............................................................................................................................................. 19

DAILY CLEANING ............................................................................................................................. 20

EXTERIOR CLEANING ..................................................................................................................... 21

MAINTENANCE & ADJUSTMENTS .................................................................................................... 22

TROUBLESHOOTING ............................................................................................................................ 23
