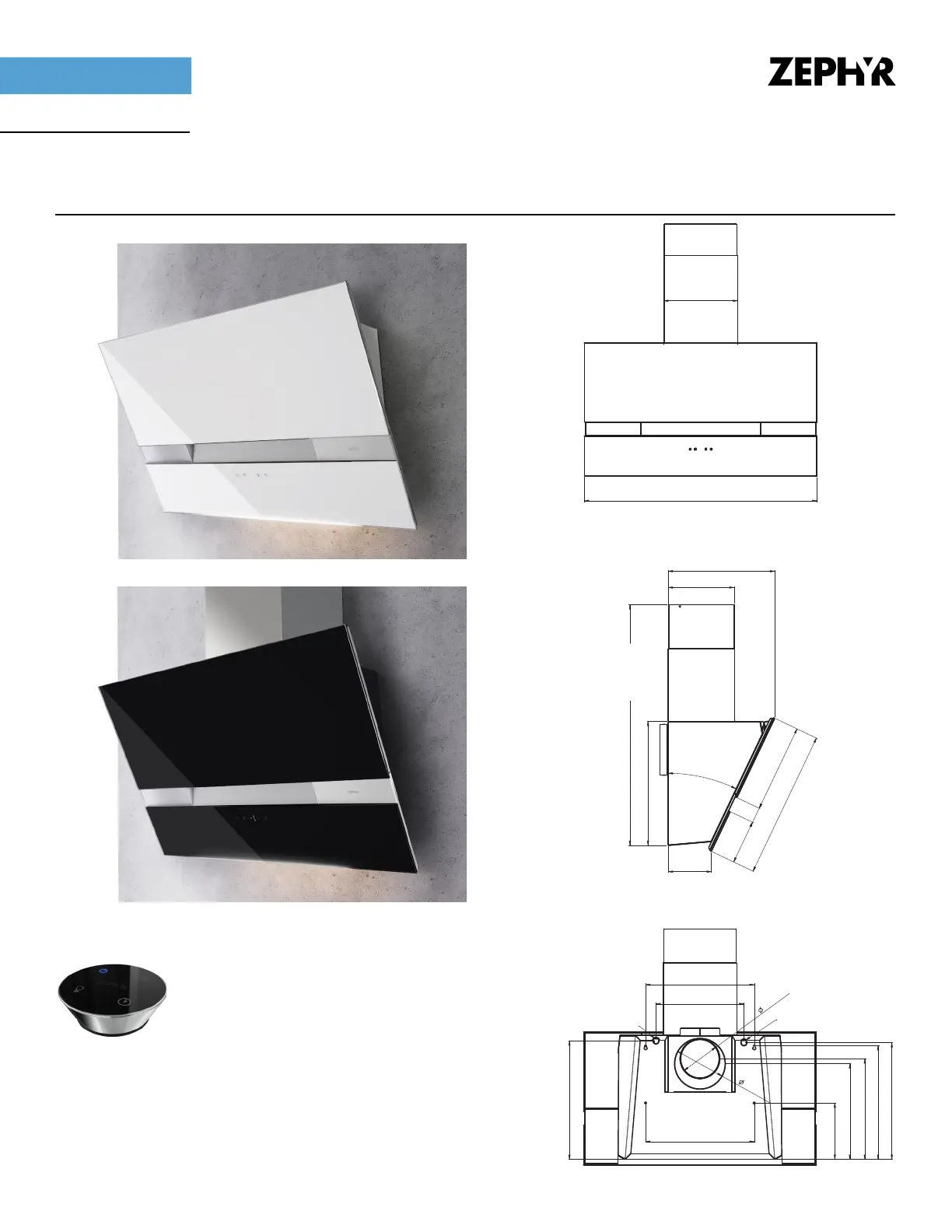

The Wave looks great with any number

of décor styles, from transitional to

modern, and the elegant tilt lends a

slim proﬁle to this kitchen workhorse.

Ingenious dual capture zones ensure a

smoke and debris-free kitchen. Offering

a glowing tri-level LED light strip, and

a choice of black or white glass and an

optional duct cover, the Wave is a true

kitchen classic.

ZEPHYRONLINE.COM

ARC

WAVE

WALL

Front

Back

Side

35 7/16”

11 1/4”

16 1/4”

10"

2 3/8”

13 3/8”

6 11/16”

22 7/16”

18 7/8”

25.5°

6 9/16”

Z1C-00IN

(optional duct cover)

min. ducted - 44 1/2”

max. - 56”

16 1/2”

17 5/16”

6" (Int.)

16"1/2

8 9/16”

17 3/4”

15 5/16” (Int.)

14 9/16” (Ext.)

8" (Ext.)

13 3/8”

18"

Ext. k/o

Elec. k/o

Shown with Optional Duct Cover

Shown without Optional Duct Cover

Wireless Remote Control

ZEPHYRONLINE.COM

ARC

WAVE

WALL

AWA-M90AWX

AWA-M90ABX

90cm (35-7/16”)

200-290 CFM, 1.4-3 sones

240-600 CFM, 1.8-6 sones

500-1,000 CFM, sones NA

Capacitive Touch

Yes

LED Strip x 1 (8.5W)

Yes

Aluminum Mesh x1

Yes, RF

Yes

6”

10” to 8”****

120V, 60Hz, Max. 0.95A

120V, 60Hz, Max. 2.95A

120V, 60Hz, Max. 5.65A

120V, 60Hz, Max. 6.45A

ZRC-00WA

Z1C-00IN

MUA006A (600 CFM)

MUA008A (1,000 CFM)

22” - 32”

1 year parts, 1 year labor

White Glass w/ Stainless Steel

Black Glass w/ Stainless Steel

Size

PERFORMANCE

Internal Blower (CBI-290A)*

Internal Blower (CBI-600A)*

In-Line Blower (PBN-1000A)*

External Blower (CBE-1000)*

FEATURES

Controls

Speed Levels

Auto Delay-Off

CleanAir Function**

Lighting

Tri-Level Lighting

Filters

Wireless Remote Control

Recirculating***

Optional Duct Cover

DUCT SPECIFICATIONS

Vertical/Horizontal Internal Blower

Vertical In-Line/External Blower

Horizontal In-Line/External Blower

AC POWER

Hood w/ CBI-290A

Hood w/ CBI-600A

Hood w/ PBN-1000A

Hood w/ CBE-1000

OPTIONAL ACCESSORIES

Recirculating Kit

Duct Cover

Make-Up Air Kit

MOUNTING HEIGHT RANGE†

WARRANTY

*Blower sold separately.

**CleanAir turns your hood on once every four hours for 10 minutes on speed one.

***Not compatible with optional duct cover.

****10” round duct connects to external and in-line blower. Must transition from 10” to 8” before duct passes through ceiling. A 10” to 8” adapter is included with external and in-line blowers.

†Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.

8’

8.5’

9’

22” - 27.5”

9.5’

22” - 32”

10’

28” - 32”

10.5’

11’

12’
