Side 1/22

OPERATION MANUAL
T
SERIES
T5V T7V

1
T SERIES MANUAL [ENGLISH]
CONGRATULATIONS!
...on the purchase of your new ADAM Audio T Series monitors. Your T Series monitors
are the culmination of two decades of research into advanced transducer, waveguide,
amplification, DSP and loudspeaker cabinet technologies. The result is a professional
reference monitor featuring rock-solid imaging, an eminently wide sweet spot, superi-
or
transient response, extended frequency response, and unmasked clarity and detail
across the audio spectrum. With dimensions small enough to allow placement in
virtually any size room, your T Series monitors are a reliable reference for music
pro
duction, video post-production and radio broadcast studios, and should provide you
with many years of dependable use and accurate performance.
This manual will help you to connect, install and start using your speakers, and explain
how to adjust them to best suit your working environment. It will also explain how to
solve the most commonly occurring problems that users encounter when trying to install
new monitors. Manufacturer contact information and a full technical specification are
also included for reference purposes.
Nevertheless, if you encounter problems you can‘t solve, or have questions this manual
doesn‘t provide answers to, please either contact your local dealer, or email our
Berlin-based support team at support@adam-audio.de. We pride ourselves on remaining
approachable and helpful to our customers at all times. We wish you many years of
happy listening with your new T Series monitors.
The Team at ADAM Audio

2
T SERIES MANUAL [ENGLISH]
CONTENTS
Page
CONGRATULATIONS! 1
CONTENTS 2
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. INTRODUCING T SERIES 5
3. OPTIMAL PLACEMENT OF YOUR MONITORS 7
4. REAR-PANEL FEATURES 11
5. AUDIO CONNECTIONS AND LEVEL SETTINGS 12
6. USING THE HF AND LF SWITCHES ON THE REAR PANEL 14
7. TROUBLESHOOTING 16
8. MAINTENANCE 17
9. SHIPPING 17
10. ENVIRONMENTAL INFORMATION 18
11. EU DECLARATION OF CONFORMITY 18
12. WARRANTY TERMS 19
13. TECHNICAL DATA 20

3
T SERIES MANUAL [ENGLISH]
Please read the following safety instructions before setting up your system. Keep the
instructions for further reference. Please heed the warnings and follow the instructions.
Caution
Risk of electrical shock
Do not open
Risque de shock electrique
Ne pas ouvrier
CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT REMOVE BACK COVER OR ANY OTHER PART.
NO USER-SERVICABLE PARTS INSIDE.
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
REFER SERVICING TO QUALIFIED PERSONNEL.
Caution: To reduce the risk of electric shock, do not open the loudspeaker. There
are no user-serviceable parts inside. Refer servicing to qualified service personnel.
This product, as well as all attached extension cords, must be terminated with an
earth ground three-conductor AC mains power cord like the one supplied with the
product. To prevent shock hazard, all three components must always be used.
Never replace any fuse with a value or type other than those specified. Never bypass
any fuse.
Ensure that the specified voltage matches the voltage of the power supply you use.
If this is not the case do not connect the loudspeakers to a power source! Please
contact your local dealer or national distributor.
Always switch off your entire system before connecting or disconnecting any cables,
or when cleaning any components.
To completely disconnect from AC mains, unplug the power supply from the power
socket. The monitor should be installed near the mains connection and it should be
easy to access the socket and disconnect the device if necessary.
Protect the power cord from being walked on or pinched particularly at plugs,
sockets, and the point where it exits from the apparatus.
Unplug this apparatus during lightning storms or when unused for long periods of
time. Always keep electrical equipment out of the reach of children.
Do not expose this product to rain or moisture, never wet the inside with any liquid
and never pour or spill liquids directly onto this unit. Please do not put any objects
filled with liquids [e.g. vases, etc.] onto the speaker.
Use only with stands, tripods or brackets specified by the manufacturer, or sold
with the apparatus. When moving the loudspeakers on a trolley, avoid injuries; take
care and do not over-balance the trolley.
1. IMPORTANT SAFETY INSTRUCTIONS

4
T SERIES MANUAL [ENGLISH]
Always use fully checked cables. Defective cables can harm your speakers. They are
a common source for any kind of noise, hum, crackling etc.
Never use flammable or combustible chemicals for cleaning audio components.
Install in accordance with the manufacturer‘s instructions.
Never expose this product to extremely high or low temperatures. Never operate
this product in an explosive atmosphere.
High SPLs may damage your hearing! Please do not get close to the loudspeakers
when using them at high volumes.
Please note that the diaphragms emit a magnetic field. Please keep magnetically
sensitive items at least 0.5 m away from the speaker.
Assure free airflow behind the speakers to maintain sufficient cooling by keeping a
distance of at least 100 mm [4″] to the wall.
No naked flame sources, such as lit candles, should be placed on the speaker.
Do not use this apparatus near water.
Use a dry cloth for cleaning.
Do not install near any heat sources such as radiators, hot air vents, stoves, or
other equipment [including amplifiers] that produces heat.
Do not disconnect the earth wire in an earthed plug. An earthed plug has live and
neutral prongs, plus a third prong for grounding purposes which is included for
your safety. If the provided plug does not fit into your socket, consult an electrician
to have your socket replaced.
Only use attachments/accessories specified by the manufacturer.
Refer all servicing to qualified service personnel. Servicing is required when the
ap
paratus has been damaged in any way, for example if the power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
or if the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.

6
T SERIES MANUAL [ENGLISH]
while a 50 W amp serves the
woofer. The new Class D amps, in combination with the
U-ART’s powerful 4:1 velocity transfer ratio [the tweeter’s ability to move air four times
as much as other designs], let you listen at very loud levels without listening fatigue.
DSP-controlled driver crossovers ensure there are no holes at the crossover frequency
between drivers—when mixing, what you hear is what you get. This precision is comple-
mented by the T Series’ all-new beveled cabinets, which minimize diffraction to produce
superior imaging that lets you hear the discrete placement of panned tracks in the
stereo
field with pinpoint accuracy.
VERSATILE CONNECTIONS AND CONTROLS

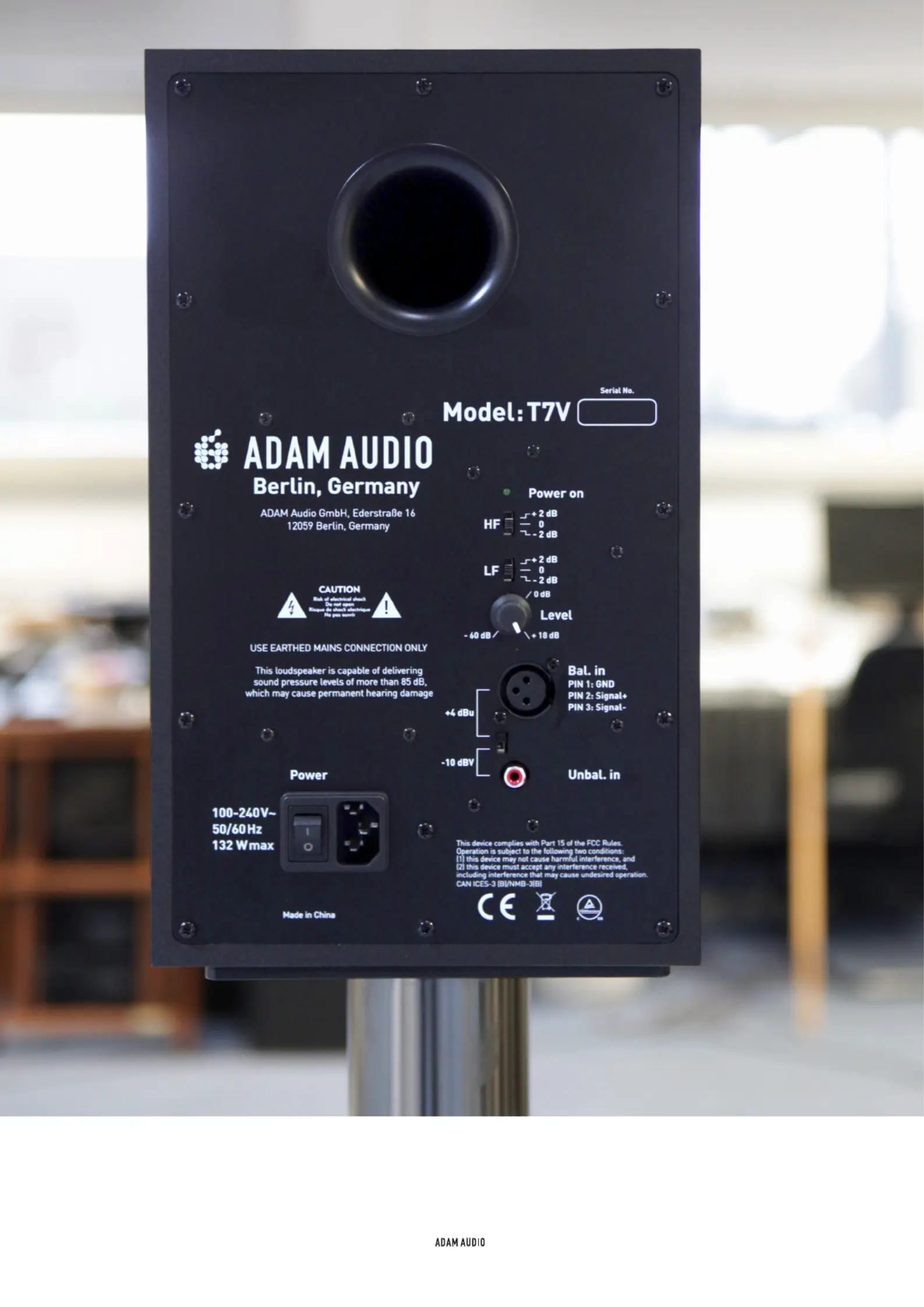

On the rear side of each T Series monitor, a sturdy metal backplate is home to a
comprehensive assortment of controls and analog input connections that adapt
your monitors to virtually any professional system:
→ A balanced XLR connector and unbalanced RCA jack allow connection to professio-
nal mixers and I/O boxes using +4 dBu or -10 dBV nominal operating levels.
→ Each monitor has its own level control, which is especially useful to balance output
levels between left and right monitors when they’re used in an asymmetric control
room.
→
Two 3-way switches respectively adjust the monitors’ high- and low-frequency
responses ±2 dB or select flat response, adapting the monitors to any room’s
acoustic signature.
→ The T5V and T7V can automatically accept AC voltages ranging from 100 to 240 V, at
50/60 Hz — simply activate the power switch for each monitor and go!
Please see Section 3 of this manual for an illustrated key to the T Series’ rear-panel
connections and controls. Optimal use of rear-panel connections and controls is
ex
plained in greater detail in Sections 4 and 5 of this manual.

7
T SERIES MANUAL [ENGLISH]
3. OPTIMAL PLACEMENT OF YOUR MONITORS
The T Series monitors’ small footprints allow placement anywhere in your room, no
matter how small. However, you’ll get the very best sound out of your monitors by placing
them at optimal positions in your room. T Series monitors incorporate a nearfield design
and should be placed on speaker stands, a console bridge or a desktop in relatively
close proximity to [ideally about three feet from] your mix position. Such placement
ensures that the sound you hear coming directly from the monitors will be louder than
that which is indirectly arriving at your ears after reflecting off your room’s walls, floor
and ceiling. By placing the monitors close to your mix position [and following other
guidelines discussed next], your T Series monitors will provide an accurate reference of
your mix, untainted by reverberation, tonal colorations and phase cancellations caused
by your room.

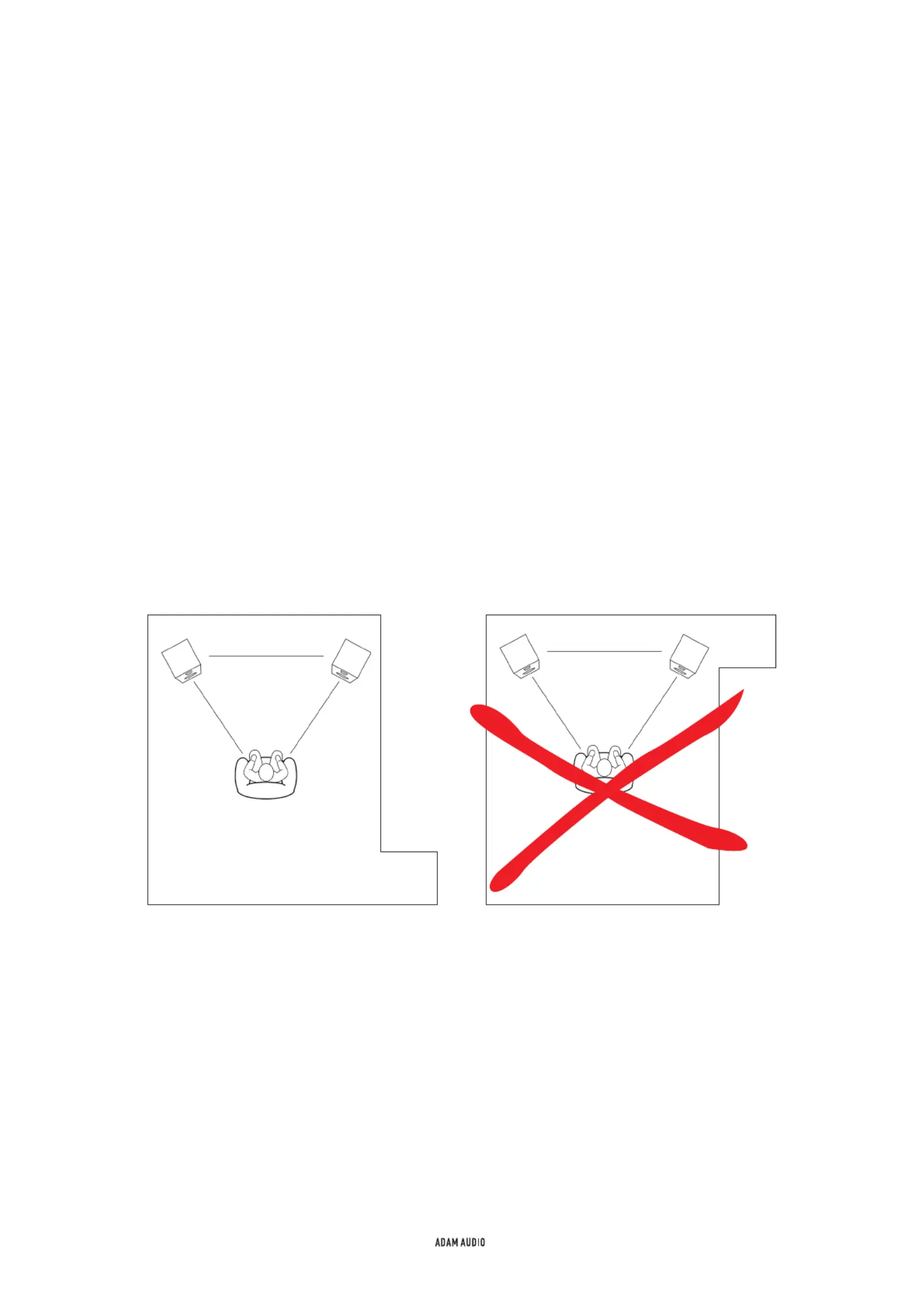

Other considerations are equally important. If your control room is not symmetrical at
one end [such as in a space with an alcove off to one side], you’ll get the most balanced
frequency response from left and right monitors if you set them up at the other, symmetrical
end of the room [see Fig. 1].
Fig. 1

10
T SERIES MANUAL [ENGLISH]
[1]
[2]
[3]
[4]
[5]
[7]
[6]
[8] [9]
