PPC-3xxS(W) RPL Startup Manual 1
Before installation, ensure that the following items are
included with the product:
1. 1 x Panel PC
2. 1 x PPC-3xxS(W) startup manual
3. 1 x Phoenix connector
4. 8/10 x Mount brackets
8 x for PPC-310S/312S(W)
10 x for PPC-315S/317S/319S/315SW/318SW/321SW
5. 8/10 x Mount screws
8 x for PPC-310S/312S(W)
10 x for PPC-315S/317S/319S/315SW/318SW/321SW
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Software Installation
Before installing software on the panel PC, install the cor-
responding drivers to ensure full functionality.
All drivers can be downloaded from the Advantech website
at http://www.advantech.com.
PPC-3xxS(W) RPL 10.4”/12.1”/15”/17”/19”/15.6”/18
.5”/21.5” Fanless Panel PC with Intel® 13th Gen
Core™ i7/i5/i3 Processor
Startup Manual
Note: The examples provided in this manual are of the
PPC-312S RPL&PPC-315SW RPL model.

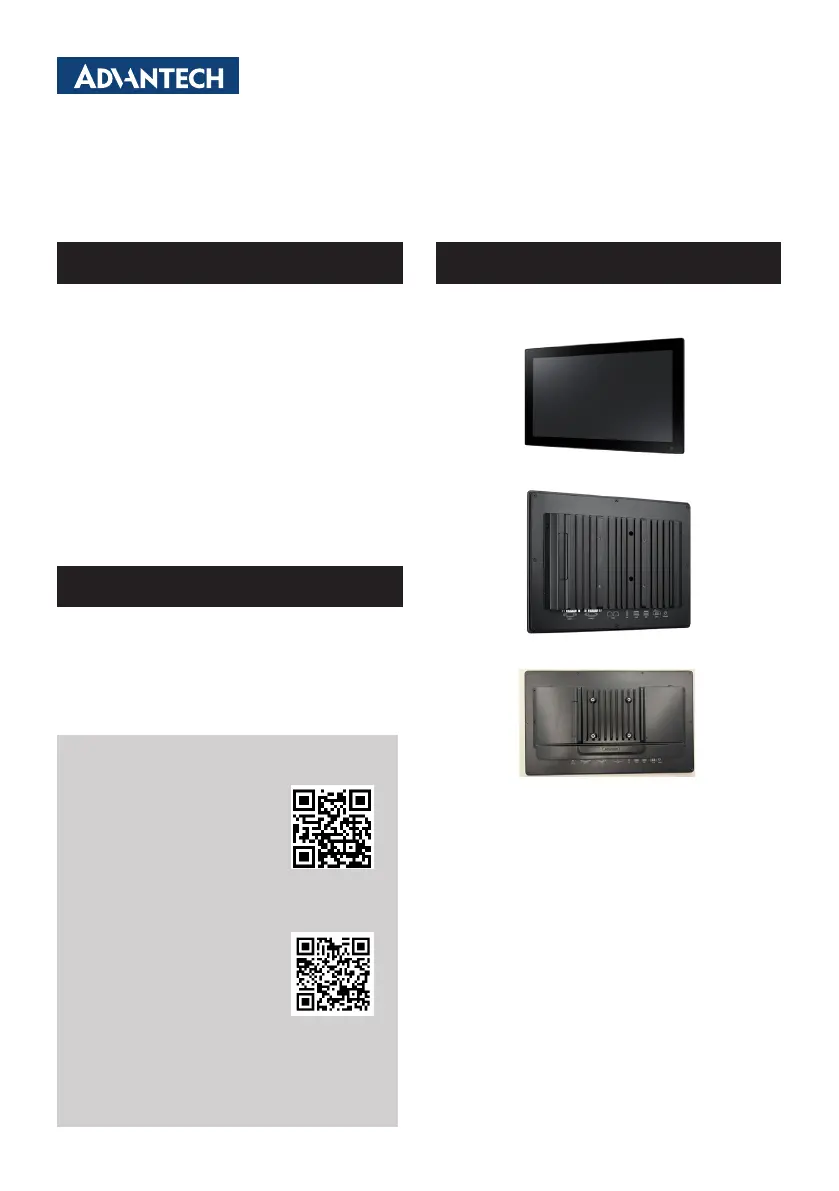

Front View
Rear View: PPC-310/312S(W)
Rear View: PPC-
315S(W)/317S/319S/315SW/318SW/321SW
Packing List
For more information about this product, visit the
Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com/support/new_de-
fault.aspx
This manual is for the PPC-310S/312S(W)/315S(W
)/317S/318SW/319S/321SW RPL series, Rev.A0,
models.
Part No. 2041312S03
Printed in China
Edition 4
June 2025
Appearance
2 PPC-3xxS(W) RPL Startup Manual
Specications
System
CPU i3-1315UE i5-1335UE i7-1365UE
Core 6 10 10
Frequency
1.20 GHz upto
4.5GHz with Turbo
1.30 GHz upto 4.5GHz with Turbo 1.70 GHz upto 4.9GHz with Turbo
Cache 10MB 12MB 12MB
Memory 1 x SODIMM, DDR5 4800MHz, max. 32GB
Storage
1 x 2.5” SATA bay* (PPC-310S/312S(W)) optional)
1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 4), support SATA RAID 0,1
Network
(LAN)
2 x 10/100/1000/2500 Mbps Ethernet (Intel I226 LM)
I/O
2 x RS-232/422/485
3 x USB 3.2, 1 x USB2.0
2 x USB2.0 (optional)*
1 x DP
1 x line out (PPC-310S/312S(W) w/o)
Expansion
1 x M.2 B key 2242 or 3042/3052 (SATA, PCIe X1 ,USB 3.0 & SIM slot)
1 x M.2 E Key 2230 (PCIe & USB 2.0)
1 x iDoor (optional)
1 x PCI or PCIe p2-x1 (optional)
Watchdog
Timer
255 timer levels; setup by software
Speaker 1 x 2W
LCD
Display size
10.4” TFT LCD
(LED backlight)
12.1” TFT LCD (LED backlight)
15” TFT LCD
(LED backlight)
17” TFT LCD
(LED backlight)
Max.
Resolution
1024 x 768 1280 x 800 1024 x 768 1024 x 768 1280 x 1024
Viewing
Angle
88 (left), 88 (right),
88 (up), 88 (down)
89 (left), 89 (right),
89 (up), 89 (down)
89 (left), 89 (right),
89 (up), 89 (down)
88 (left), 88 (right),
88 (up), 88 (down)
89 (left), 89 (right),
89 (up), 89 (down)
Luminance
(cd/m2)
500 400 500 300 250
Contrast
Ratio
1000 1000 1000 2000 1000
Backlight
Lifetime
50,000 hrs (min.) 30,000 hrs (min.) 30,000 hrs (min.) 50,000hrs (min.) 50,000 hrs (min.)
Touchscreen
Touch Type
5 wire resistive
touch or P-CAP
P-CAP
5 wire resistive
touch
5 wire resistive touch or
Mlti-touch projected capacitive
Light
Transmission
80±5% >86% 80±5% 80%±5% (Res) or >86% (P-cap)
Controller USB interface
Physical
Characteristics
Dimensions
257.9 x 205.3 x
49.9 mm (10.2 x
8.1 x 2.0 in)
312.6 x 214.7 x
49.9mm (12.3 x
8.5 x 2.0 in)
295.3 x 233.8 x
49.9 mm (11.6 x
9.2 x 2.0 in)
359.6 x 283.6 x
50.4 mm (14.1 x
11.2 x 2.0 in)
393.4 x 325.8 x
53.4 mm (15.5 x
12.8 x 2.1 in)
Weight 2.46kg (5.42Ib) 2.85 kg (6.28 lb) 2.79 kg(6.15 lb) 4.29 kg (9.46 lb) 5.17 kg (11.4 lb)
OS Support OS Support Microsoft®Windows 10 IOT LTSC, Windows 11, Linux
Power
Comsumption
Input Voltage 24V
DC
± 20%
Power
Consumption
65W 70W 70W 75W 85W
Environment
Operating
Temperature
-10 ~ 50 °C (32 ~ 122 °F)
Storage
Temperature
-20 ~ 60 °C
(-4 ~ 140 °F)
-40 ~ 60 °C
(-40 ~ 140 °F)
-20 ~ 70 °C
(-4 ~ 158 °F)
-30 ~ 60°C
(-22 ~ 140°F)
-20 ~ 60 °C
(-4 ~ 140 °F)
Relative
Humidity
10 ~ 95% @ 40 °C (Non-Condensing)
Shock Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration Operating Random Vibration Test 5~500Hz, 2Grms @with SSD, Follows IEC 60068-2-64
EMC CE,FCC Class B,BSMI, EN60601-1-2,UKCA
Safety CB,UL,CCC,UKCA
Front Panel
Protection
IP66 compliant
Produkspesifikasjoner
