UNO-2271G V3 Startup Manual 1
Before installation, please make sure that you have:
1. UNO-2271G V3
2. 1 x 2-pin Plug-in block for power wiring
3. Startup Manual
4. China RoHs sheet
5. Warranty card
If anything is missing or damaged, contact your distributor
or sales representative immediately.
Note: AcrobatReaderisrequiredtoviewanyPDFle.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
Caution: DANGER OF EXPLOSION IF BATTERY IS
INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER,
DISCARD USED BATTERIES ACCORDING TO
THE MANUFACTURER’S INSTRUCTIONS.
UNO-2271G V3
Pocket-Size Edge IoT Gateway with Intel® Atom x7211RE
Startup Manual
Attention DANGER D’EXPLOSION SI LA BATTERIE EST
INEXACTEMENT REMPLACÉE. REMPLACEZ
SEULEMENT AVEC LA MÊME CHOSE OU
LE TYPE ÉQUIVALENT RECOMMANDÉ PAR
LE FABRICANT, JETTENT LES BATTERIES
UTILISÉES INSTRUCTIONS DE S SELON
FABRICANT DES’.
Processor System
• Intel® Atom Dual core x7211RE
Memory
• 8 GB LPDDR5 onboard
Graphics
• Intel® UHD graphics
Ethernet
• 2 x Intel® I226-IT, IEEE 802.3AZ/802.1AS
Storage
• Onboard 64GB eMMC
• Optional 1 x M.2 B+M key 2242 (SATA/PCIe)
Expansion
• 1 x M.2 B key (w/PCIex1/SATA/USB3.2)
External I/O
• Display: 1 x HDMI 1.4 (1920x1080@60Hz)
• USB: 1x USB 3.2 Gen2 X1; 1 x USB Type C (1.5A)
*supports DP & USB, DP ALT mode
• LAN Ports: 2 x 10/100/1000/2500BASE-T Fast Ethernet
(RJ45)
Power Requirement
• Power Type: ATX mode
• Power Input Voltage: 10 V ~ 30 V
DC
• Power Connector: 2-pin terminal block
Environment
• Operation Temperature: -20 ~ 60°C (-4 ~ 140°F) with
0.7m/sair low
• Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
• Relative Humidity:
- Operating, 95% RH @ 40° C, Non-Condensing
- Non-Operating, 95% RH @ 60° C, Non-Condensing
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website for UNO-2271G V3 at:
Register your products on our website and get 2
months extra warranty for free at:
http://www.register.advantech.com
Part No. 2041227100
Printed in China
1st Edition
November 2024
Packing List (Cont.)
2 UNO-2271G V3 Startup Manual
Physical Characteristics
• Dimensions (W x H x D): 100 x 70 x 40 mm/3.9 x 2.8 x
1.5 in
• Weight: 0.5kg
The computer is supplied with a battery-powered realtime
clock circuit. There is a danger of explosion if the battery is
incorrectly replaced. Replace only with the same or equiva-
lent type recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.
This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.
Simple Maintenance Process Specications(Cont.)
Battery
Declaration of Conformity
System I/O Interface

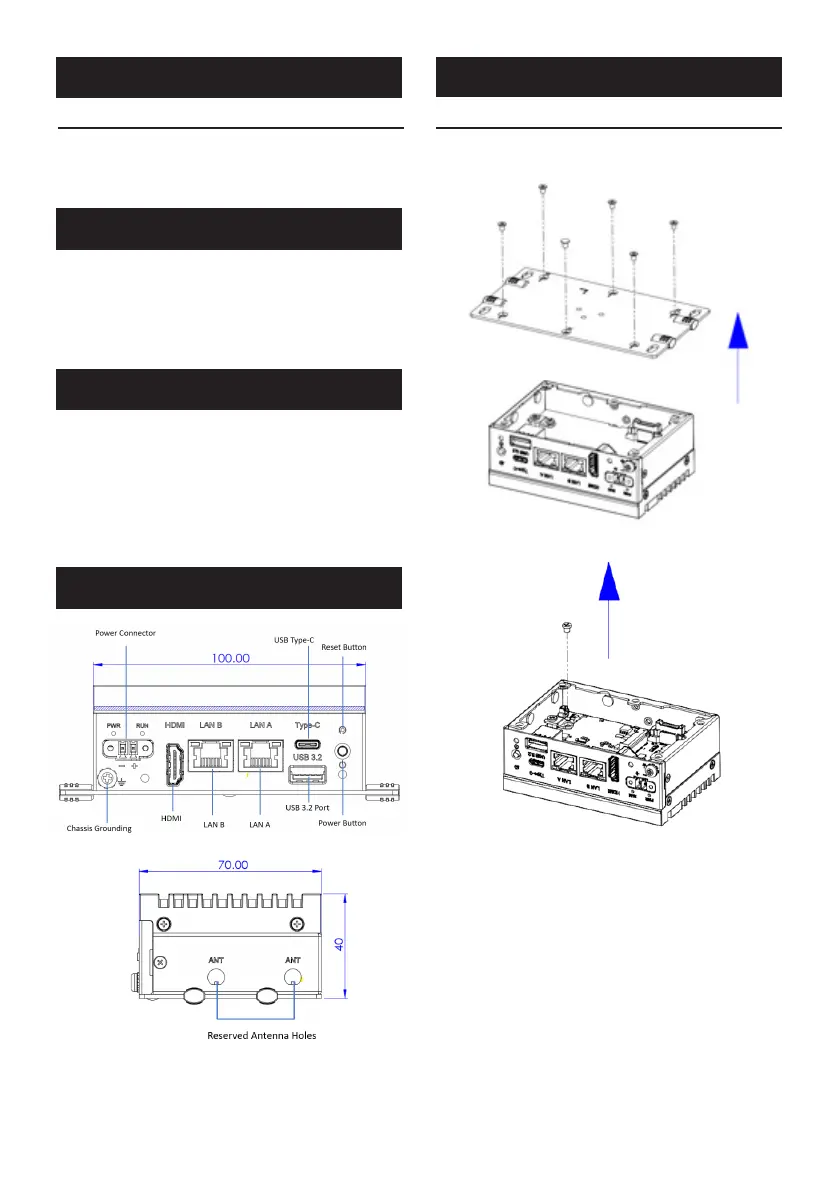

M.2 (2242) Installation
1. Unscrew (1930008736*4) & stopper
(1990036188S000*1).
Remove BTM cover(1960101339N011*1)
2. Unscrew (1930008738*1)
