VEGA-320_Heat_Spreader Startup Manual 1
Before you start installing your heat spreader, please make
sure that the following items have been shipped:
1 x VEGA-320 heat spreader with thermal pad
1 x Thermal pad attachment
1 x Startup manual
1 x China RoHS
2 x Screws
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.

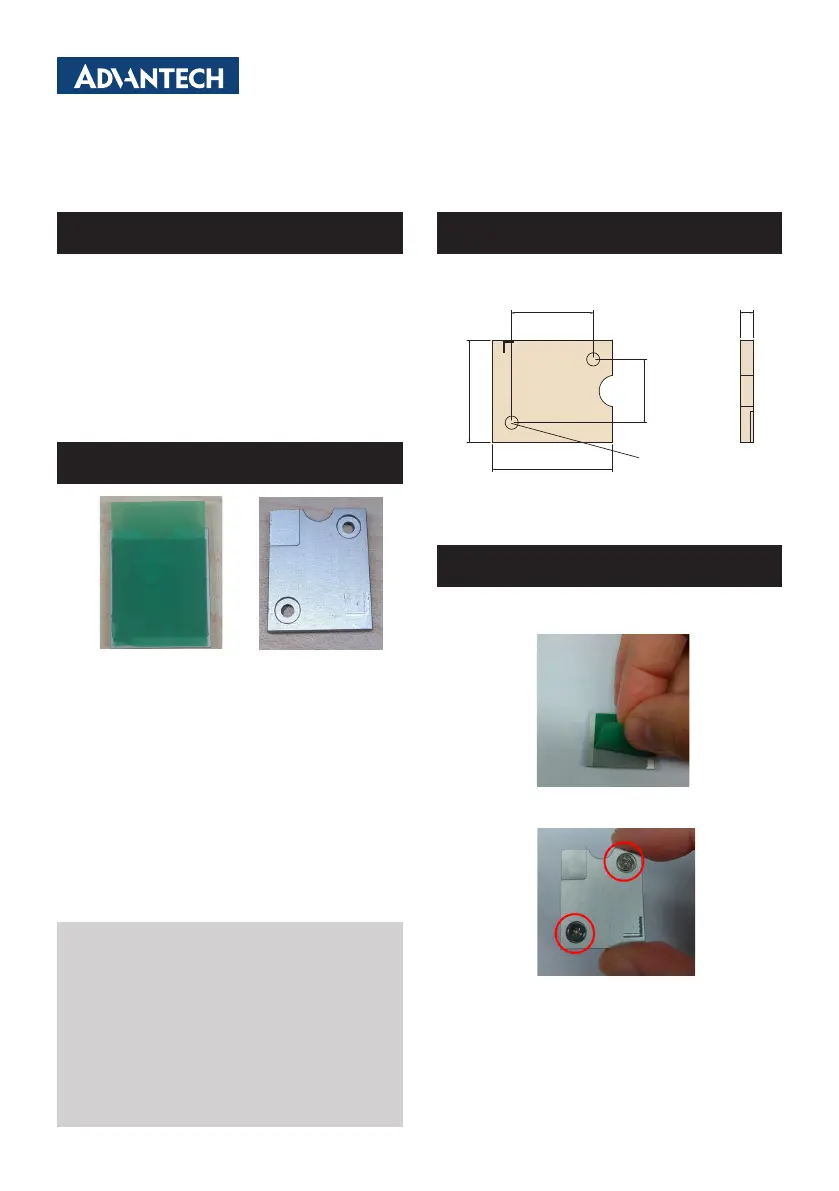

Product Pictures
Top View Bottom View
VEGA-320 Heat Spreader
Startup Manual
Below is the dimensions of VEGA-320 heat spreader:
Unit: mm
1. Remove the thermal pad protecting lm on VEGA-320
heat spreader
2. Install 2 pcs screws to VEGA-320 heat spreader
25.00
Screw: F/S D=4.5,
H=0.8+M2.5*5L
17.00 2.60
13.00
21.00
Heat Spreader Installation
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the VEGA-320 Heat spreader.
Part No. 2046032010
Printed in Taiwan
1st Edition
January 2020
Dimensions
2 VEGA-320_Heat_Spreader Startup Manual

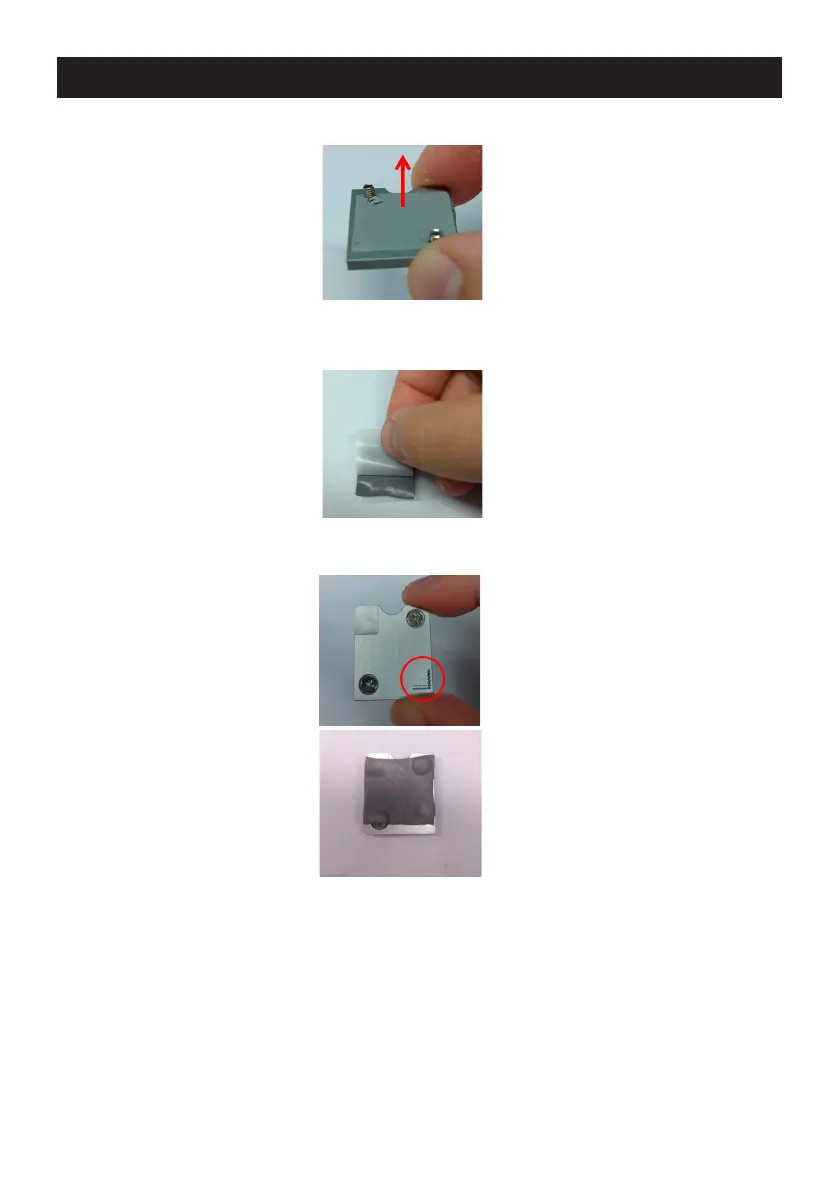

3. Secure VEGA-320 heat spreader to your chassis
4. After securing the heat spreader to your chassis, remove all the protective lm on thermal pad attachment
5. Align one of thermal pad attachment edge to the mark on VEGA-320 heat spreader and install thermal pad
Heat Spreader Installation (Cont.)
