Side 1/9
www.alfatronelectronics.com
ALFATRON ELECTRONICS GmbH GERMANY
ALFATRON ALF-TPUK70- RS
TPUK70- RS
True 4K HDMI Transmitter & Receiver IR & RS232
Ultra- thin HDMI2.0 Extender
40m 4K UHD
All Rights Reserved
Version: TPUK70RS 201_ 9V1.0
ALFATRON ALF-TPUK70- RS
1
Statement
Read this user manual carefully before using this product. Pictures shown in this manual is for reference
only, product.different model and specifications are subject to real This manual is only for operational
instruction only, not for any maintenance usage.
Safety Precaution
To insure the best from the product, please read all instructions carefully before using the device. Save
this manual for further reference.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
Do not dismantle the housing or modify the module to avoid electrical shock or burn.
Using supplies or parts not meeting the products’ specifications may cause damage, deterioration or
malfunction.
Do not expose the unit to rain, moisture or install this product near liquid.
Install the device in a place with ventilation. Indoor use only.
Do not twist or pull the ends of the cable. It may cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
Unplug the power cord when not used for an extended period.
Refer all servicing to qualified service personnel.

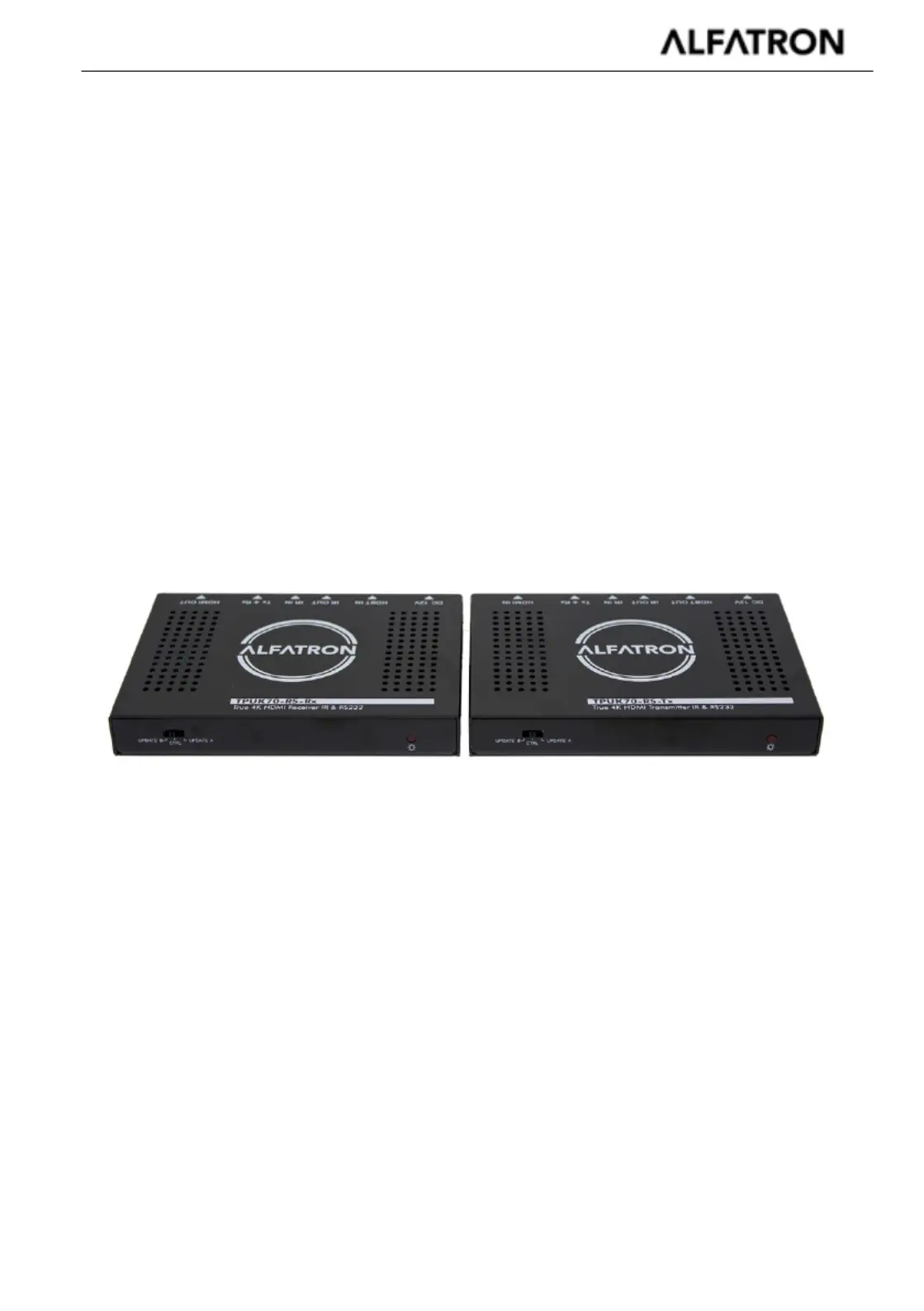

Package List
1 x Transmitter
1 x Receiver
4 x Mounting Ears & 4 x Screws
8 x Plastic Cushions
1 x RS232 Cable
1 x 3-pin Phoenix Connector
1 x Power Adaptor (12VDC, 2A)
1 x User Manual
Introduction
The TPUK70-RS is an ultra- thin HDMI2.0 Extender consist transmitter anding of a a r . I eceiver t extends
1080p/4K HDMI signal over CAT5e/CAT6a cable enables IR and RS232 up to 70m /40m (PoC ) and
pass through- to control or displaysource device remotely. s It also adopt the visual lossless video
compression technology (VLC) to ensure the HD lossless transmission of HDR and 4K@60Hz/4:4:4 over
CAT5e/CAT6a . cable
