Side 1/6
LTS-50T
TM
• 2 x T-bars
• 6 x Slide mount T-collars
• 1 x Center “I-Beam” Support bar
• 2 x Beam connectors
• 4 x Knobs for beam connectors
• 2 x 5’ Truss I-Beam Sections
• 2 x 9’ Tri-pod stands
American DJ
User Instructions
®
Instructions for assembling your LTS-50T
TM
:

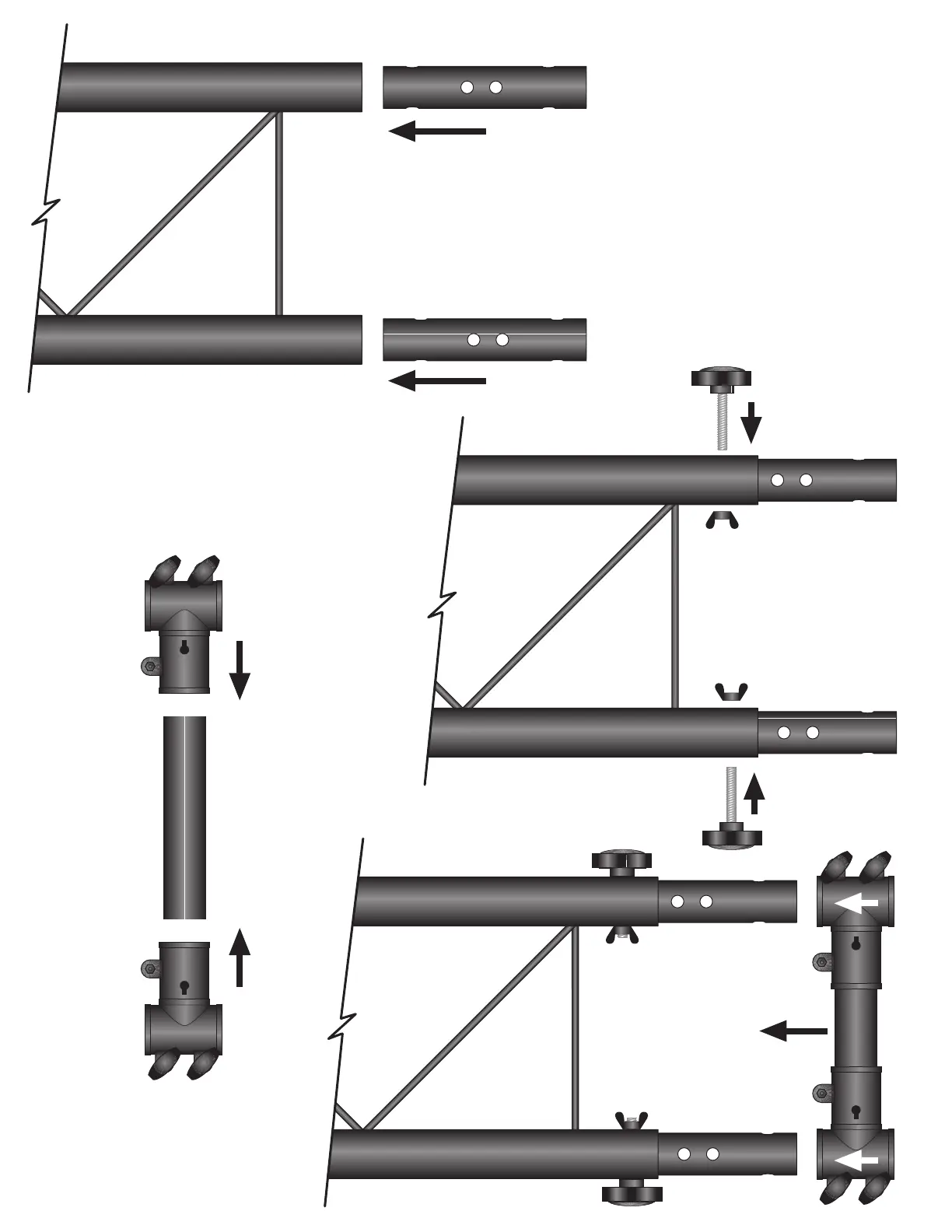

1. After removing the contents from the box, locate the I-beam connectors and the end of one of
one of the 5’ I-beams with the perpendicular, or vertical support rod. Slide the I-beam connector
into the I-beam tube. Slide the other connector into the other tube. (See Fig. 1)
2. Insert the connector knob through the I-beam and the connector and fasten with wing nut. Do
the same for other connector knob. (See Fig. 2)
3. Now take two of the slide mount T-collar and attach to either end of the center support bar.
(See Fig. 3)
4. Slide the center support bar assembly onto the I-beam with attached connectors. (See Fig. 4)
5. Take the other 5’ I-beam (the side with the vertical support rod) and slide it over the beam con-
nector inside the center support bar assembly’s T-collars. (See Fig. 5)
6. With the both I-beams in place, insert the remaining two knobs into the other 5’ I-beam and
fasten with wing nut. (See Fig. 6)
7. On the T-collars above and below the center support bar, tighten the small knobs so the full
truss is secure. (See Fig. 7)
8. Set up the two Tri-pod stands. Adjust the telescopic adjustment assemblies by loosening the
knobs to preferred height. Slide two T-collars each onto the Tri-pod center posts. Move the truss
assembly into the T-collars. Then place another T-collar on the very top of each Tri-pod’s center
post. (See Fig.8)
9. Tighten the small knobs on the T-collars on the Tri-pod center posts at each end of the truss.
Slide a T-bar into each of the top T-collars on the Tri-pod posts. (See Fig. 9)
10. Fasten bolts and wing nuts into T-bar. Finish by tightening the small knobs on the T-collar.
(See Fig. 10)
11. Reposition if needed, recheck all connectors, and tighten all fastners before mounting any
fixtures to your completed LTS-50T trussing system.
Specifications: Model LTS-50T
TM
Weight: 42 lbs.
System Capacity: 200 lbs.
Affordable Quality Lighting Products from
American DJ® Los Angeles, CA 90058
Portable Trussing System
LTS-50T Parts List:
Z-LTS/SB
fig. 3
Z-LTS-T
Z-LTS-T
Z-LTS-I/KNOB
Z-LTS-I/KNOB
fig. 2
Z-LTS-I/C5 FT. I-BEAM
Z-LTS-I/C
*PERPENDICULAR
SUPPORT ROD
fig. 1
fig. 4
