Pinspot LED II SPECIFICATIONS:
LED: 3W LED
Working Position: Any safe working position
Power Input Voltage: 100~240V AC 50/60Hz
Weight: 1lbs./ 0.5Kgs.
Dimensions: 5.25”(L) x 4”(W) x 2.5”(H)
184 x 99 x 61mm
Warranty: 2 Year (730 days)
Unpacking: Thank you for purchasing the Pinspot LED II by ADJ Products, LLC. Every Pinspot LED II
has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping. If the carton appears to be dam-
aged, carefully inspect your xture for any damage and be sure all accessories necessary to operate
the unit has arrived intact. In the case damage has been found or parts are missing, please contact our
toll free customer support number for further instructions. Do not return this unit to your dealer without
rst contacting customer support.
Introduction: The Pinspot LED II is part of ADJ’s continuing pursuit for creating high quality affordable
fixtures. The Pinspot LED II is a simple, small LED Pin Spot. This pin spot is light weight and compact
which makes it a great piece for mobile DJ’s, archtectural lighting, or ligting effect. The Pinspot LED II
is also suitable for theaters, studios, retail stores, and other similar locations.
Lens Change: The Pinspot LED II comes with a standard 3 degree lens already attached. Included in
the box is an optional 12 degree lens. To switch lenses simply remove the retainer ring in front of the
current lens, carefully remove the lens, and attach the 12 degree lens. Replace the retainer ring and
the switch is complete.
Installation: The unit should be mounted using a mounting clamp (not provided), axing it to the
mounting bracket that is provided with the unit. Always ensure that the unit is rmly xed to avoid
vibration and slipping while operating. Always ensure that the structure to which you are attaching the
unit is secure and is able to support a weight of 10 times the unit’s weight. Also, always use a safety
cable that can hold 12 times the weight of the unit when installing the xture. The equipment must be
installed by a professional, and it must be installed in a place where it is out of the reach of people’s
grasp.

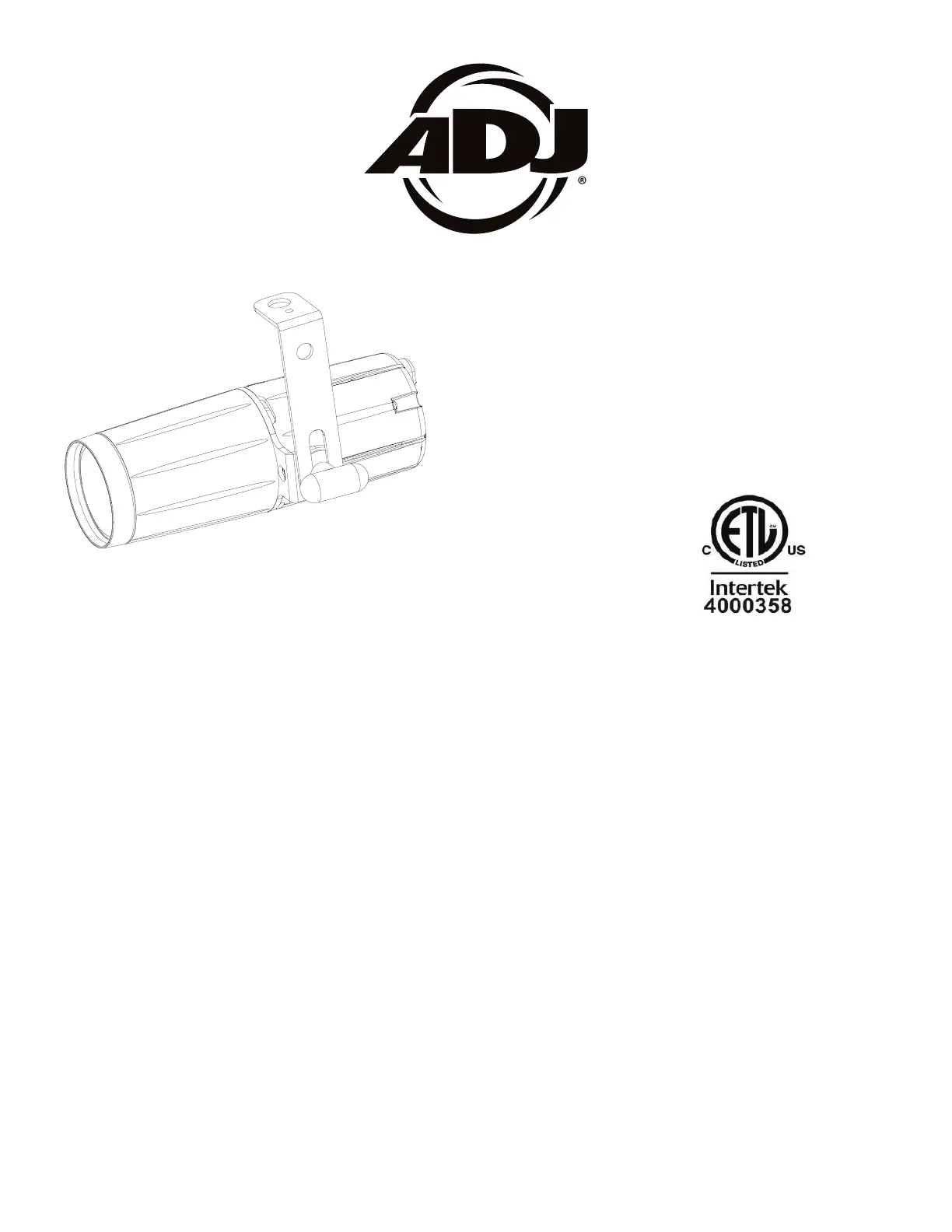

PINSPOT LED II
