Side 1/7

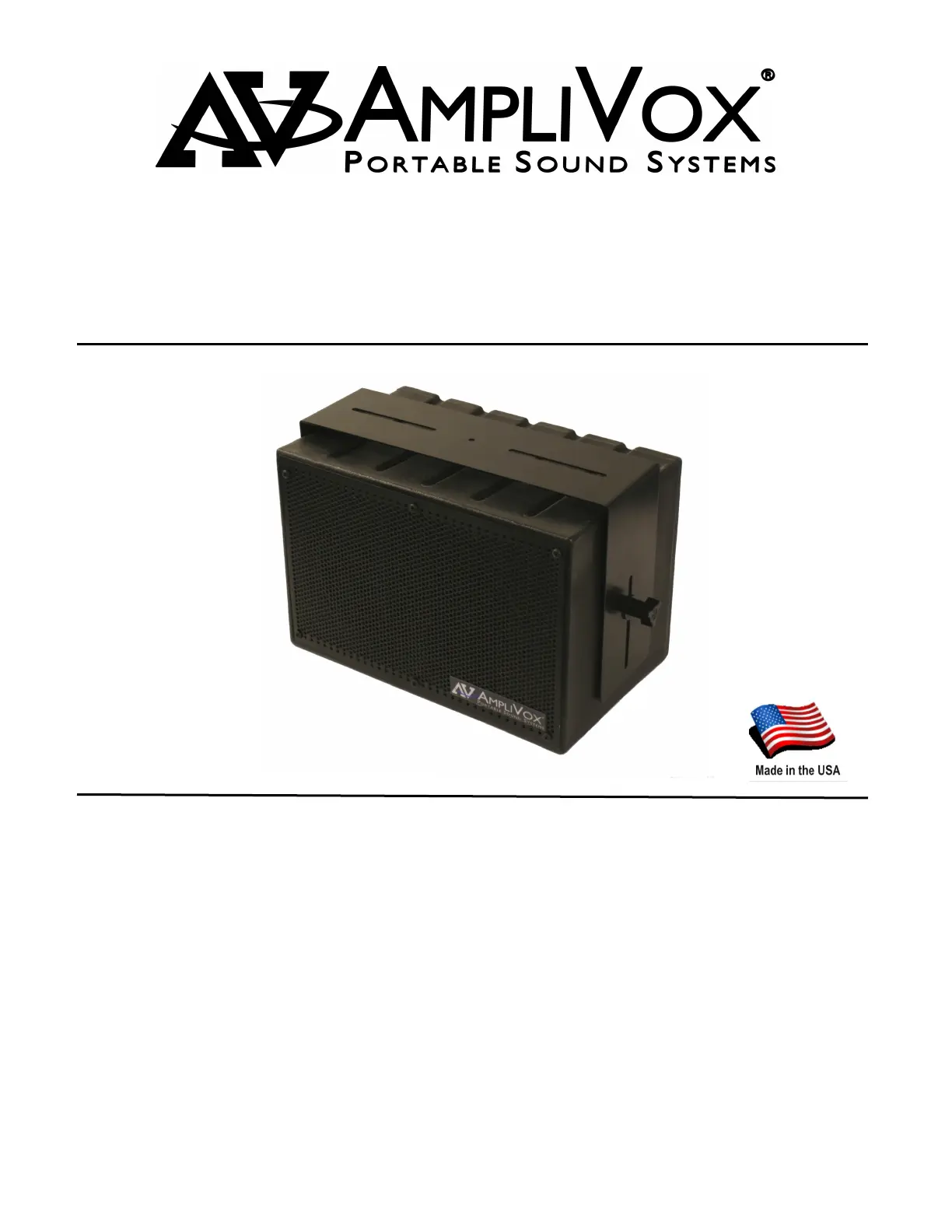

User Guide

S1230 / SS1230 / SW1230

Mity Box Passive / Amplified / Wireless Speaker

Thank you for choosing the S1230 / SS1230 / SW1230 Mity

Box Speaker from AmpliVox Portable Sound Systems.

We are excited in introducing this truly unique system. Our

system combines flexibility with functionality. Please refer to

this user guide as you enjoy the unique capabilities of anoth-

er quality product from AmpliVox Portable Sound Systems.

We encourage you to visit our website www.ampli.com to

receive our newsletter, download our catalog, and learn

more about the complete line of AmpliVox audio visual prod-

ucts, including portable PA systems, and lecterns.

AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com

TABLE OF CONTENTS

SPECIFICATIONS …………………......................................2

TROUBLESHOOTING..........................................................3

SPEAKER BRACKET…………………................................. 3

FEATURE LAYOUT…………………... ................................ 4

FEATURES………... ........................................................... 5

WIRELESS MICROPHONE SET-UP................................... 5

WIRELESS HANDHELD MICROPHONE............................. 6

WARRANTY…………………………………………...………. 7

IMPORTANT SAFETY INSTRUCTIONS

Before using this product, read the instruction manual for important safety information. Please retain this manual for

future reference and warranty information.

Troubleshooting & Servicing

Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not at-

tempt to modify the device in anyway. Doing so could invalidate your warranty.

Cleaning

When cleaning the device, please use a soft, dry cloth. Never use benzene, paint-thinner, or other chemicals on the

device.

Location

Place the device in stable location, so it will not fall causing damage to the device or bodily harm.

Intended use

The product may only be used with the original parts intended for it. The intended use includes adherence to the speci-

fied installation instructions. The manufacturer accepts no liability for damage arising due to improper use.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

IMPORTANT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ-

ing interference that may cause undesired operation.

The unit’s circuitry may cause interference to nearby radios. To prevent interference, either switch the unit off or move

away from the affected radio.

NOTE: This equipment complies within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele-

vision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

 Consult the dealer or an experienced radio / TV technician for help.

NOTE: Shielded cables may be required to be used with this unit to en-sure compliance with the Class B FCC limits.

SPECIFICATIONS

Enclosure: Sealed Type / Rotational Molded

Rated Power Output: 50 W Dynamic

Speaker Type: 4 ohm, 6 x 8 inch, full range, cone type

AC Power: 110-220 Auto sensing, 50/60 Hz

Wireless Range: Up to 300 Feet

UHF Wireless Frequency: 584 - 608 MHz

Frequency Response: 50Hz to 20Khz

Weight: 4.5 lbs.

Dimensions (HWD ): 10 .5 in. H x 7 in. W x 6.5 in. D

Produkspesifikasjoner

Merke:	AmpliVox
Kategori:	Høyttaler
Modell:	S1230
Vekt:	2041.17 g
Bredde:	254 mm
Dybde:	152 mm
Høyde:	177.8 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Impedans:	4 Ω
Egnet for utendørs bruk:	Ja
Høyttalerplassering:	Floor, Tabletop/bookshelf
Basshøyttaler:	Nei
Forsterker:	Nei
Diskanthøyttaler:	Nei
Produktfarge:	Sort
Lyd-utgang kanaler:	1.0 kanaler
RMS-rangert strøm/utgangseffekt:	50 W
Utjevner/frekvenskorrigerer:	Nei
Frekvensrekkevidde:	50 - 20000 Hz
