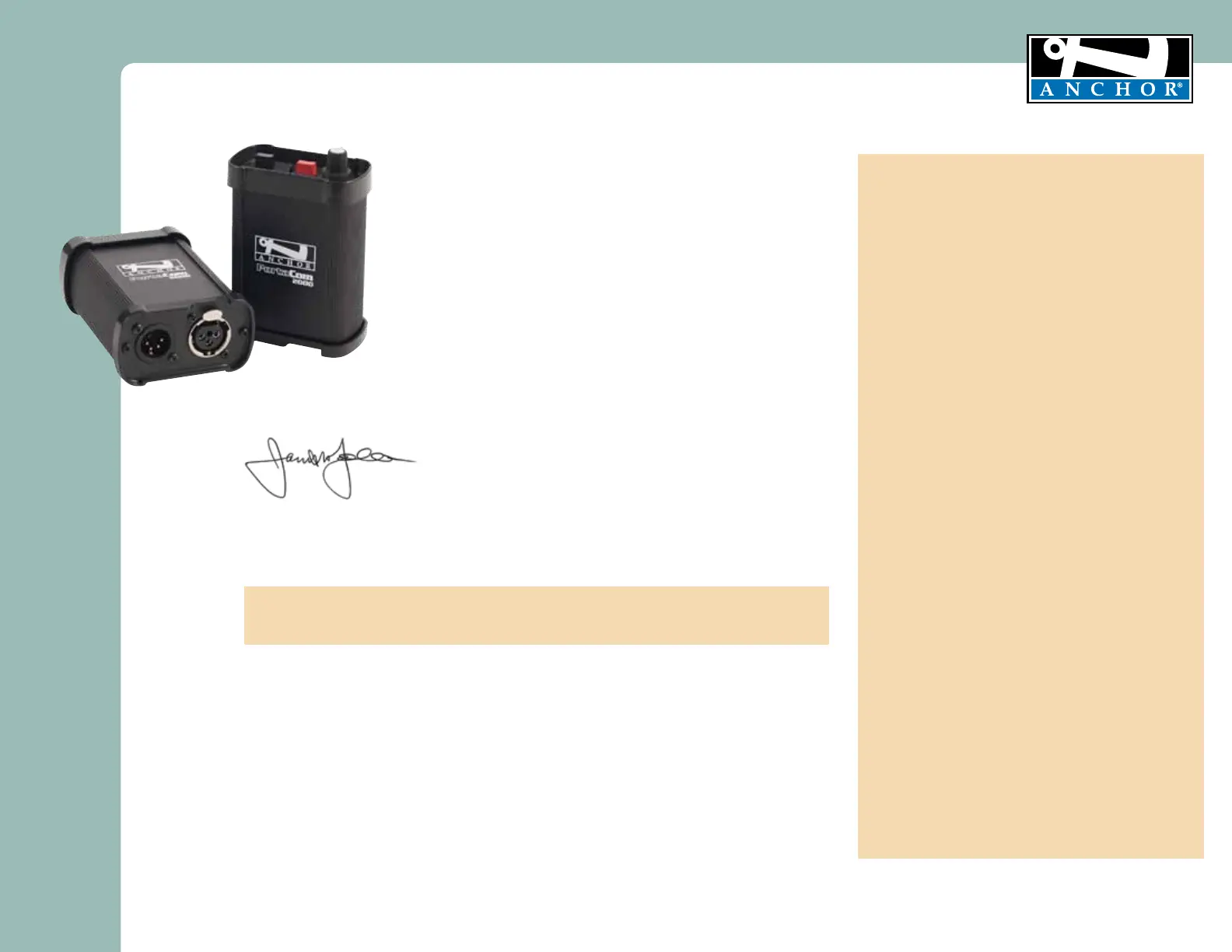

PortaCom Wired Intercom Owners Manual

For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com

MADE IN USA

SIX YEAR WARRANTY

A Message from the President

Congratulations on purchasing an Anchor Audio intercom system, the

choice of thousands of satisﬁed customers including the White House,

prestigious universities, school districts nationwide, police and ﬁre

departments, and all branches of the U.S. military. Our products are made

of the ﬁnest materials and built with pride in the U.S.

We’ve incorporated the latest technology into your intercom system yet

kept it simple to use. Just take a few minutes to review this manual to

ensure the maximum enjoyment of your Anchor system. Or, you can view a

demonstration video complete with a trouble shooting section at

www.anchoraudio.com.

Feel free to call our friendly customer support staff at 1-800-ANCHOR1 Monday thru Friday

between 7:00am and 5:00pm Paciﬁc Standard Time with any questions. We love to hear

from our customers.

Janet Jacobs, President

on behalf of all Anchor employees

GETTING STARTED / WARRANTY INFORMATION ....................................................................... 1

BASIC SYSTEM OPERATION/WHAT IS PORTACOM? ................................................................... 2

PC-2000 POWER CONSOLE/BP-2000 BELTPACKS/H-2000 AND H-2000S HEADSETS ............... 3

TECHNICAL SPECS ................................................................................................................. 4

CONTENTS

GETTING STARTED

Please check your new unit carefully for any

damage which may have occurred during shipment.

Each Anchor product is carefully inspected at the

factory and packed in specially designed boxes for

safe transport.

Notify the freight carrier immediately of any damage

to the shipping box or product. Repack the unit

in the original box and wait for inspection by the

carrier’s claim agent. Notify your dealer of the

pending freight claim.

NOTE: All damage claims must be made with freight carrier!

RETURNING SYSTEMS FOR SERVICE

OR REPAIR

For service or repair, please contact the dealer

you purchased your system from or Anchor Audio

Customer Service at 800.262.4671 to obtain a

(Return Authorization)

number. You may

also complete an online RA request form at

www.anchoraudio.com. All shipments to Anchor

Audio must include a RA number and must be

shipped prepaid. C.O.D. shipments will be refused

and returned at your expense.

IMPORTANT: Save the shipping box & packing materials,

they were specially designed to ship your unit!

WARRANTY REGISTRATION

Visit our website at www.anchoraudio.com and

select “Warranty Registration.” Complete the online

form to activate the two-year limited warranty on

your PortaCom intercom system.

100-0081-000

MADE IN USA

SIX YEAR WARRANTY

PortaCom Wired Intercom Owners Manual

For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com

WHAT IS PORTACOM?

PortaCom Intercom System is a portable two-channel communication device that’s simple to

set up and easy to use. The main system components include:

PC-2000 Power Console, BP-2000 Belt Packs &

H-2000 & H-2000S Headsets

Station-to-station connections are made using standard microphone cable with 3-pin XLR

connectors.

The PC-2000 Power Console has four output jacks to make a 4-headset system. You can

add more headsets/users to the system by using the B3-2000 Branch Box to expand and

reconﬁgure your system for use in almost any situation.

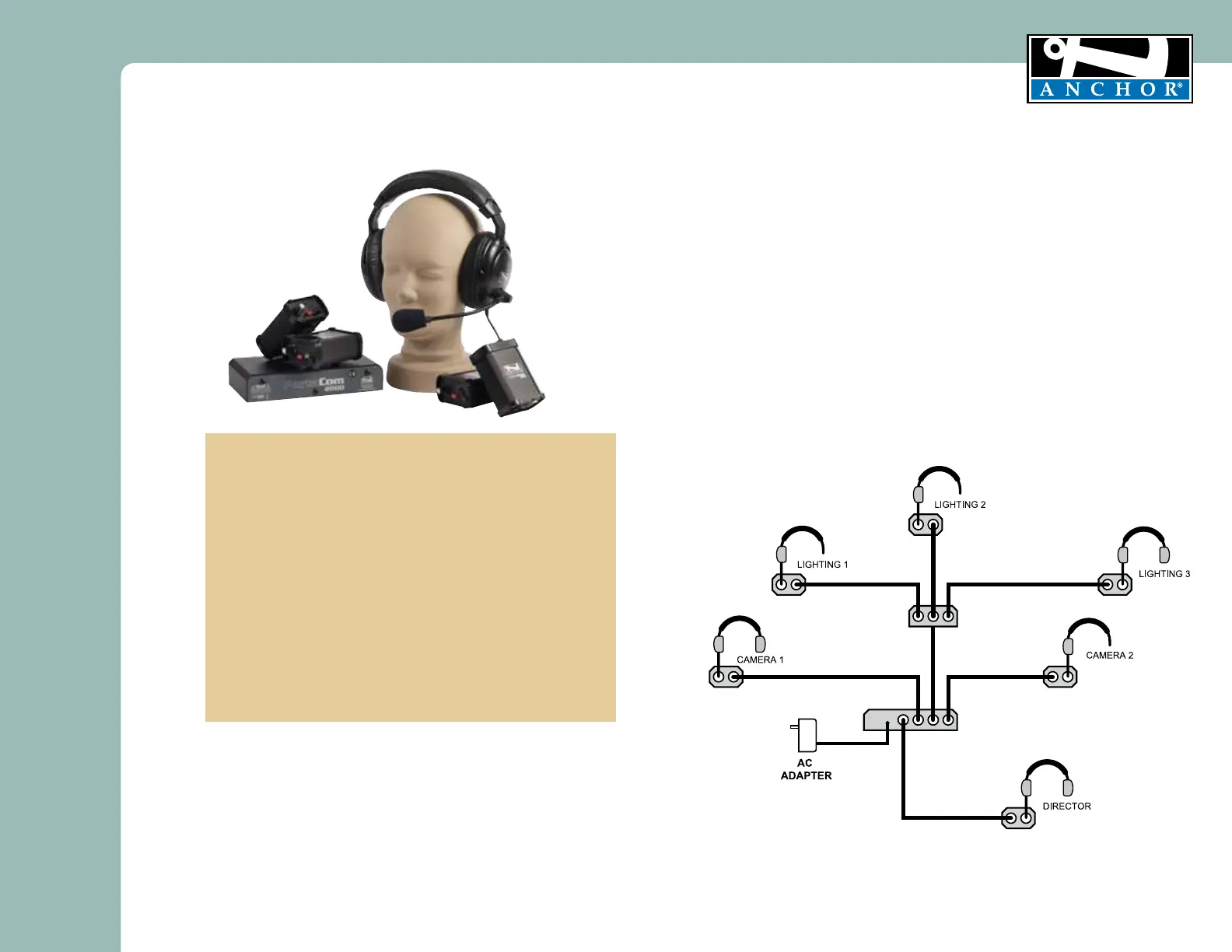

A typical 6-headset system using one B3-2000 is

illustrated here:

PC-2000

B3-2000

BASIC SYSTEM OPERATION

1. Plug headset connector into 4-pin XLR Headset Jack on belt pack

2. Plug AC adapter into standard 110V AC outlet

(230V AC export)

then into AC Input Jack on the PC-2000 Power Console

3. Connect BP-2000 Belt Packs to the Output Jacks on the PC-

2000

NOTE: Make connections w/ standard mic cables.

4. Set the PC-2000 Power Switch to “on”

5. Adjust headset boom so microphone is close to mouth

6. Adjust listening level w/ Headset Volume Control on Belt Pack

7. Use Channel Switch to select between channel A or B

NOTE: The Optional RM-100 Rackmount Allows

1 or 2 PC-2000’s To Mount In Standard Racks.
