LX
BASS PEDAL USER GUIDE
The API TranZformer
®
LX
provides unsurpassed sonic sculpting by combining a legendary API 525
“feedback” type compressor circuit with an inductor-based tone contro inspired by the vintage API 55l 3
program equalizer in a versatile and robust bass pedal/direct box with balanced and unbalanced outputs.
Features include independent tone and compression in/out footswitches, phase inverters on each output,
ground lift, clip indicator, transformer output, true hardwire bypass, and of course the classic API sound.
SIGNAL FLOW (from right to left) : Input > GAIN > COMP > TONE > Transformer Output

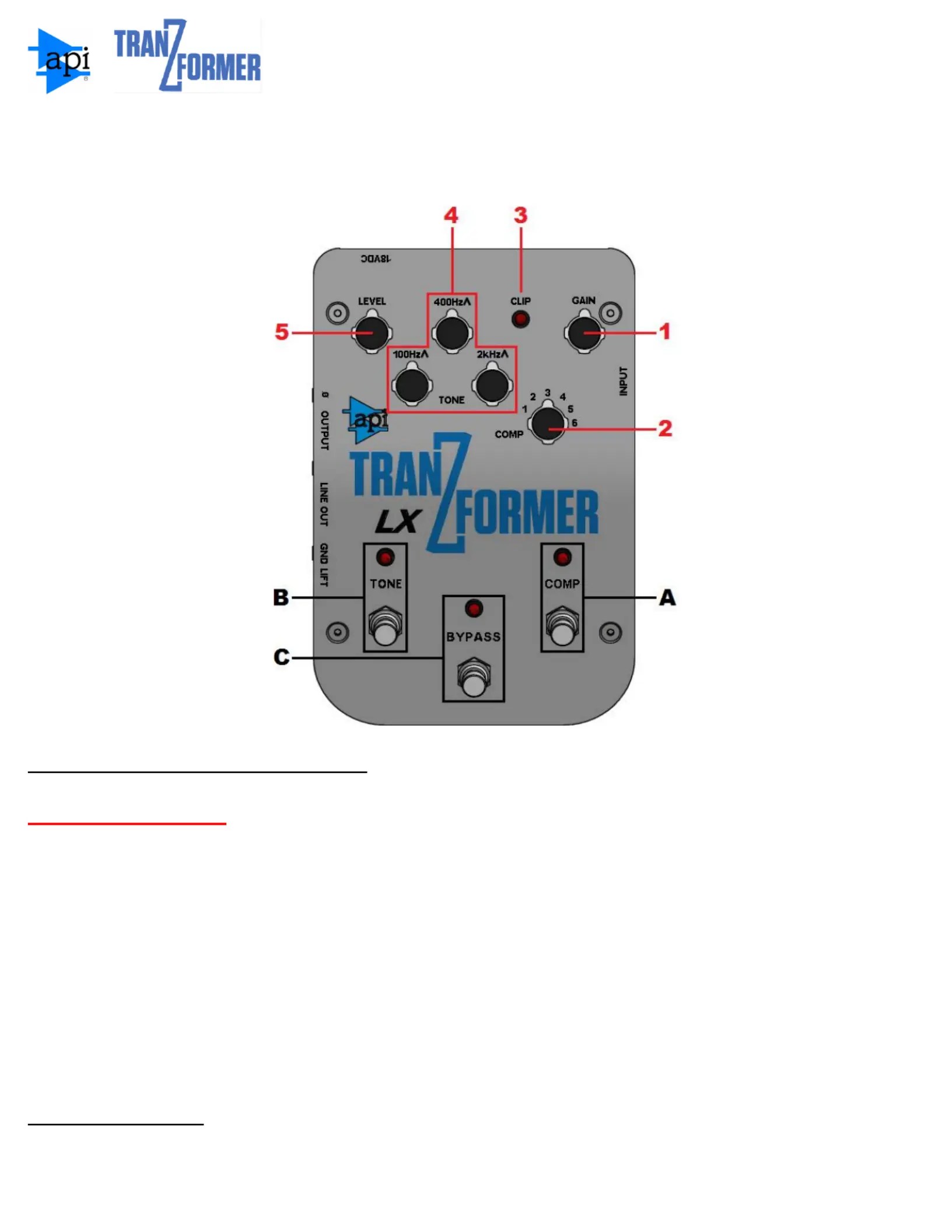

AUDIO CONTROLS
1. GAIN: Input level; +9dB to +30dB; More gain creates more compression
2. COMP (compression): Determines amount of compression (gain-reduction); Higher
numbers provide more compression (lower threshold)
3. CLIP LED: Illuminates to indicate Input Gain or Output stage (pre Level) clipping
4. TONE (equalizer): 3-band +/- dB EQ (see graph on page 2) 15
100Hz peaking EQ; low-end ( bass, bottom, depth…)
400Hz peaking EQ; mid-range (body, warmth, power…)
2kHz peaking EQ; high-end (presence, attack, articulation…)
5. Output LEVEL: -inf. to 0dB attenuator; 0db (no cut) is fully clockwise
Sets level for ¼” unbalanced output only (balanced output level is xed)
FOOTSWITCHES
A. COMP (compressor): Engage/disengage compressor; lit LED when engaged
B. TONE (equalizer) Engage/disengage equalizer; lit LED when engaged :
C. BYPASS: Hardwired unbalanced bypass; lit LED when BYPASSED
