OWNER’S MANUAL
WINDOW AIR CONDITIONER
WITH SUPPLEMENTAL ELECTRIC HEAT
MODELS 3AWH8000A, 3AWH12000A
3
IMPORTANT SAFETY INSTRUCTION ......................................................................................................... 4
INSTALLATION INSTRUCTIONS ................................................................................................................13
WHAT IS IN THE PACKAGE ......................................................................................................................................................13
BEFORE THE INSTALLATION .................................................................................................................................................13
WINDOW REQUIREMENTS ....................................................................................................................................................14
INSTALLATION OVERVIEW .....................................................................................................................................................14
OPERATION INSTRUCTIONS ......................................................................................................................20
GET TO KNOW YOUR AC .........................................................................................................................................................20
ADJUST YOUR AC DIRECTION ..............................................................................................................................................21
GET TO KNOW THE FEATURES .............................................................................................................................................22
CARE & MAINTENANCE ................................................................................................................................25
TROUBLESHOOTING .....................................................................................................................................27
TABLE OF CONTENTS
IMPORTANT NOTE:
Read the manual carefully. Make sure to save this manual for future reference. Illustrations in this manual
are for explanatory purposes only, your actual product may look slightly dierent.
5
IMPORTANT SAFETY INSTRUCTION
(Continued)
CAUTION
• When the air lter is to be removed, do not touch
the metal parts of the unit. It may cause an injury.
Ventilate the room well when used together with
a stove, etc. An oxygen shortage may occur.
• Do not use strong detergent such as wax or
thinner but use a soft cloth. Appearance may
be deteriorated due to change of product color
or scratching of its surface. Do not clean the
air conditioner with water. Water may enter the
unit and degrade the insulation. It may cause an
electric shock. Do not use for special purposes.
Do not use this air conditioner to preserve
precision devices, food, pets, plants, and art
objects. It may cause deterioration of quality, etc.
• Stop operation and close the window in
storm or hurricane. Operation with windows
opened may cause wetting of indoor and
soaking of household furniture. When the unit
is to be cleaned, switch o, and turn o the
circuit breaker.
• Do not clean unit when power is on as it may
cause re and electric shock, it may cause
an injury.
• Always insert the lters securely. It can be
caused failure if operated without lters.
Please clean lter once every two weeks.
CAUTION
• Hold the plug by the head of the power plug
when taking it out. It may cause electric shock
and damage. Turn o the main power switch
when not using the unit for a long time. It may
cause failure of product or re.
• Do not place obstacles around air-inlets or
inside of air-outlet. It may cause failure of
appliance or accident. Do not place heavy
object on the power cord and ensure that the
cord is not compressed. There is danger of
re or electric shock. Don’t drink water drained
from air conditioner. It contains contaminants
and could make you sick.
• Use caution when unpacking and installing.
Sharp edges could cause injury.
NOTE
This air conditioner is designed to be operated
under the following conditions:
Note: Performance may be reduced outside of
these operating temperatures
Cooling
operation
Outdoor temp: 64-109°F/18-43°C
Indoor temp: 62-90° F/ 17-32°C
Heating
operation
Outdoor temp: 23-76° F/ -5-24°C
Indoor temp: 32-80 °F / 0-7°C
• If water enters the unit, turn the unit o at the
power outlet and switch o the circuit breaker.
Isolate supply by taking the power-plug out and
contact a qualied service technician.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge, unless they
have been given super vision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
• If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
• The appliance shall be installed in accordance
with national wiring regulations.
• Installation must be performed in accordance
with the requirement of NEC and CEC by
authorized personnel only. Do not operate
your air conditioner in a wet room such as a
bathroom or laundry room.
• The appliance with electric heater shall have
at least 3 ft. (1 m) space to the combustible
materials.
• Contact the authorized service technician for
repair or maintenance of this unit.
• Contact the authorized installer for installation
of this unit.
6
IMPORTANT SAFETY INSTRUCTION
(Continued)

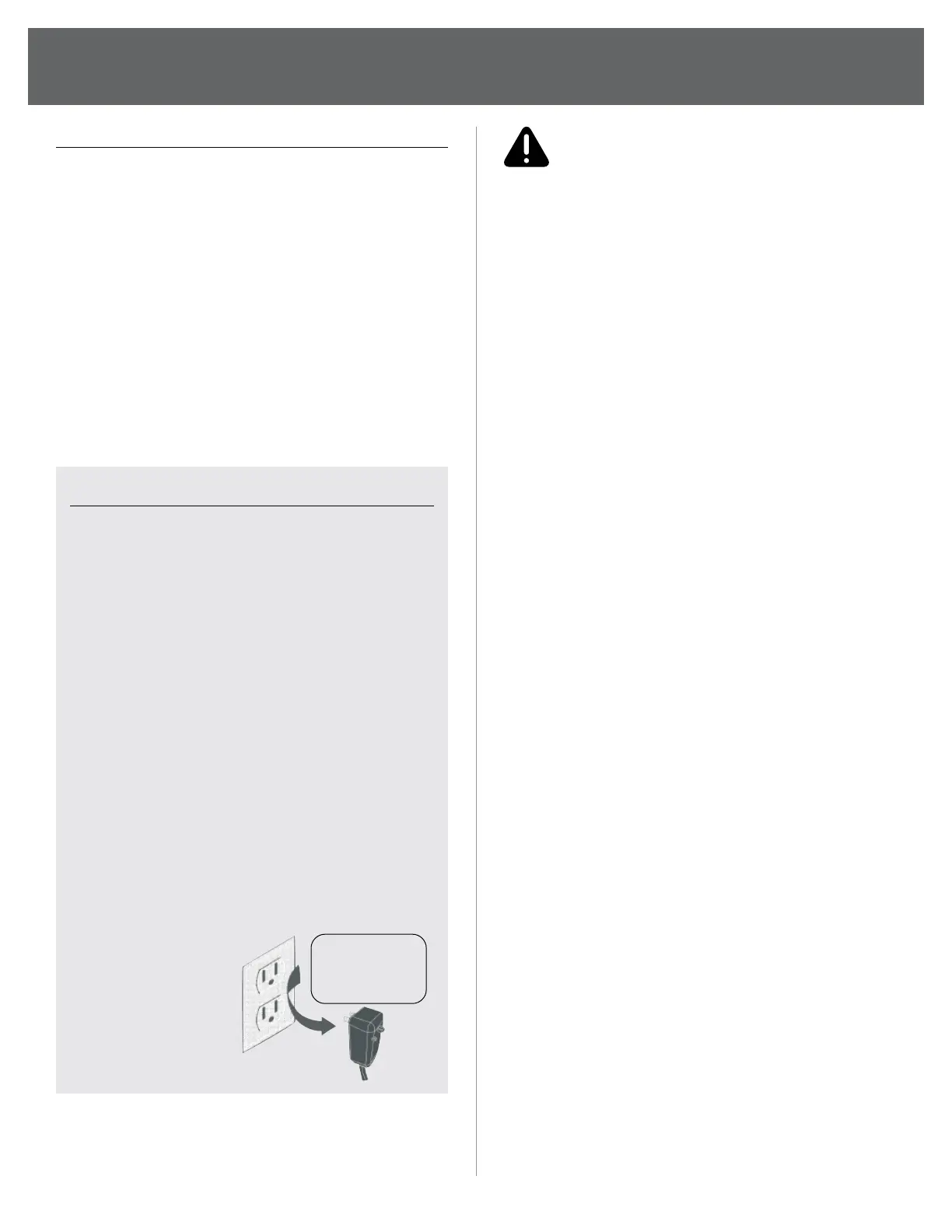

OPERATION OF CURRENT DEVICE
The power supply cord contains a current device
that senses damage to the power cord. To test
your power supply cord do the following:
• Plug in the Air Conditioner.
• The power supply cord will have TWO buttons
on the plug head. Press the TEST button, you
will notice a click as the RESET button pops out.
• Press the RESET button again, you will notice a
click as the button engages.
• The power supply cord is now supplying
electricity to the unit. (On some products this
is also indicated by a light on the plug head).
WARNING
ELECTRICAL INFORMATION
The complete electrical rating of your new room
air conditioner is stated on the serial plate.
Refer to the rating when checking the electrical
requirements.
• Be sure the air conditioner is properly
grounded. To minimize shock and re hazards,
proper grounding is important. The power cord
is equipped with a three-prong grounding plug
for protection against shock hazards.
• Your air conditioner must be used in a properly
grounded wall receptacle. If the wall receptacle
you intend to use is not adequately grounded or
protected by a time delay fuse or circuit breaker,
have a qualied electrician install the proper
receptacle.
• Ensure the receptacle is accessible after the
unit installation.
• Do not run air conditioner without side
protective cover in place. This could result in
mechanical damage within the air conditioner.
• Do not use an extension cord or an adapter
plug.
Avoid re hazard or electric shock. Do not use an
extension cord or an adapter plug. Do not remove
any prongs from the power cord.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
PREVENT ACCIDENTS
To reduce the risk of re, electrical shock, or injury
to persons when using your air conditioner, follow
basic precautions, including the following:
• Be sure the electrical service is adequate for the
model you have chosen. This information can
be found on the serial plate, which is located on
the side of the cabinet and behind the grille.
• If the air conditioner is to be installed in a
window, you will probably want to clean
both sides of the glass rst. If the window
is a triple track type and has a screen panel
included, remove the screen completely
before installation.
NOTE
• The power supply cord with this air
conditioner contains a current detection
device designed to reduce the risk of re.
In the event that the power cord is damaged,
it cannot be repaired – it must be replaced
with a cord from the product manufacturer.
• Do not use this device to turn the unit on
or o.
• Always make sure the RESET button is
pushed in for correct operation.
• The power supply cord must be replaced if
it fails to reset when either the TEST button
is pushed or if it cannot be reset.
• A new one can be obtained from the
product manufacturer.
• If power supply cord is damaged, it cannot
be repaired. It MUST be replaced by one
obtained from the product manufacturer.
Grounding type
wall receptacle
Power supply cord
with 3-prong
grounding plug
and current
detection device.
Do not, under any
circumstances, cut,
remove, or bypass the
grounding prongs.
9
IMPORTANT SAFETY INSTRUCTION
WARNING
For using R32 refrigerant
shall be available to hand. Have a dry powder
or CO2 re extinguisher adjacent to the
charging area.
6. No ignition sources: No person carrying out
work in relation to a refrigeration system which
involves exposing any pipe work that contains
or has contained ammable refrigerant shall
use any sources of ignition in such a manner
that it may lead to the risk of re or explosion.
All possible ignition sources, including
cigarette smoking, should be kept suciently
far away from the site of installation, repairing,
removing and disposal, during which
ammable refrigerant can possibly be released
to the surrounding space. Prior to work taking
place, the area around the equipment is to
be surveyed to make sure that there are
no ammable hazards or ignition risks. No
Smoking signs shall be displayed.
7. Ventilated area: Ensure that the area is in the
open or that it is adequately ventilated before
breaking into the system or conducting any
hot work. A degree of ventilation shall continue
during the period that the work is carried out.
The ventilation should safely disperse any
released refrigerant and preferably expel it
externally into the atmosphere.
8. Checks to the refrigeration equipment:
Where electrical components are being
changed, they shall be t for the purpose
and to the correct specication. At all times
the manufacturer’s maintenance and service
guidelines shall be followed. If in doubt consult
the manufacturer’s technical department for
assistance.
The following checks shall be applied to
installations using ammable refrigerants:
• The charge size is in accordance with the
room size within which the refrigerant
containing parts are installed.
• The ventilation machinery and outlets are
operating adequately and are not obstructed.
• If an indirect refrigerating circuit is being
used, the secondary circuit shall be checked
for the presence of refrigerant.
• Marking to the equipment continues to be
visible and legible. Markings and signs that
are illegible should be corrected.
• Refrigeration pipe or components are
installed in a position where they are unlikely
to be exposed to any substance which may
corrode refrigerant containing components,
unless the components are constructed of
materials which are inherently resistant to
being corroded or are suitably protected
against being so corroded.
9. Checks to electrical devices:
• Repair and maintenance to electrical
components should include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical supply
shall be connected to the circuit until it is
satisfactorily dealt with. If the fault cannot be
corrected immediately but it is necessary to
continue operation, an adequate temporary
solution should be used. This should be
reported to the owner of the equipment, so
all parties are advised.
• Initial safety checks should include:
• That capacitors are discharged: this
shall be done in a safe manner to avoid
possibility of sparking.
• That there no live electrical components
and wiring are exposed while charging,
recovering or purging the system.
• That there is continuity of earth bonding.
SEALED ELECTRICAL COMPONENTS
SHALL BE REPLACED
1. During repairs to sealed components, all
electrical supplies shall be disconnected
from the equipment being worked upon prior
to any removal of sealed covers, etc. If it is
absolutely necessary to have an electrical
supply to equipment during servicing, then a
permanently operating form of leak detection
shall be located at the most critical point to
warn of a potentially hazardous situation.
2. Particular attention shall be paid to the
following to ensure that by working on
electrical components, the casing is not
altered in such a way that the level of
protection is aected. This shall include
(Continued)
16
INSTALLATION INSTRUCTIONS
(Continued)
4. Fasten the panels to the AC.
RIGHT
LEFT
Stretch the wind screen outward and insert the
upper and lower frame strips of the Panels into
the AC card slot.
5. The AC unit is done.
RIGHT
LEFT
A
A
C C
B
A
A
Before you rush to the next installation phase,
please rst conrm the following installation is
in place:
The upper and lower frame strips of the
Panels into the AC card slot.
Top Rail on the AC with 4 Screws.
Insert the card slot on the side of the AC.
STEP 2
INSULATE YOUR WINDOW
What you need:
Cut the seal foam to the width of your window,
and stick it of the underside.
You should cut the foam to be the width of
your window from the left to the right side. Make
sure you’re cutting the foam with the adhesive, and
stick it to the underside of the window sash.
If your window already has a liner or insulationstrip,
you can skip the above step.
Produkspesifikasjoner
| Merke: | ARCTIC WIND |
| Kategori: | Air condition |
| Modell: | 3AWH12000A |
Trenger du hjelp?
Hvis du trenger hjelp med ARCTIC WIND 3AWH12000A still et spørsmål nedenfor, og andre brukere vil svare deg
Air condition ARCTIC WIND Manualer
5 Mars 2025
6 Januar 2025
6 Januar 2025
6 Januar 2025
5 Januar 2025
5 Januar 2025
5 Januar 2025
5 Januar 2025
5 Januar 2025
5 Januar 2025
Air condition Manualer
- Air condition Thomson
- Air condition Amana
- Air condition Whirlpool
- Air condition Haier
- Air condition NewAir
- Air condition LG
- Air condition Bosch
- Air condition BEKO
- Air condition Hisense
- Air condition Koldfront
- Air condition Arcelik
- Air condition Danby
- Air condition Gree
- Air condition TCL
- Air condition Hotpoint
- Air condition Cecotec
- Air condition Samsung
- Air condition Noveen
- Air condition Delonghi
- Air condition Comfee
- Air condition Kogan
- Air condition SereneLife
- Air condition Create
- Air condition Furrion
- Air condition Midea
- Air condition Sauber
- Air condition Candy
- Air condition Carson
- Air condition Orbegozo
- Air condition Panasonic
- Air condition Olimpia Splendid
- Air condition Vox
- Air condition Westinghouse
- Air condition Sencor
- Air condition Electroline
- Air condition Fujitsu
- Air condition Orava
- Air condition Mistral
- Air condition Khind
- Air condition CyberPower
- Air condition Frigidaire
- Air condition Dimplex
- Air condition Bimar
- Air condition Whynter
- Air condition GE
- Air condition Hitachi
- Air condition Hyundai
- Air condition VänEE
- Air condition Ausclimate
- Air condition Infiniton
- Air condition Ufesa
- Air condition Lavorwash
- Air condition Omega Altise
- Air condition Daikin
- Air condition Be Cool
- Air condition Blaupunkt
- Air condition Einhell
- Air condition Avidsen
- Air condition Mitsubishi
- Air condition Friedrich
- Air condition Tristar
- Air condition Dometic
- Air condition Eldom
- Air condition Elba
- Air condition Philco
- Air condition REMKO
- Air condition Vivax
- Air condition Black And Decker
- Air condition Ozito
- Air condition Toshiba
- Air condition Wilfa
- Air condition Heinner
- Air condition SEEGER
- Air condition Meireles
- Air condition IFB
- Air condition Profilo
- Air condition Middle Atlantic
- Air condition Duracraft
- Air condition Home Electric
- Air condition Milectric
- Air condition LERAN
- Air condition Perfect Aire
- Air condition Argoclima
- Air condition Svan
- Air condition Trisa
- Air condition Daizuki
- Air condition Mayer
- Air condition HTW
- Air condition Be Quiet!
- Air condition Emerson
- Air condition Broan
- Air condition BOSFOR
- Air condition KDK
- Air condition Aconatic
- Air condition AireMax
- Air condition Profile
- Air condition Keystone
- Air condition Honeywell
- Air condition Theben
- Air condition Carrier
- Air condition Ravanson
- Air condition Yamazen
- Air condition ActronAir
- Air condition Orima
- Air condition Woods
- Air condition Aspes
- Air condition Soler & Palau
- Air condition Bavaria
- Air condition Dantherm
- Air condition Sôlt
- Air condition Daitsu
- Air condition Fuave
- Air condition Proklima
- Air condition Universal Blue
- Air condition Rinnai
- Air condition Symphony
- Air condition Kelvinator
- Air condition Premium
- Air condition Corona
- Air condition Krone
- Air condition Royal Sovereign
- Air condition Gutfels
- Air condition Duux
- Air condition GoldAir
- Air condition Heller
- Air condition Teco
- Air condition Magnavox
- Air condition SHE
- Air condition Cool-Space
- Air condition KuulAire
- Air condition BLUEPALM
- Air condition Essentiel B
- Air condition BISWIND
- Air condition Igenix
- Air condition Fuji Electric
- Air condition Sheffield
- Air condition General
- Air condition Hoffman
Nyeste Air condition Manualer
10 April 2025
10 April 2025
10 April 2025
10 April 2025
10 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
