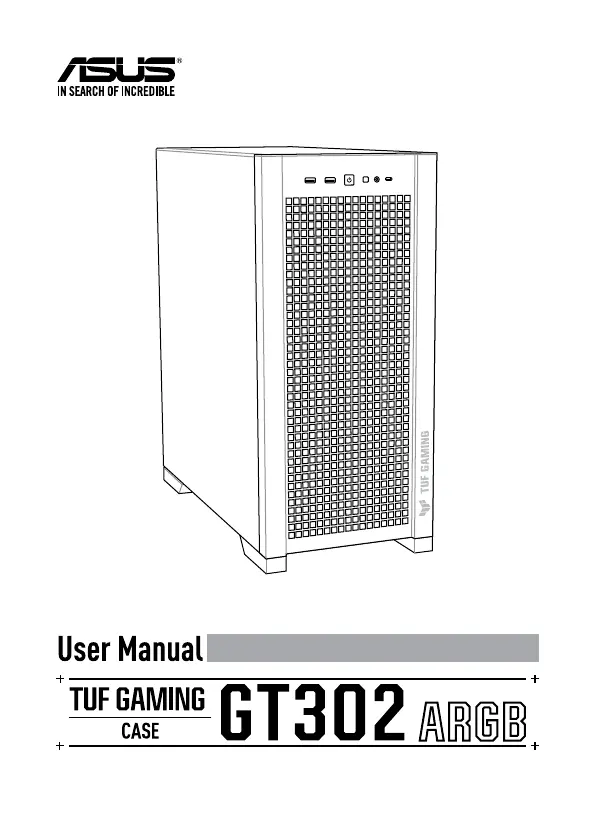

Side 1/42

Q22967

First Edition

January 2024

No part of this manual, including the products and software described in it, may be reproduced, transmitted,

transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the express written permission of

ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such

repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is

defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR

AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING

DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE

ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES

THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identification or explanation and to the owners’

benefit, without intent to infringe.

Accessory Kit Contents 2

Installation Guide 3

Remove the Side Panels ............................................................................................................... 4

Install the Power Supply Unit (PSU) ......................................................................................... 6

Install the Cooler & RAM on the Motherboard .................................................................... 7

Install the I/O Shield ...................................................................................................................... 8

Install the Motherboard Unit ..................................................................................................... 9

Attach the Front I/O Connectors .............................................................................................. 13

Install the PCI-E Card ..................................................................................................................... 14

Install the 2.5” Drives ..................................................................................................................... 15

Install the 3.5” / 2.5” Drives .......................................................................................................... 17

Installation and Maintenance of the Dust Filters ................................................................ 19

Additional Information 21

CPU Cooler Height Limitation ................................................................................................... 22

Graphics Card Limitation ............................................................................................................. 23

Graphics Card Placement Options ........................................................................................... 24

Fan Setup Compatibility .............................................................................................................. 27

Water-cooling Radiator Options ............................................................................................... 31

Water-cooling Setup Compatibility ......................................................................................... 32

Safety Information 34

Contents

Produkspesifikasjoner

Merke:	Asus
Kategori:	dataeske
Modell:	TUF Gaming GT302 ARGB
Vekt:	11500 g
Bredde:	235 mm
Dybde:	485 mm
Høyde:	520 mm
Pakkevekt:	13800 g
Kombinert hodetelefon/mikrofonport:	Ja
Støttede HDD-størrelser:	2.5, 3.5 "
Antall utvidelsesspor:	8
Antall USB Type-C-porter:	1
Produktfarge:	Sort
Pakkedybde:	309 mm
Pakkehøyde:	598 mm
Pakkebredde:	592 mm
Formfaktor:	Midi Tower
Modell/Type:	PC
Belysning:	Ja
Belysningsfarge:	Multi
Støttet systemdisk formfaktorer:	EATX, ATX, Micro ATX, Mini-ITX
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter:	2
Antall 3.5" bays:	2
Antall 2.5" bays:	2
Herdet glasspanel/herdede glasspaneler:	Ja
Forbedret kabelføring:	Ja
Av/på-knapp:	Ja
Maksimal høyde CPU-kjøler:	165 mm
Maksimal lengde grafikkort:	407 mm
Maksimal lengde PSU:	220 mm
Frontvifte installert:	3x 140 mm
Maksimale frontvifter:	3
Frontviftediameter som støttes:	140 mm
Antall bakvifter som støttes (maks.):	1
Bakre viftediametere som støttes:	120,140 mm
Antall toppvifter som støttes (maks.):	3
Toppviftediametere som støttes:	120,140 mm
Støttede radiatorstørrelser foran:	140,280 mm
Støttede radiatorstørrelser bak:	120,140 mm
Støttede radiatorstørrelser øverst:	120,140,240,280,360 mm
Bakre vifter installert:	1x 140 mm
Antistøvfilter:	Ja
Pulsbreddemodulerings- støtte (PWM):	Ja
