Side 1/4

Lift Mechanism

Keyboard Tray

Keyboard PanelWork Surface

Support

Bracket

Clamp Plate

Keyboard Bracket

Clamp

Bracket

Pressure

Plate

G H I

Spacer (x2)

Large Allen Key Small Allen Key Clamp Screw (x2) M6X8 (x10)

M6X12 (x10)M6X10 (x2) M6X35 (x2)

J K L M

ON P Q

Hardware

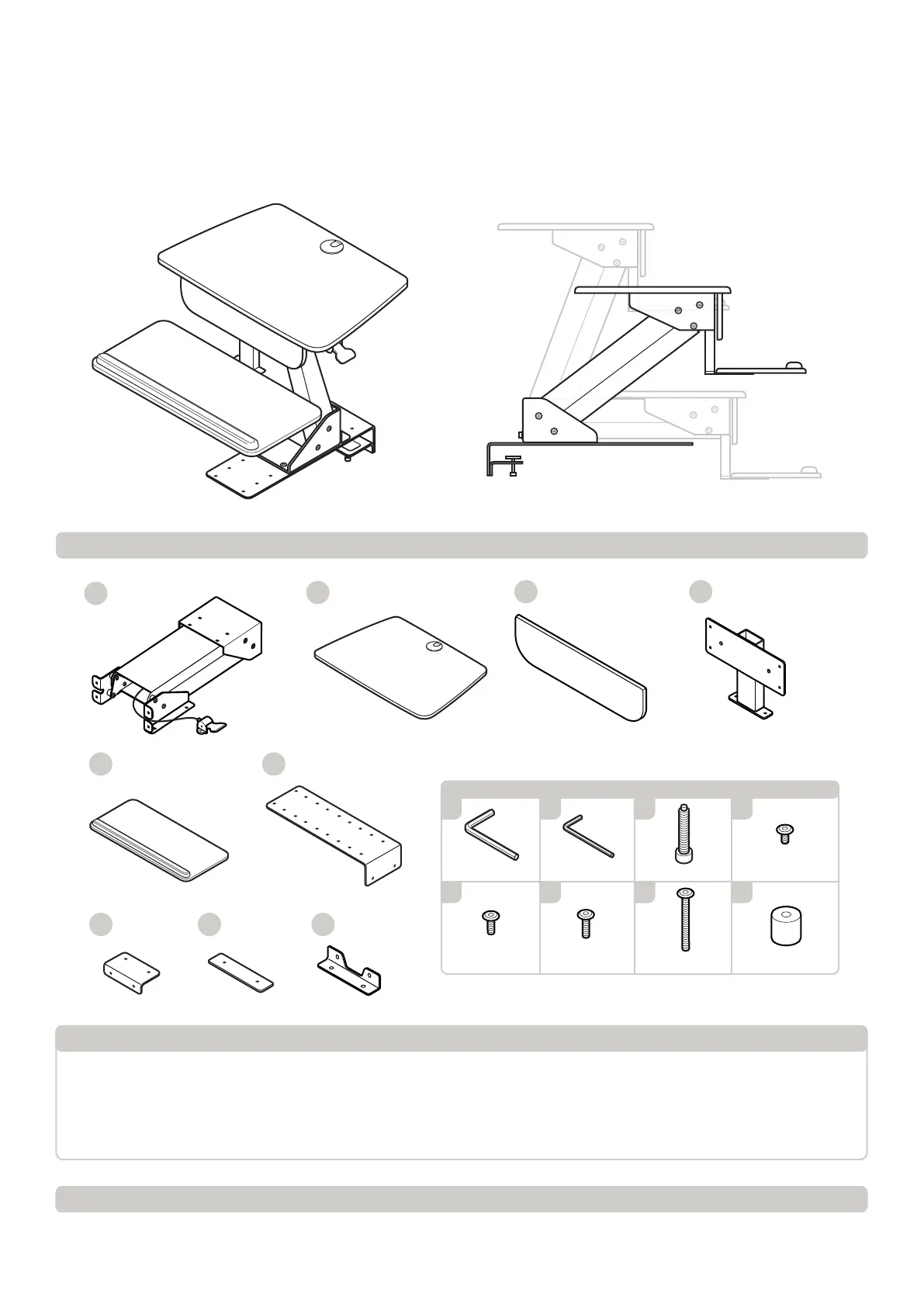

Installation Instructions

Sit-to-Stand Workstation

Desk Clamp

Step 1. Check components

Component Checklist

A-STSCB

IMPORTANT INFORMATION

! IMPORTANT - Install as per Installation Instructions

! This product is compatible with Visidec

Focus and SYSTEMA

monitor mounts.

! This product supports a total maximum load of 28.6lbs (13 Kg ).

! The manufacturer accepts no responsibility for incorrect installation.

! Ensure any required electrical/data cables have sufﬁcient length to accommodate the sit-to-stand workstation’s movement.

Check that you have received all parts against the Component Checklist.

Option 1

For desk thickness

less than 1.57” (40mm)

Option 2

For desk thickness

1.57” - 2.95” (40 - 75mm)

0 - 1.57”

1.57” - 2.95”

Desktop

Tighten

Firmly

Slide Clamp

onto rear edge

of desktop and

tighten the two

clamp screws

evenly.

Attach the clamp

screws and plate to

the clamp bracket

4.2

4.3

4.1

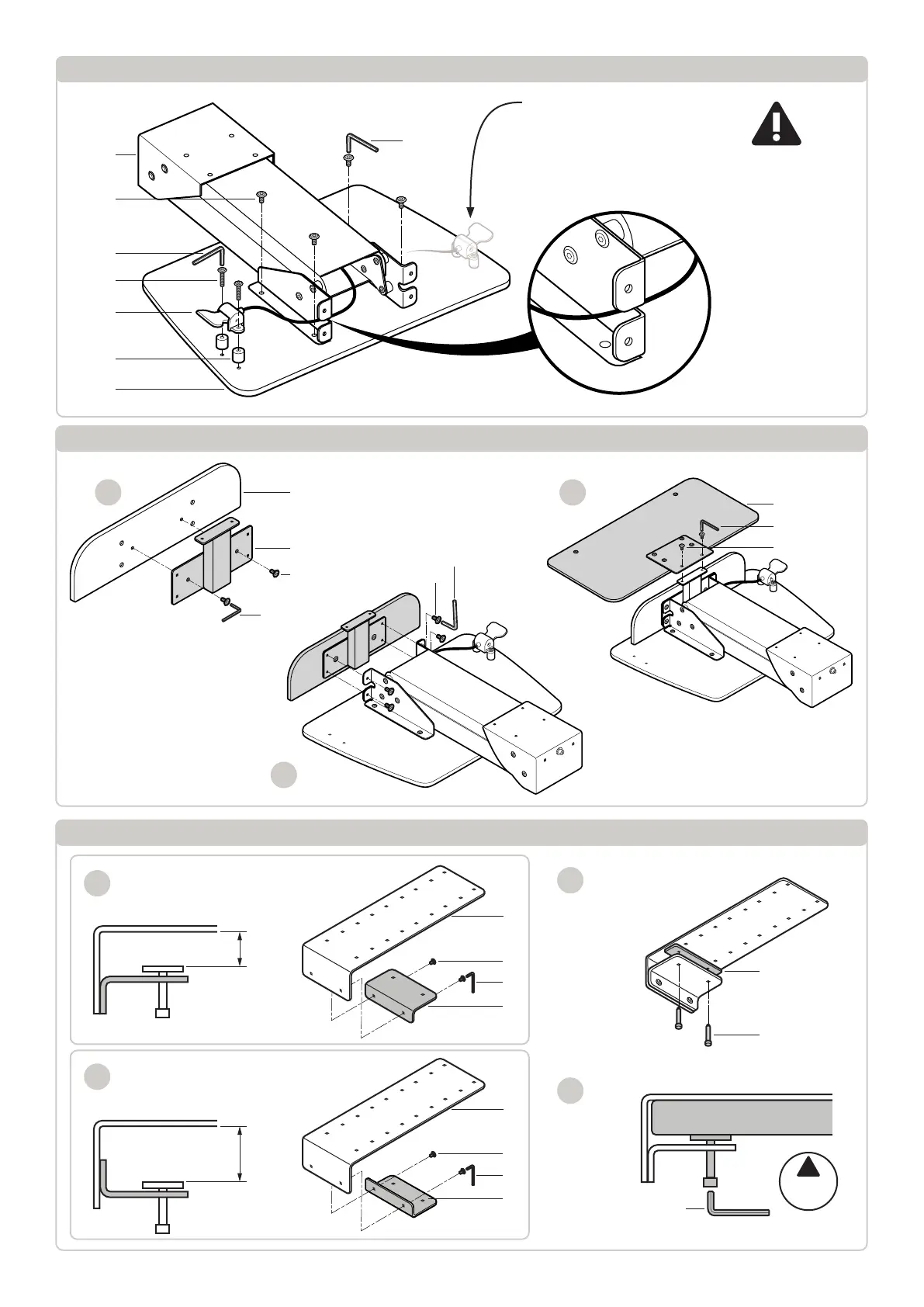

Step 4. Assemble Clamp

Step 2. Attach lift mechanism to work surface

Step 3. Attach keyboard bracket and tray

Lift Paddle

Alternate Position

The lift paddle can be

attached on the left or

right side of the work

station.

Cable Routing

Route the lift

paddle cable

through the slot in

the plates on the

lift mechanism (A)

3.1

3.2

3.3

Lift

Paddle

Caution

Avoid pressing

the lift paddle

until Step 5.

Produkspesifikasjoner

Merke:	Atdec
Kategori:	pult
Modell:	A-STSCB
Antall skjermer som støttes:	1
Høydejustering:	Ja
Produktfarge:	Sort
Montasjetype:	Bord
Maksimalvekt (kapasitet):	12 kg
